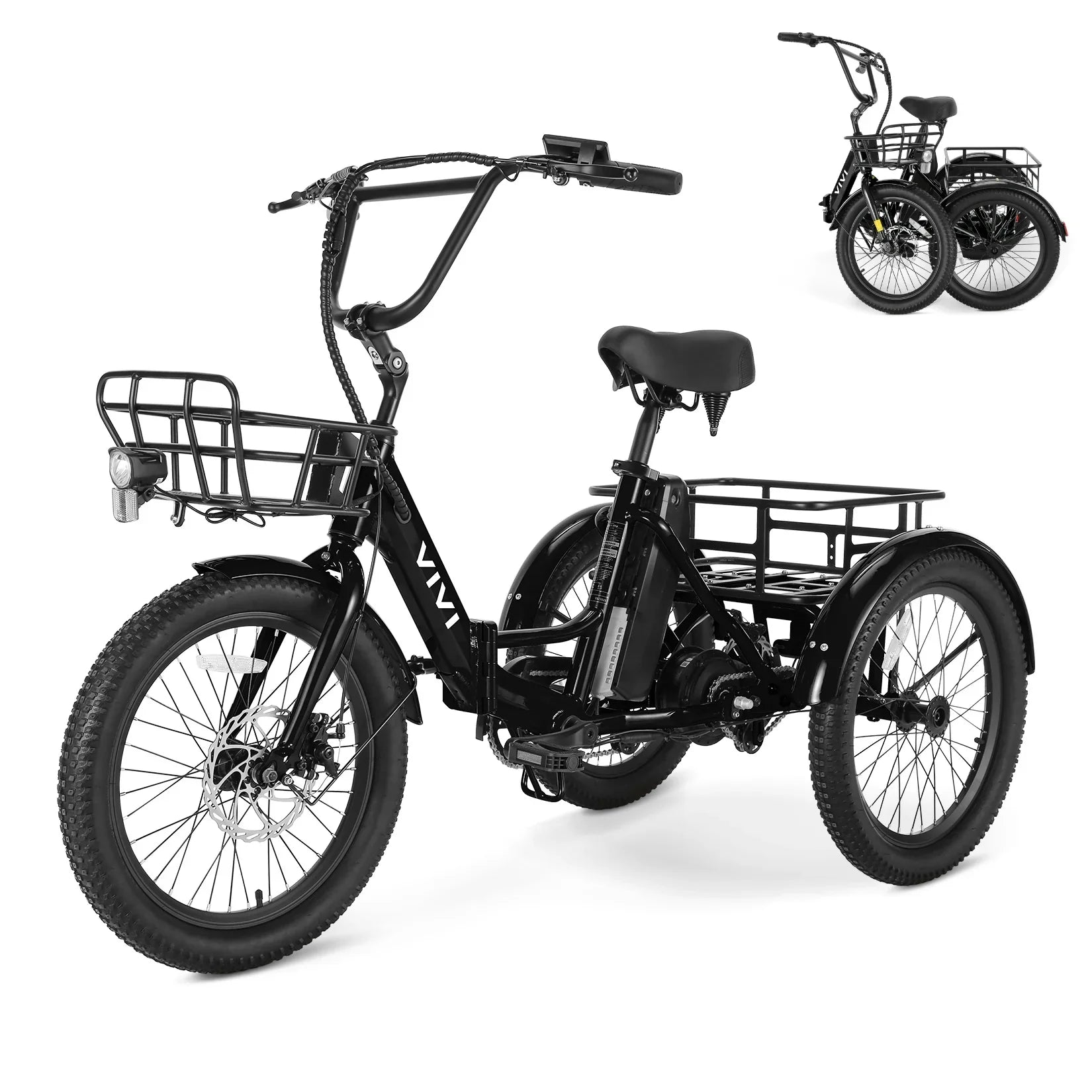

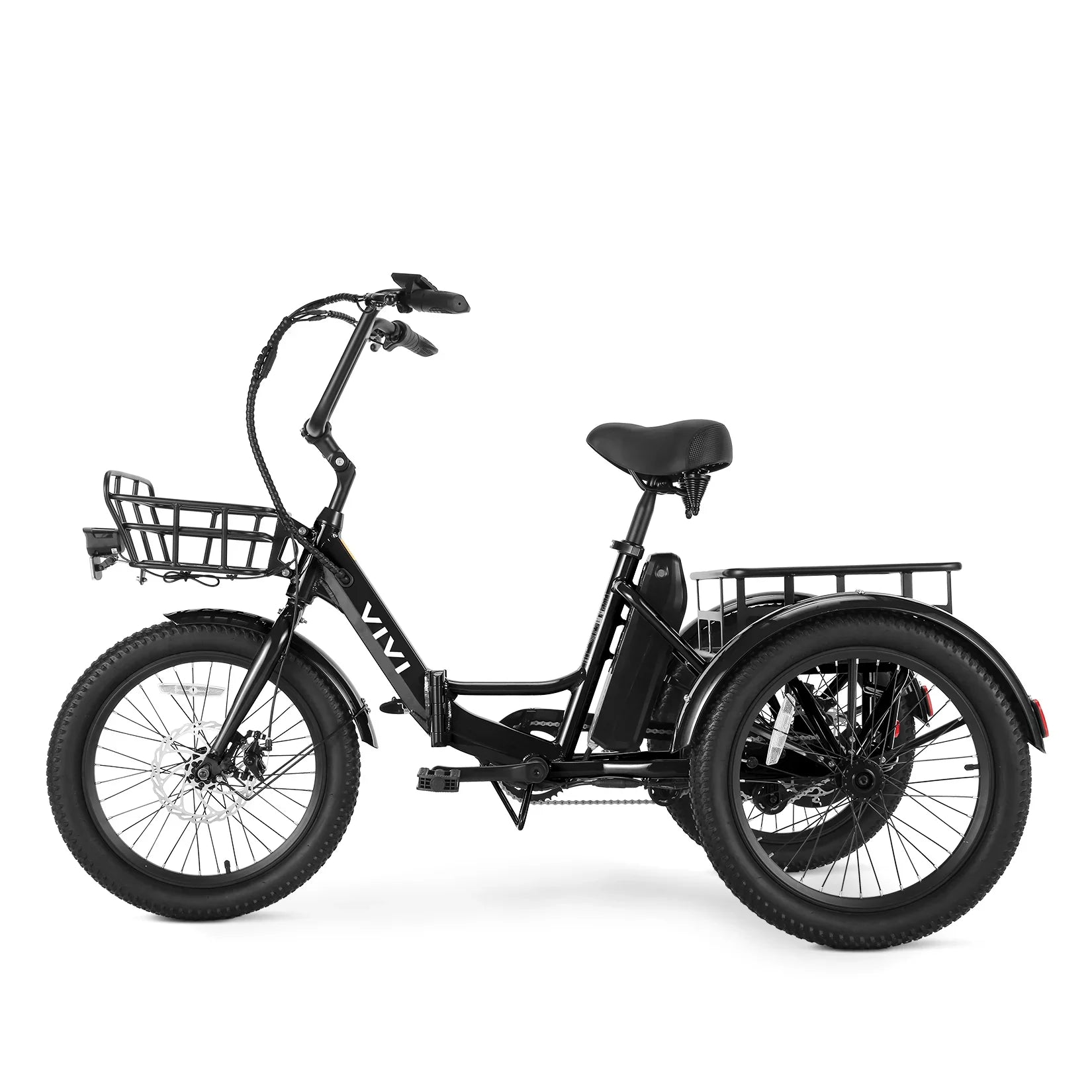

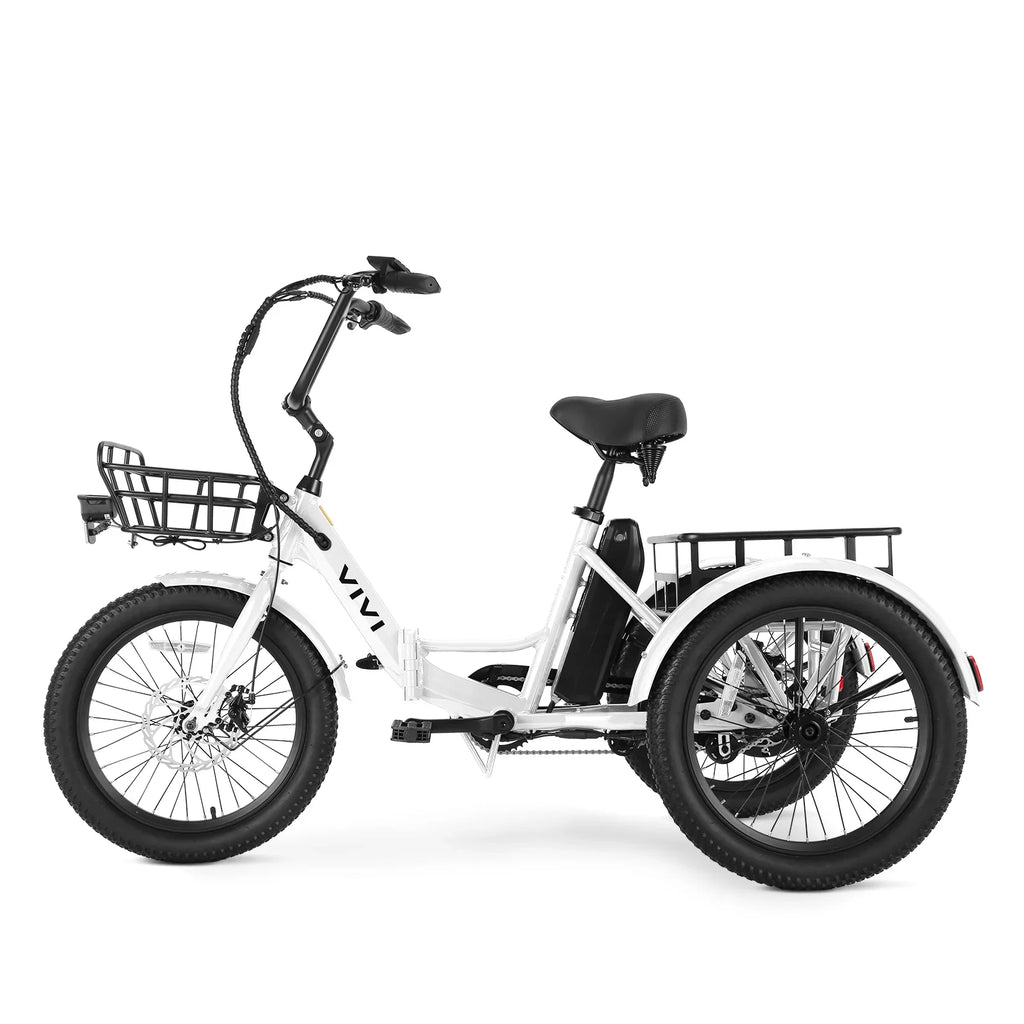

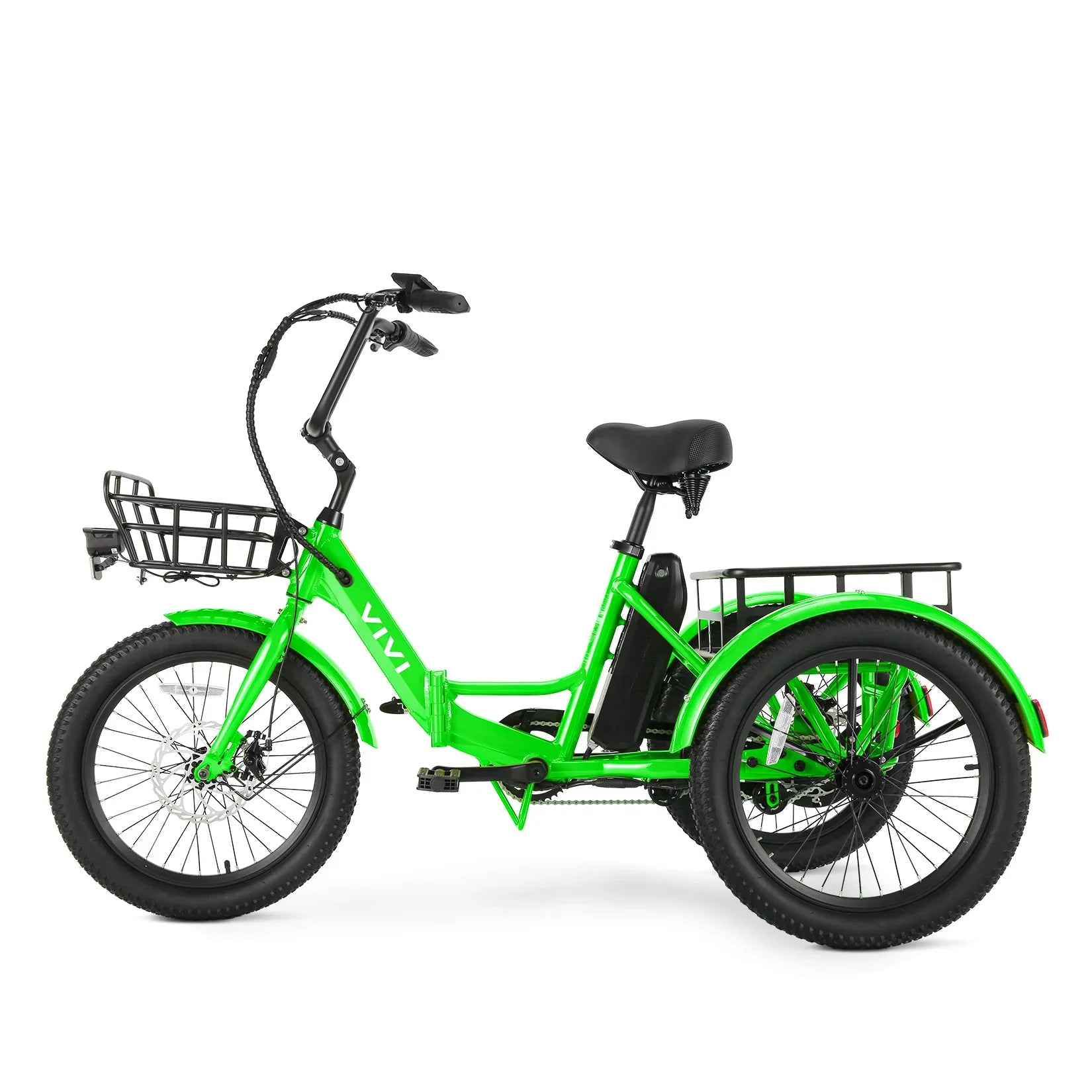

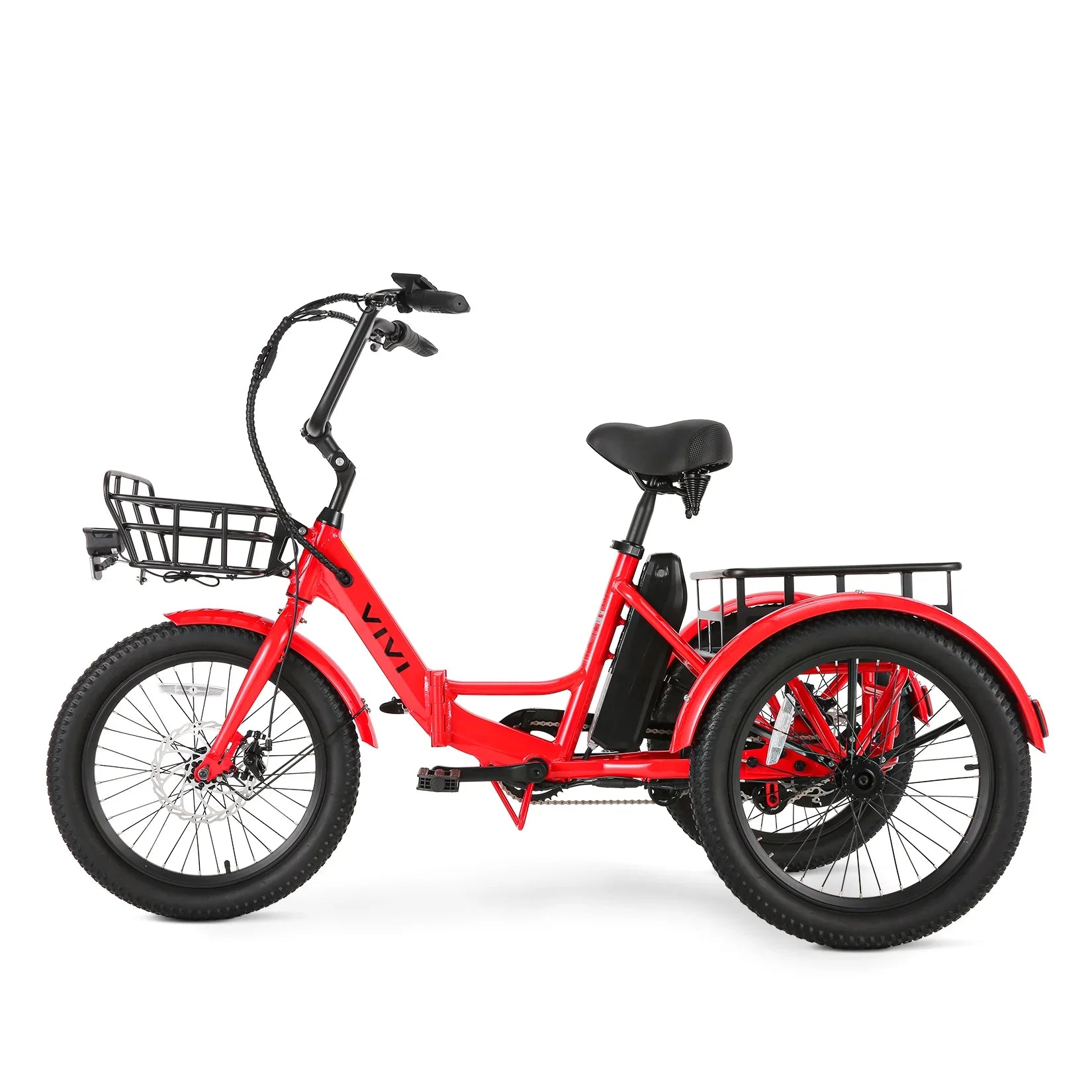

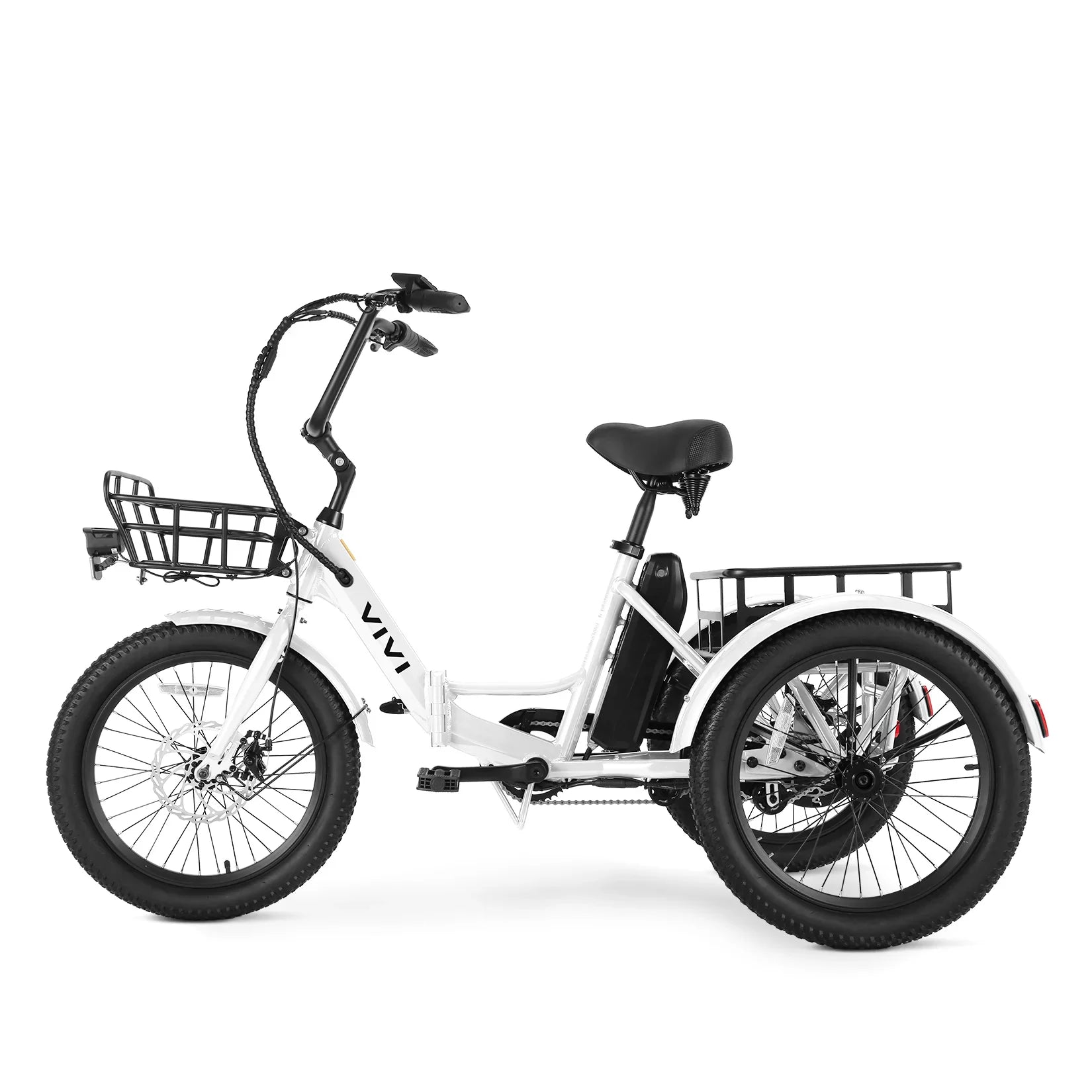

Vivi T01 | Cargo Electric Trike
Vivi T01 provides riders with a safe, convenient, stable and ample cargo space electric trike
Pago y seguridad
Descripción
Triciclo eléctrico para adultos VIVI: cómodo, práctico y fácil de transportar. Ya sea para hacer recados, comprar alimentos o disfrutar de un paseo tranquilo por el barrio, el triciclo eléctrico Vivi se adapta a tu estilo de vida. La espaciosa cesta trasera, los controles intuitivos y la cómoda posición de conducción hacen que cada viaje sea agradable y sin esfuerzo. Es más que un simple transporte: ¡es tu aliado para mantener un estilo de vida activo e independiente!
- Potente motor de tracción trasera de 500 W (750 W pico), par de 75 Nm
- Batería de iones de litio extraíble de 48 V, 10,4 Ah y 499,2 Wh
- Material de aleación de aluminio 6061 y estructura plegable.
- Mecanismo diferencial de velocidad y freno de estacionamiento
- Asistencia de pedaleo inteligente de 5 niveles y pantalla LCD digital
- Sillín ancho y grueso con sistema de absorción de impactos.
- Luces delanteras y traseras brillantes
- Amplio espacio de almacenamiento y gran capacidad de carga.
- El modo de asistencia para caminar es más adecuado para mujeres y ancianos.
- 95% preinstalado, fácil de instalar en 5 minutos

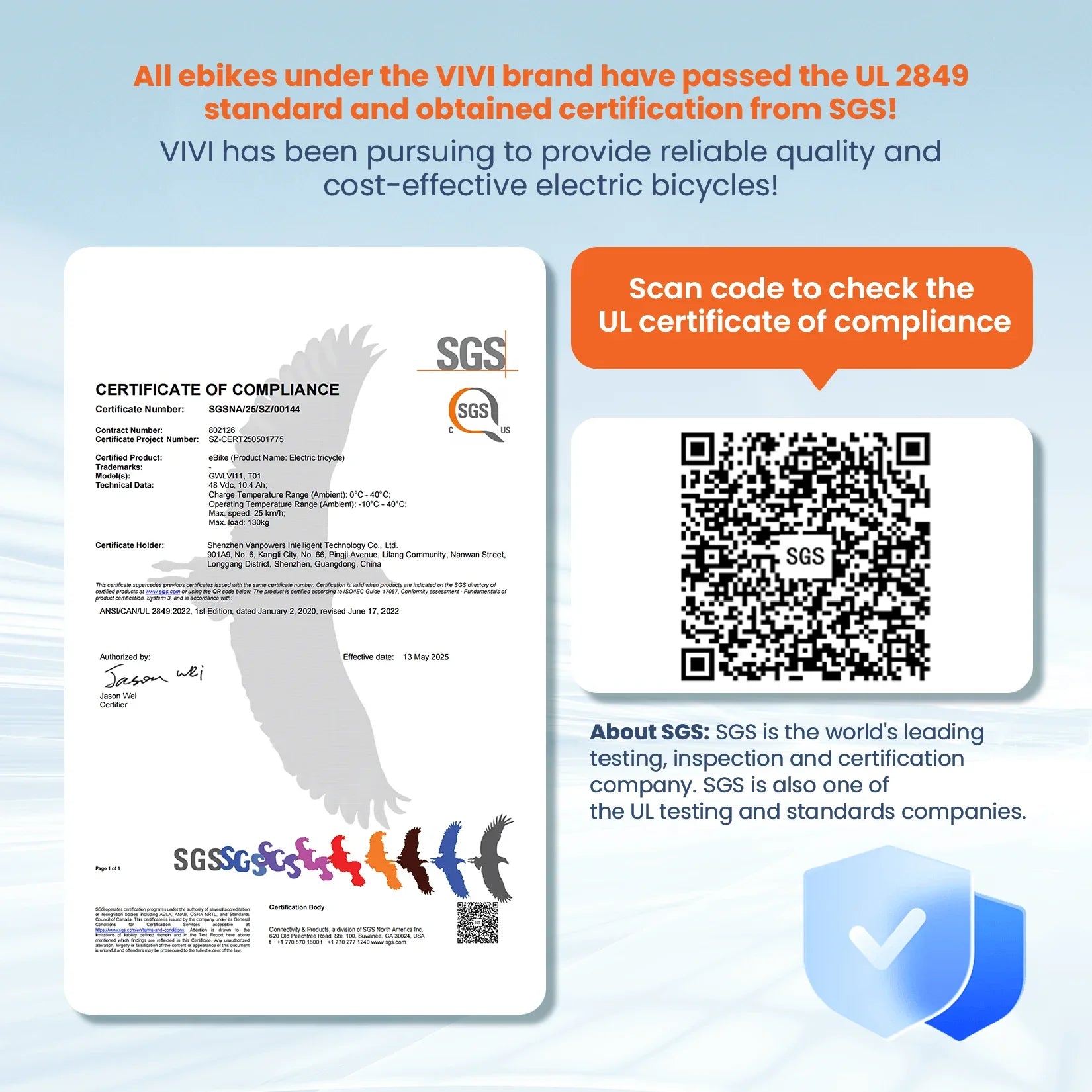

- Certificación SGS según los estándares de seguridad UL2849 y UL2271
Perfect For Daily Commuting and Cargo Hauling
Motor Power
500W
Battery
48V 10.4Ah
Charging Time
4-5 Hours
Range
55 Miles
Max Speed
15 .5MPH
Max Capacity
285 Lbs
Performance
Model
T01 / GWLVI11
Color
Black / White / Green / Red
E-bike Class
2
IP Level
IPX5
Regular Speed
16km/h 10MPH
Max Speed
25km/h 15.5MPH
Max Range
65-88km / 40-55 miles
Ebike Range
35-45km / 22-28 miles
PAS Range
65-88km / 40-55 miles
Speed Mode
Low / Mid / High
Bicycle Weight
37.5kg / 83bs
Load Capacity
130kg / 285Ibs
Ebike Size
164x77x111cm / 65x30x44 inches
Package Weight
43kg / 95 lbs
Rider Heights
155-195cm / 5'2"-6'5"
Rider Age
16+
Folding
Yes
Rear Basket
Integrated, Iron, Carrying 68kg/150lbs
Riding Mode
Throttle / Pedal Assist / Normal Bike / Cruise Control / Walking Assist
Certification
SGS | UL 2849/2271
GCC | CPSC 1512
Electronics
Motor
500W 48V Brushless Hub Motor, 75Nm
Battery
48V 10.4Ah 499.2Wh Lithium-ion Battery
Controller
48V 24A Brushless Motor Controller
Display
👍48V Intelligent Digital LCD Display
Charger
US Plug 54.6V 2A Smart Charger
Charging Time
4-5 Hours
Pedal Assist
👍Intelligent 5 Level Pedal Assist
Sensor
12 Magnet Cadence Speed Sensor
Throttle
Half Twist Throttle+Thumb Throttle
Bell/Horn
Integrated Handlebar Bell
Front Light
48V Integrated LED Headlight
Tail Light
48V DC Integrated LED Turn Signal
Wiring
Waterproof Integration Cable
USB Ports
Without
Components
Frame
6061 Aluminum Alloy
Frame Type
Step-Through
Fork
Aluminum, Φ28.6×538mm, 100mm Travel
Suspension

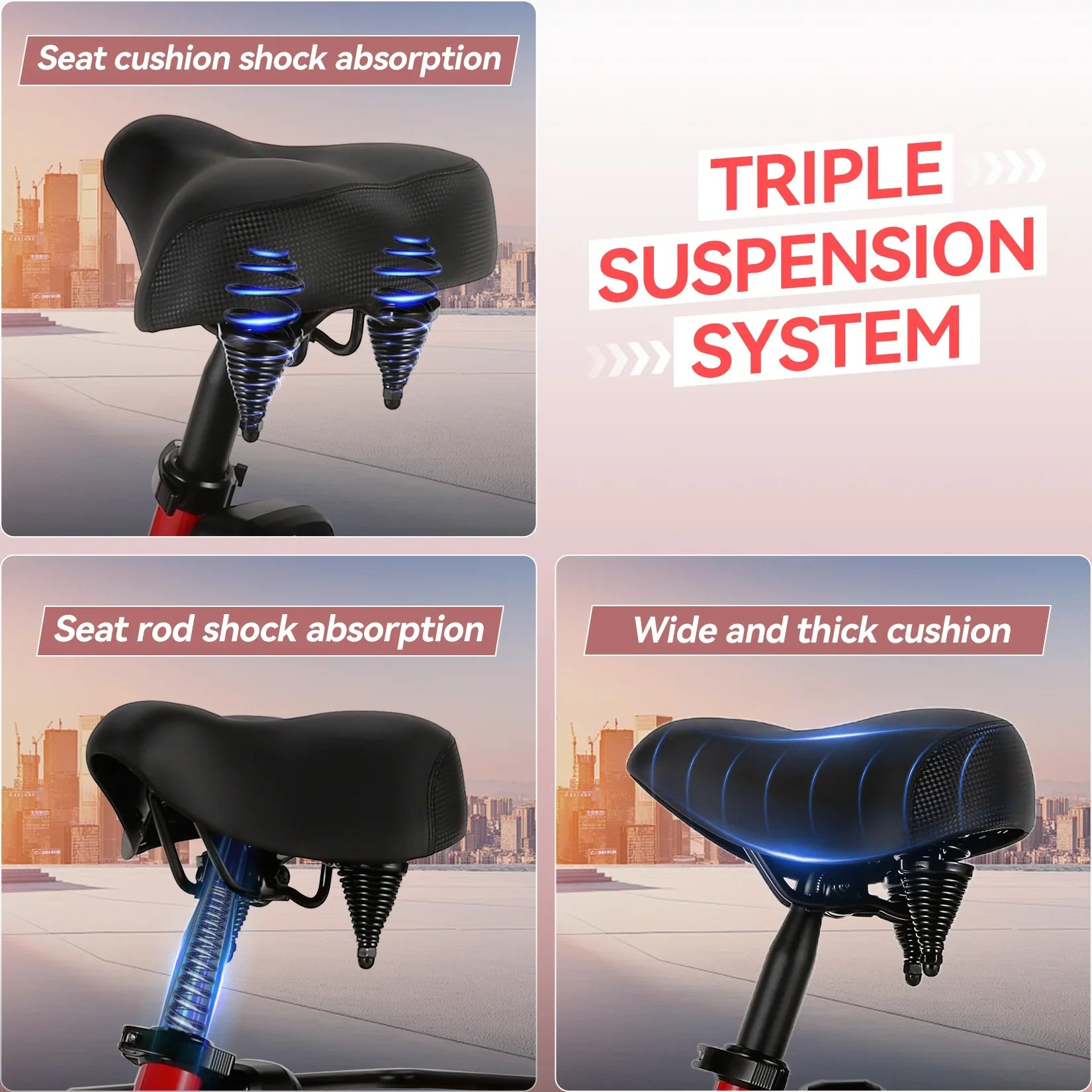

Shock-absorbing Saddle System
Derailleur
Single-speed
Shifter
No
Gearing
Single-speed, 24T
Handlebar
Custom Formed Aluminum, 680×φ31.8mm
Stem
Aluminum,Φ28.6×40×90×φ31.8mm, 60º
Headset
Sealed Bearing Headset
Grips
Imitation Leather Ergonomic Grips
Saddle
Ergonomic Breathable Sport Saddle
Seatpost
Adjustable Φ30.4 x 300mm Alloy Seatpost
Seatpost Clamp
φ34.9mm Quick Release
Brakes
Mechanical Disc Brake
Tires
20 x2.6" 30TPI Anti Puncture Fat Tires
Rims
36H Double Wall Aluminum Rims
Calipers
Front Mechanical Brake Caliper
Brake levers
Alloy Levers with Motor Cutoff Switch
Brake Pad
SA 160mm Cassette, Semi-metallic
Spokes
13G Black Stainless Steel
Chain
KMC Aluminum Alloy Chain, 118 links
Freewheel
Aluminum Single-speed Freewheel, 24T
Fenders
Included, Full Coverage Front and Rear
Kickstand
Heavy-duty Aluminum, Side-mounted
Rear Rack
Included, Iron, Carrying 68kg/150lbs
Crank Set
42T Chainring, 170mm Crank, Forged Alloy Dual-sided Aluminum
Pedals
Standard 9/16" Forged Plastic Pedal with BS Reflectors

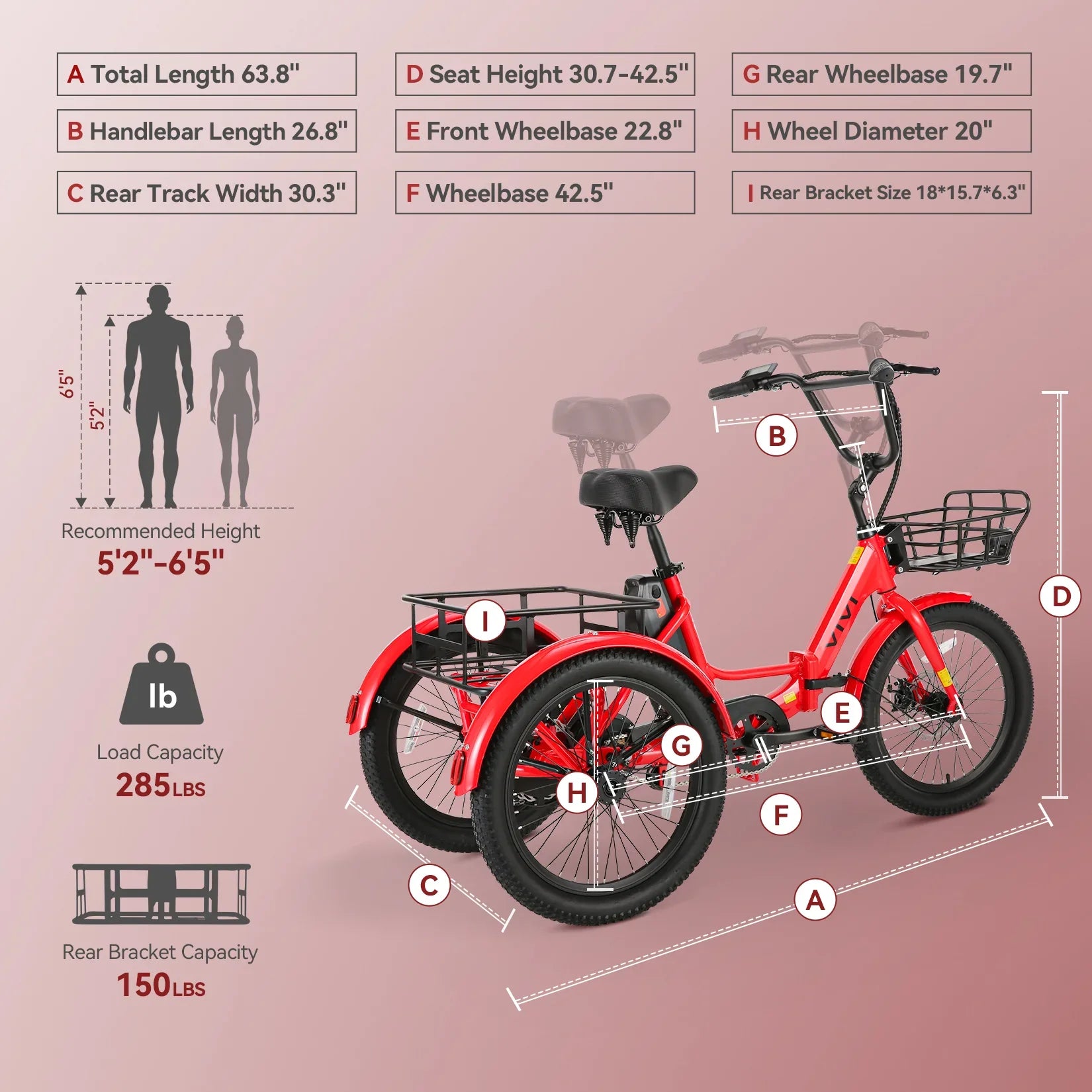

Geometry
Total Length
162cm / 63.8inch
Handlebar Height
103m / 40.6inch
Handlebar Length
68cm / 26.8inch
Handlebar Diameter
2.22cm / 0.87inch
Crank Length
17cm / 6.7inch
Seat Height
78-108cm / 30.7-42.5inch
Seat Tube Length
79cm / 31.1inch
Handlebar Reach
69.5cm / 27.4inch
Seatpost Diameter
2.72cm / 1.07inch
Standover Height
41cm / 16.1inch
Wheel Diameter
51cm / 20inch
Wheel Width
6.6cm / 2.6inch
Wheelbase
108cm / 42.5inch
Top Tube Length
42cm / 16.5inch
Front Wheelbase
58cm / 22.8inch
Rear Wheelbase
50cm / 19.7inch
Load Capacity
130kg / 285Ibs
Rider Heights
155-200cm / 5.2-6.5 ft
Bicycle Weight
38kg / 84Ibs (battery included)
Bicycle Dimensions
164x77x111cm / 65x30x44 inch
Features
500W Powerful Hub Motor
The electric trike is equipmented a powerful 500W rear drive motor, max speed 15.5Mph, providing sufficient power for your daily commuting and cargo hauling. With up to 750W of peak power and 75Nm of peak torque, it can climb hills with ease and provides a stable and comfortable riding experience on city streets and neighborhood roads.

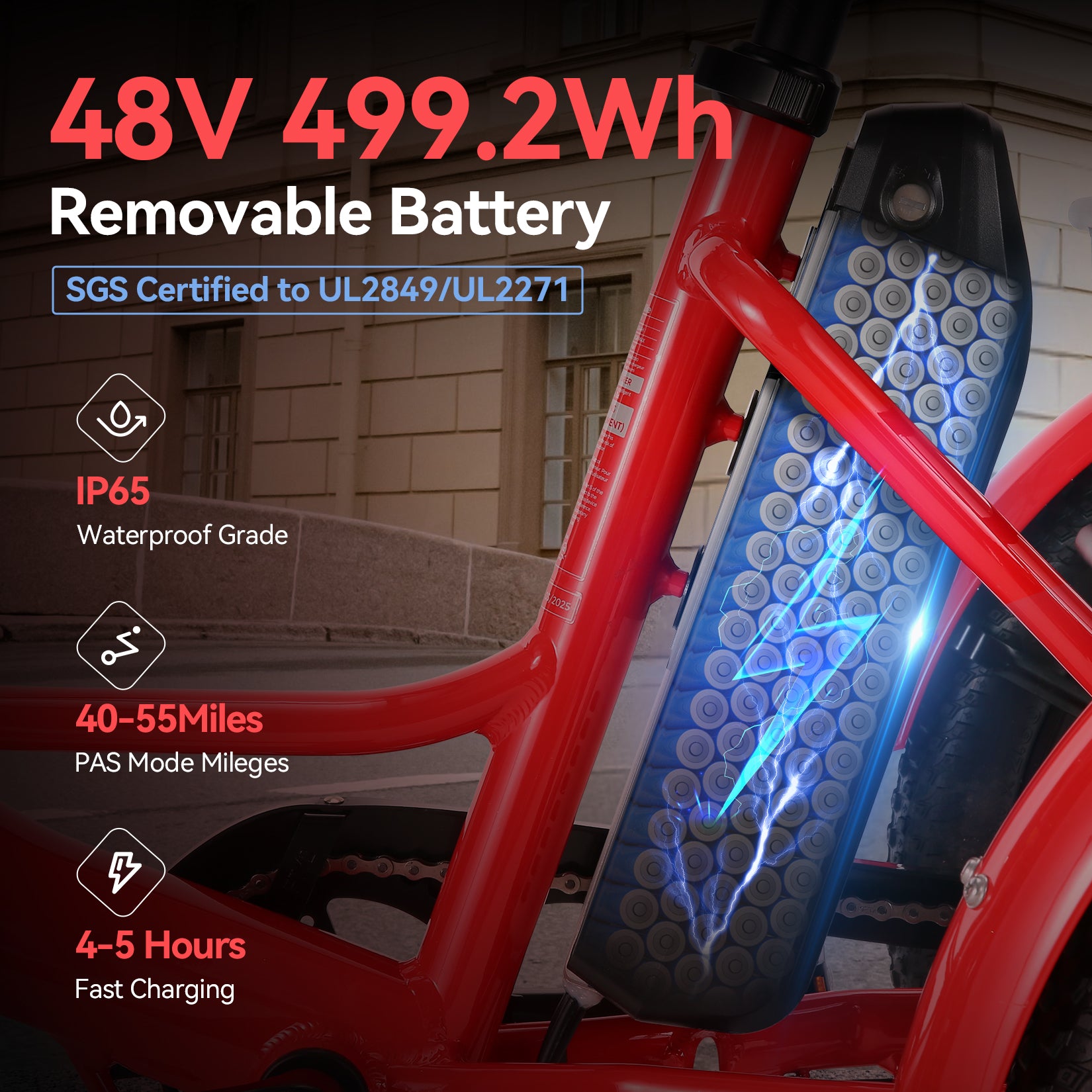

499.2Wh Removable Battery
With the SGS certified 48V 10.4Ah 499.2Wh large-capacity lithium battery, a 4-5 hour quick charge can provide up to 40-55 miles of range (with pedal assist), which can meet the needs of long-term riding and let you enjoy your journey easily. Besides, the battery is removable, making removal and installation effortless, adding convenience and reliability.

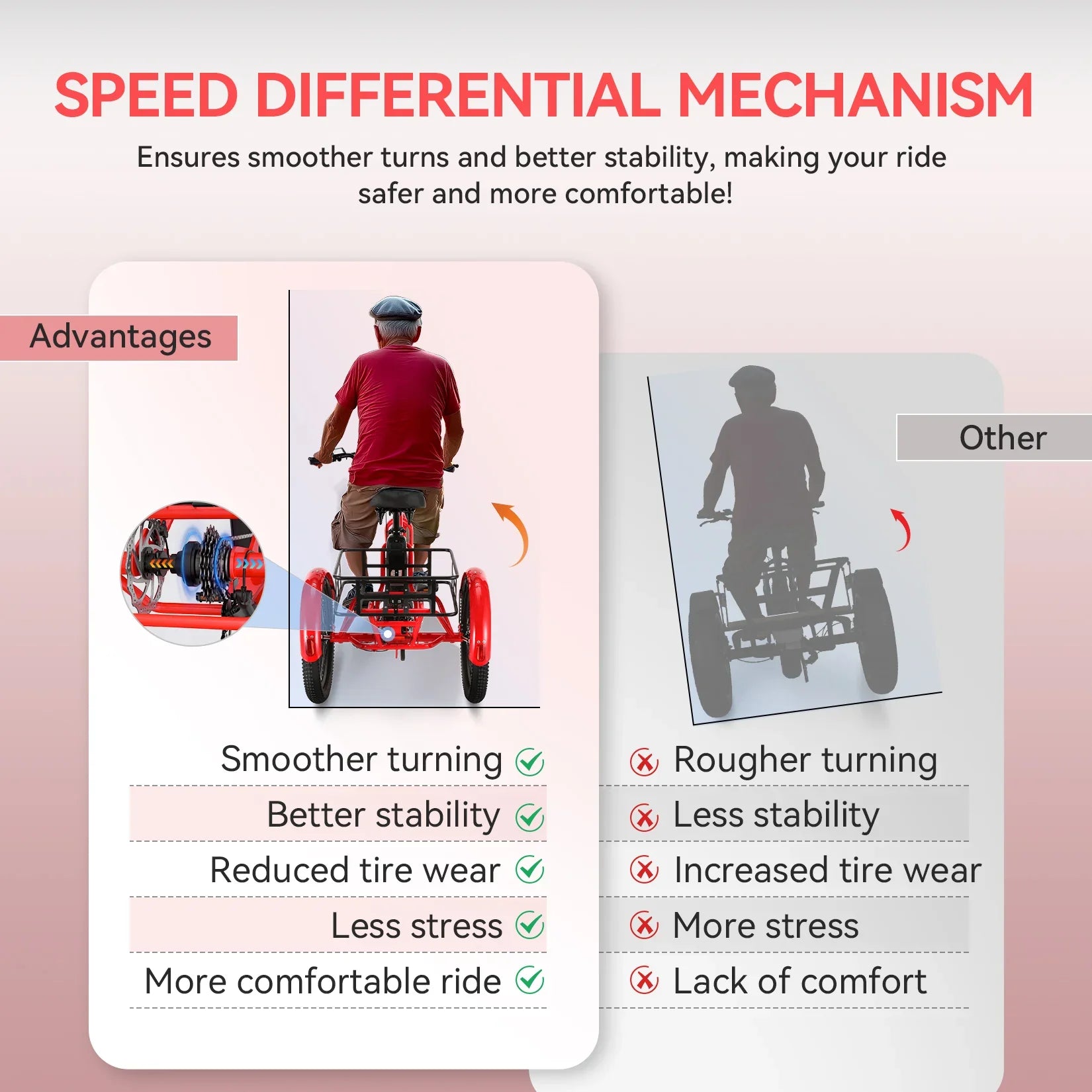

Speed Differential Mechanism
Features a Rear Differential Mechanism, enhancing control and stability on turns. The advanced mechanism allows the rear wheels to rotate at different speeds when cornering, ensuring smooth cornering and preventing skidding. It is also guarantee balanced power distribution to both rear wheels, making the trike more stable and safer during acceleration.

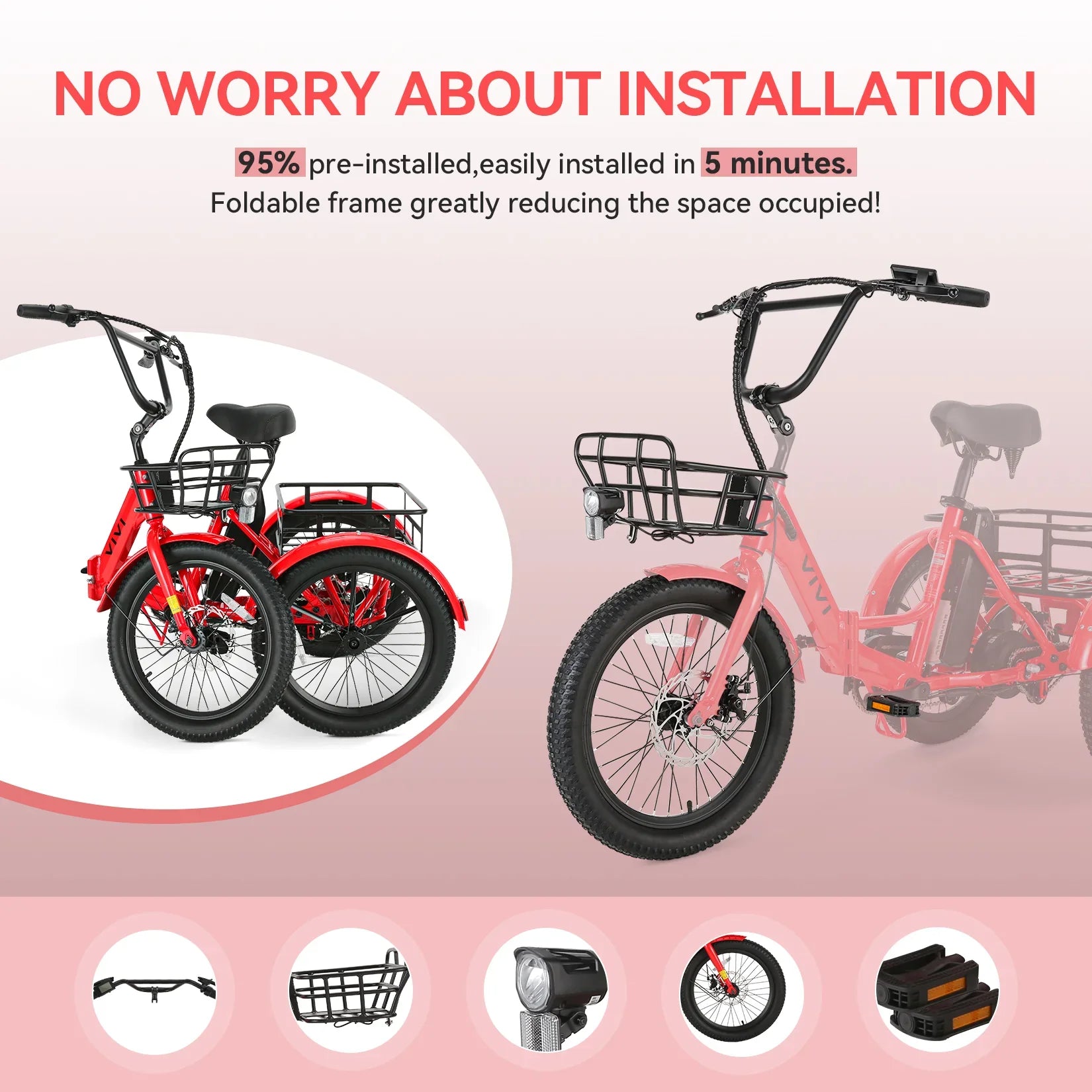

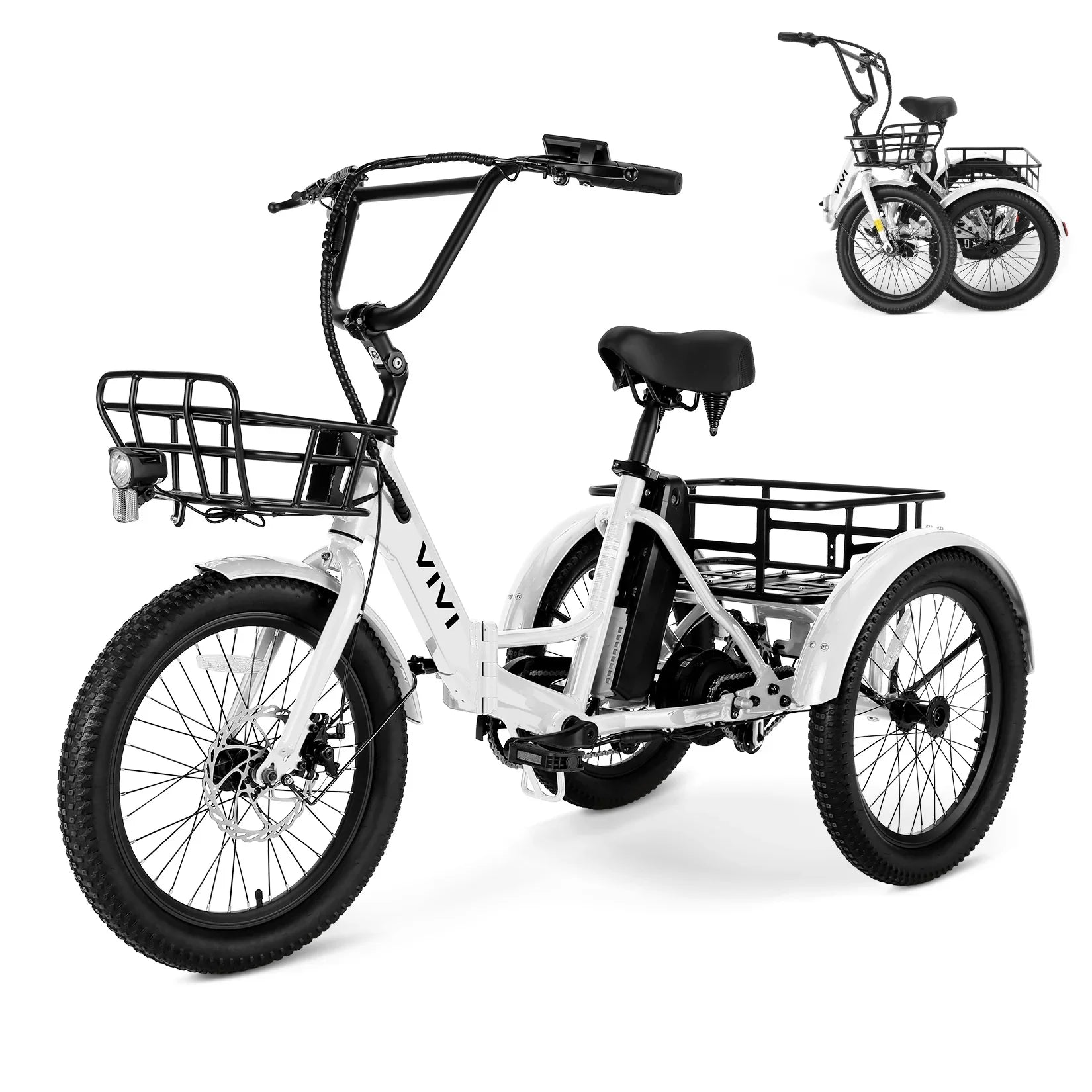

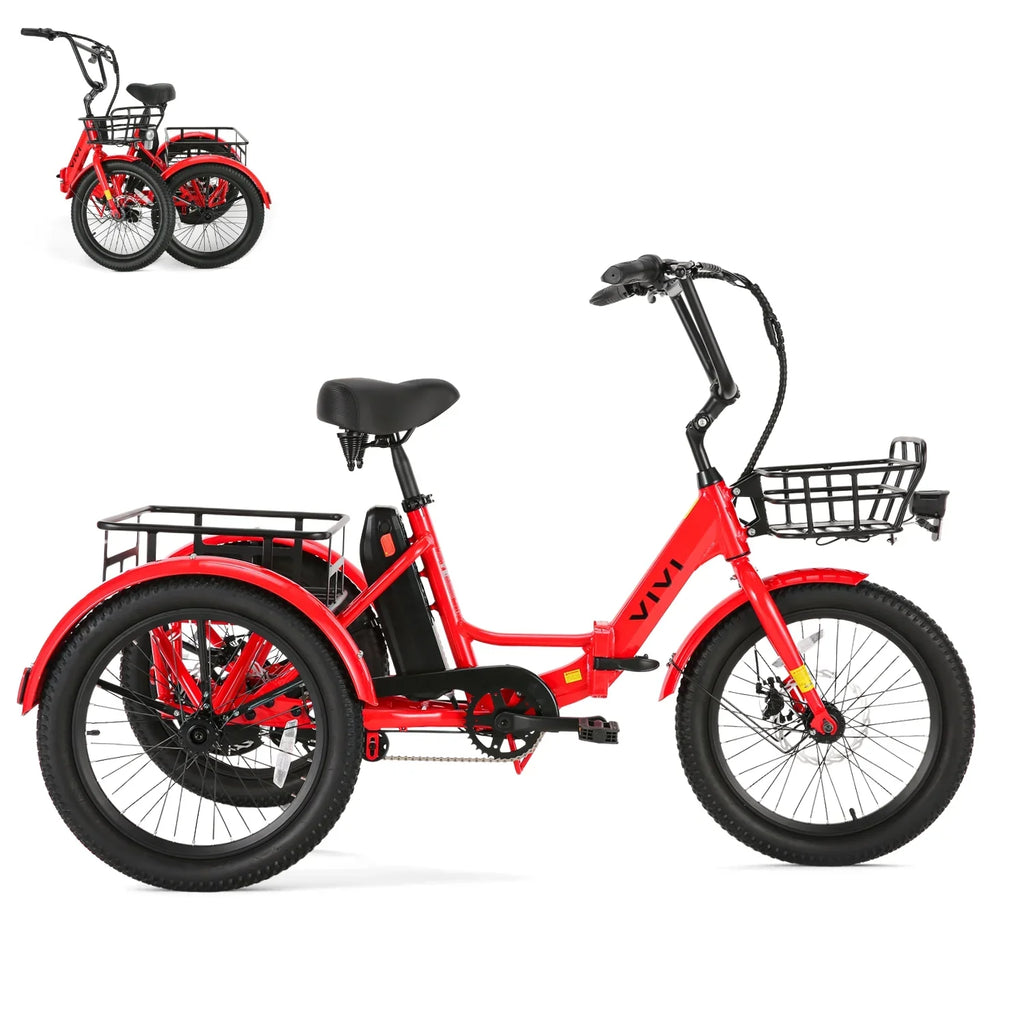

95% Pre-assembled & Foldable
The electric trike comes 95% pre-assembled, ensuring a hassle-free installation experience. The electric trike features a convenient folding design that makes storage and transportation effortless. With just a few simple steps, the handlebar and frame can be quickly folded, significantly reducing its footprint to fit in most SUVs, garages, or compact spaces.
Large Front & Rear Baskets
The electric trike is equipped with spacious front and rear baskets, providing ample storage space for your belongings. The front basket provides convenient storage for personal items and daily essentials, while the rear cargo basket delivers impressive utility for substantial loads. The heavy-duty rear basket is perfect for grocery shopping, deliveries, or transporting items.
User-friendly Configuration

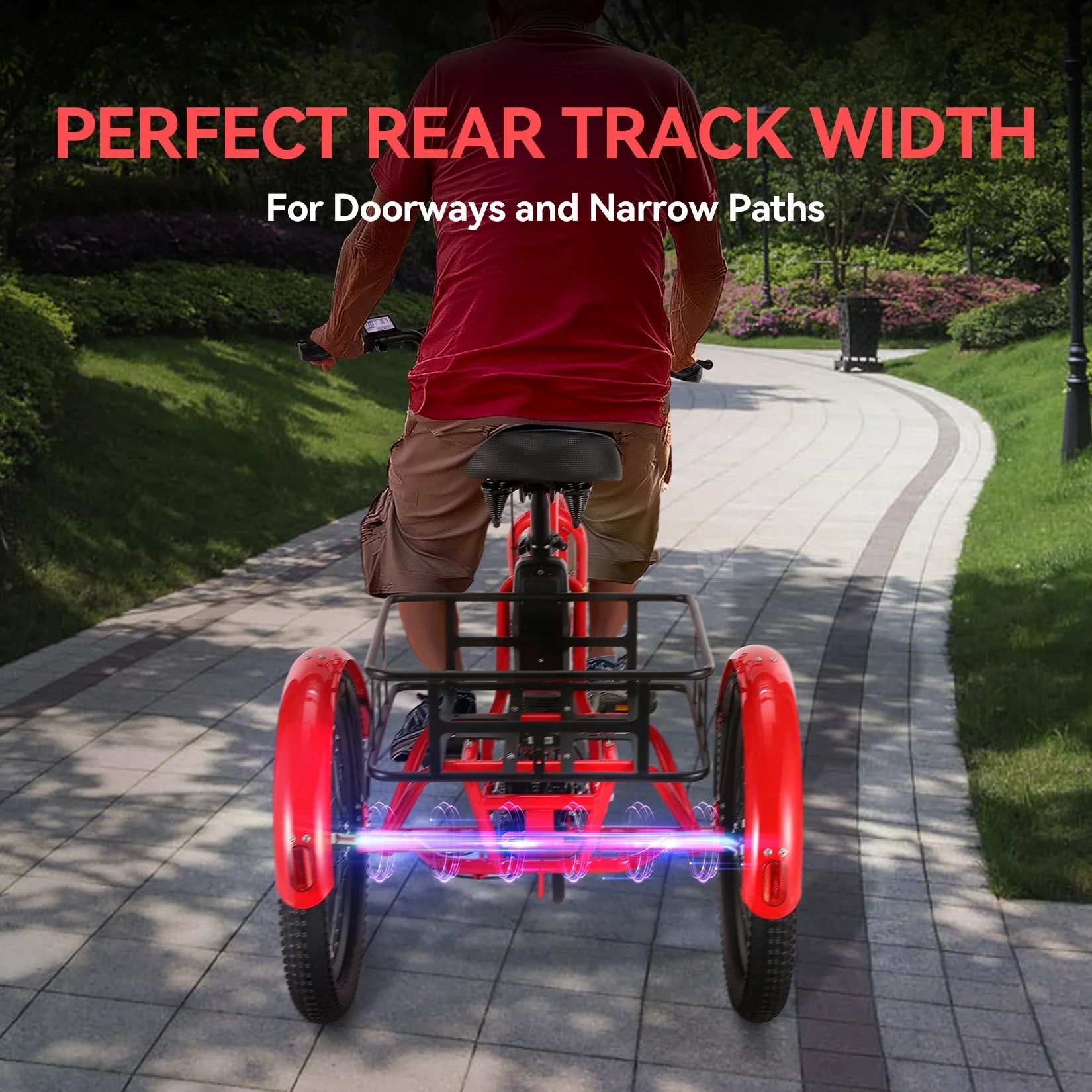

Equipped with user-friendly riding configuration, including a shock-absorbing saddle, LCD digital meter, front headlight and bright rear turn signals, a mechanical disc brake system with parking function, a more passability-friendly rear wheel spacing, and five riding modes for various usage scenarios, it enhances your safety and comfort.
Package
Electric Tricycle
(Pre-assembled)
Shock-absorbing Saddle
Battery Charger
Front Wheel
Front Basket
Pedals
Tool kit
User Manual
