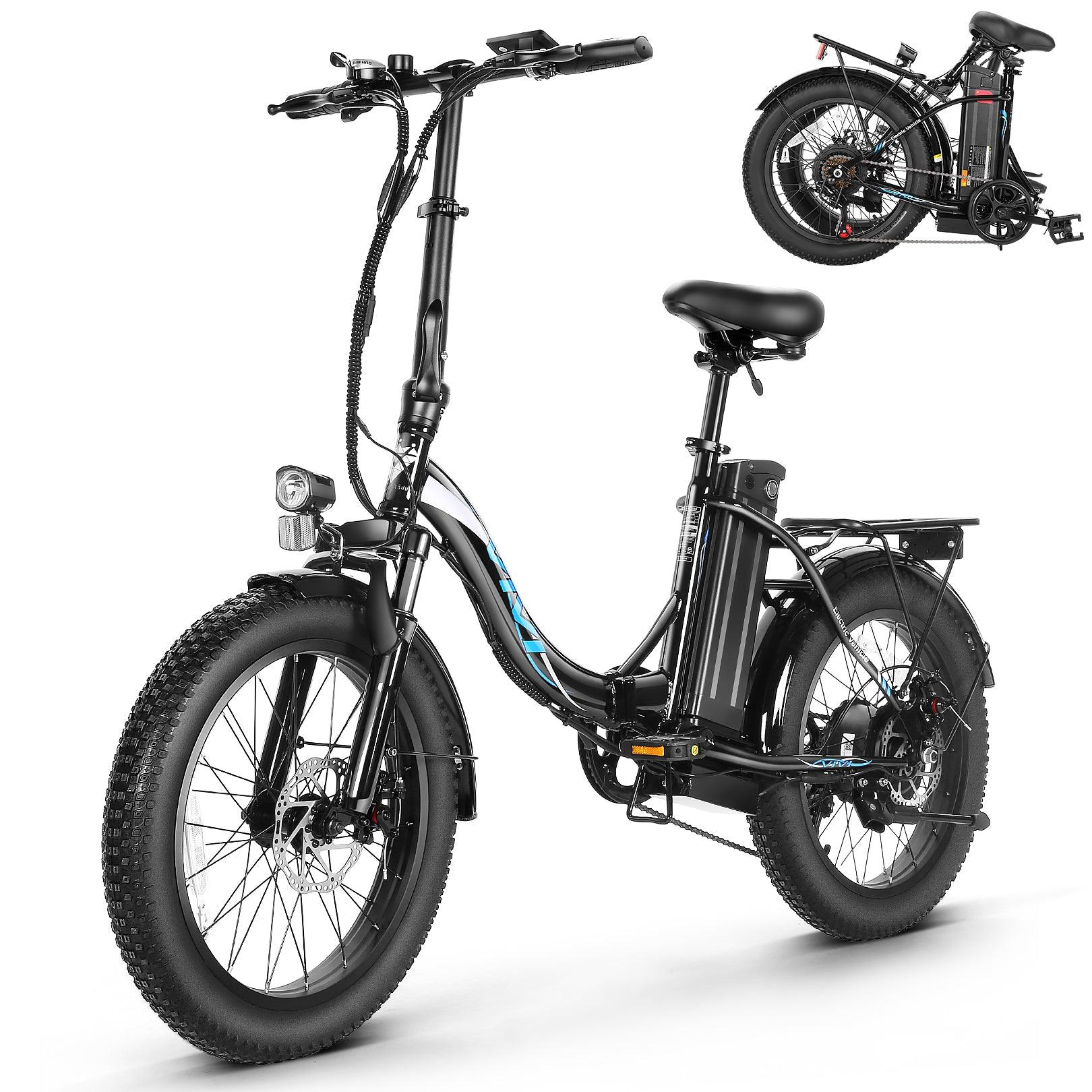

Vivi MT20 UL | Folding Electric Bike
Vivi MT20UL provides riders with a versatile commuter-friendly foldable small beach cruiser electric bike
Payment & Security
Descripción
¡Descubre los cruceros de ocio! El VIVI Bicicleta eléctrica MT20UL es una versión mejorada del pequeño crucero de playa, equipado con un Potente motor de buje de 500 W y un Batería extraíble de alta capacidad de 48 V y 499,2 Wh para impulsar su viaje diario al trabajo, sus desplazamientos diarios o sus paseos por sus senderos favoritos. Horquilla de suspensión de alta resistencia, Cambio Shimano de 7 velocidades, Asistencia de pedaleo de 5 niveles (acelerador), Pantalla digital LCD y Neumáticos anchos antipinchazos de 3,0 pulgadas Hacer el viaje más cómodo y estable. Perfecta para ciclistas que buscan una bicicleta urbana elegante, potente y progresiva. Para cualquier mujer que quiera sentirse relajada y cómoda en movimiento, será una bicicleta eléctrica confiable.
Step-Through, Built for Cruising
Motor Power
500W
Battery
48V 10.4Ah
Charging Time
4-6 Hours
Range
50 Miles
Max Speed
20 MPH
Max Capacity
330 Lbs
Performance
Model
MT20
Color
Black / White
E-bike Class
2
IP Level
IP54
Regular Speed
25km/h 15MPH
Max Speed
32km/h 20MPH
Max Range
80km / 50 miles
Ebike Range
35-40km / 22-25 miles
PAS Range
70-80km / 44-50 miles
Speed Mode
Low / Mid / High
Bicycle Weight
24.5kg / 52Ibs
Load Capacity
150kg / 330Ibs
Package Size
135x24x64cm / 53x9.5x25 inches
Package Weight
29.5kg / 66 lbs
Rider Heights
155-190cm / 5.1-6.3 ft
Rider Age
16+
Folding
Yes
Rear Rack
Integrated
Riding Mode
Pure Electric/Pedal Assist/ Normal Bike/Cruise Control/Assist Push
Certification
UL | UL 2849/2271
GCC | CPSC 1512
Electronics
Motor
500W 48V Brushless Hub Motor
Battery
48V 10.4Ah 499.2Wh Lithium-ion Battery
Controller
48V 18A Brushless Motor Controller
Display
48V Intelligent Digital LCD Display
Charger
US Plug 54.6V 2A Smart Charger
Charging Time
4-6 Hours
Pedal Assist
Lntelligent 3 Level Pedal Assist
Sensor
12 Magnet Cadence Sensor
Throttle
Half Twist Throttle+Thumb Throttle
Bell/Horn
100 dB Electric Horn
Front Light
D-07D 300LM Integrated LED Headlight
Tail Light
Integrated Rear Reflector
Wiring
1-to-5 Waterproof Integration Cable
USB Ports
Without
Components
Frame
High Carbon Steel
Frame Type
Step-Through
Fork
High-Strength Aluminum Fork
Suspension
Spring Suspension Fork
Derailleur
Shimano RD-TZ500, 7-speed
Shifter
Shimano SL-TX30 7 Speed Thumb Shifter
Gearing
Shimano 1 x 7-speed, 14-28T
Handlebar
Custom Formed Aluminum,580×φ28.6mm
Stem
Aluminum,Φ25.4×65×180×φ28.6mm
Stem Type
Aluminum Alloy Retractable Folding Stem
Headset
Sealed Bearing Headset
Bottom Bracket
Integral Bottom Bracket
Grips
Imitation Leather Ergonomic Grips
Saddle
Ergonomic Breathable Sport Saddle
Seatpost
Adjustable Φ28.5 x 350mm Alloy Seatpost
Seatpost Clamp
φ28.6mm Quick Release
Brakes
160mm Double Mechanical Disc Brakes
Tires
20 x 3.0" Anti Puncture Fat Tires
Rims
36H Double Wall Aluminum Rims
Calipers
Front and Rear Mechanical Brake Calipers
Brake levers
Alloy Levers with Motor Cutoff Switch
Brake Pad
SA 160mm Cassette,Semi-metallic
Spokes
13G Black Stainless Steel
Chain
KMC Aluminum Alloy Chain,112 links
Freewheel
Aluminum 7-speed Freewheel,14-28T
Fenders
Included,Full Coverage Front and Rear
Kickstand
Heavy-duty Aluminum, Side-mounted
Rear Rack
Included,Aluminum,Carrying 25kg/55lbs
Crank Set
42T Chainring, 170mm Crank, Forged Alloy Dual-sided Aluminum
Pedals
Standard 9/16" Forged Aluminum Pedal with Reflectors

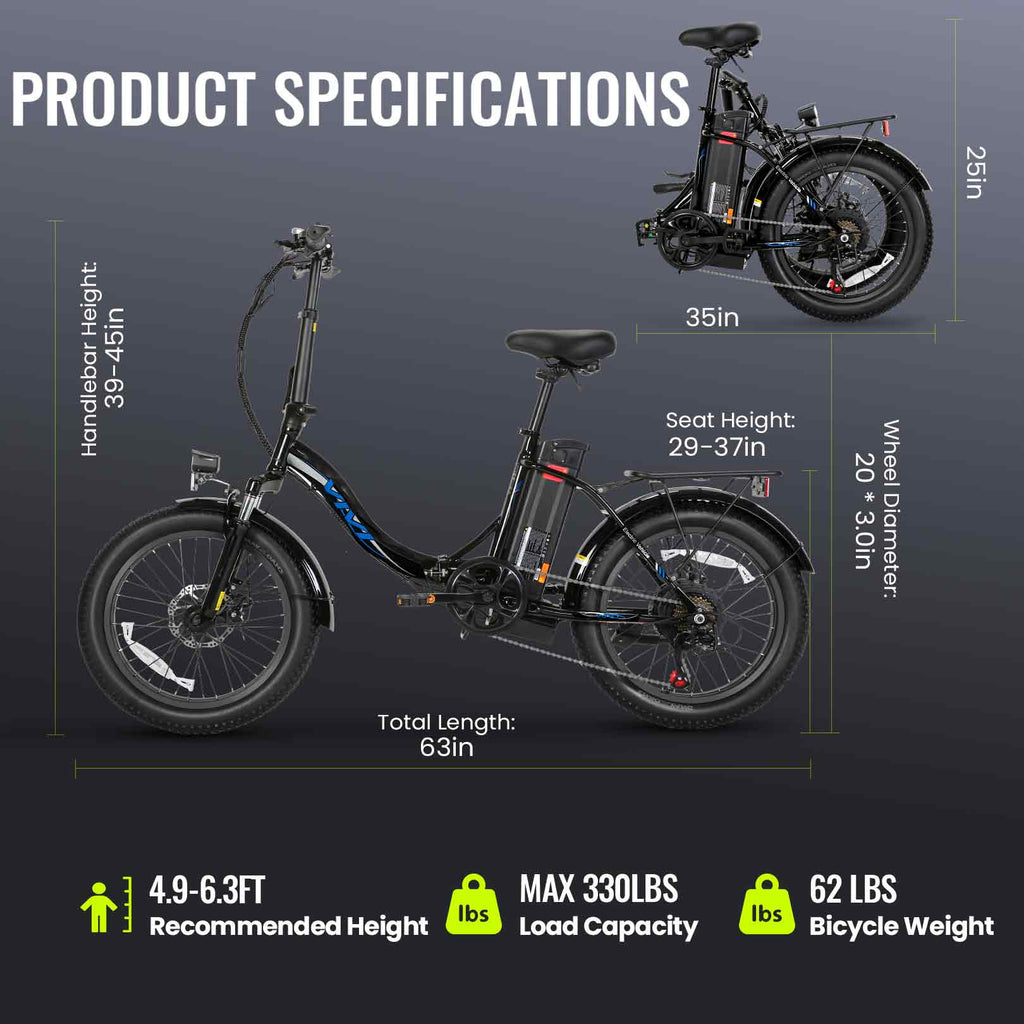

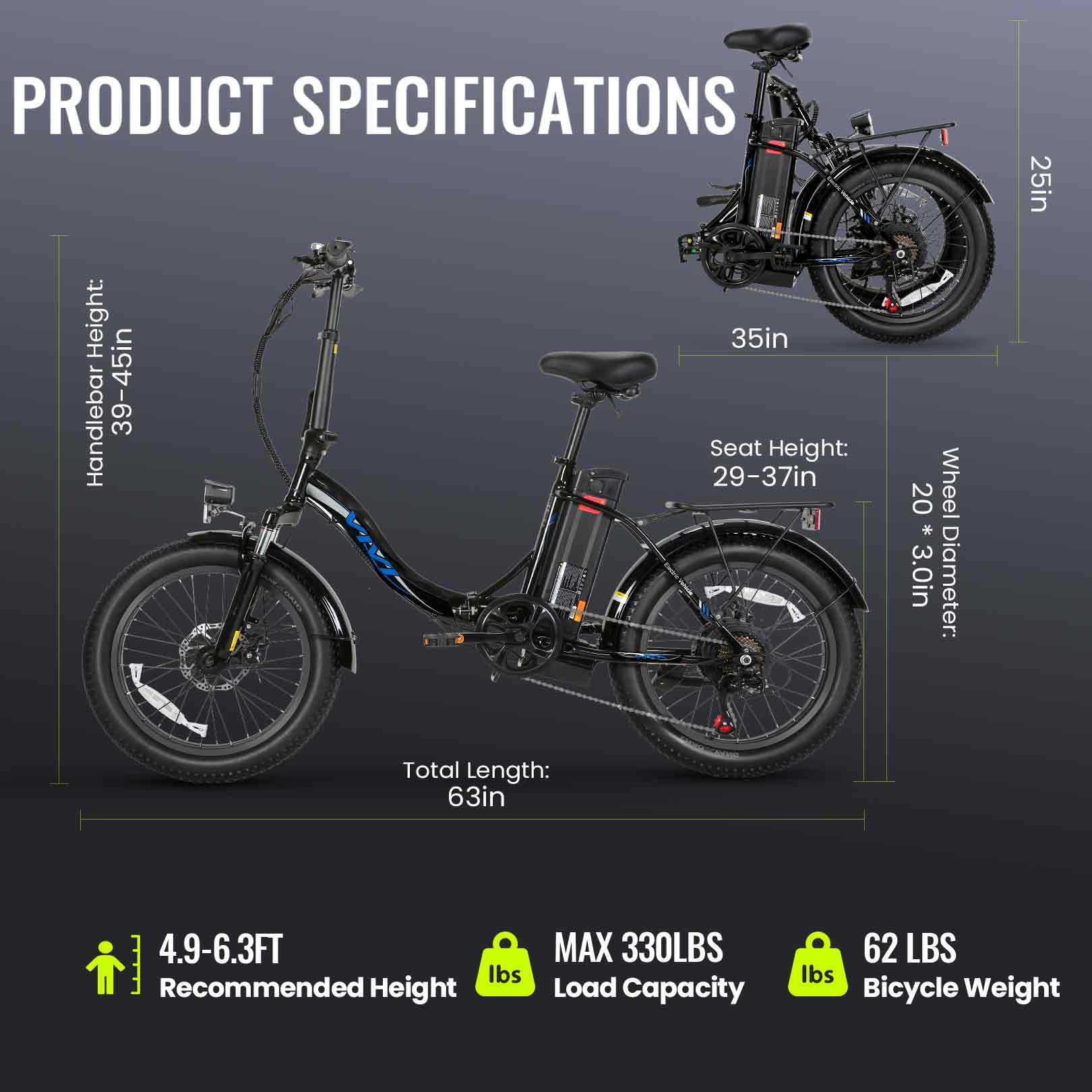

Geometry
Total Length
160cm / 63.0inch
Handlebar Height
100-116cm / 39.4-45.7inch
Handlebar Length
58cm / 22.8inch
Handlebar Diameter
2.22cm / 0.87inch
Crank Length
17cm / 6.7inch
Seat Height
75-95cm / 29.5-37.4inch
Seat Tube Length
60cm / 23.6inch
Handlebar Reach
64cm / 25.2inch
Seatpost Diameter
2.85cm / 1.12inch
Standover Height
72cm / 28.3inch
Top Tube Length
52cm / 20.5inch
Shelf Height
57cm / 22.4inch
Wheel Diameter
51cm / 20.0inch
Wheel Width
7.6cm / 3.0inch
Wheelbase
112cm / 40.1inch
Load Capacity
150kg / 330Ibs
Folding Dimensions
90x64cm / 35.4x25.2inch
Rider Heights
155-190cm / 5.1-6.3 ft
Bicycle Weight
24.5kg / 52Ibs (battery included)
Bicycle Dimensions
162x24x100cm/63.8x9.5x39.4inch
Features
500W Powerful Motor
The electric bike is equipped with a more powerful 500W high-speed motor, you can get to destinations faster at speeds of up to 20 Mph. You can enjoy a daily commute, a cruise on the mountain, or a meander along your favorite trail.

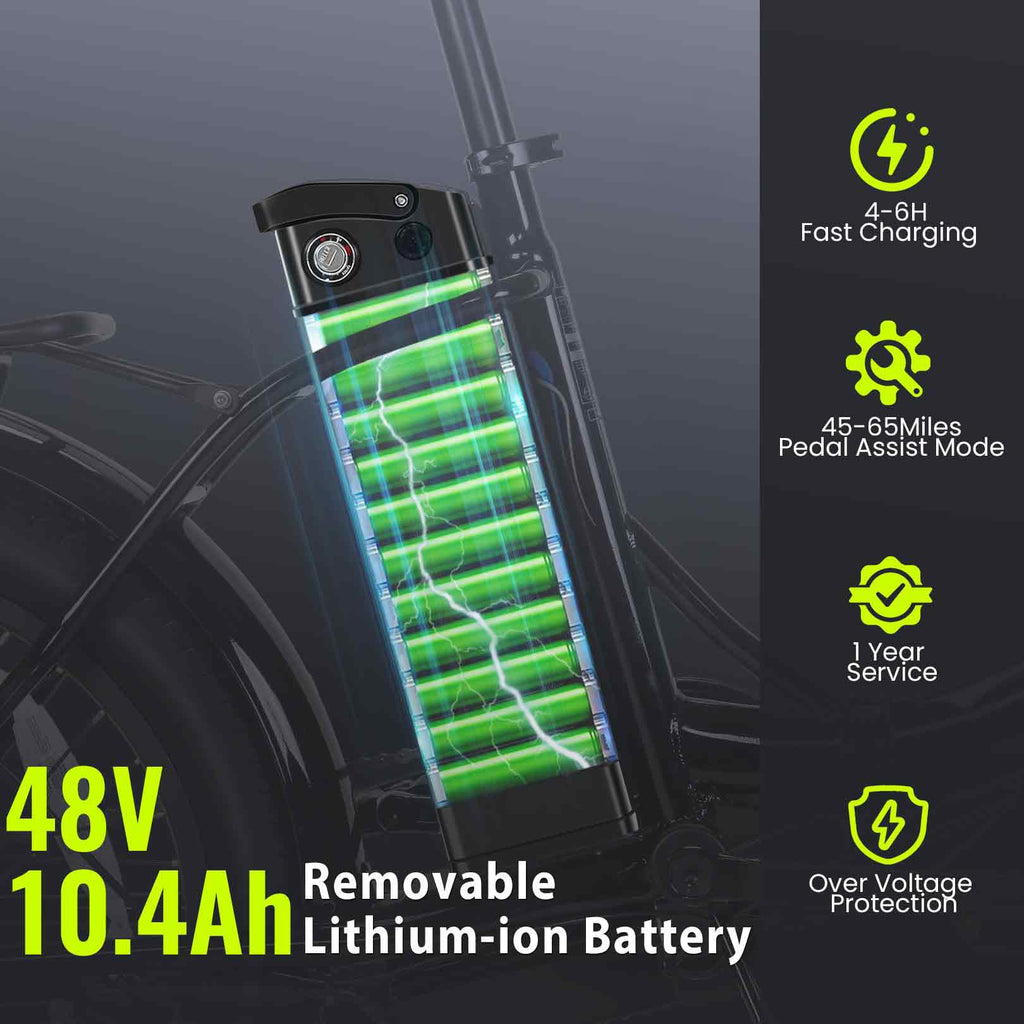

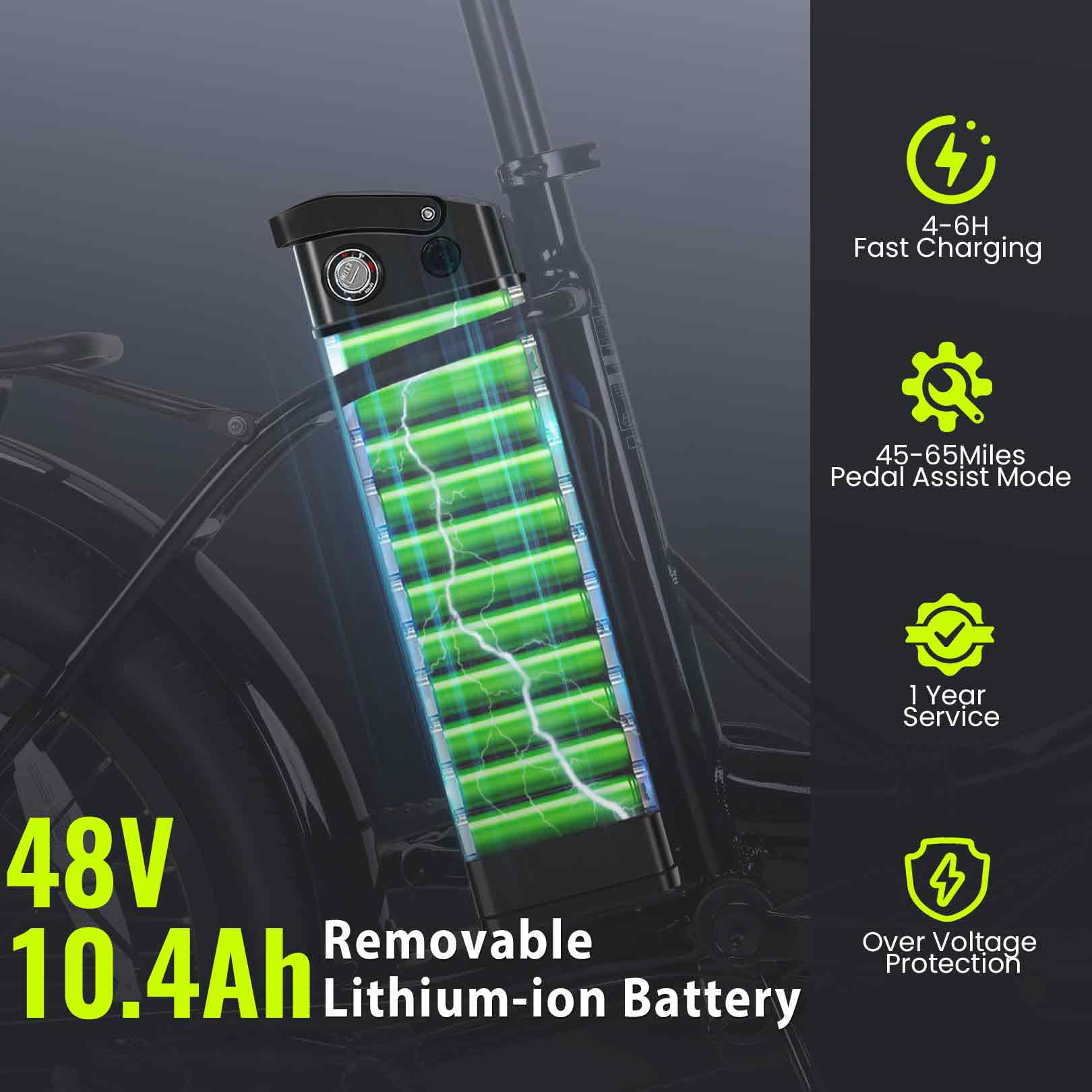

48V Removable Battery
This electric bike is equipped with a 48V 10.4Ah 499.2Wh removable lithium-ion battery. It can be fully charged in 4-6 hours to support a maximum riding range of 44-50 miles, which is enough to meet your daily needs.
5 Working Modes

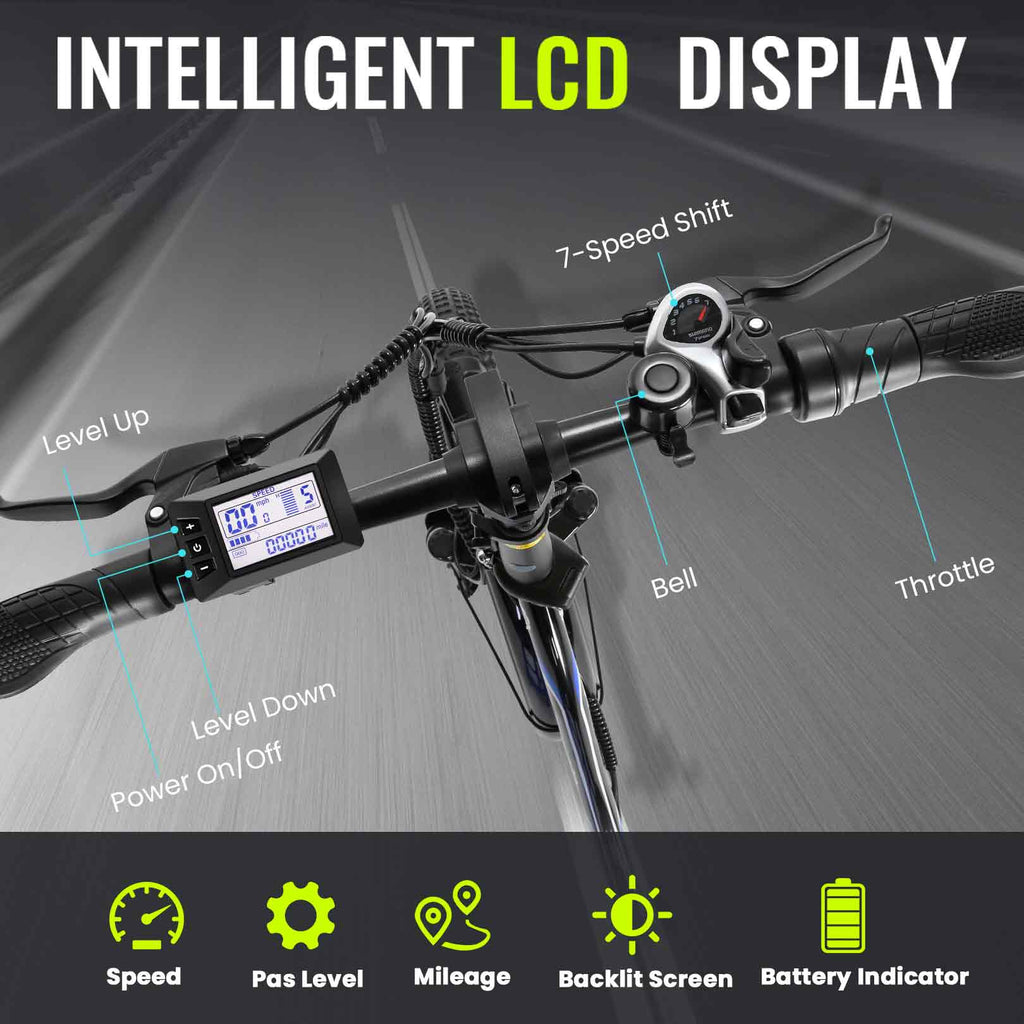

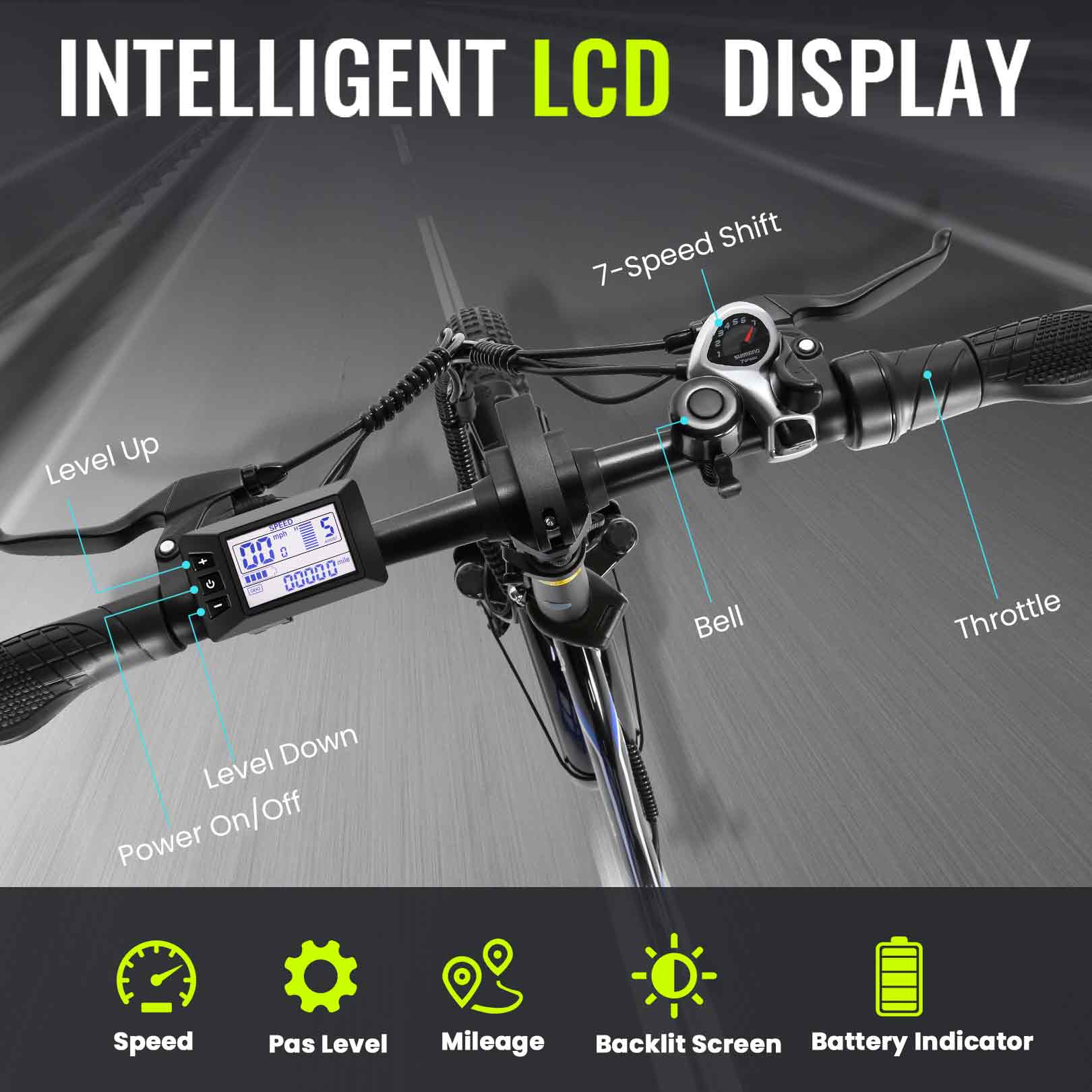

Electric bike with 5 riding modes and speed assist levels for your choice. The LCD display shows your speed, battery level, pedal assist levels, mileage and more, support you control riding easily.
All Terrain Fat Tires
With 3 inch wide puncture resistant fat tires and high-strength shock-absorbing front fork, strong grip, anti-puncture, and flat tire-proof. Can meet the ride needs of various complex terrains whether commuting in the city or passing through gravel, sand, snow.
Dual Disc Brakes & Shimano 7-speed System
Dual disc brakes provide you with emergency braking to ensure safe riding. Shimano 7-speed gearing climbs hills with ease, helping you tackle any terrain for a comfortable ride.

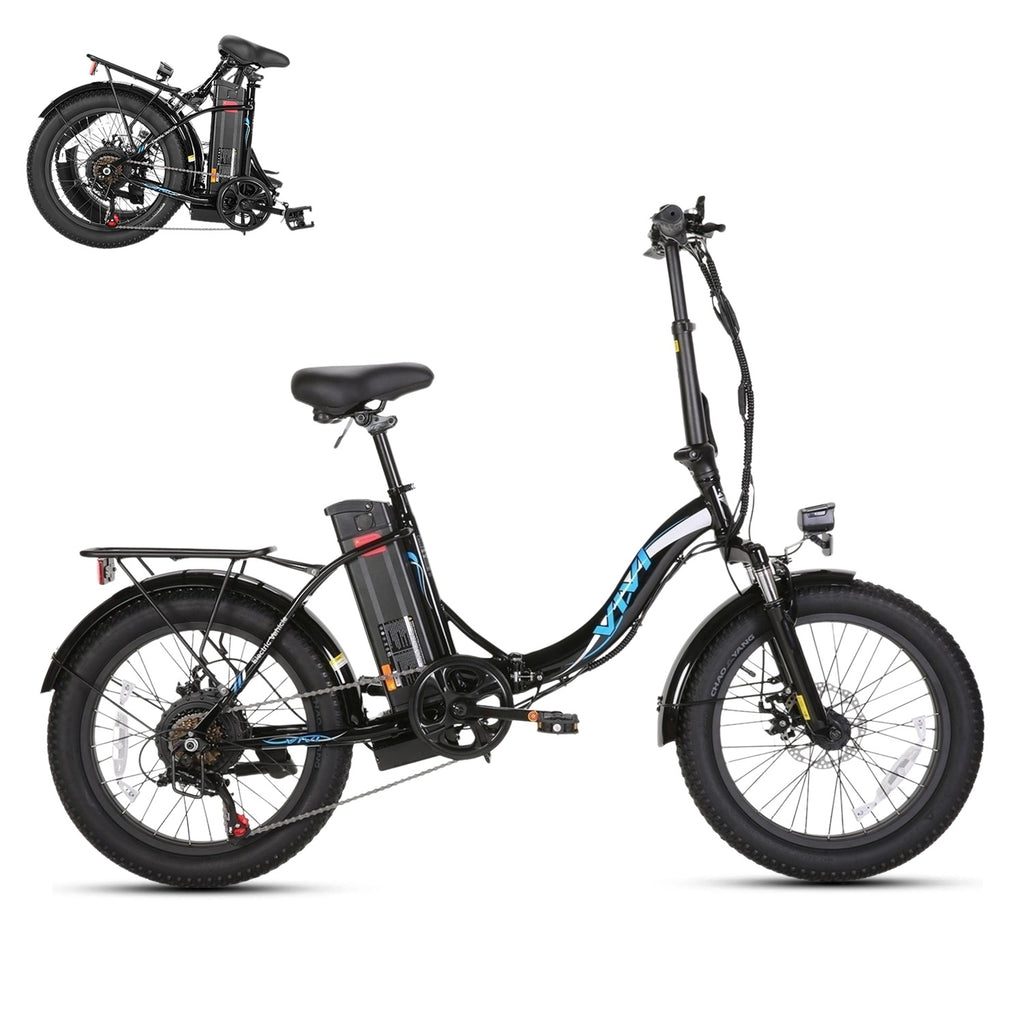

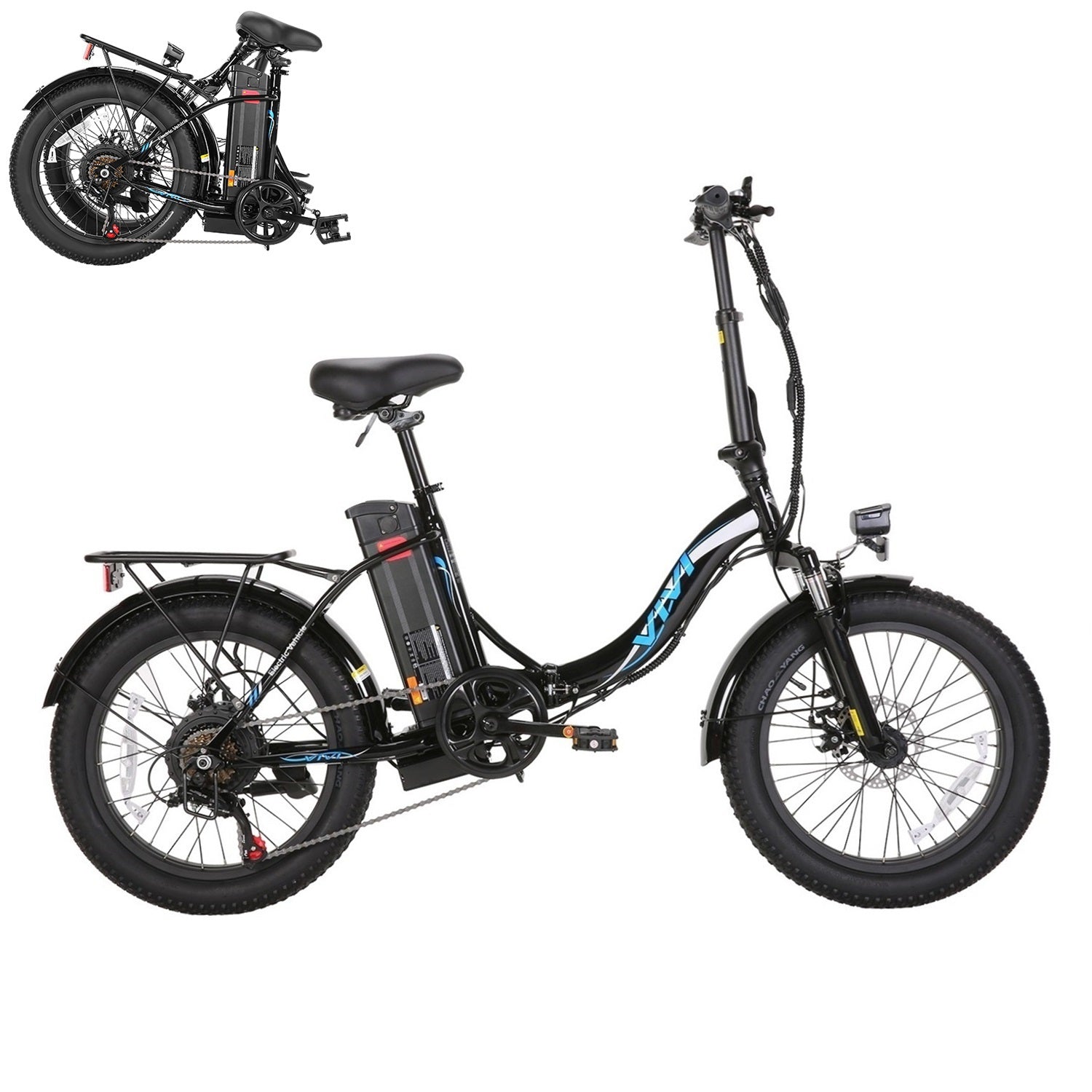

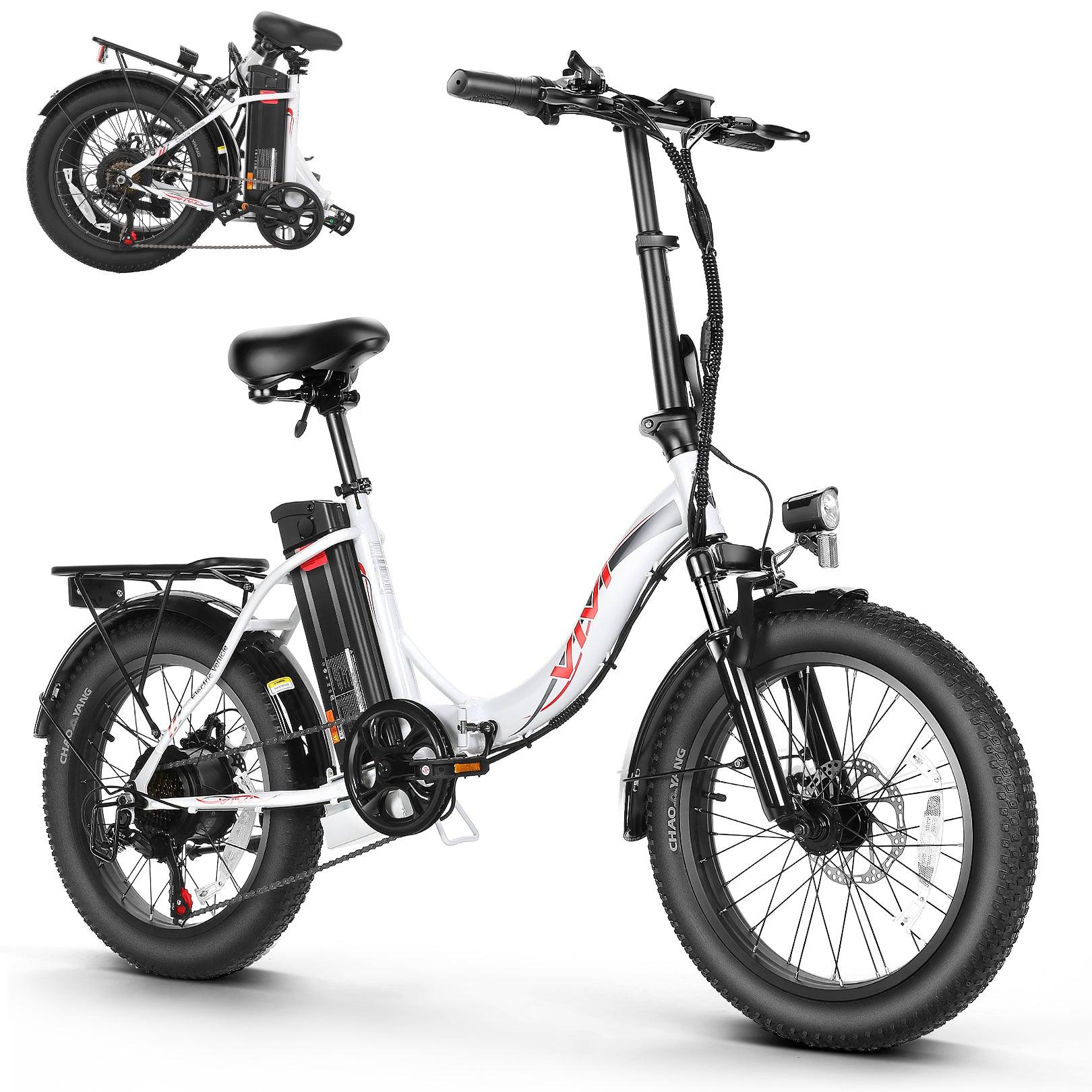

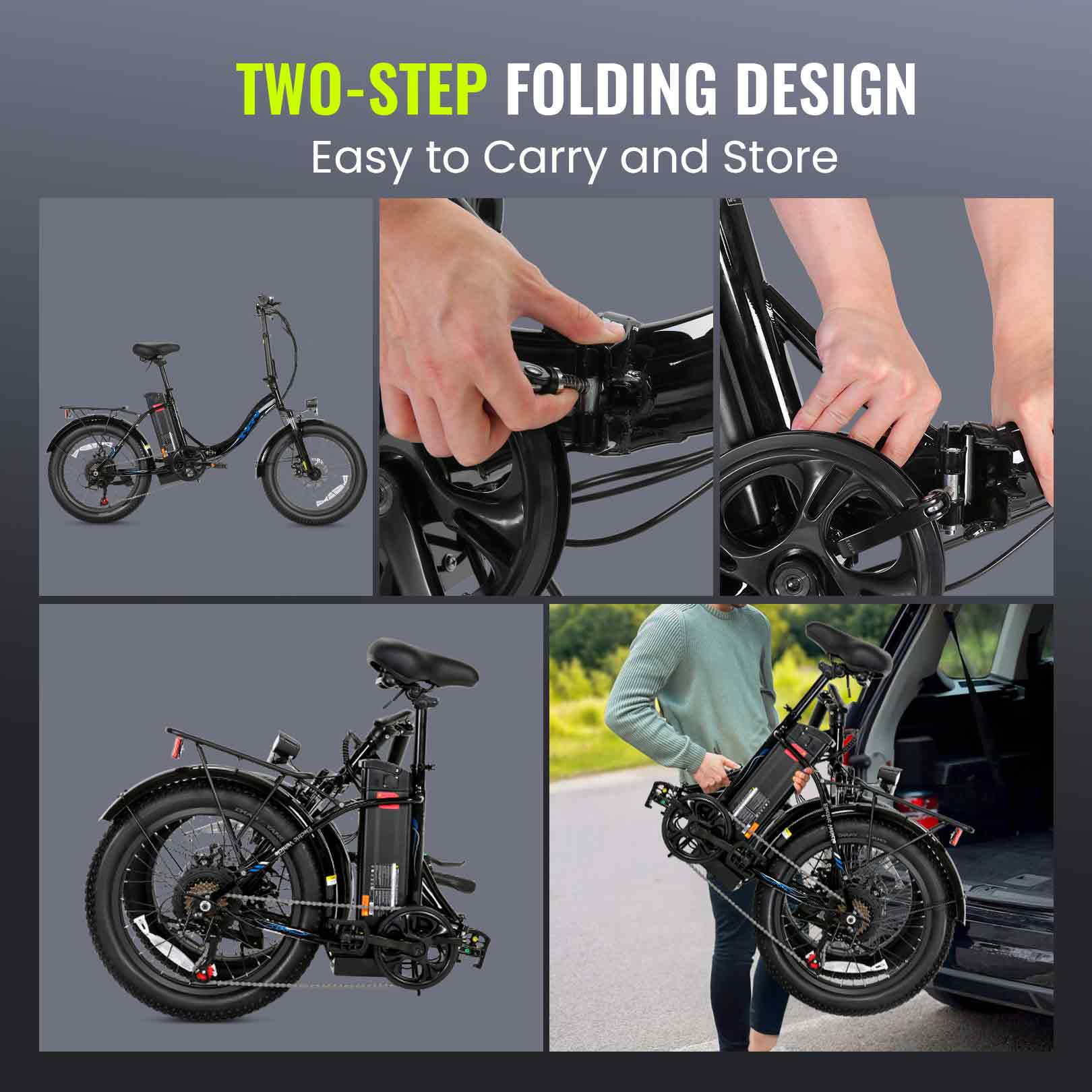

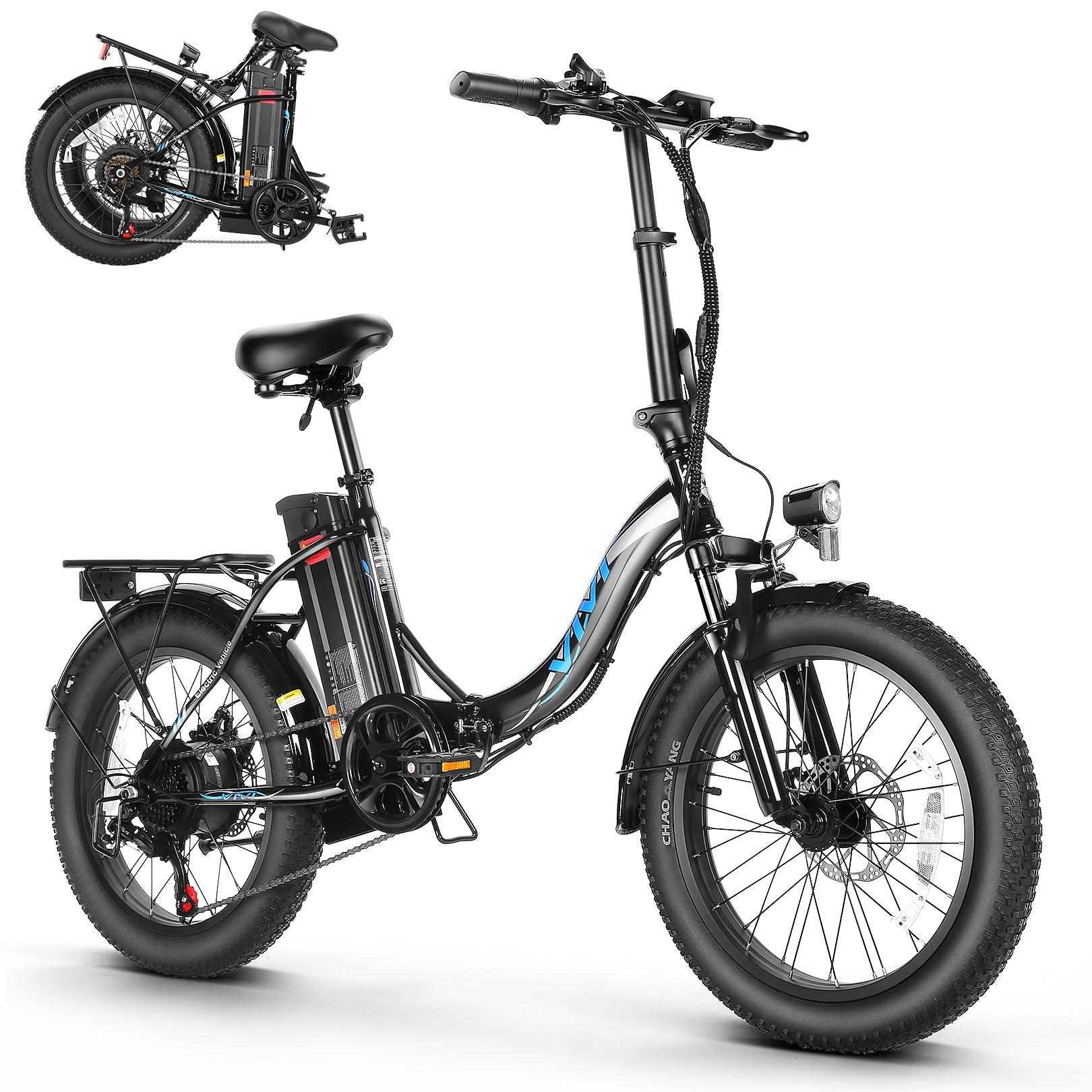

Foldable & Adjustable
The electric bike uses a high carbon steel frame and is easy to carry when folded. Front and rear fenders, rear rack, LED integrated lights, adjustable stem and comfortable seat make this electric bike even better.
Display
- VIVI MT20 Electric Bike
- How to assemble
Package
Electric Bike
(Pre-assembled)
Removable Battery
Battery Charger
Fenders
Saddle Kit
Pedals
Tool kit
User Manual
