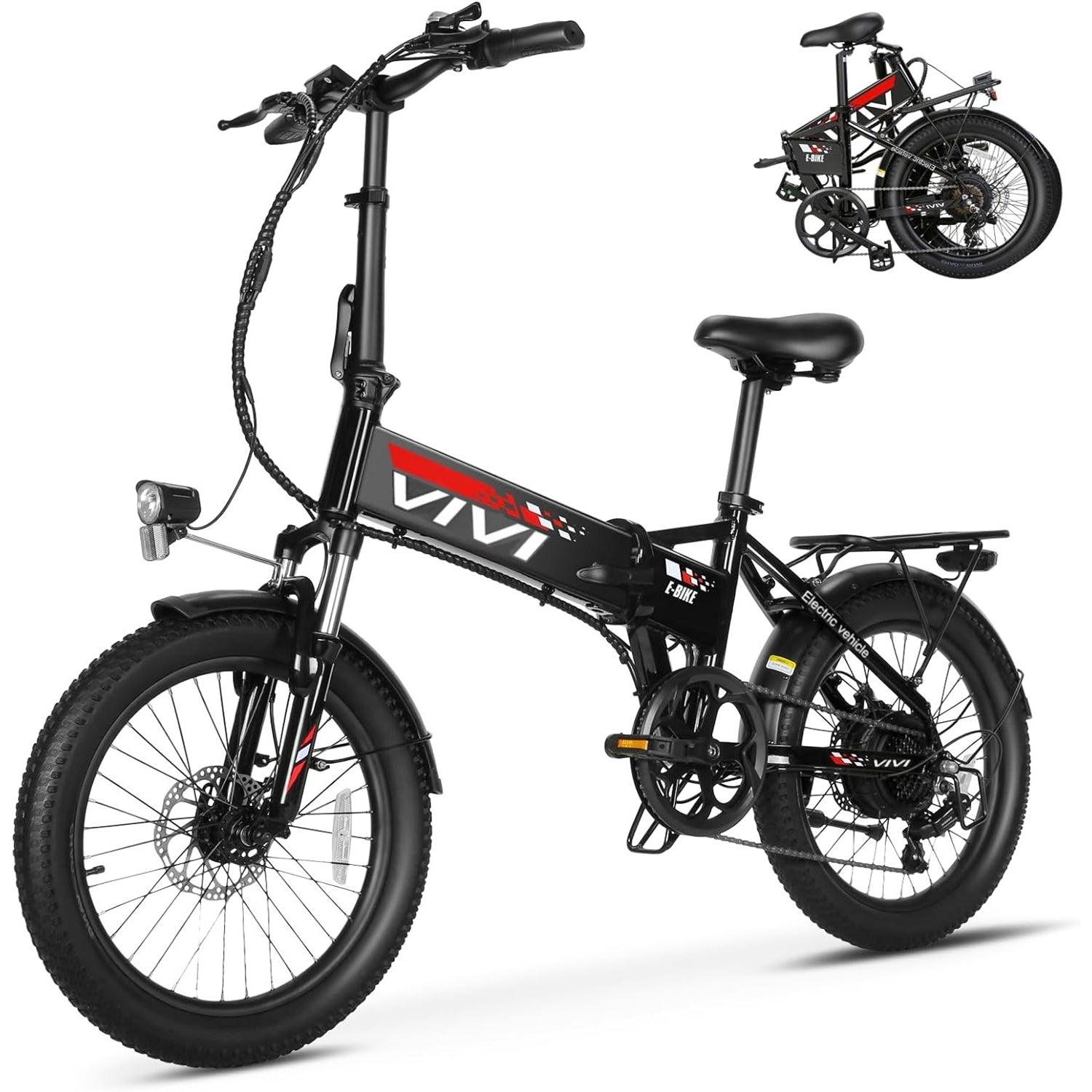

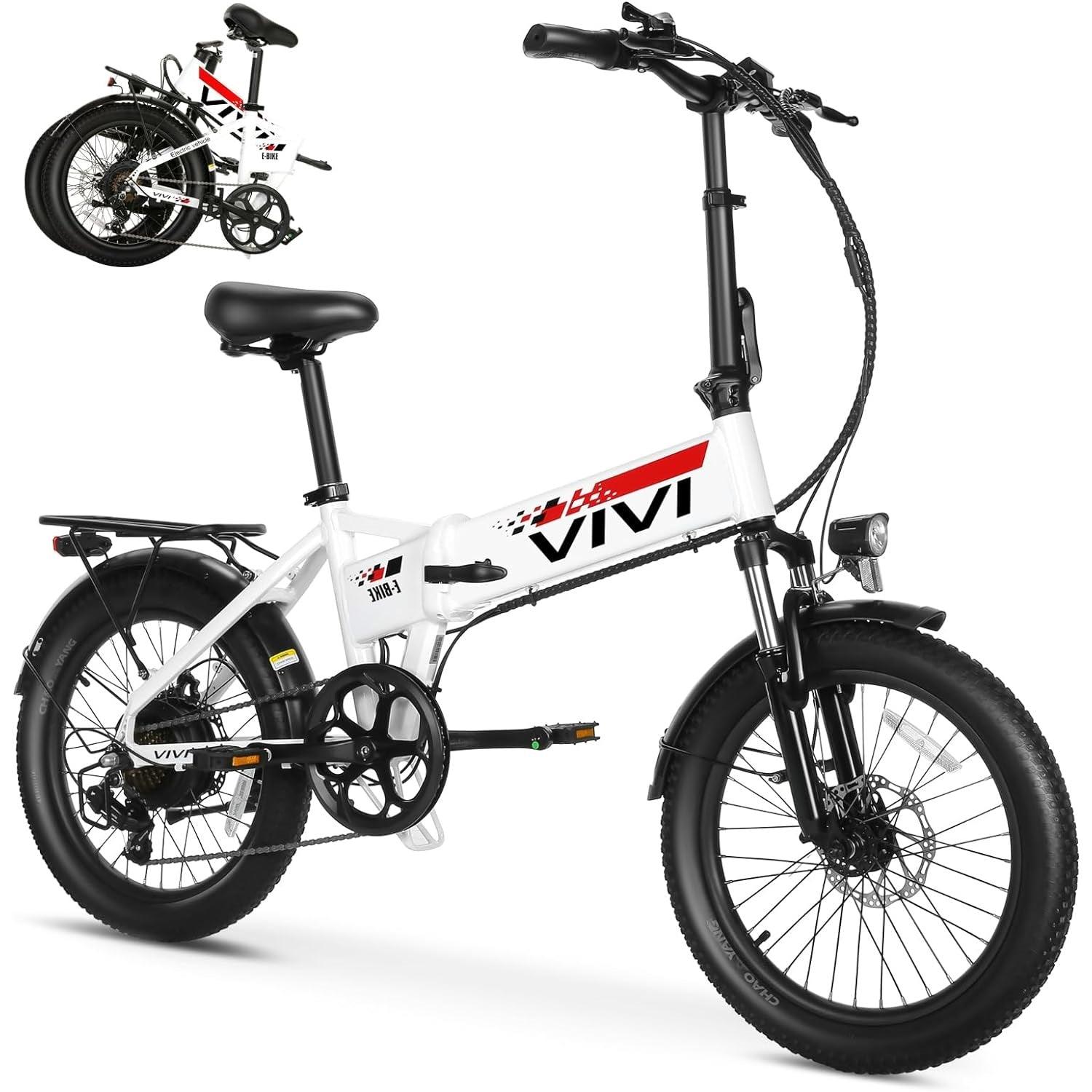

Vivi FM20 UL | Folding Electric Bike

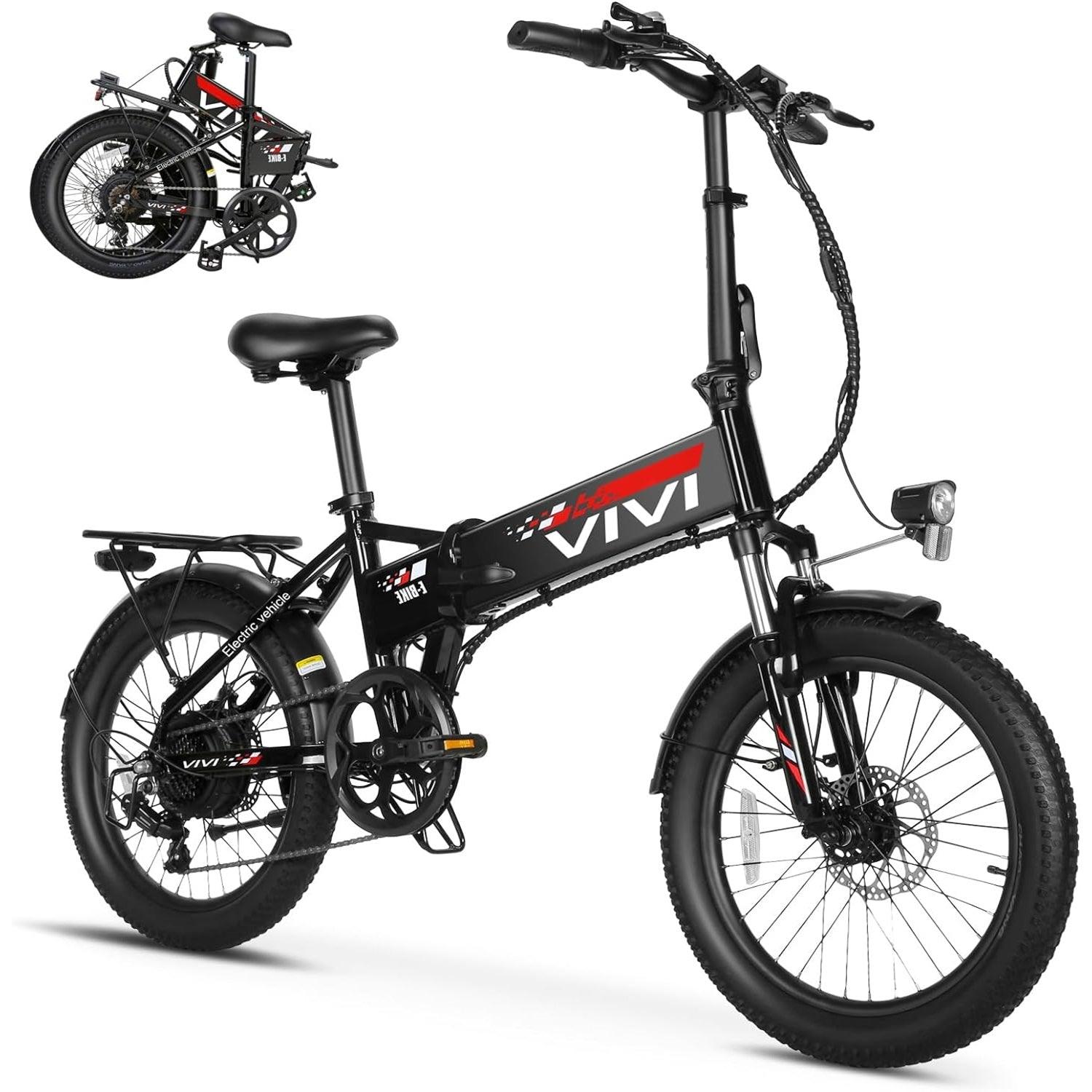

Vivi FM20UL provides riders with a versatile and commuter-friendly folding fat tire electric bike
Payment & Security
Descripción
¡Explora excursiones al aire libre! La bicicleta eléctrica VIVI FM20UL es la mejor bicicleta eléctrica para paseos casuales, excursiones y desplazamientos urbanos. Equipada con un 500 W Motor de cubo sin escobillas de alta velocidad y un Batería extraíble de gran capacidad de 48 V y 7,8 Ah, que puede soportar un rango máximo de 44-50 millas. Con velocidades de hasta 22 mphTe llevará allí rápidamente. Se adapta fácilmente a diversos terrenos y te permite disfrutar de la diversión al aire libre. Neumáticos anchos de 2,4 pulgadas resistentes a pinchazos, horquilla de suspensión delantera y asiento de amortiguador trasero, capaz de adaptarse a diferentes condiciones de la carretera, doble absorción de impactos, que reduce eficazmente los baches. Esta bicicleta eléctrica tiene la misma configuración que una bicicleta de montaña y puede adaptarse a una variedad de terrenos, puede disfrutar de la emoción de andar en bicicleta. Si está buscando una bicicleta eléctrica plegable para viajes cortos, esta bicicleta plegable mejorada es una buena opción.
Folding Fat Tire, Built for Excursions
Motor Power
500W
Battery
48V 7.8Ah
Charging Time
4-6 Hours
Range
50 Miles
Max Speed
22 MPH
Max Capacity
330 Lbs
Performance
Model
FM20UL
Color
Black / White
E-bike Class
2
IP Level
IP54
Regular Speed
25km/h 15.5MPH
Max Speed
35km/h 21.7MPH
Max Range
80km / 50 miles
Ebike Range
35-40km / 22-25 miles
PAS Range
70-80km / 44-50 miles
Speed Mode
Low / Mid / High
Bicycle Weight
25kg / 55Ibs
Load Capacity
150kg / 330Ibs
Package Size
136x24x62cm / 54x9.5x25 inches
Package Weight
29kg / 64 lbs
Rider Heights
155-190cm / 5.1-6.3 ft
Rider Age
16+
Folding
Yes
Rear Rack
Integrated
Riding Mode
Pure Electric / Pedal Assist / Normal Bike / Assist Push / Cruise Control

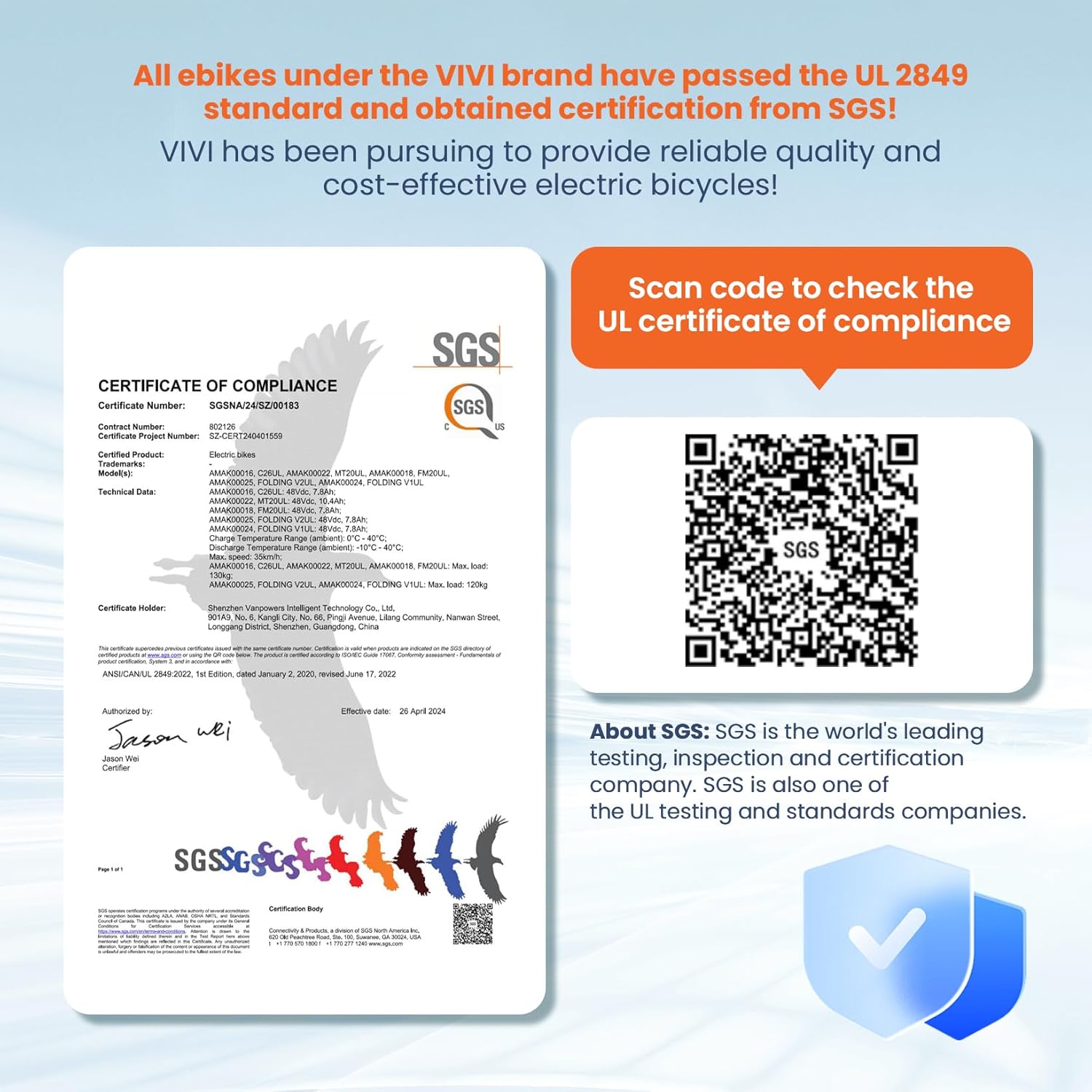

Certification
UL | UL 2849/2271
GCC | CPSC 1512
Electronics
Motor
500W 48V Brushless Hub Motor, 65Nm
Battery
48V 7.8Ah 374.4Wh Lithium-ion Battery
Controller
48V 18A Brushless Motor Controller
Display
48V Intelligent Digital LCD Display
Charger
US Plug 54.6V 2A Smart Charger
Charging Time
4-6 Hours
Pedal Assist
Lntelligent 5 Level Pedal Assist
Sensor
12 Magnet Cadence Speed Sensor
Throttle
Half Twist Throttle+Thumb Throttle
Bell/Horn
Integrated Handlebar Bell

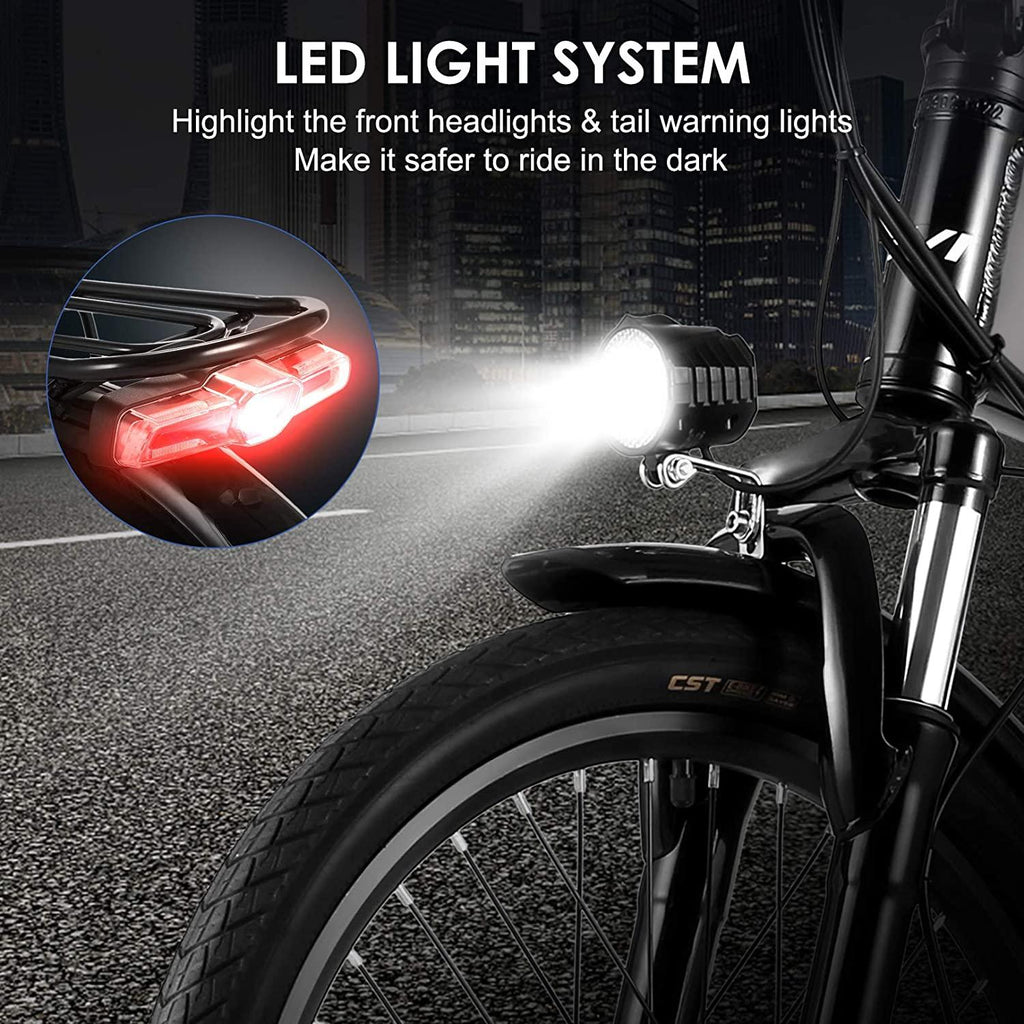

Front Light
48V Integrated LED Headlight
Tail Light
48V DC Integrated LED Taillight
Wiring
Waterproof Integration Cable
USB Ports
Without
Components
Frame
6061 Aluminum Alloy
Frame Type
Step-Over
Fork
Iron Aluminum Alloy, Φ28.6×465mm
Suspension
Coil Spring Suspension Fork, 60mm Travel
Derailleur
Shimano RD-TY200, 7-speed
Shifter
Shimano SL-TX50 7 Speed Thumb Shifter
Gearing
Shimano 1 x 7-speed, 14-28T
Handlebar
Custom Formed Aluminum, 620×φ31.8mm
Stem
Aluminum, Φ28.6×28×207×φ31.8mm
Stem Type
Aluminum Alloy Retractable Folding Stem
Headset
Sealed Bearing Headset
Bottom Bracket
124.5mm Square Thread Bottom Bracket
Grips
Imitation Leather Ergonomic Grips
Saddle
Ergonomic Breathable Sport Saddle
Seatpost
Adjustable Φ33.9 x 350mm Seatpost
Seatpost Clamp
φ41mm Quick Release
Brakes
160mm Double Mechanical Disc Brakes

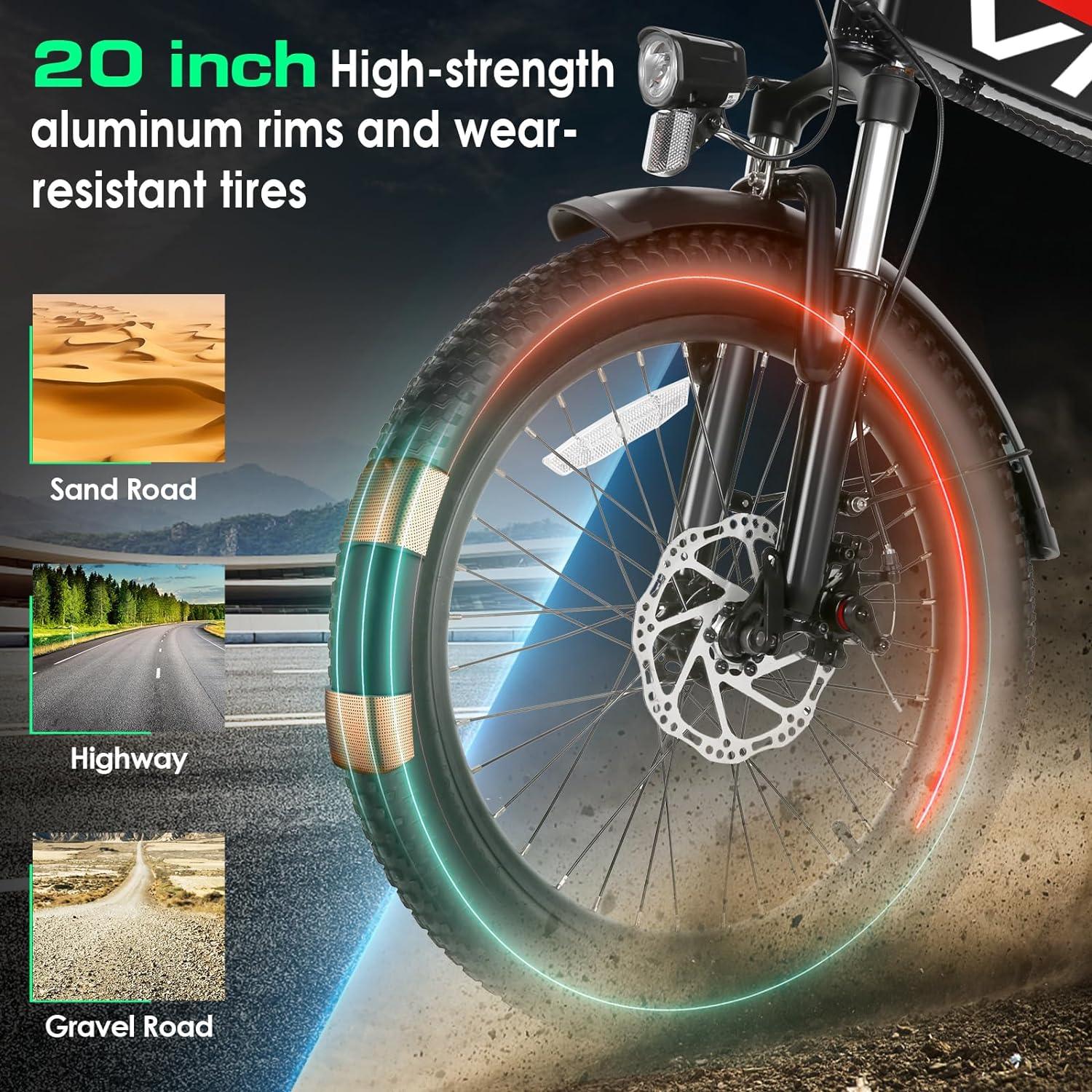

Tires
20 x 2.4" 30TPI Anti Puncture Fat Tires
Rims
36H Double Wall Aluminum Rims
Calipers
Front and Rear Mechanical Brake Calipers
Brake levers
Alloy Levers with Motor Cutoff Switch
Brake Pad
SA 160mm Cassette, Semi-metallic
Spokes
13G Black Stainless Steel
Chain
KMC Aluminum Alloy Chain, 112 links
Freewheel
Aluminum 7-speed Freewheel, 14-28T
Fenders
Included, Full Coverage Front and Rear
Kickstand
Heavy-duty Aluminum, Side-mounted
Rear Rack
Included, Aluminum, Carrying 25kg/55lbs
Crank Set
42T Chainring, 170mm Crank, Forged Alloy Dual-sided Aluminum
Pedals
Standard 9/16" Forged Plastic Pedal with BS Reflectors

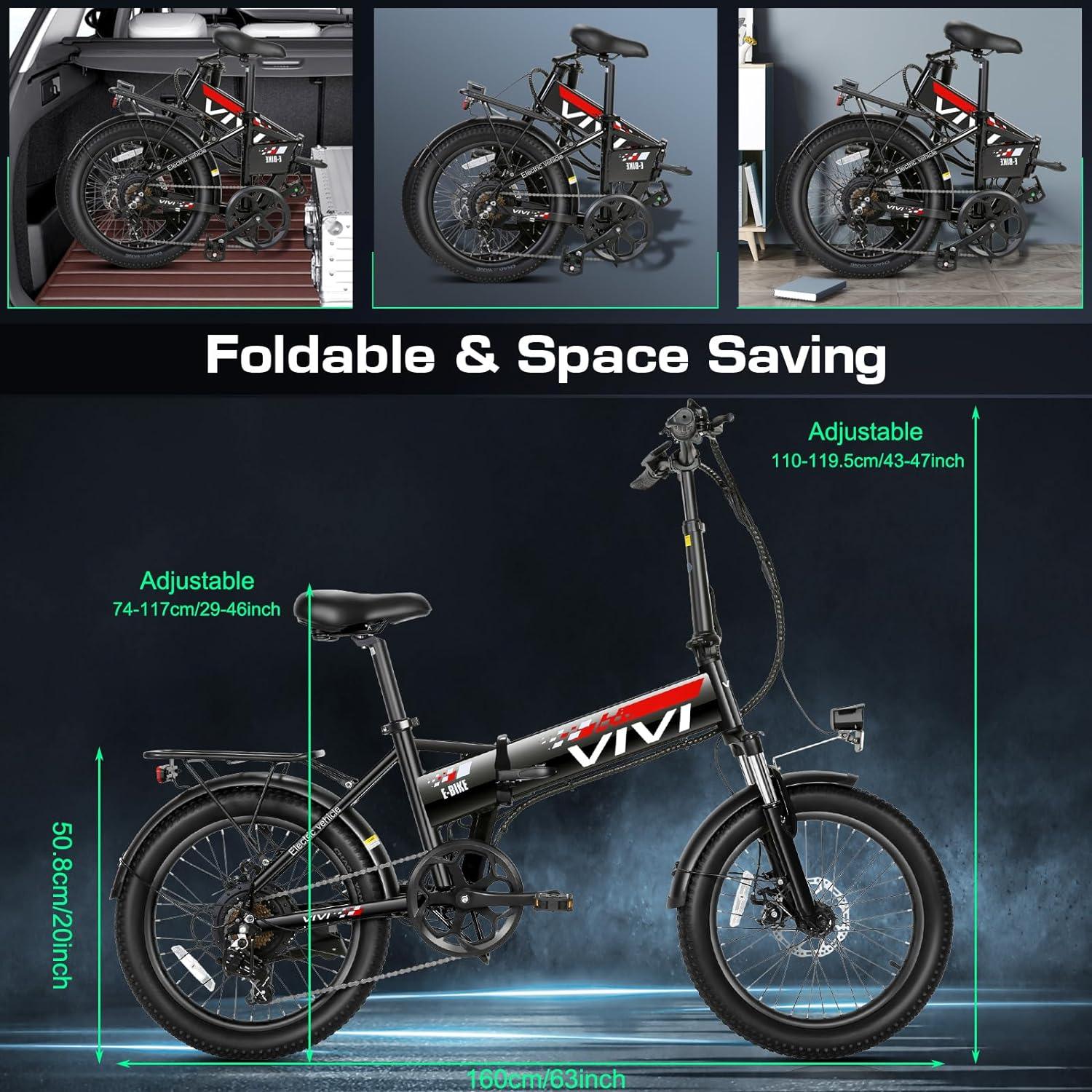

Geometry
Total Length
160cm / 63.0inch
Handlebar Height
110-119cm / 43.3-46.9inch
Handlebar Length
60cm / 23.6inch
Handlebar Diameter
2.22cm / 0.87inch
Crank Length
17cm / 6.7inch
Seat Height
74-117cm / 29.1-46.1inch
Seat Tube Length
64cm / 25.2inch
Handlebar Reach
65cm / 25.6inch
Seatpost Diameter
3.36cm / 1.32inch
Standover Height
69cm / 27.2inch
Top Tube Length
54cm / 21.3inch
Shelf Height
58cm / 22.9inch
Wheel Diameter
51cm / 20.0inch
Wheel Width
6.1cm / 2.4inch
Wheelbase
112cm / 40.1inch
Load Capacity
150kg / 330Ibs
Folding Dimensions
83x59cm / 32.7x23.2inch
Rider Heights
155-190cm / 5.1-6.3 ft
Bicycle Weight
25kg / 55Ibs (battery included)
Bicycle Dimensions
163x24x114cm/64.2x9.5x44.8inch
Features

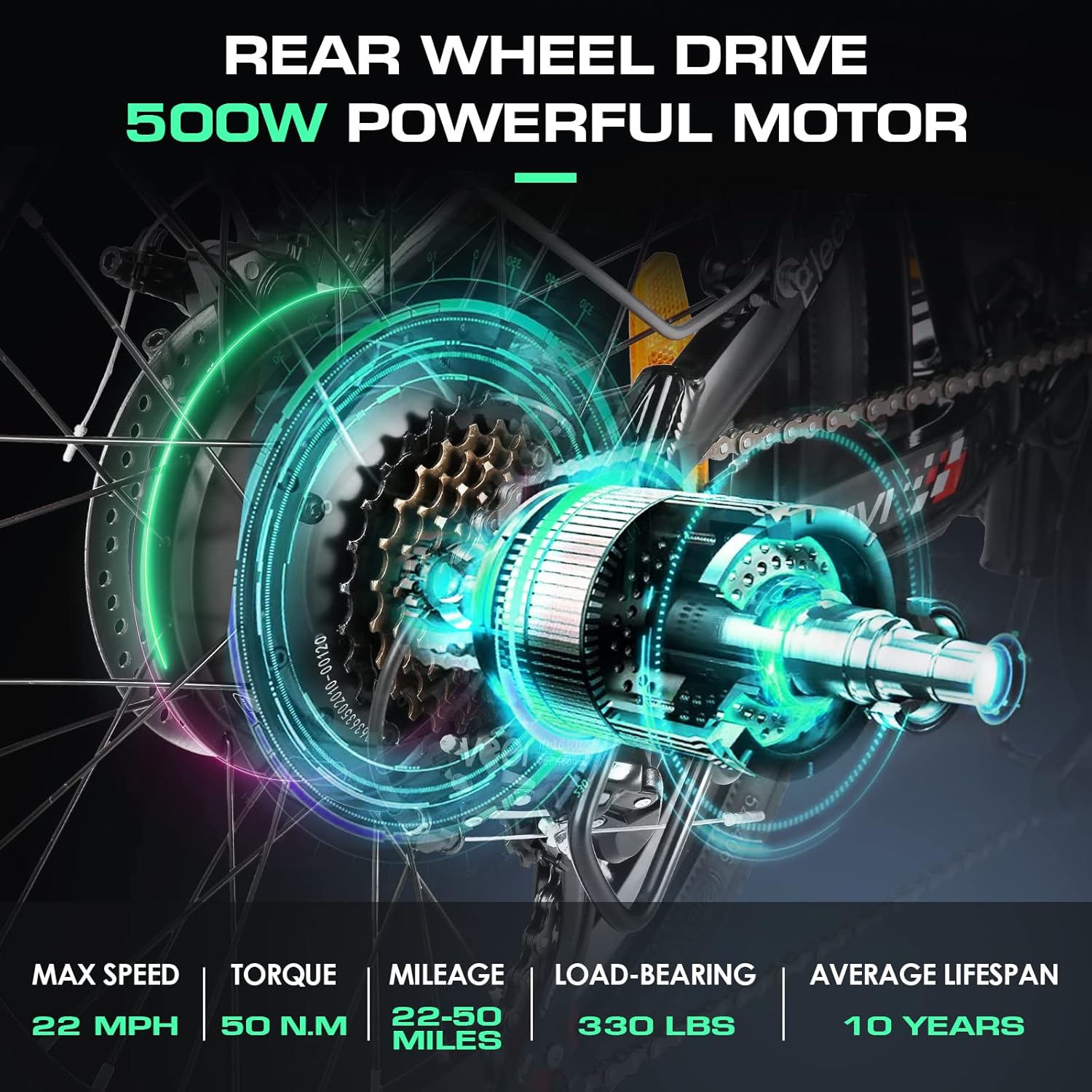

500W Brushless Motor
The electric bike equipped with 500W high speed brushless motor. With speeds up to 20 Mph, it will get you there swiftly. Easily adapt to various terrains, taking you to enjoy the outdoor fun.

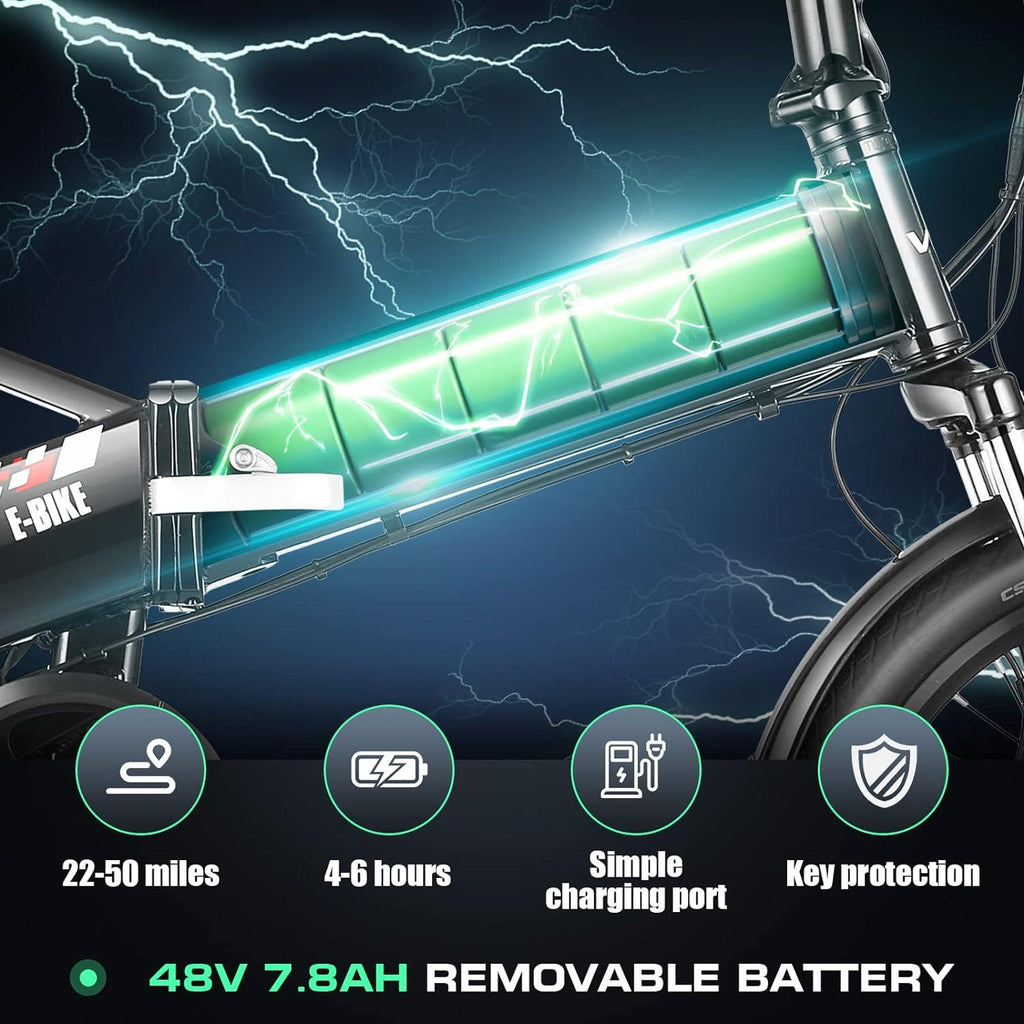

48V Removable Battery
With a 48V 7.8Ah large capacity removable smart lithium-ion battery inside the e-bike tube. You can get 22-25 miles of range when riding at full power and 44-50 miles when riding in assist mode.

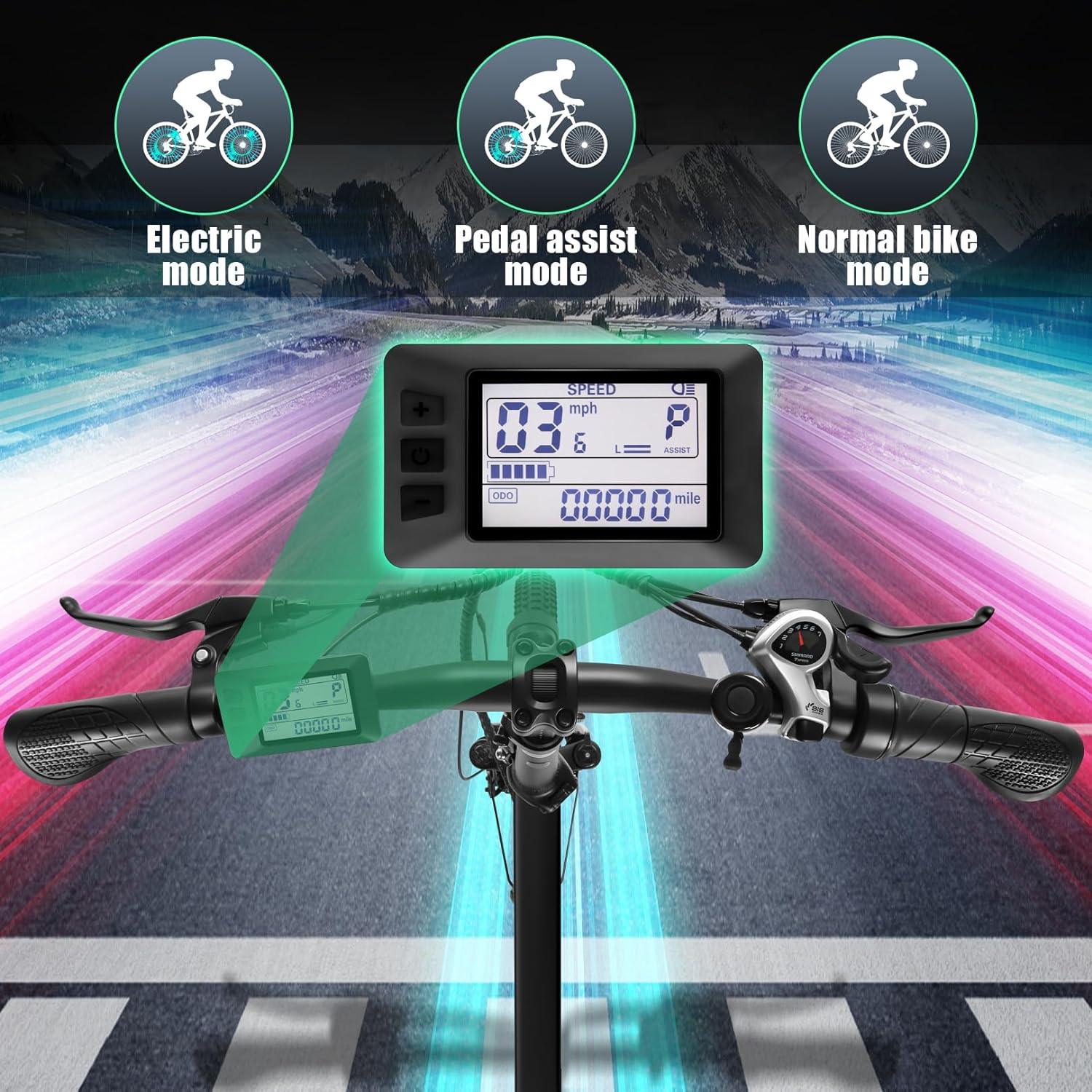

5 Working Modes
Ebike & Pedal assist bike & Normal bike & Cruise control mode & Assist push mode. With the intelligent digital LCD display, you can easily switch between the five riding modes, enjoy long-distance travel, and also exercise.

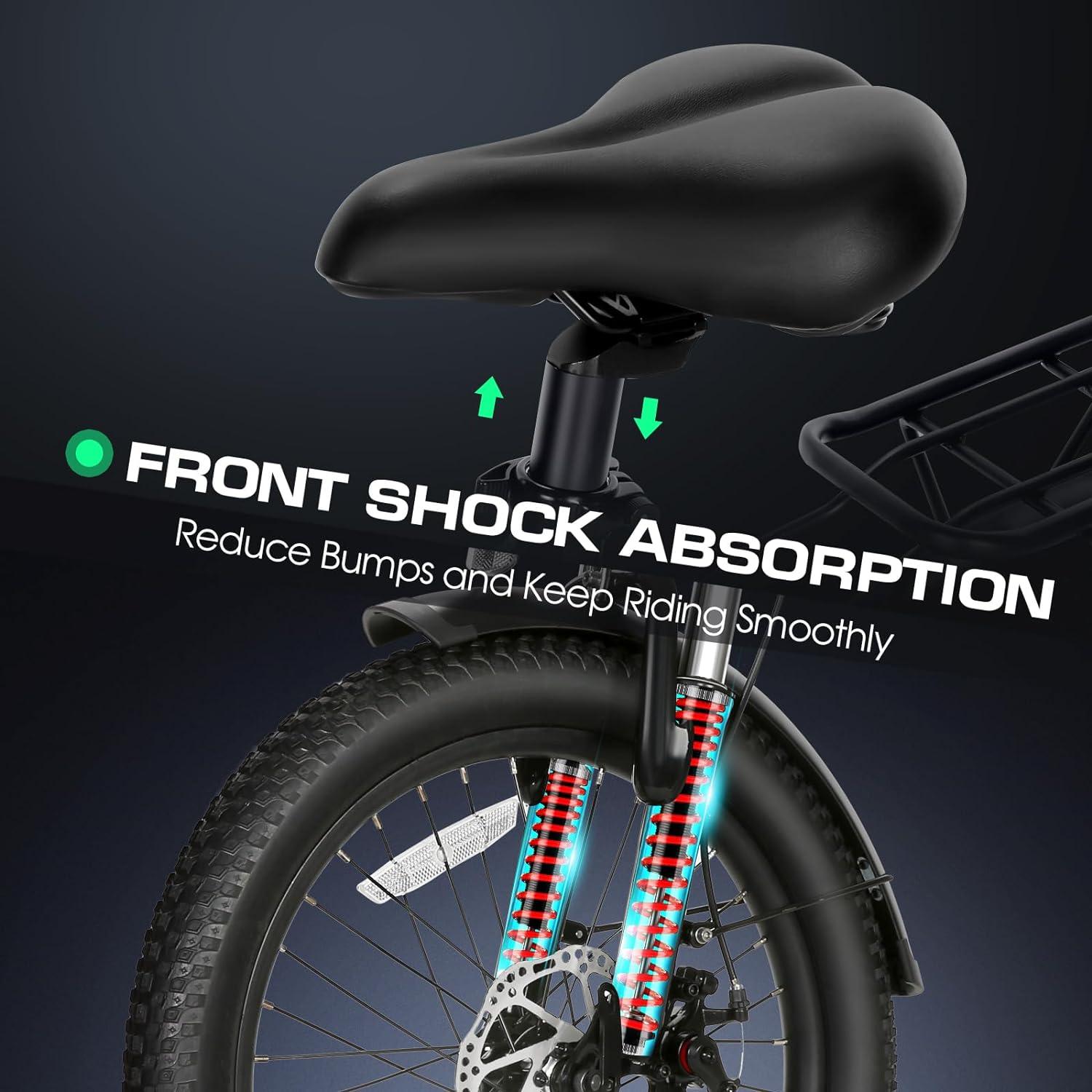

Dual Shock Absorbers
Equipped with front suspension fork and rear shock adjustable saddle, double shock absorption. 20 inches puncture-proof fat tires and aluminum alloy wheels provide greater terrain adaptability.

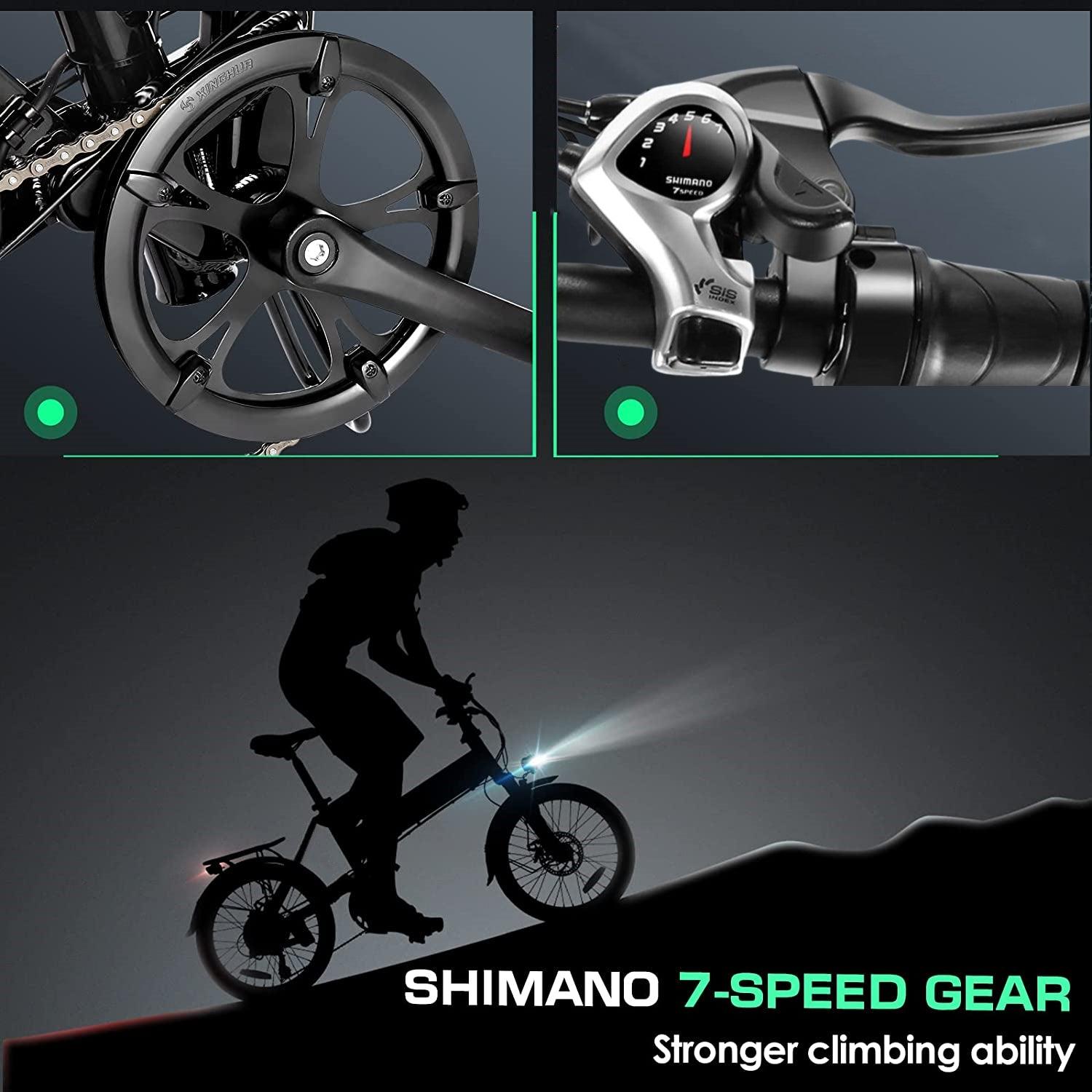

Dual Disc Brakes & Shimano 7-speed
With the Shimano 7-speed gears system, you can deal with hills and roads. Professional 7-speed gears, front and rear mechanical disc brakes, providing more comfortable riding experience.

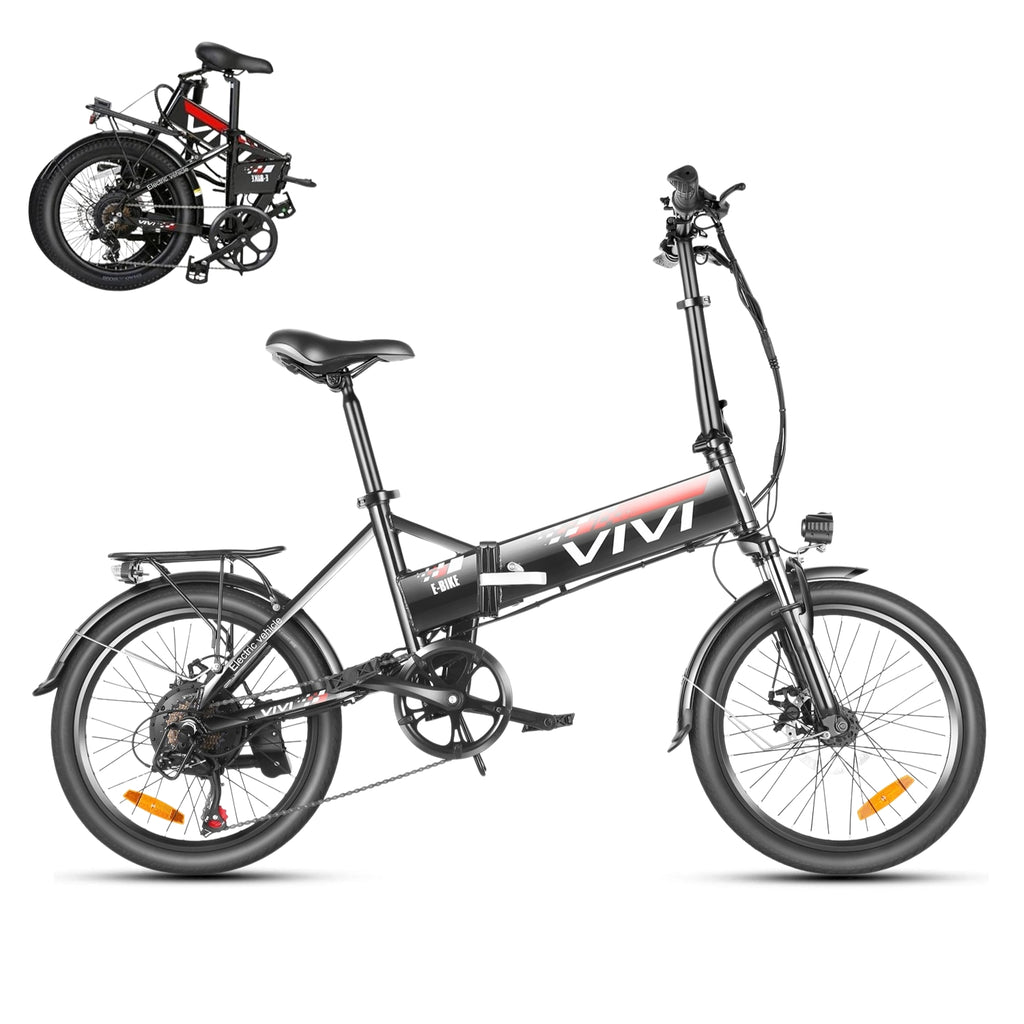

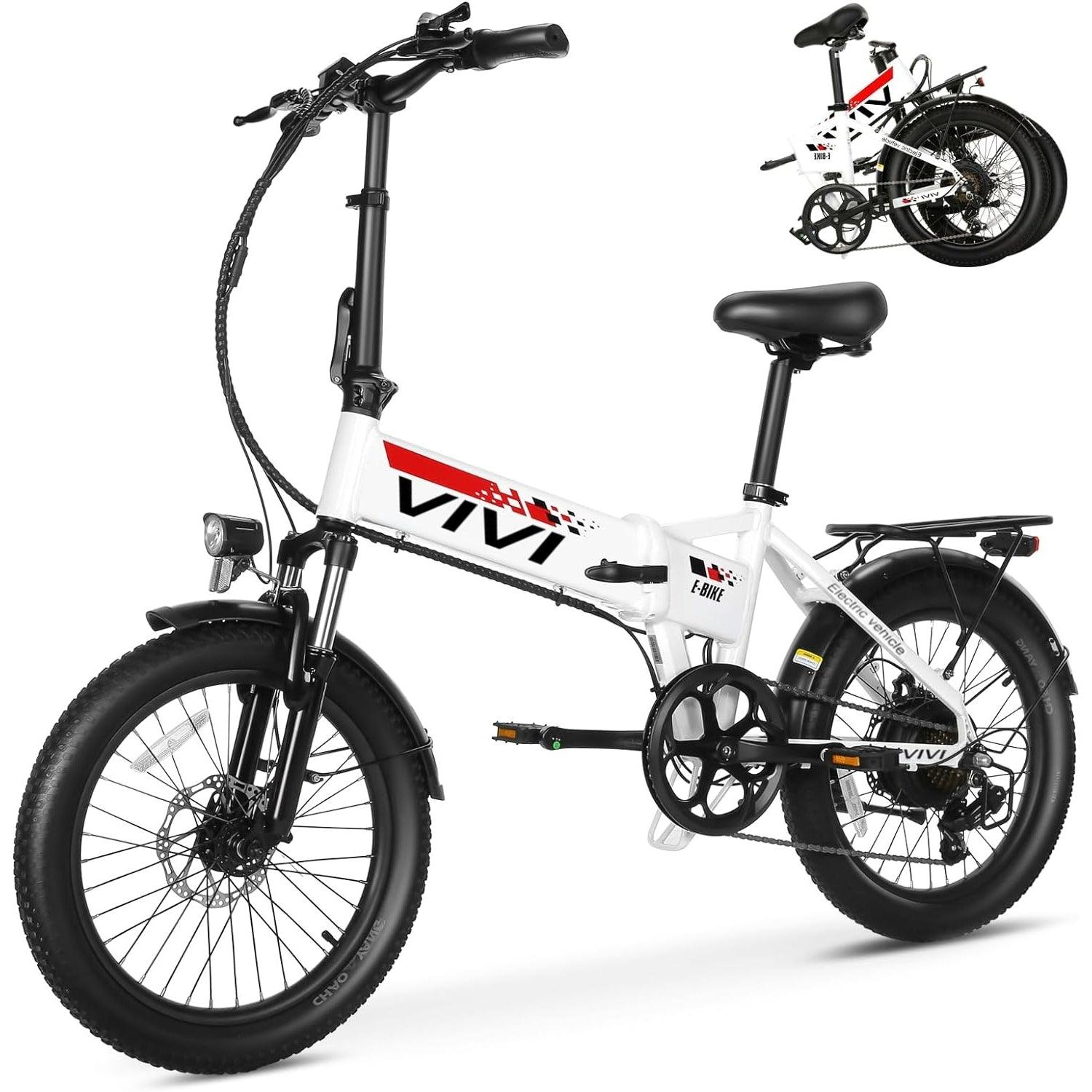

Excellent Riding Configuration

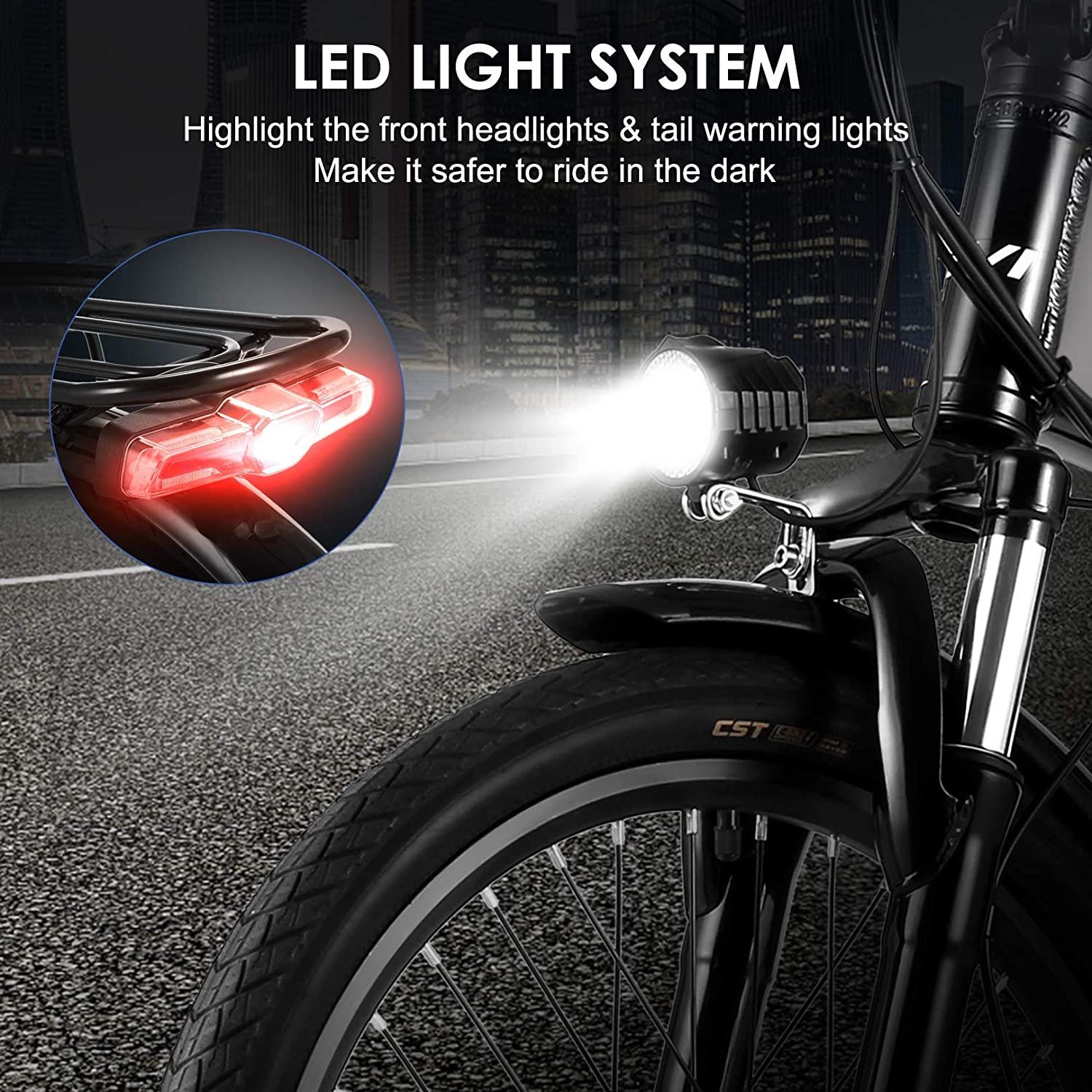

The electric bike uses lightweight aluminum alloy frame. Easy to fold and storage. The bike handlebar and seat height can be adjusted to suit different heights of people. LED Headlight and taillight for safer night riding.
Display
- VIVI FM20 Electric Bike
- How to Assemble
Package
Electric Bike
(Pre-assembled)
Removable Battery
Battery Charger
Fenders
Saddle Kit
Pedals
Tool kit
User Manual
