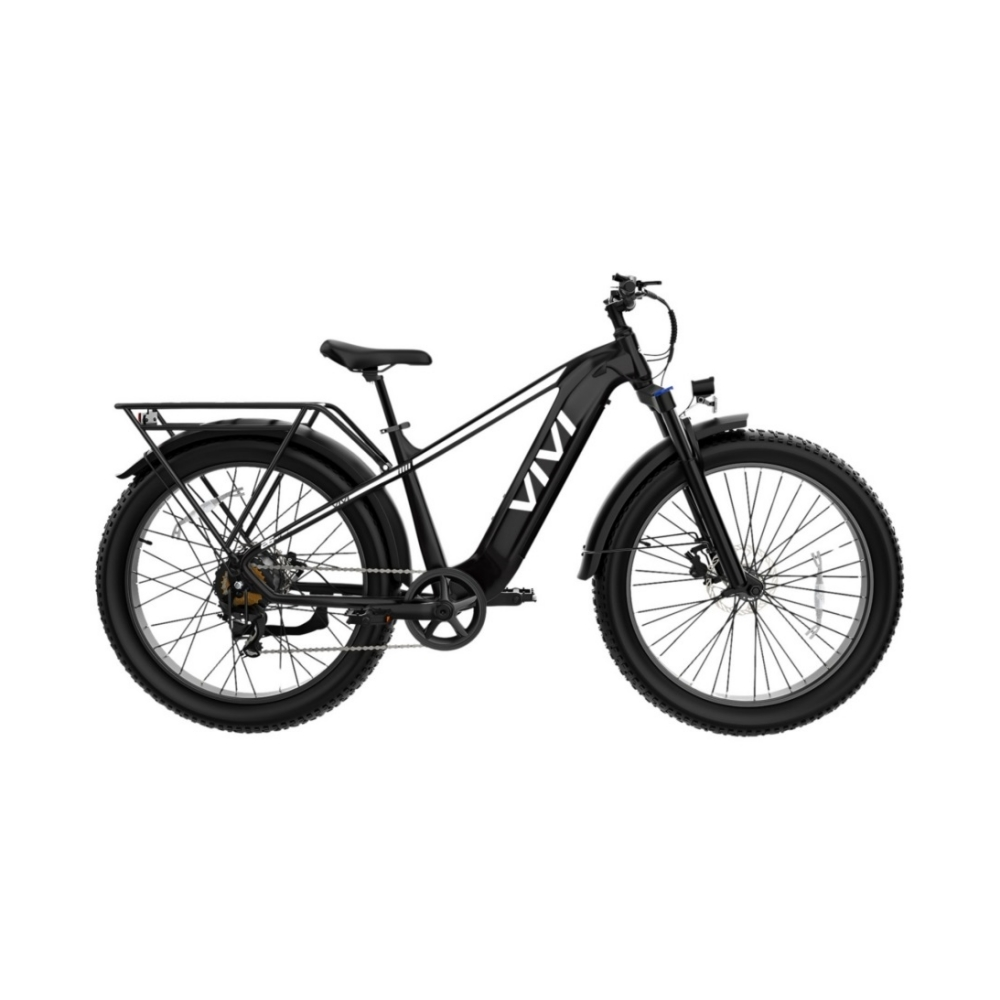

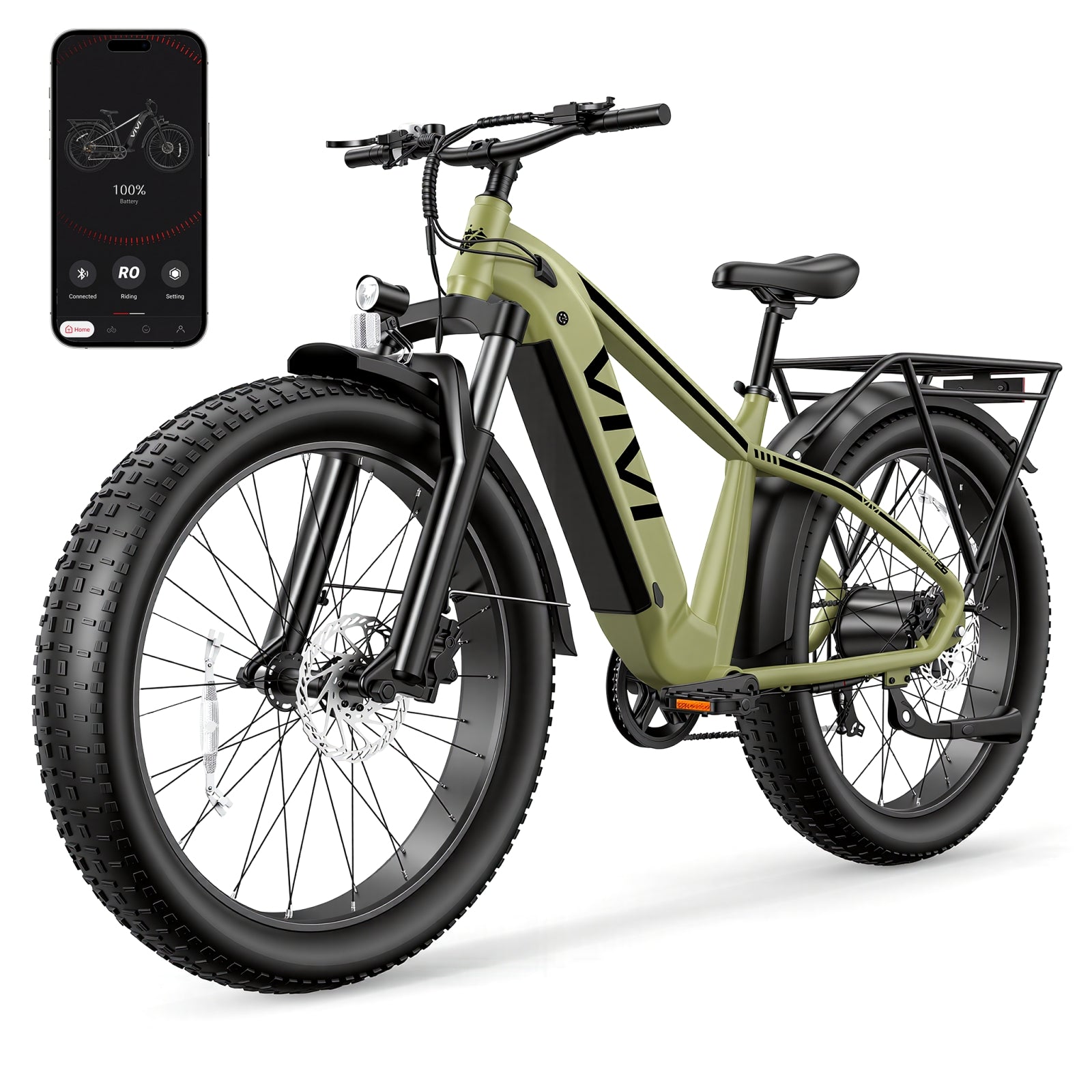

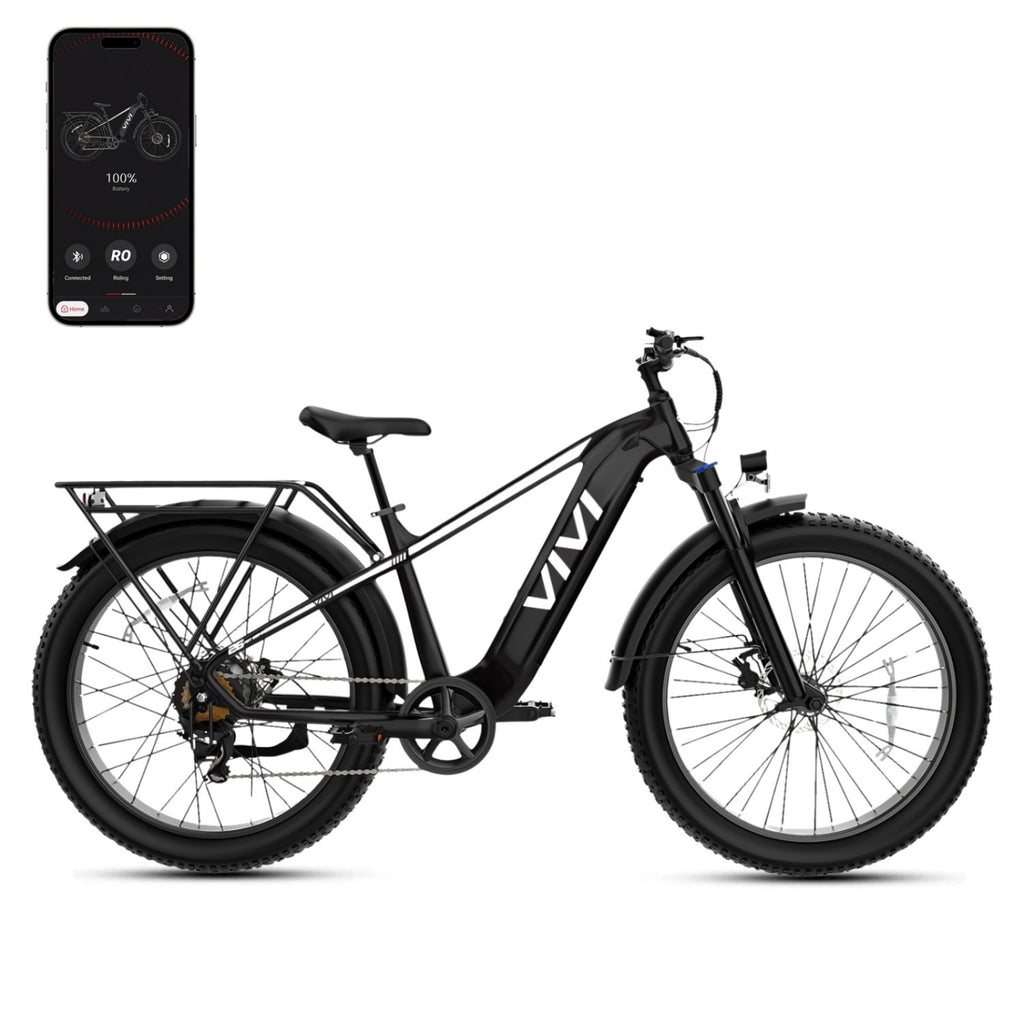

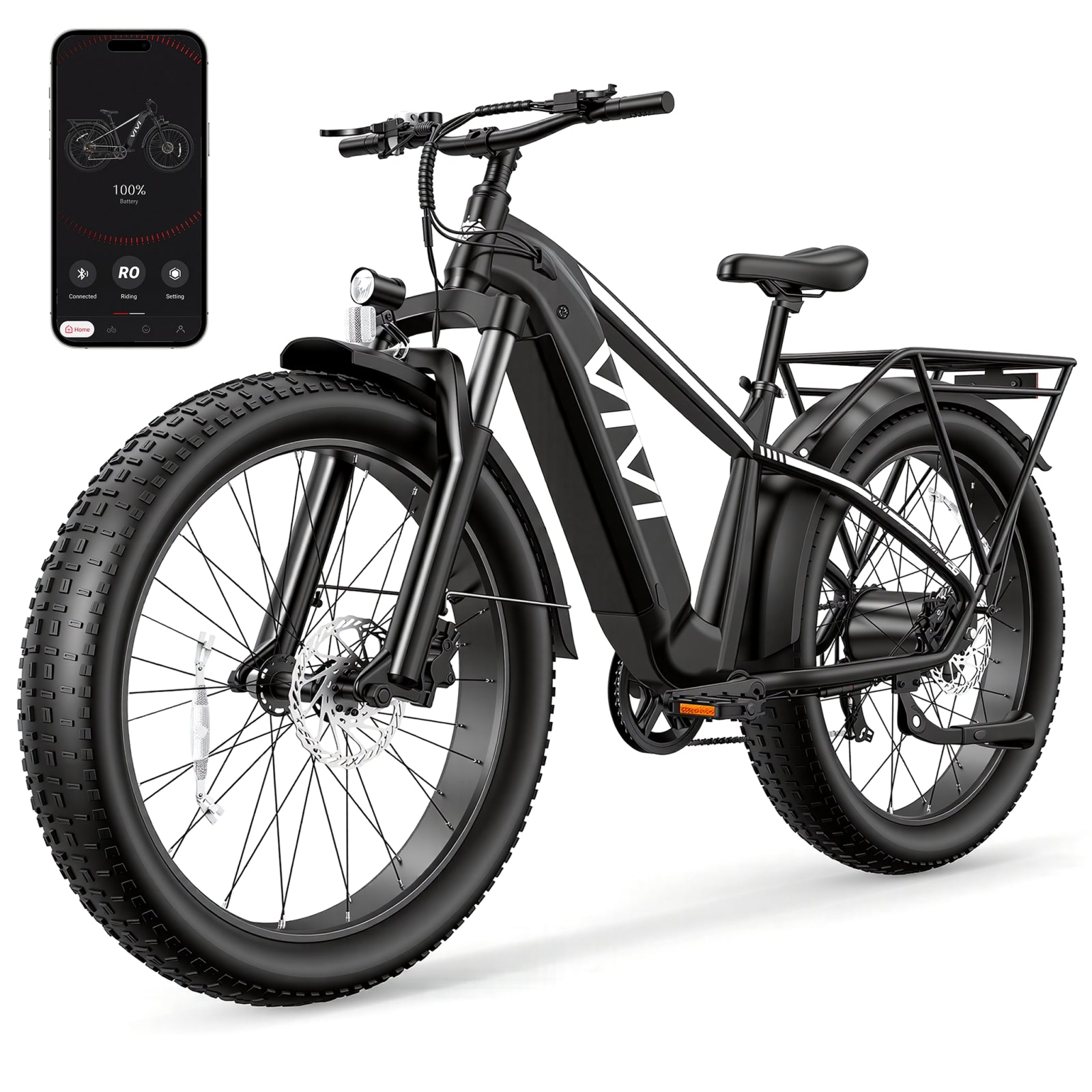

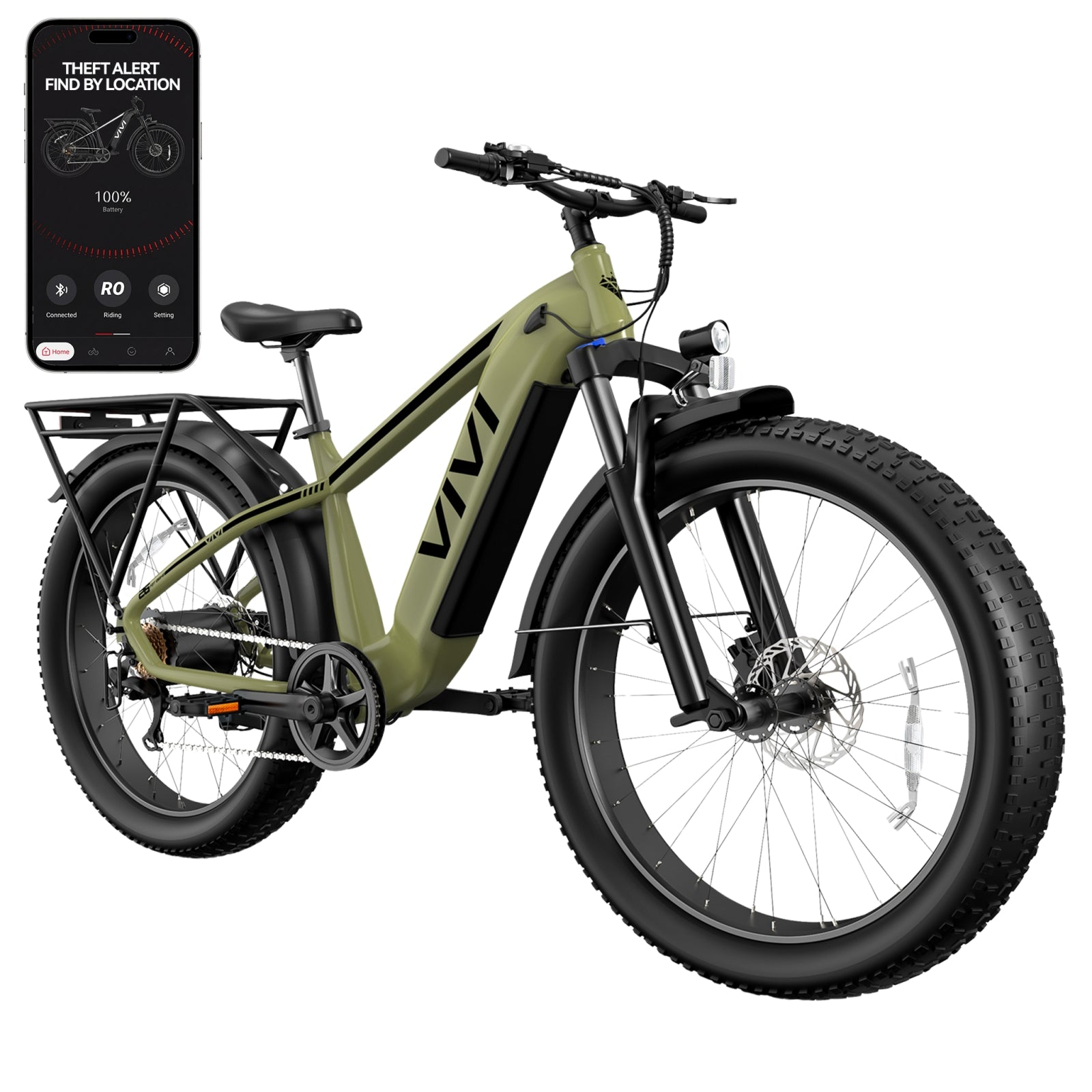

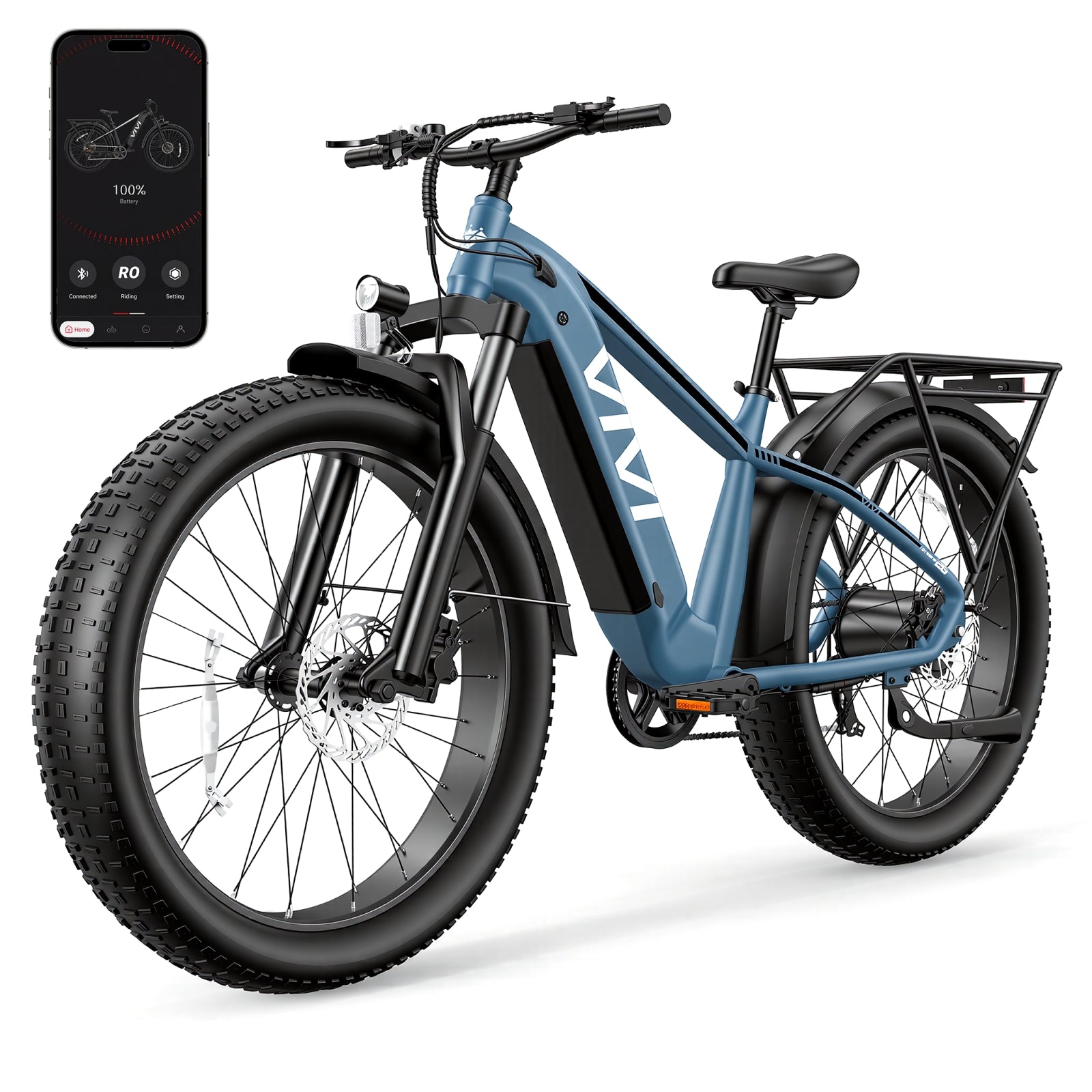

Vivi ACE01 Pro | Fat Tire Electric Bike
Vivi ACE01 Pro provides riders with a high performance all terrain long range fat tire electric bike

Vivi ACE01 Pro provides riders with a high performance all terrain long range fat tire electric bike
Motor Power
1500W Peak
Battery
48V 15Ah
Range
60 Miles
Max Speed
25 MPH
App Connection
Route, GPS+
Smart Security
Theft Alerts
Model
ACE01 Pro

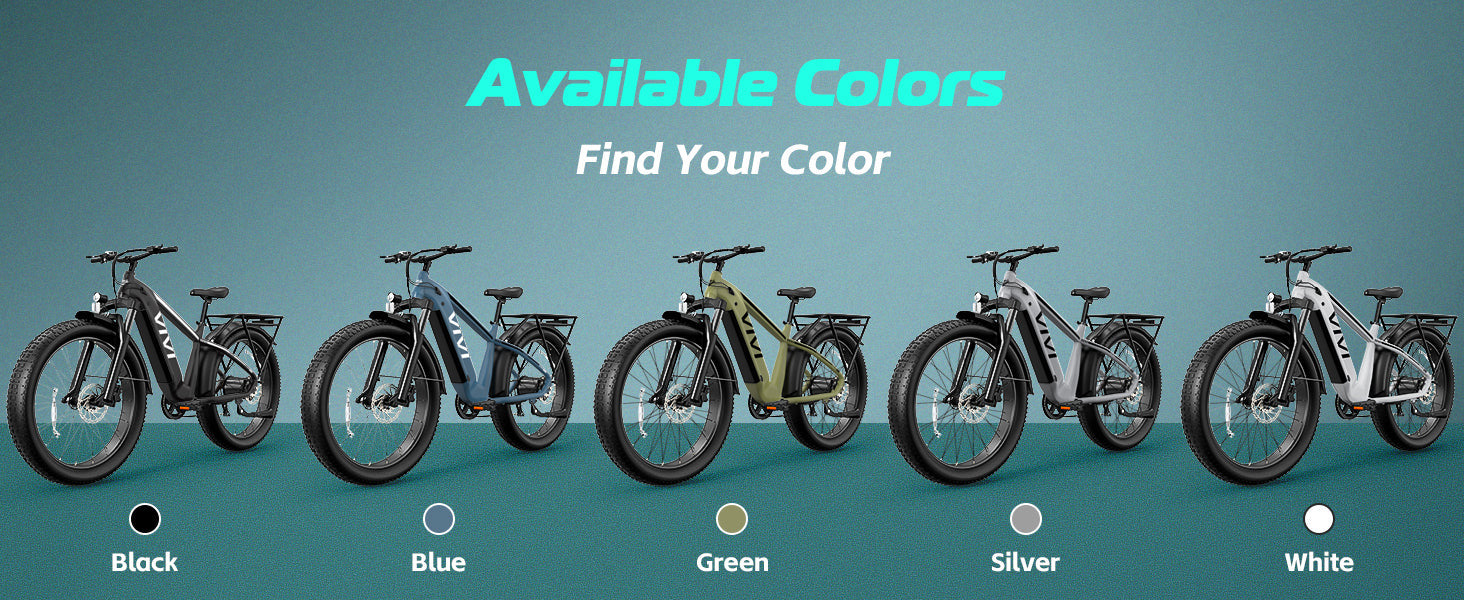

Color
Black / White / Blue
E-bike Class
2
IP Level
IP54
Regular Speed
32km/h 20MPH
Max Speed
40km/h 25MPH
Max Range
80-95km / 50-60 miles
Ebike Range
45-55km / 28-34 miles
PAS Range
55-95km / 34-60 miles
Speed Mode
Low / Mid / High
Bicycle Weight
33kg / 72bs
Load Capacity
150kg / 330Ibs

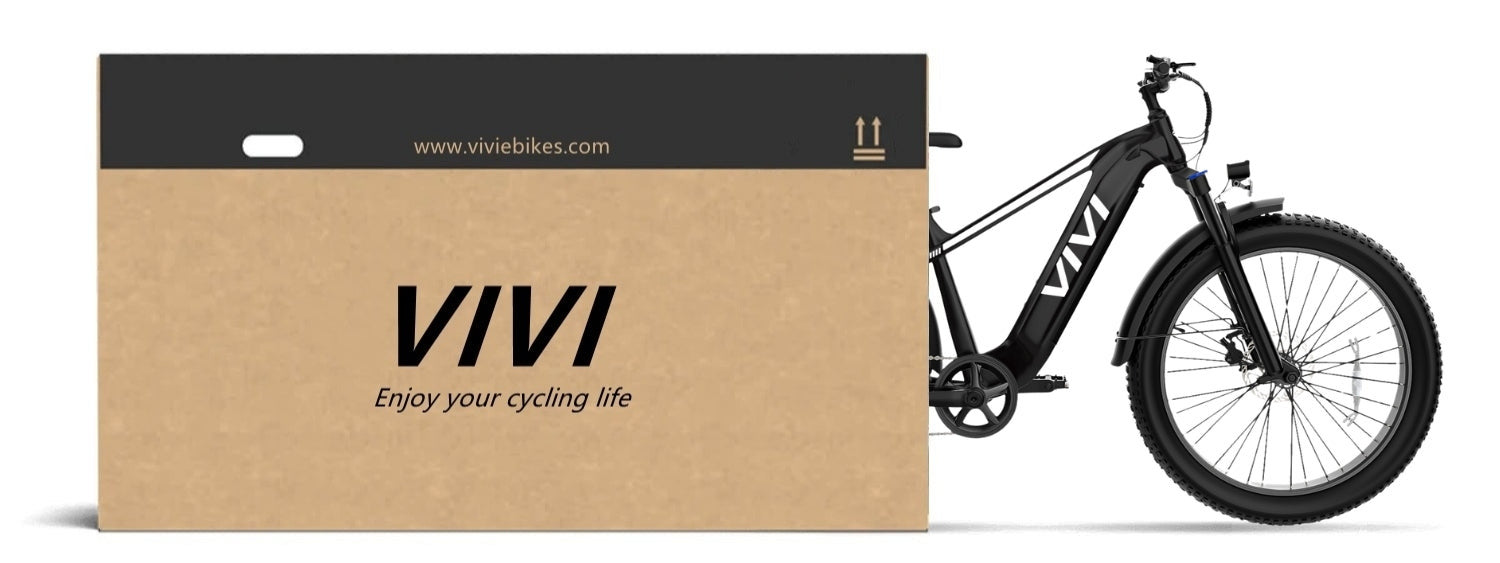

Package Size
160x32x84cm / 63x12x33 inches
Package Weight
43kg / 95 lbs
Rider Heights
160-200cm / 5.3-6.5 ft
Rider Age
16+
Folding
No
Rear Rack
Integrated
Smart App
Vanlife E-bike
Certification
SGS | UL 2849/2271
GCC | CPSC 1512
Motor
1500W Peak Brushless Hub Motor, 90Nm
Battery
👍48V 15Ah 720Wh Lithium-ion Battery
Controller
48V 24A Brushless Motor Controller
Display
👍48V Intelligent Digital LCD Display
Charger
US Plug 54.6V 3A Smart Charger
Charging Time
4-6 Hours
Pedal Assist
👍Intelligent 5 Level Pedal Assist
Sensor
👍Upgraded Torque Sensor
Throttle
Half Twist Throttle+Thumb Throttle
Bell/Horn
Integrated Handlebar Bell
Front Light
48V Integrated LED Headlight
Tail Light
Quick Release Rear Reflector
Wiring
Waterproof Integration Cable
USB Ports
Without
Frame
6061 Aluminum Alloy
Frame Type
High-Step
Fork
Aluminum, Φ28.6×538mm, 100mm Travel
Suspension
Air Spring Fork with Lockout/Adjustment
Derailleur
Shimano RD-TY300, 7-speed
Shifter
Shimano SL-TX50 7 Speed Thumb Shifter
Gearing
Shimano 1 x 7-speed, 11-28T
Handlebar
Custom Formed Aluminum, 700×φ31.8mm
Stem
Aluminum,Φ28.6×40×90×φ31.8mm, 60º
Headset
Sealed Bearing Headset
Grips
Imitation Leather Ergonomic Grips
Saddle
Ergonomic Breathable Sport Saddle
Seatpost
Adjustable Φ30.4 x 300mm Alloy Seatpost
Seatpost Clamp
φ34.9mm Quick Release
Brakes
👍Double Hydraulic Disc Brake, 180mm
Tires
26 x 4.0" 30TPI Anti Puncture Fat Tires
Rims
36H Double Wall Aluminum Rims
Calipers
Front and Rear Hydraulic Brake Calipers
Brake levers
Alloy Levers with Motor Cutoff Switch
Brake Pad
SA 180mm Cassette, Semi-metallic
Spokes
13G Black Stainless Steel
Chain
KMC Aluminum Alloy Chain, 118 links
Freewheel
Aluminum 7-speed Freewheel, 11-28T
Fenders
Included, Full Coverage Front and Rear
Kickstand
Heavy-duty Aluminum, Side-mounted
Rear Rack

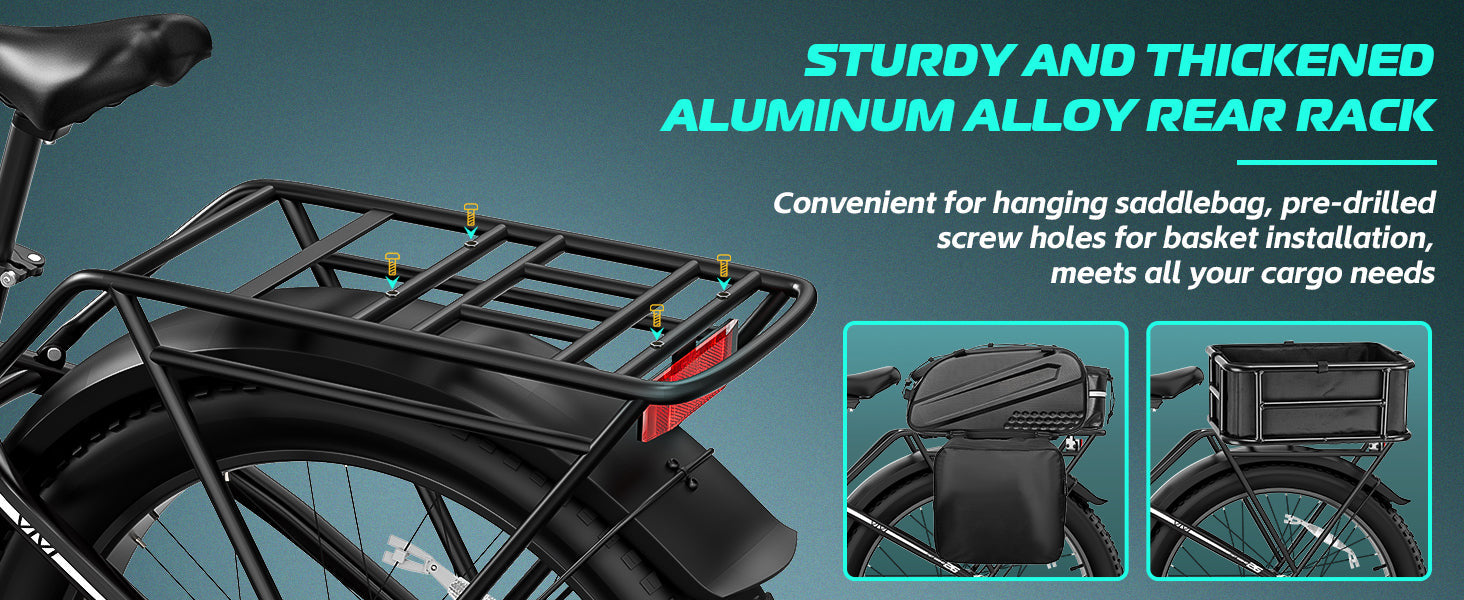

Included, Aluminum, Carrying 25kg/55lbs
Crank Set
42T Chainring, 170mm Crank, Forged Alloy Dual-sided Aluminum
Pedals
Standard 9/16" Forged Plastic Pedal with BS Reflectors

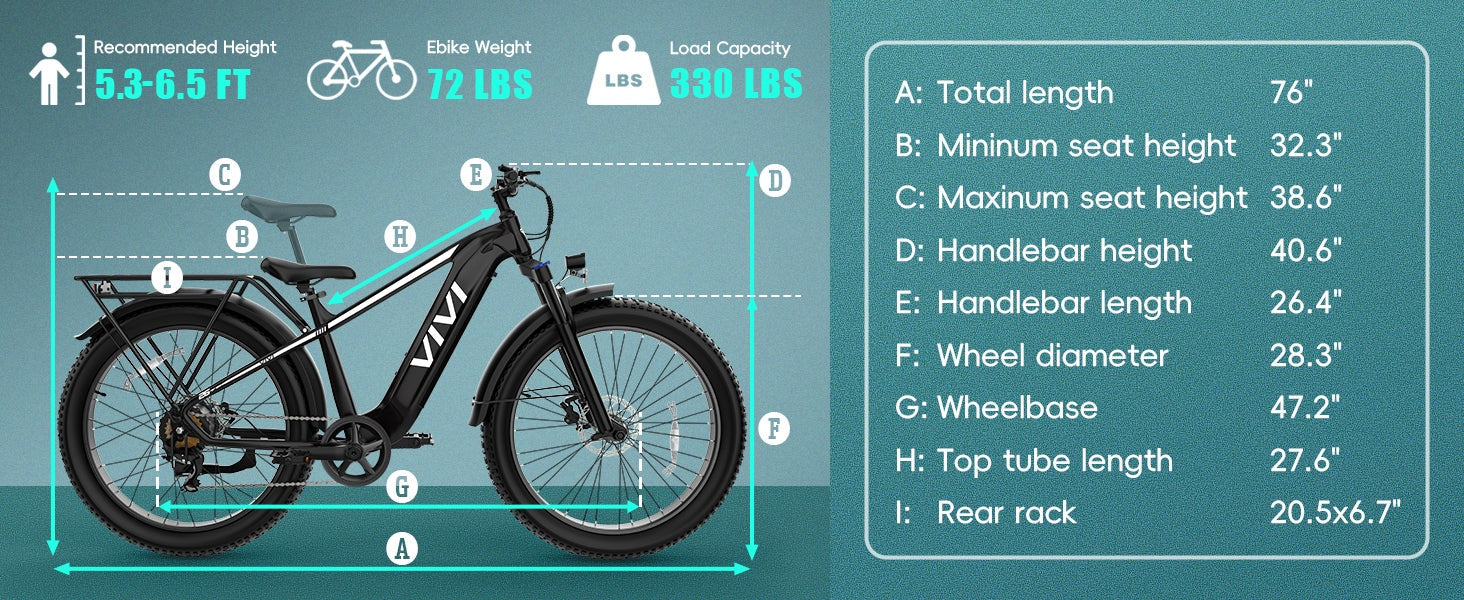

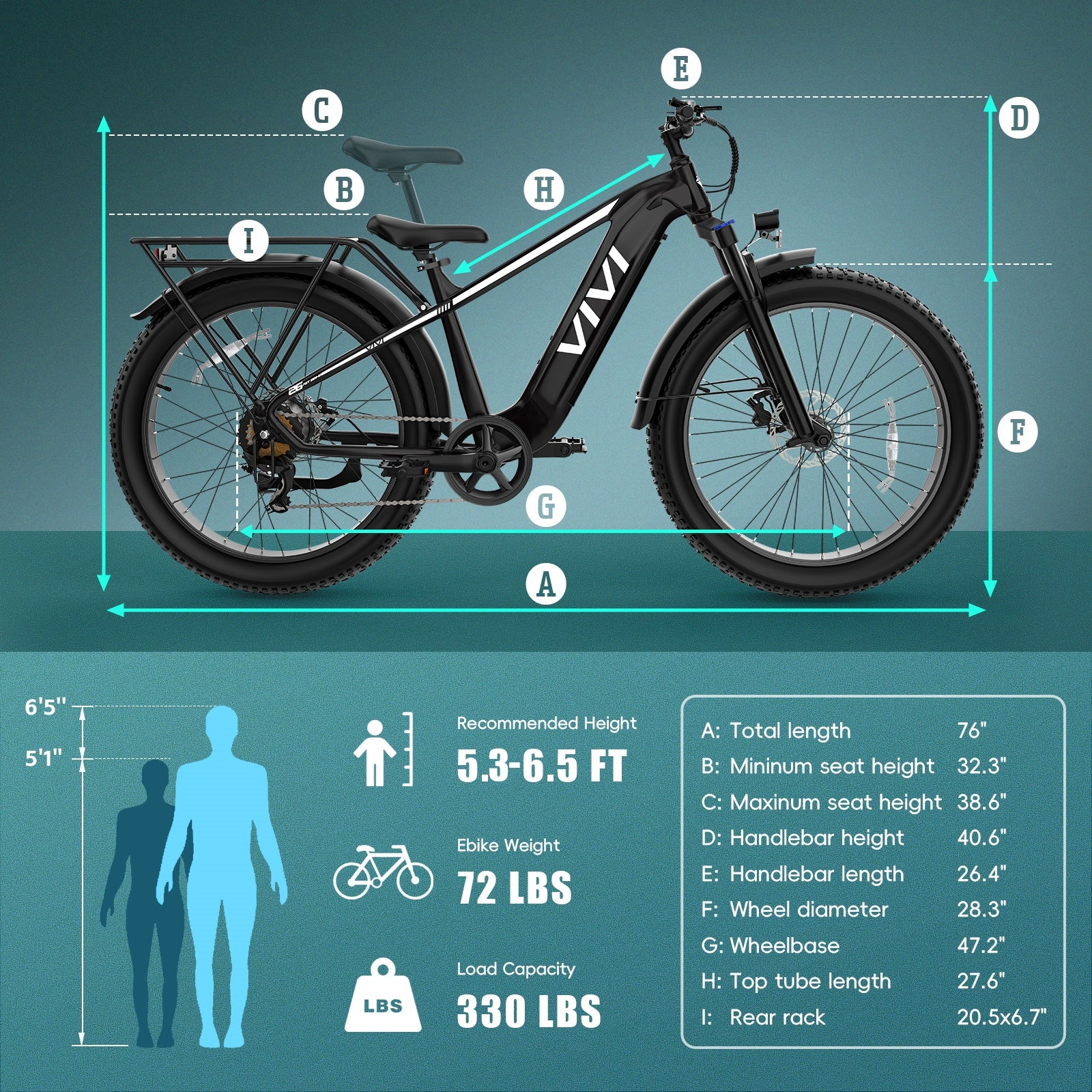

Total Length
193cm / 76inch
Handlebar Height
103m / 40.6inch
Handlebar Length
67cm / 26.4inch
Handlebar Diameter
2.22cm / 0.87inch
Crank Length
17cm / 6.7inch

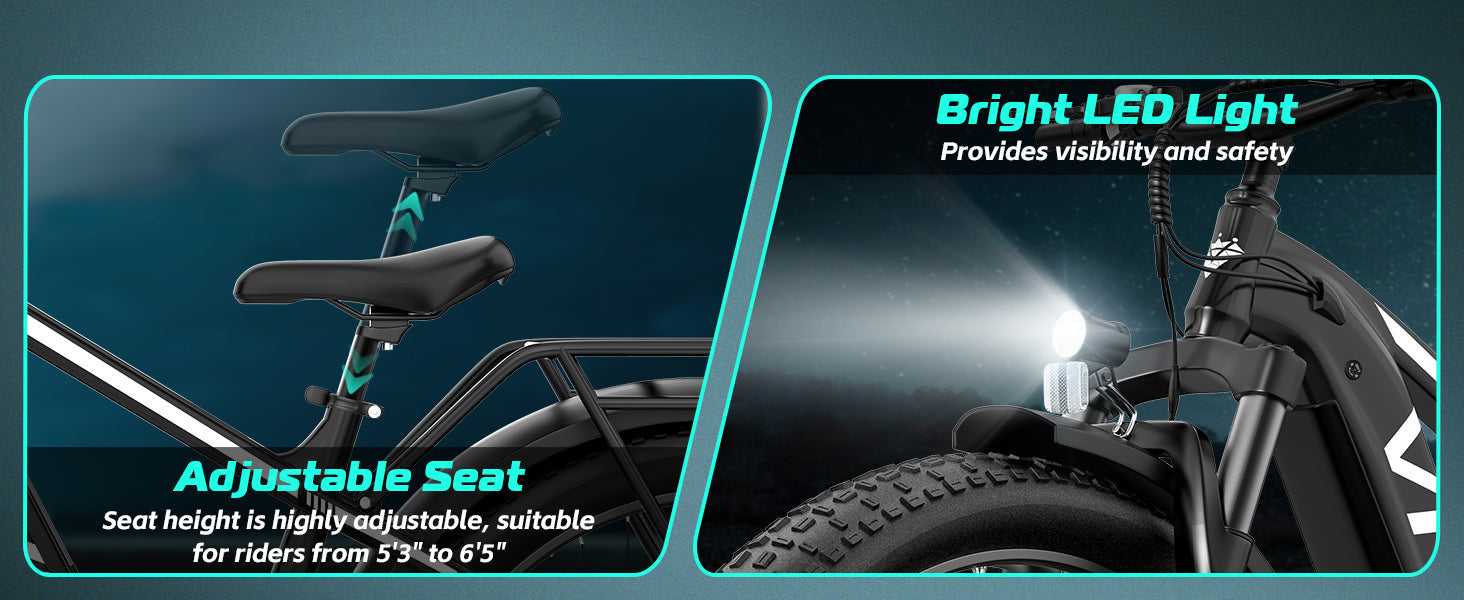

Seat Height
82-98cm / 32.3-38.6inch
Seat Tube Length
79cm / 31.1inch
Handlebar Reach
69.5cm / 27.4inch
Seatpost Diameter
2.72cm / 1.07inch
Standover Height
77cm / 30.3inch
Wheel Diameter
72cm / 28.3inch
Wheel Width
10.2cm / 4.0inch
Wheelbase
120cm / 47.2inch
Top Tube Length
70cm / 27.6inch
Load Capacity
150kg / 330Ibs
Rider Heights
160-200cm / 5.3-6.5 ft
Bicycle Weight
43kg / 95Ibs (battery included)
Bicycle Dimensions
190x69x120cm/75x27x47.2inch

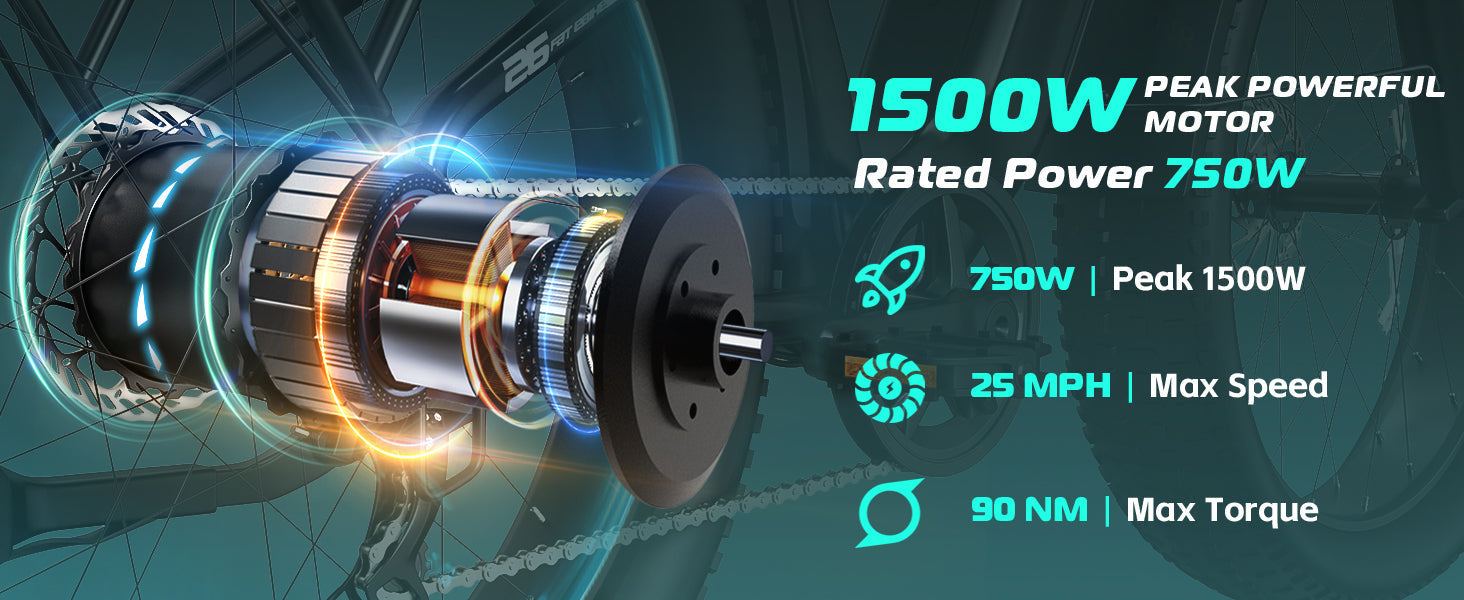

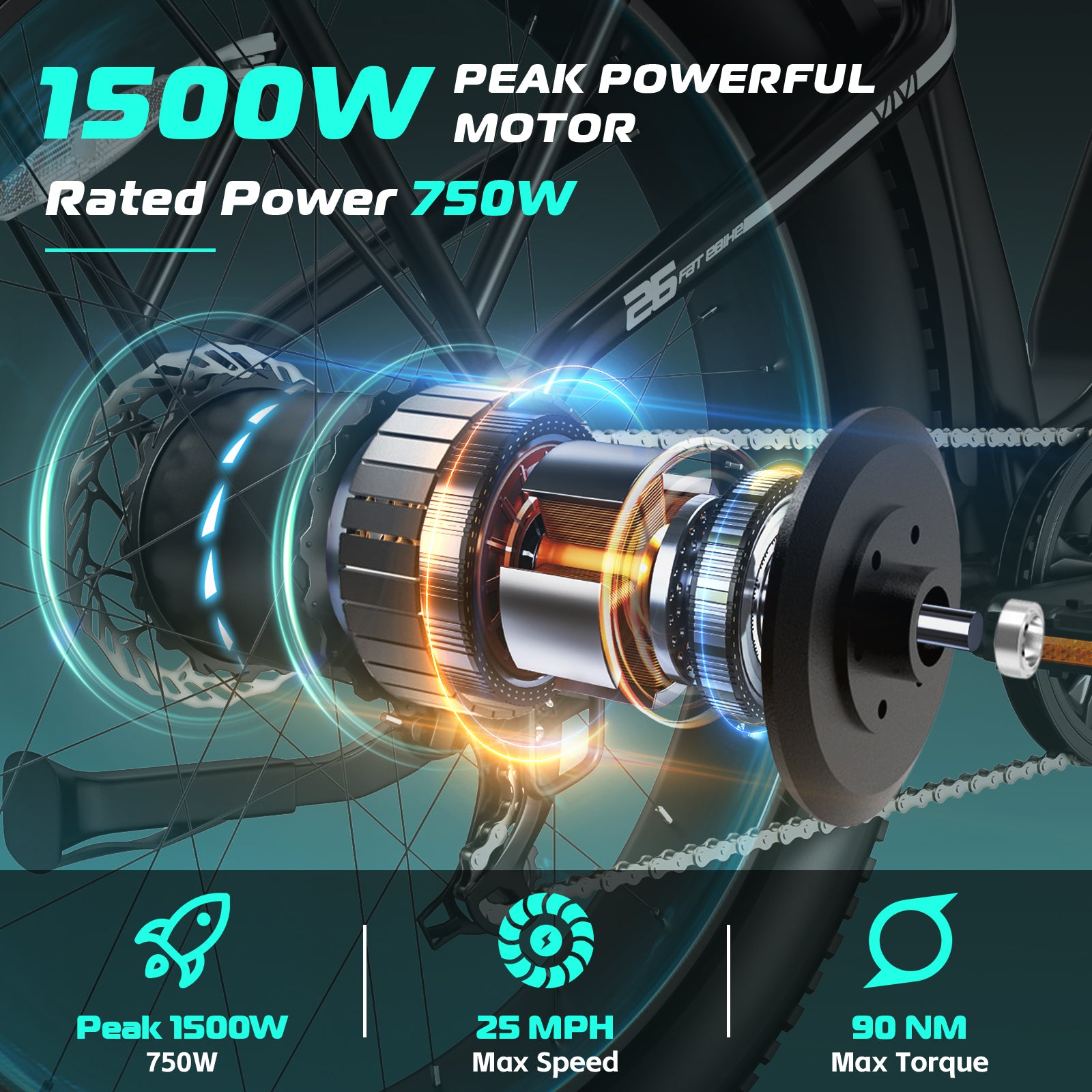

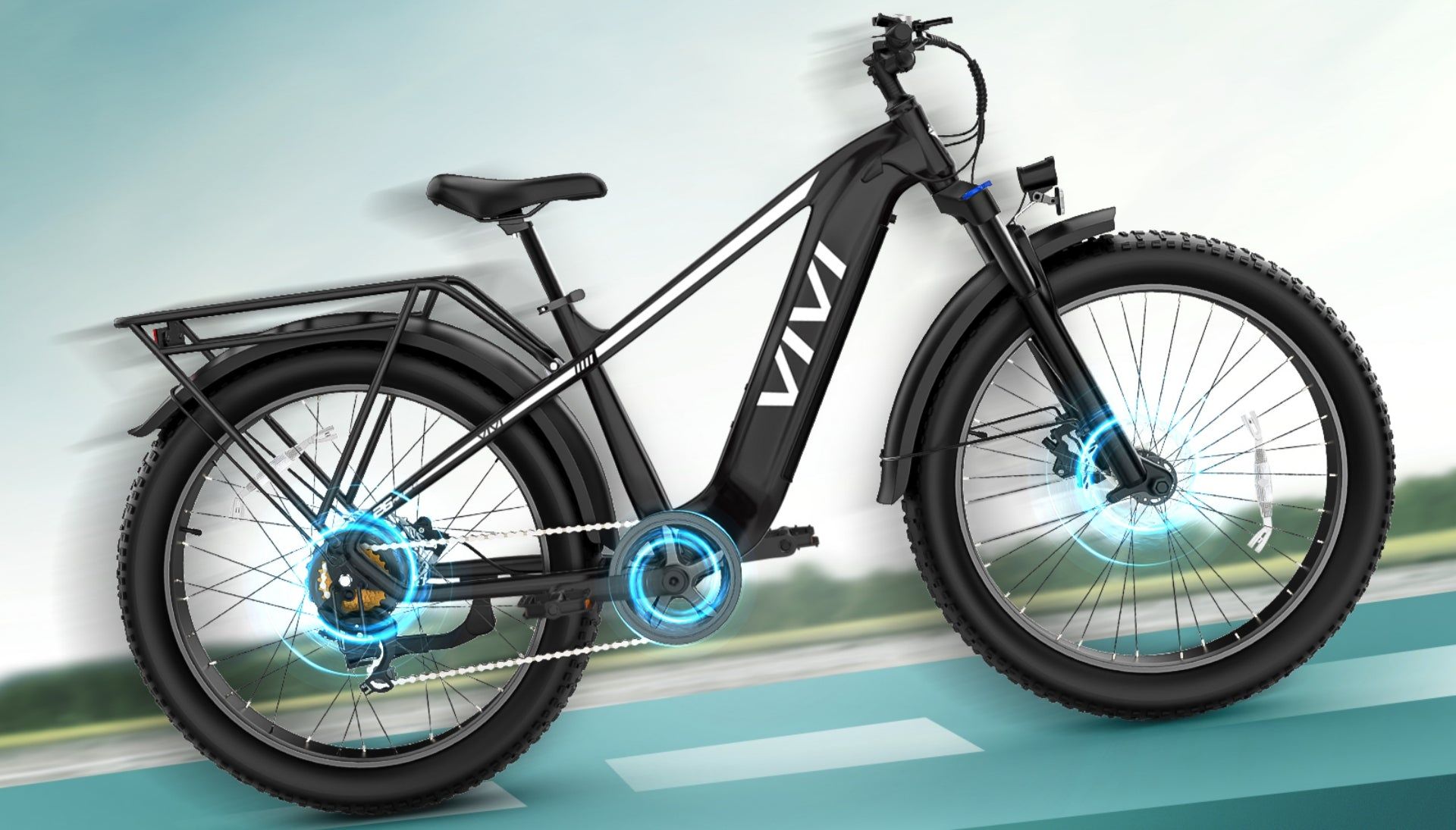

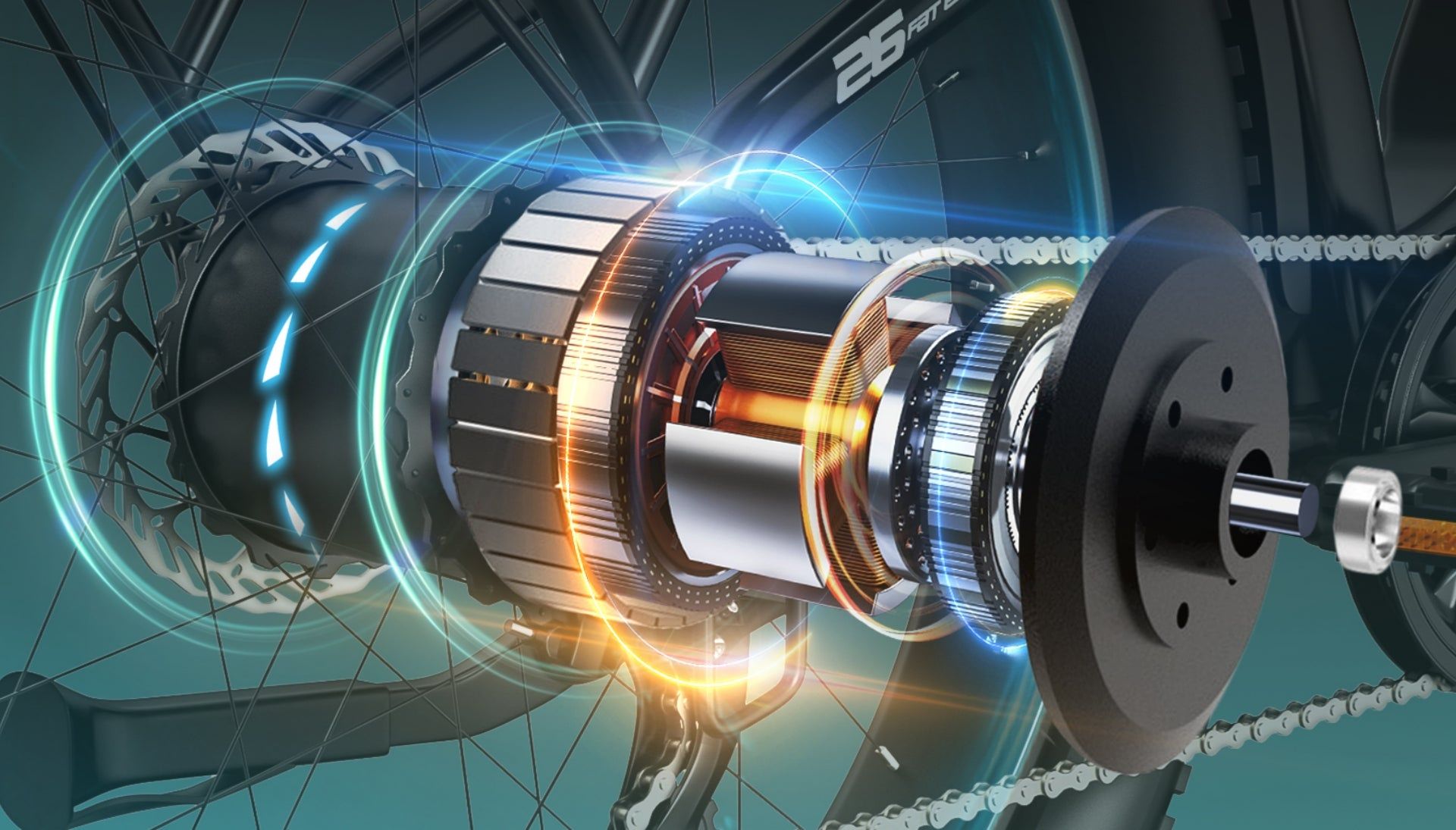

This e-bike is equipped with a powerful 1500W peak high-speed brushless motor, providing a steady cruise speed of 20 mph and a pedal assist speed of up to 25 mph, which is more than enough to meet your daily commuting, mountain riding or leisure riding needs. With peak power reaching 1500W and 90 Nm of torque, it effortlessly handles various terrains, providing riders with a faster, smoother, and more comfortable daily riding experience.

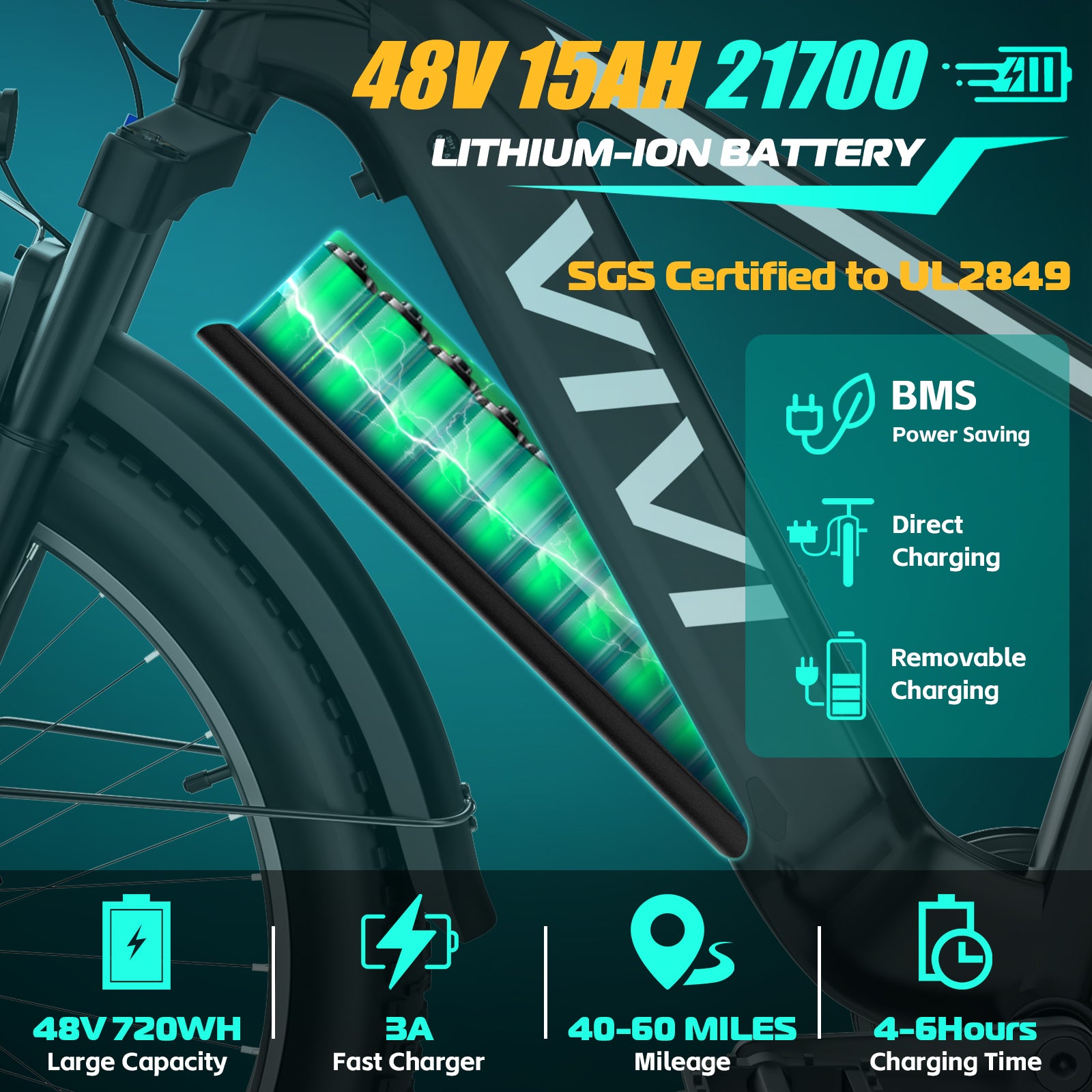

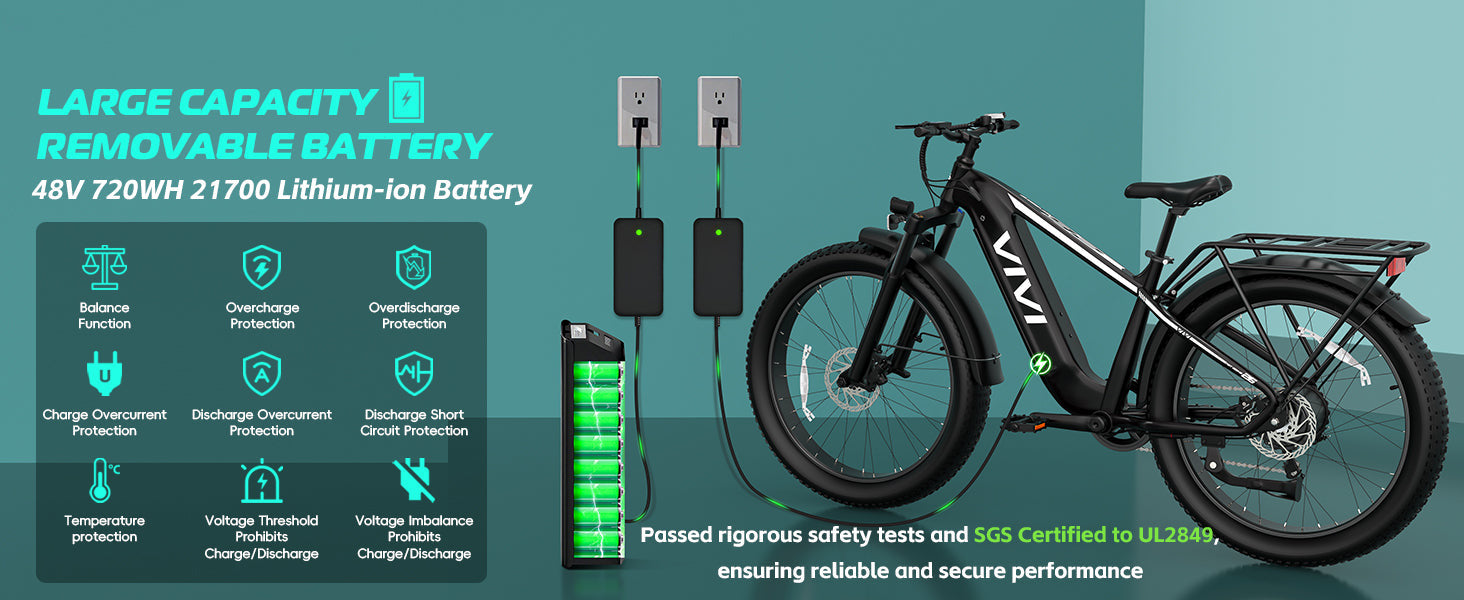

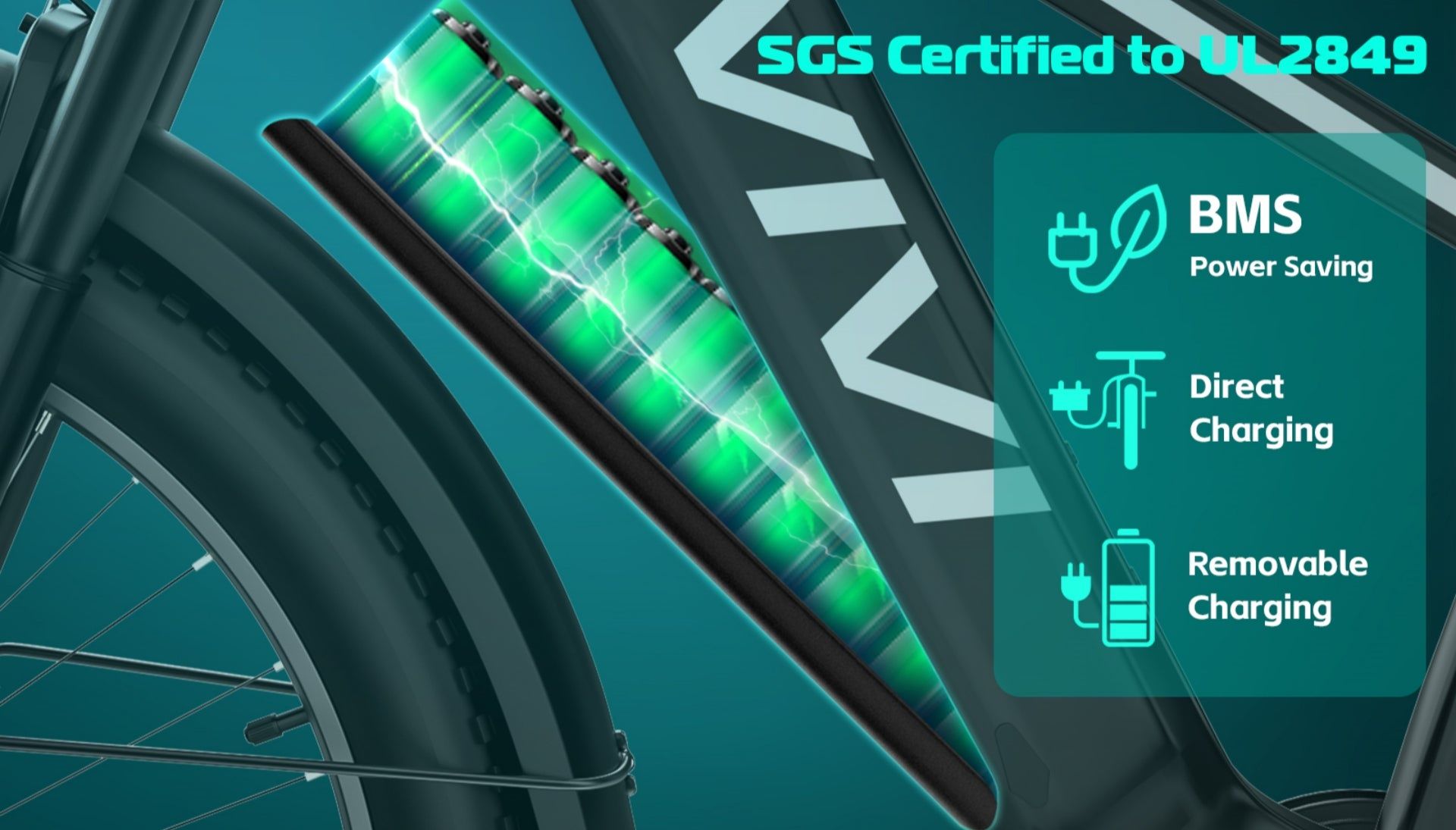

This e-bike is equipped with an SGS-certified 48V 15Ah 720Wh removable integrated lithium-ion battery, which is UL2271 certified and safe and reliable. The battery features a concealed design and is easy to remove. It can be charged in the car or removed and charged separately. Equipped with a 3A fast charger, a quick charge of 4-6 hours can provide a range of 50-60 miles, making it ideal for daily commutes and holiday trips.

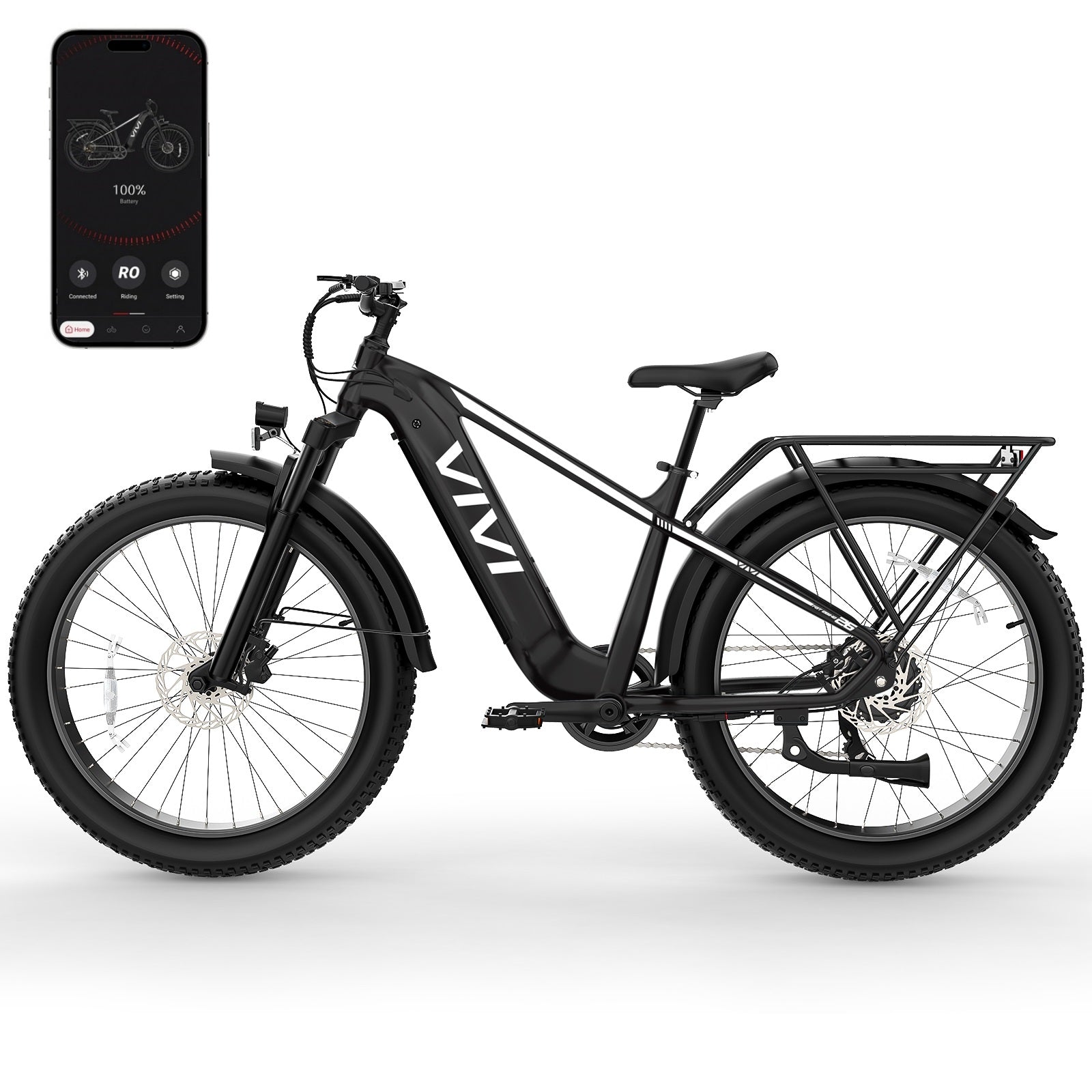

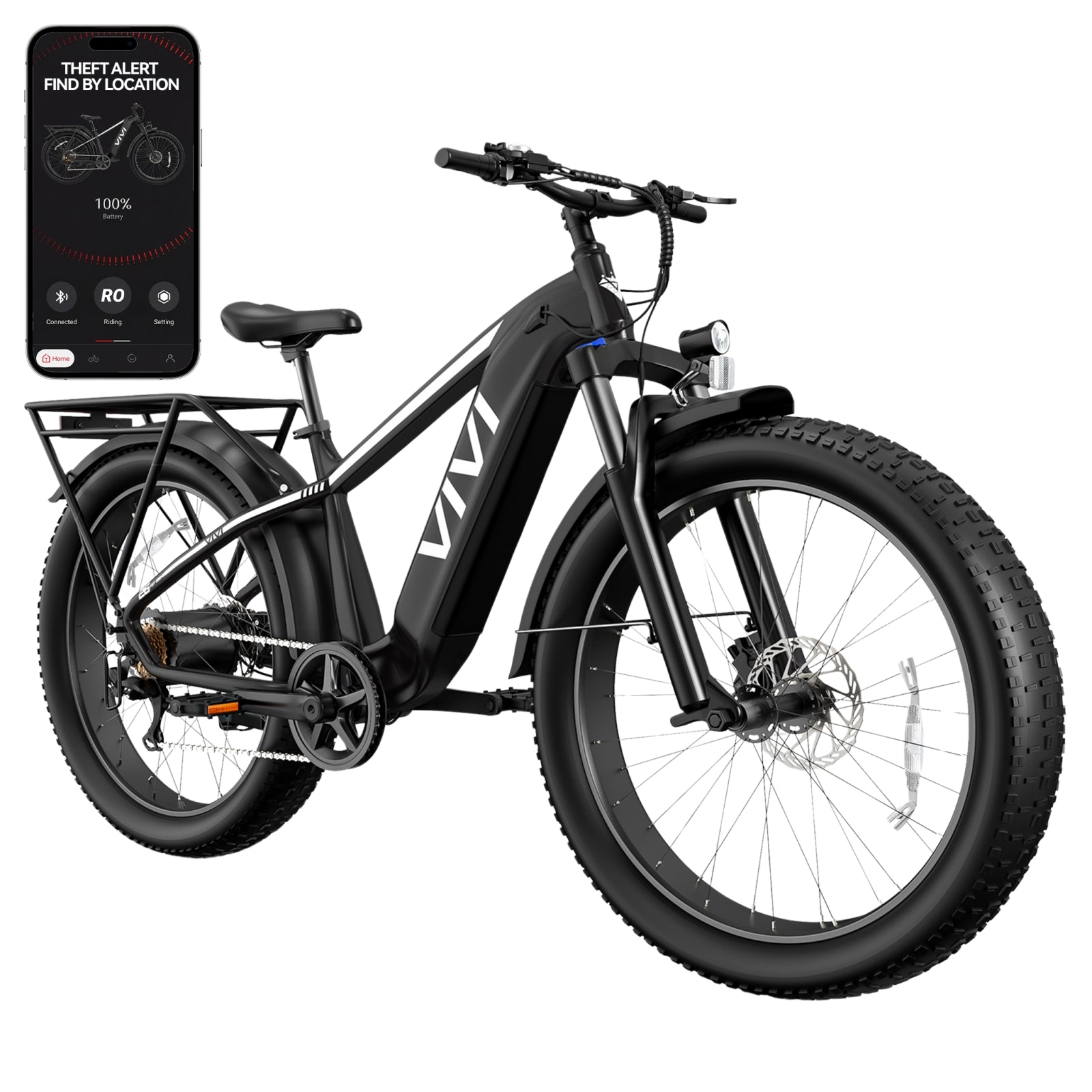

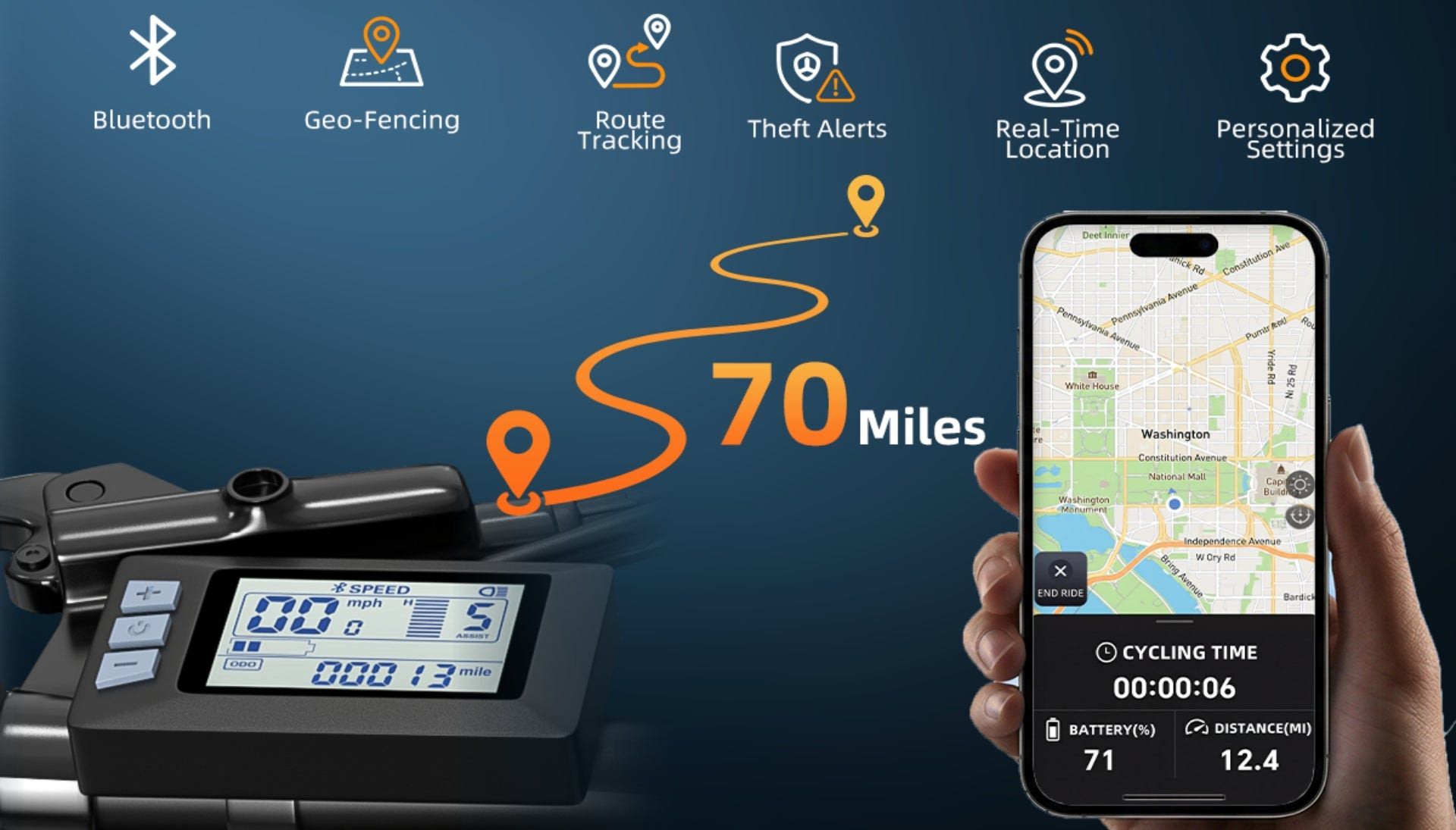

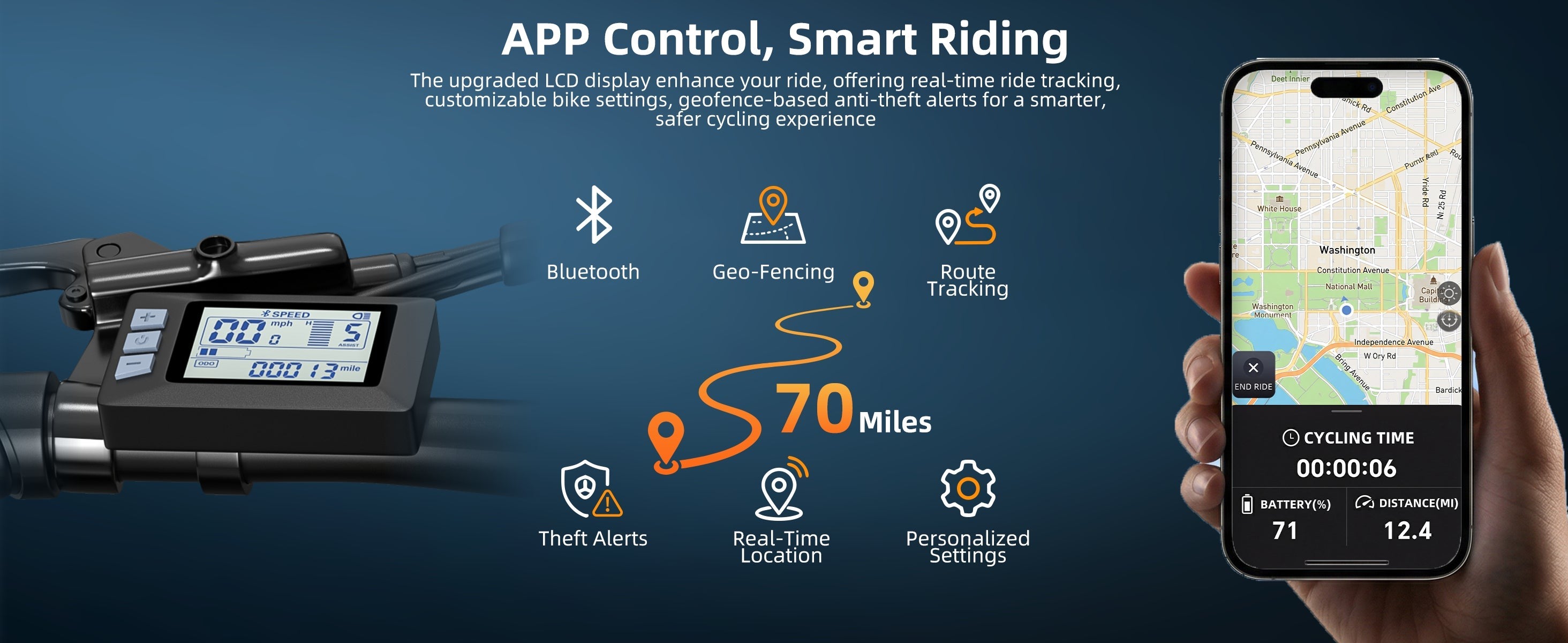

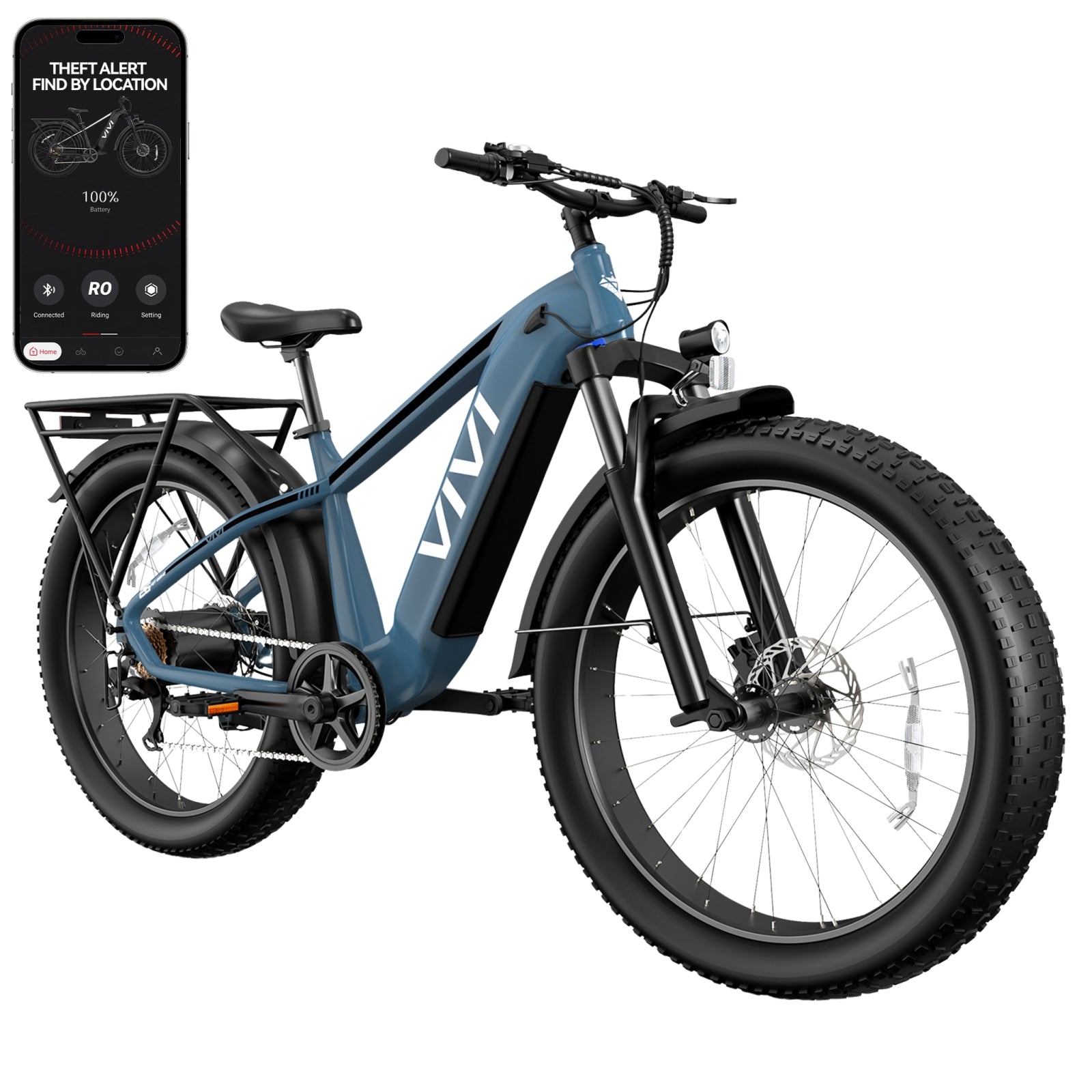

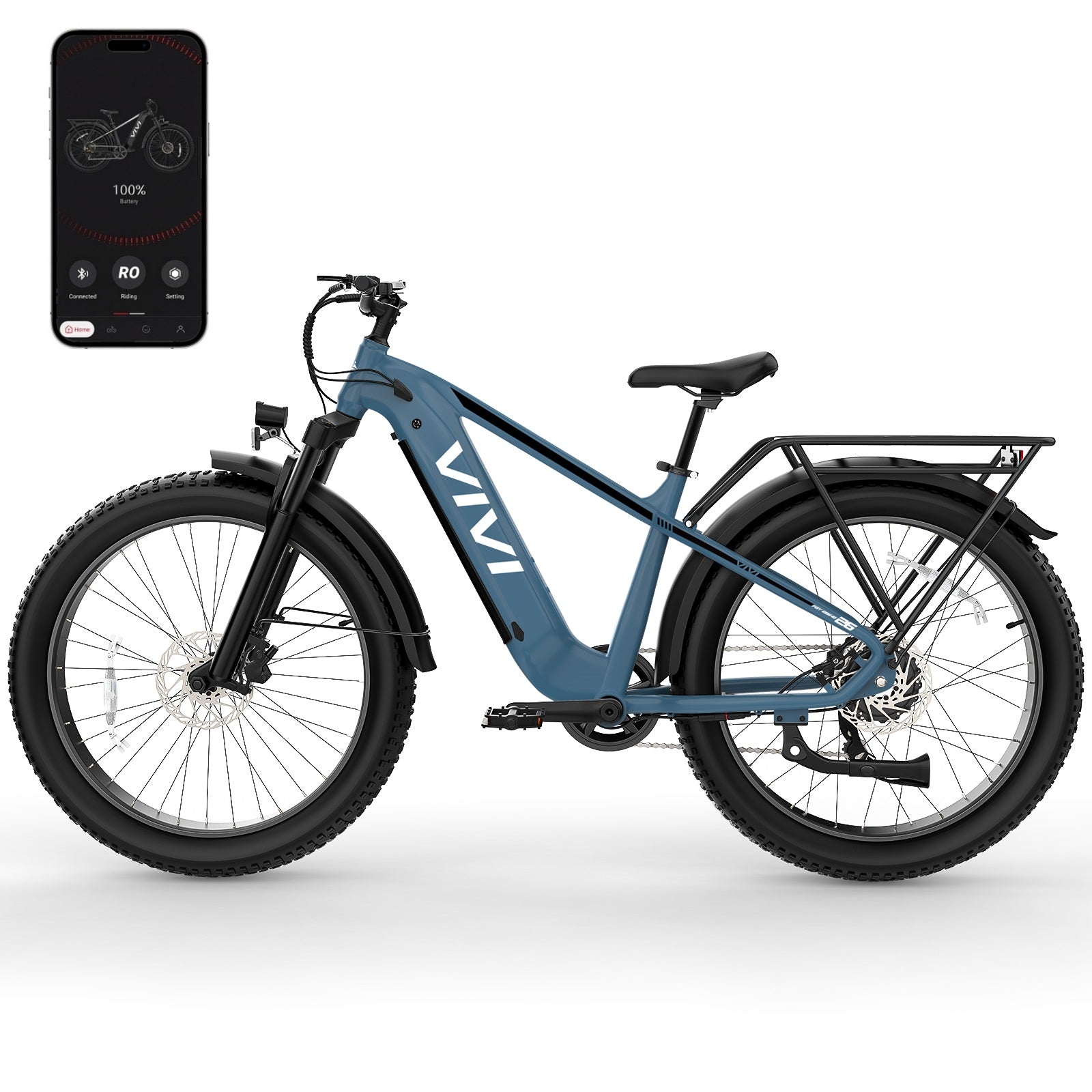

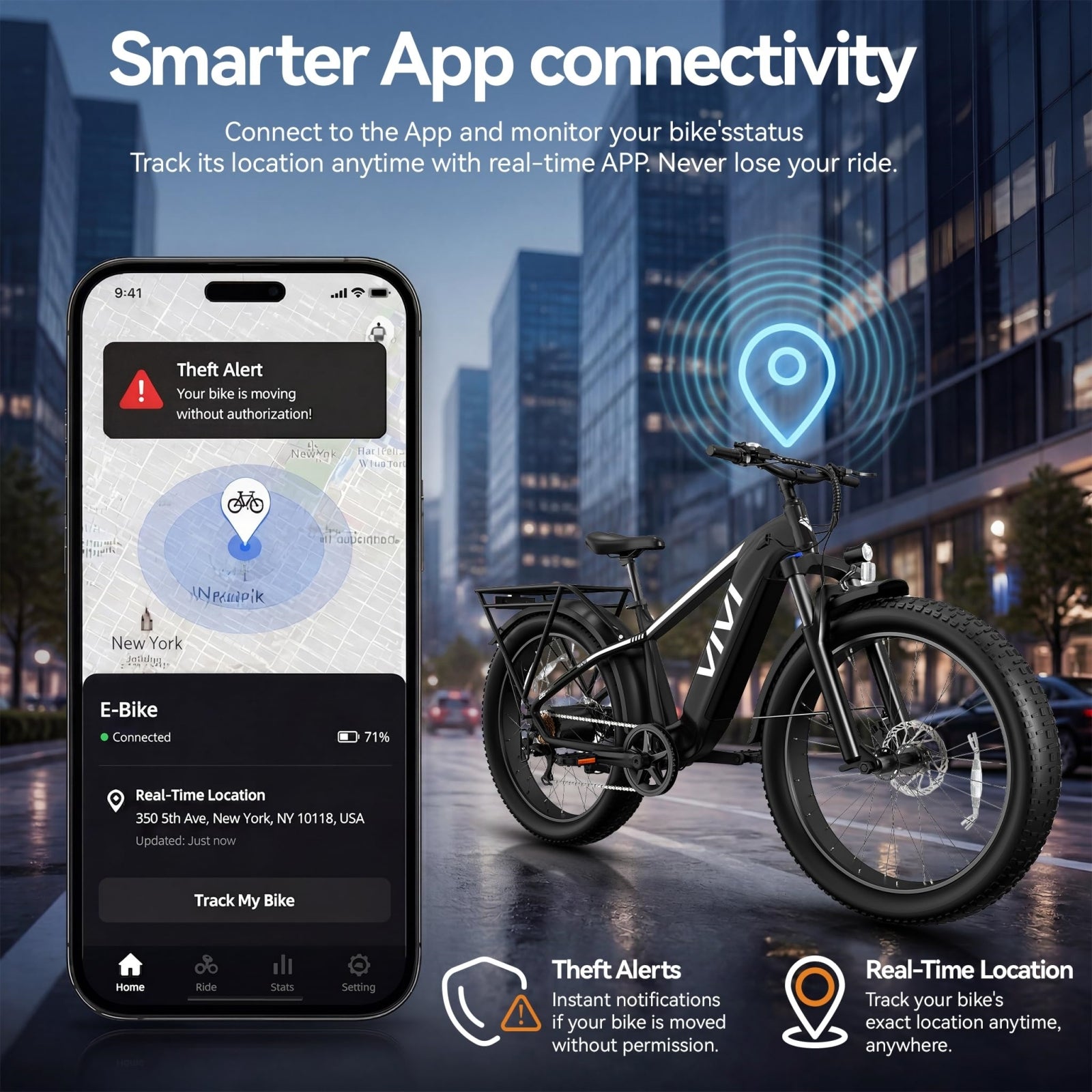

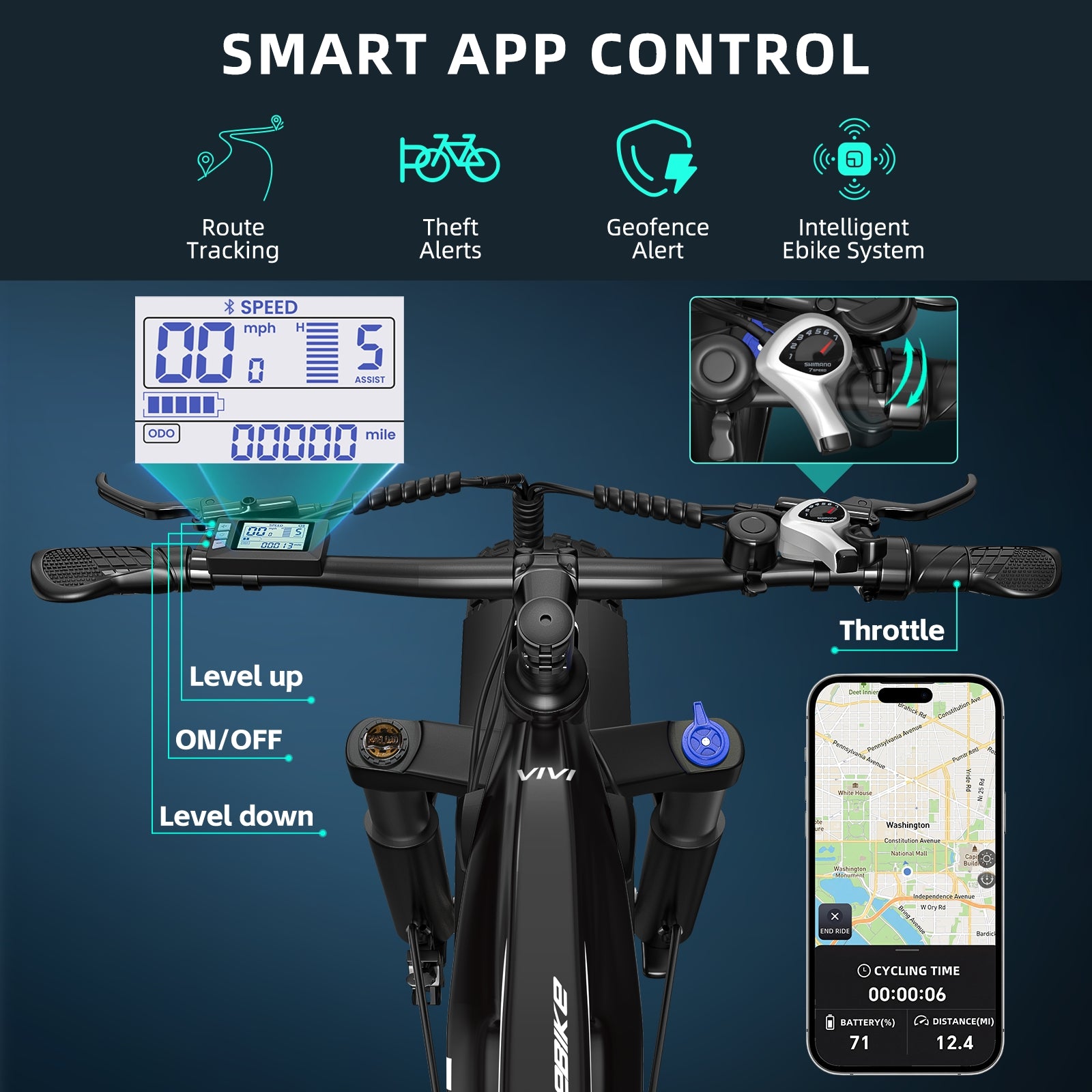

Pair your e-bike with the dedicated app for smarter control and enhanced security. Track your bike’s real-time location for added theft protection and quickly find where it’s parked anytime. Stay informed with live riding data including speed, mileage, battery status, and carbon savings, while built-in turn-by-turn navigation keeps every ride smooth, connected, and worry-free.

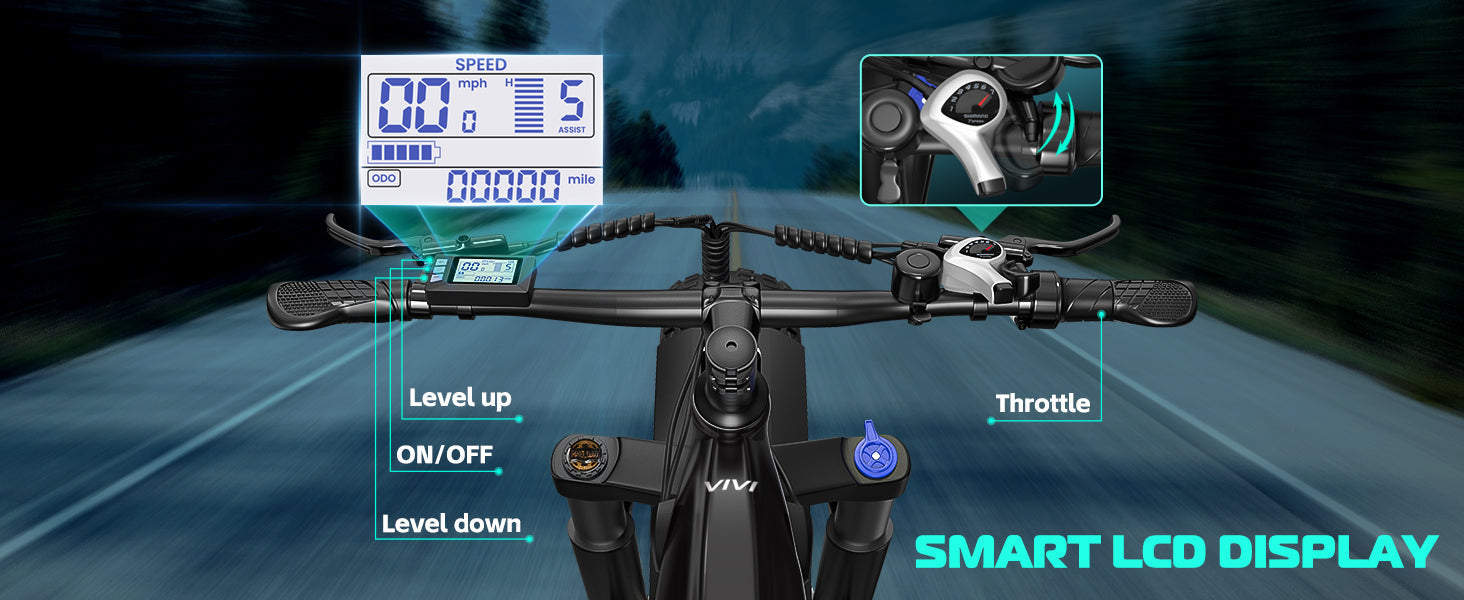

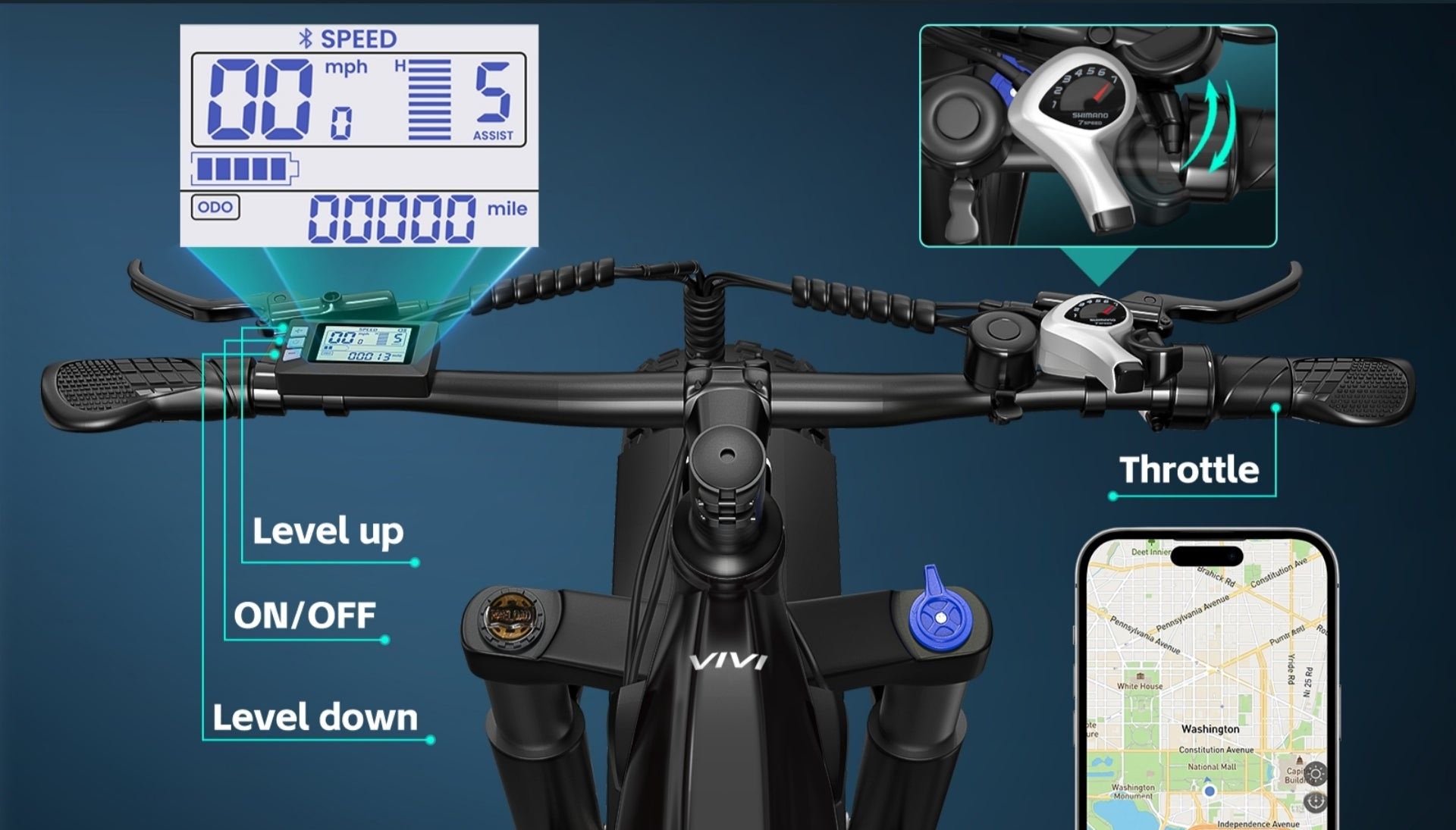

The upgraded LCD display with a combination of 5 pedal assist levels and 7 riding modes for greater versatility on every ride. Paired with the smart app, you can enjoy real-time ride tracking, customizable bike settings, and geofencing anti-theft alerts for a smarter and more secure riding experience. The intelligent display also provides advanced riding data and more personalized riding options, letting you enjoy every journey.

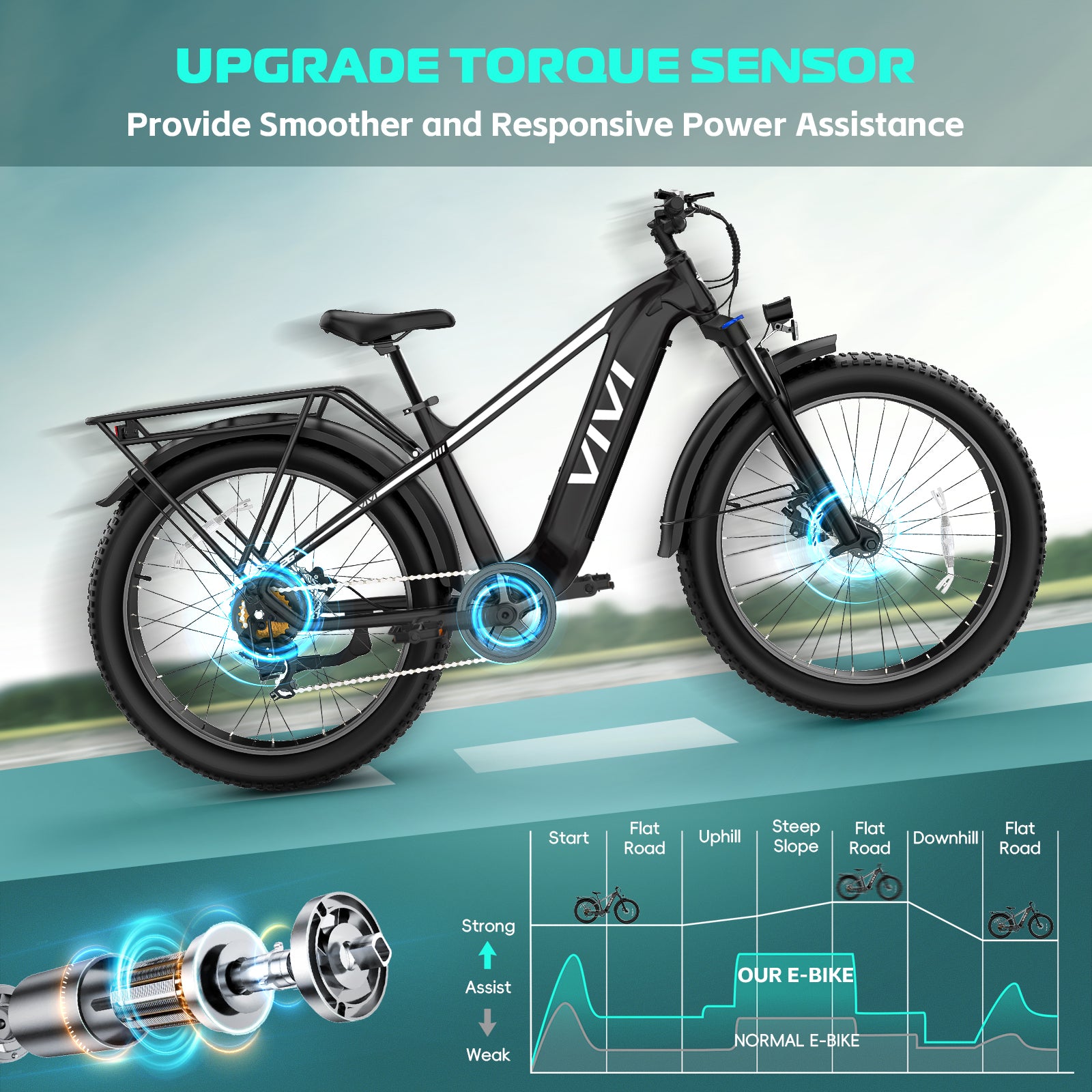

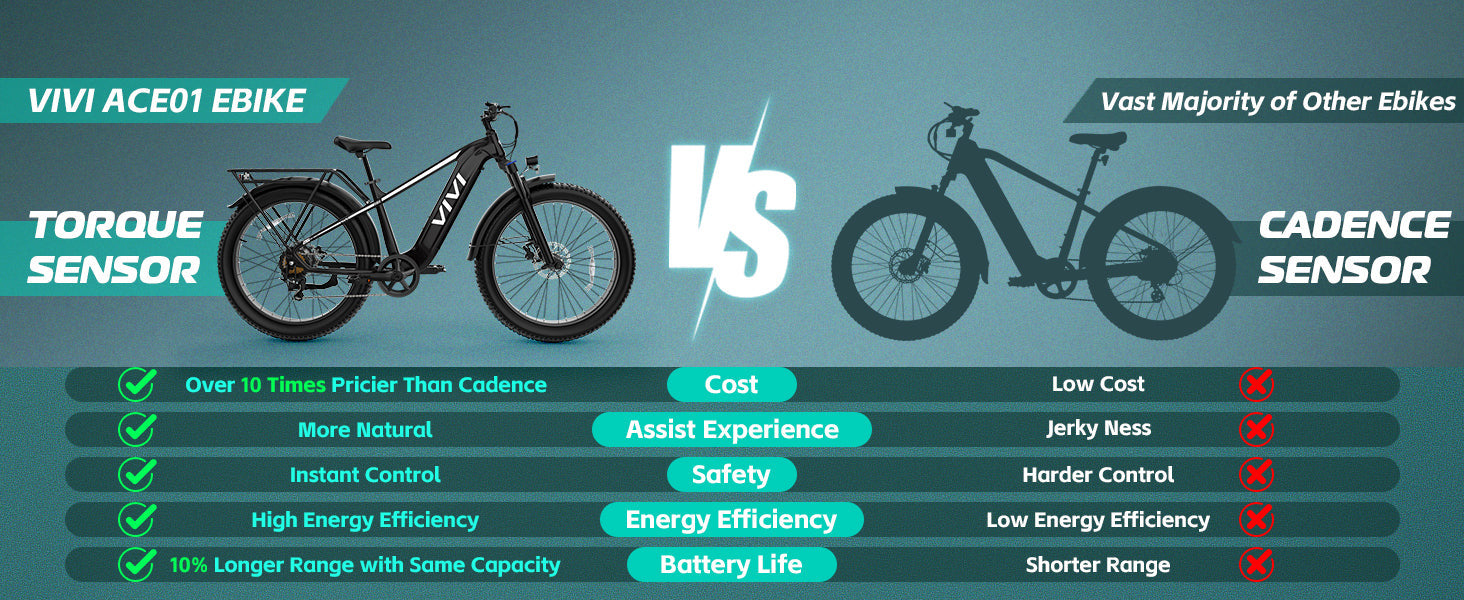

Ride smoother and smarter with the advanced torque sensor system. It instantly detects your pedaling force and delivers responsive, natural power for better acceleration, hill climbing, and control. Compared to traditional cadence sensors, the torque sensor provides a more efficient, comfortable, and bike-like riding experience with seamless pedal assistance on every ride.

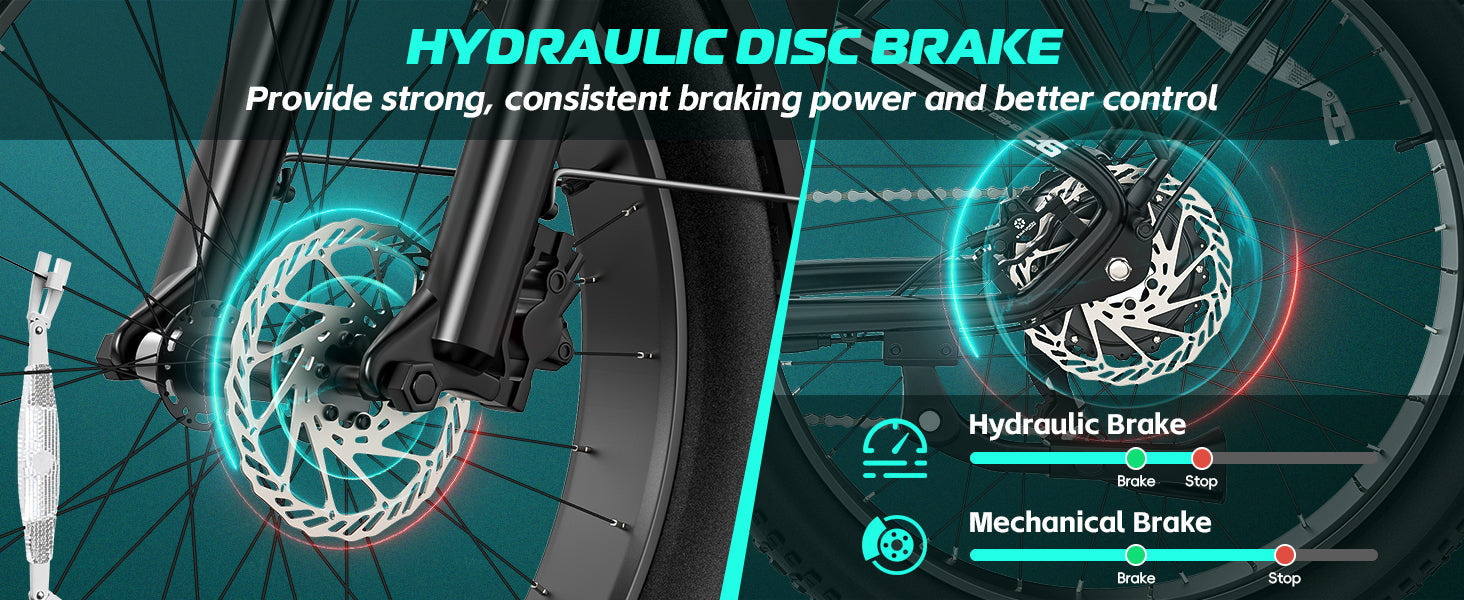

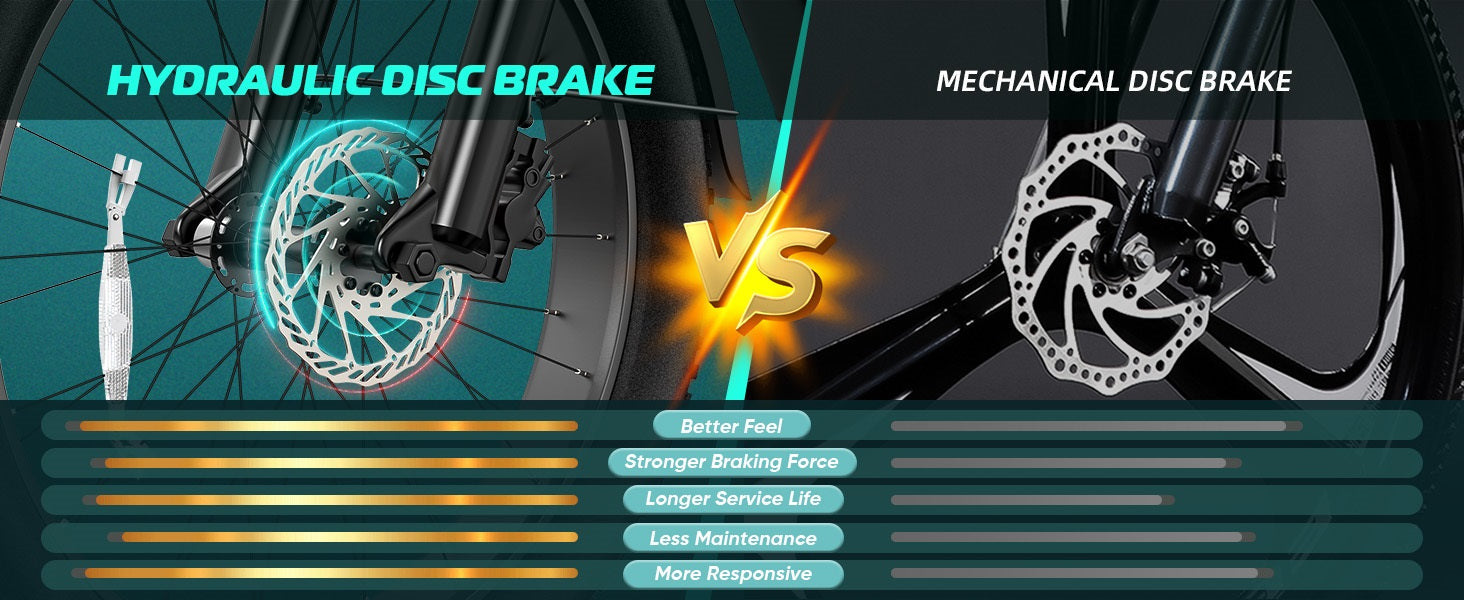

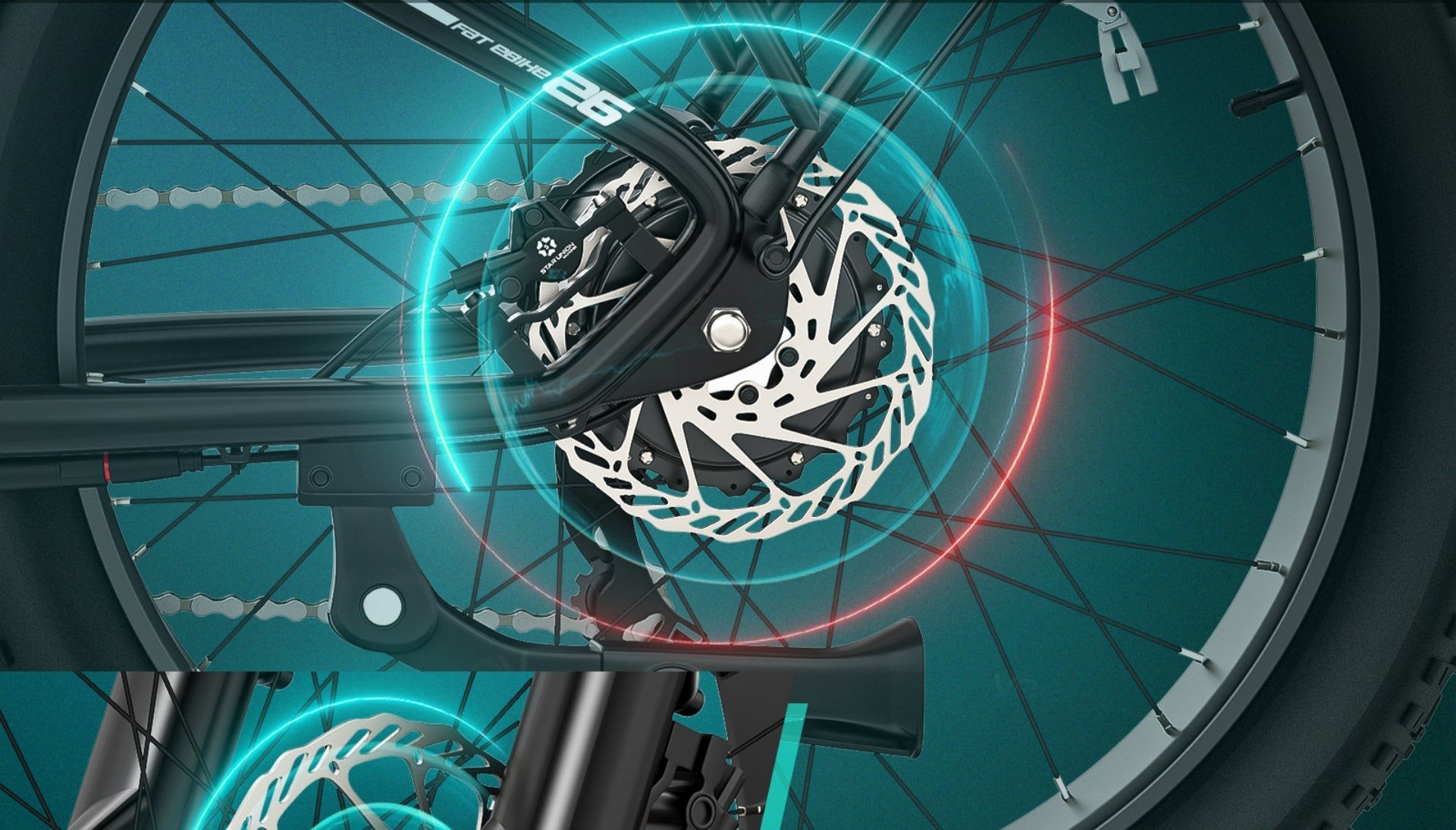

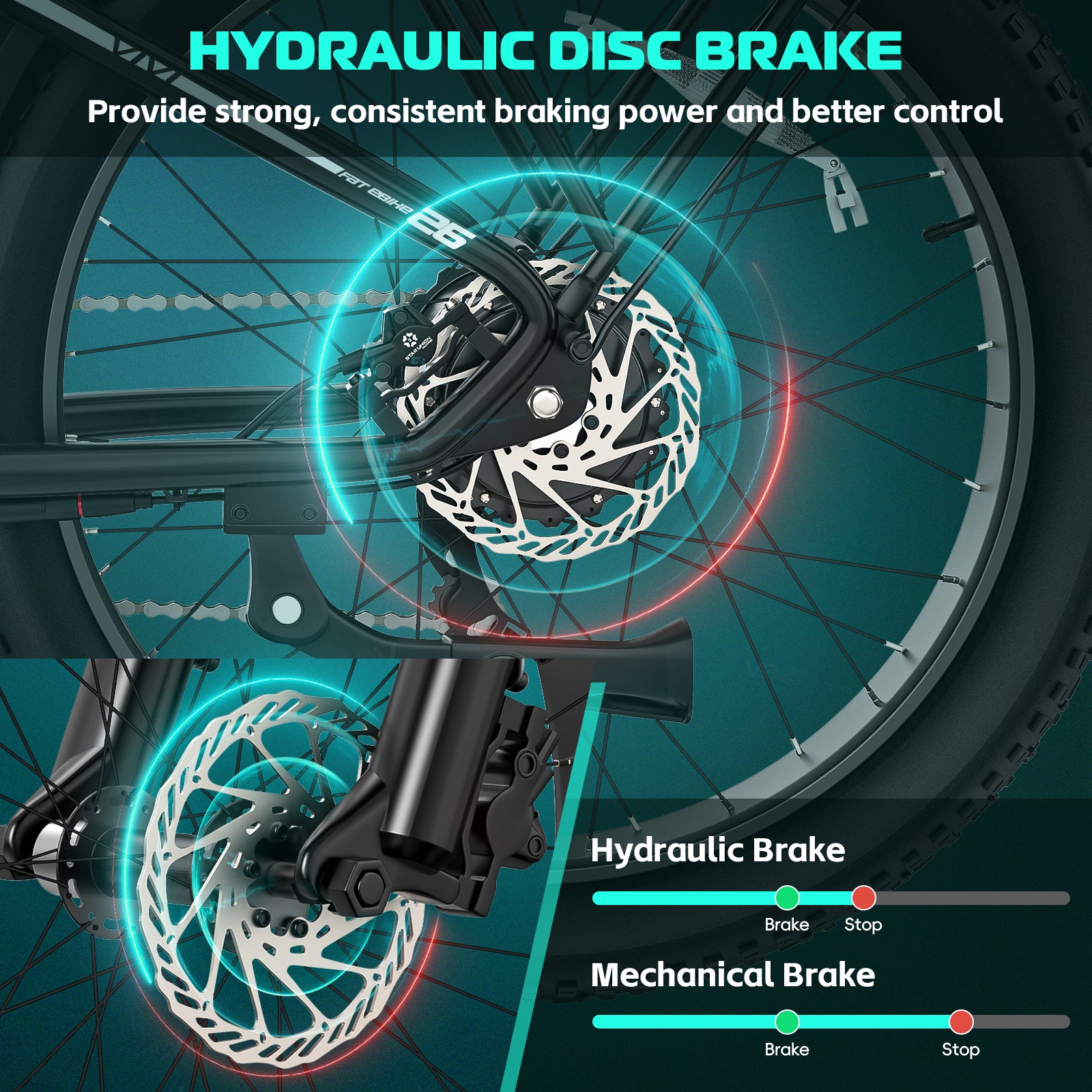

The electric bike is equipped with an advanced hydraulic disc brake system featuring oversized 180mm rotors, delivering superior stopping power and enhanced heat dissipation. Whether you are cruising through city streets or tackling steep descents, this responsive braking system ensures smooth, precise control across a wide range of weather and terrain conditions, providing you with greater safety and stability during high-speed riding.

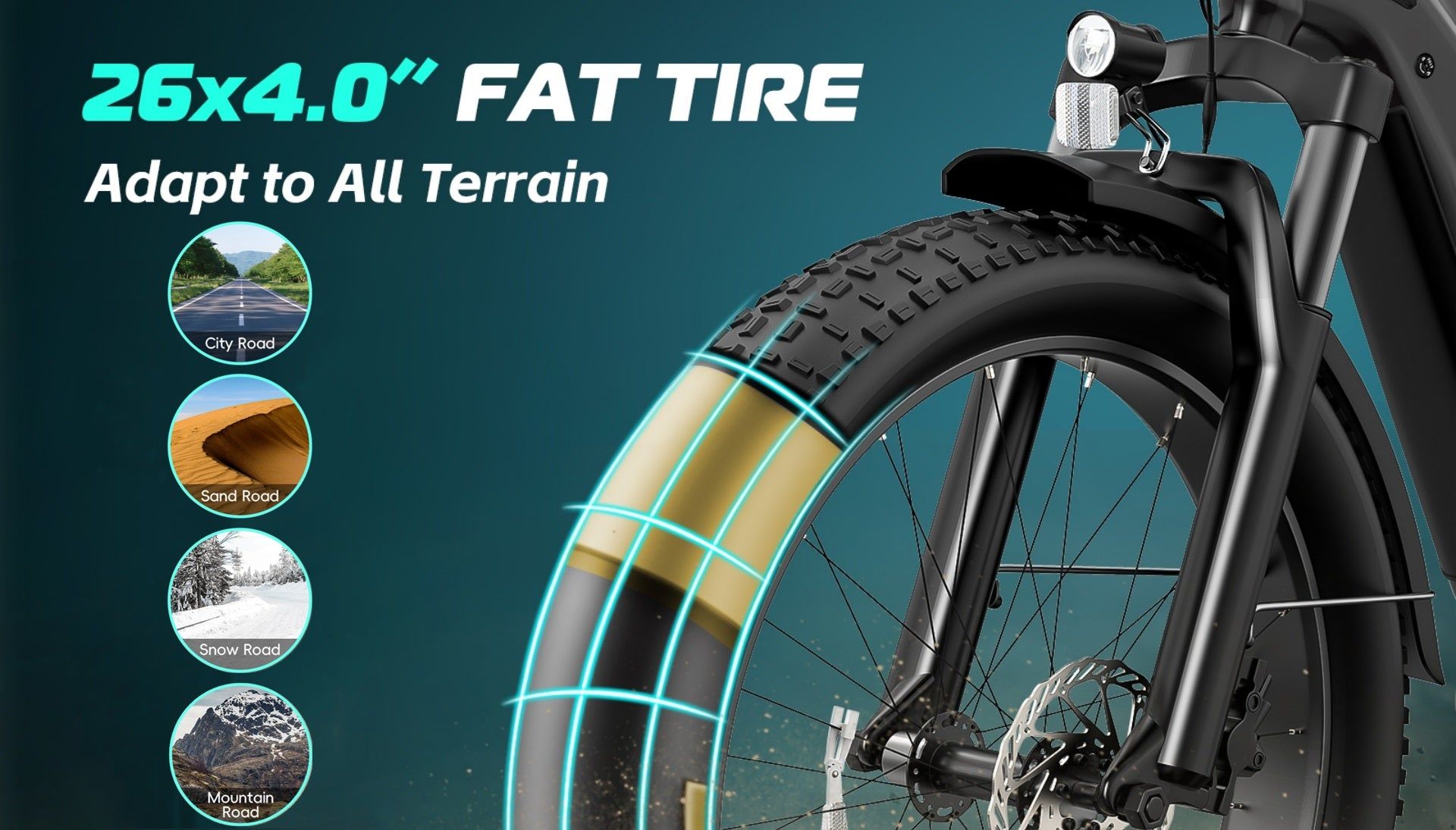

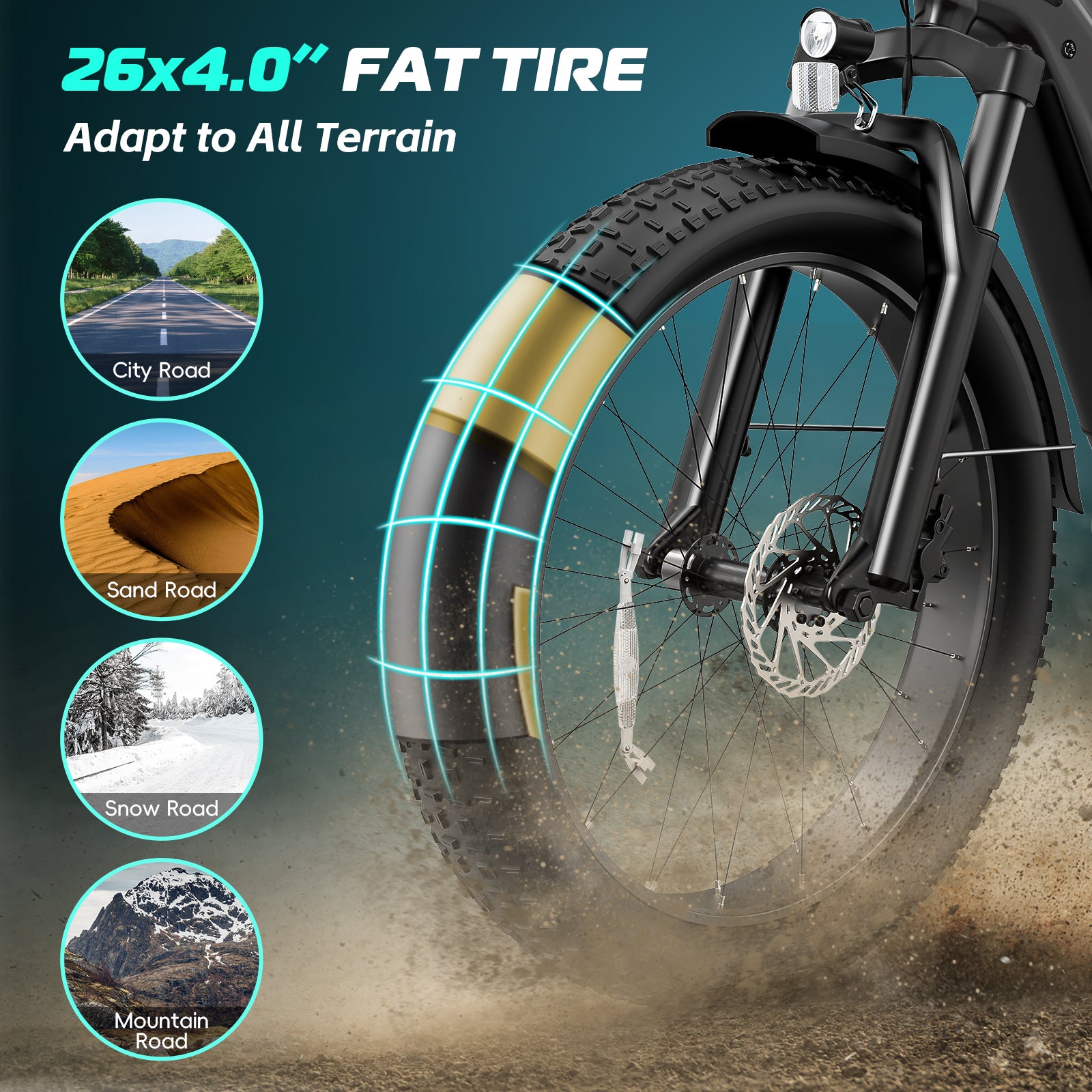

Equipped with 26" x 4.0" puncture-resistant fat tires and durable double-wall aluminum alloy rims, this e-bike delivers outstanding traction and stability on sand, snow, gravel, and rough terrain. Front and rear fenders help keep rides clean and comfortable in all conditions. Built with a sturdy aluminum alloy frame, it offers excellent durability, impact resistance, and strong load capacity for confident riding on every adventure.

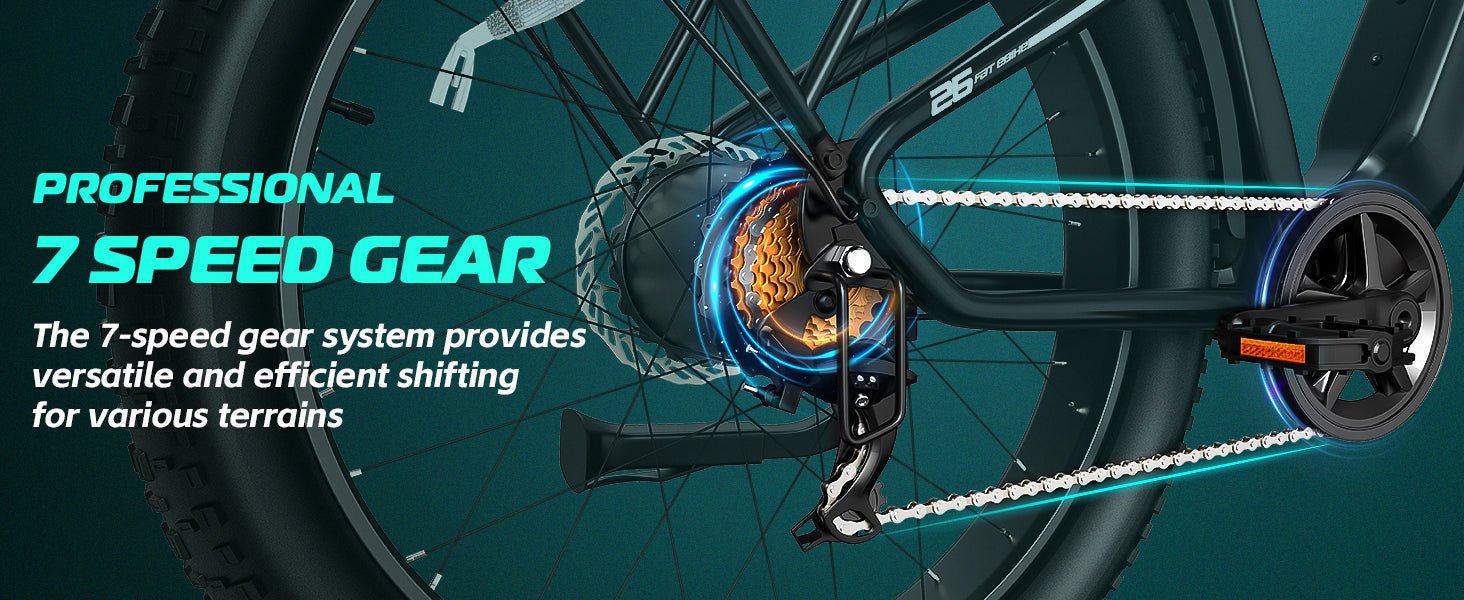

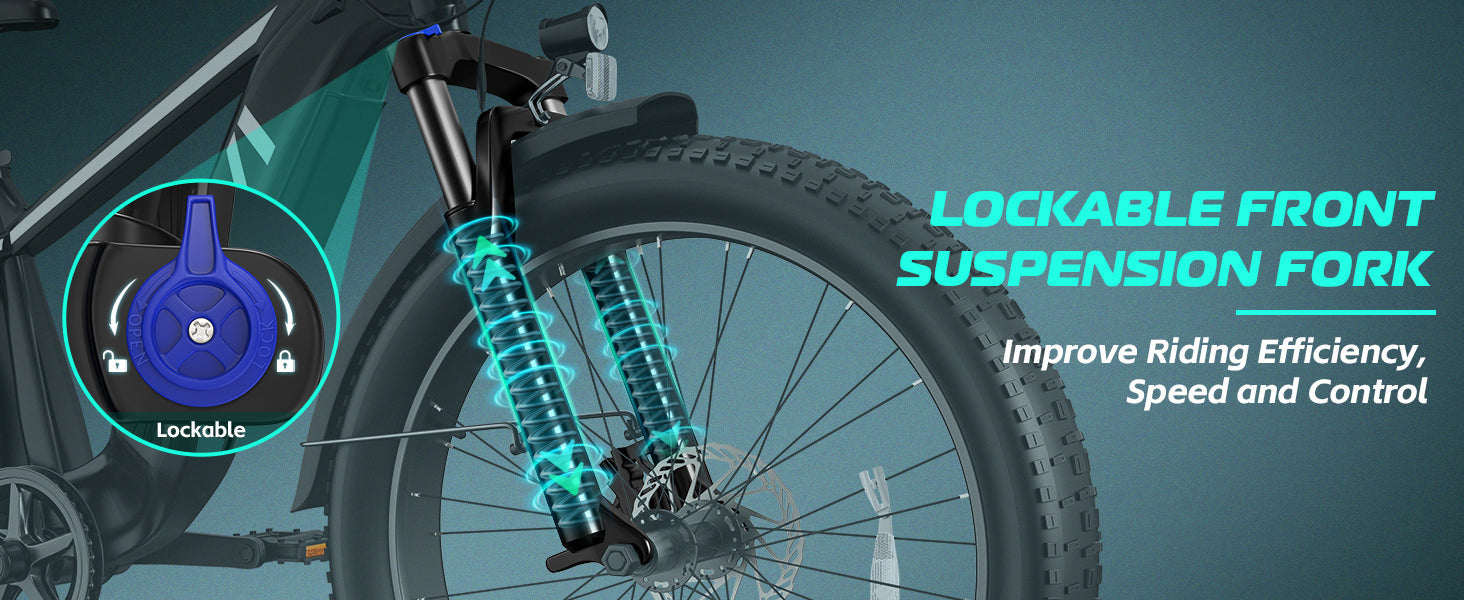

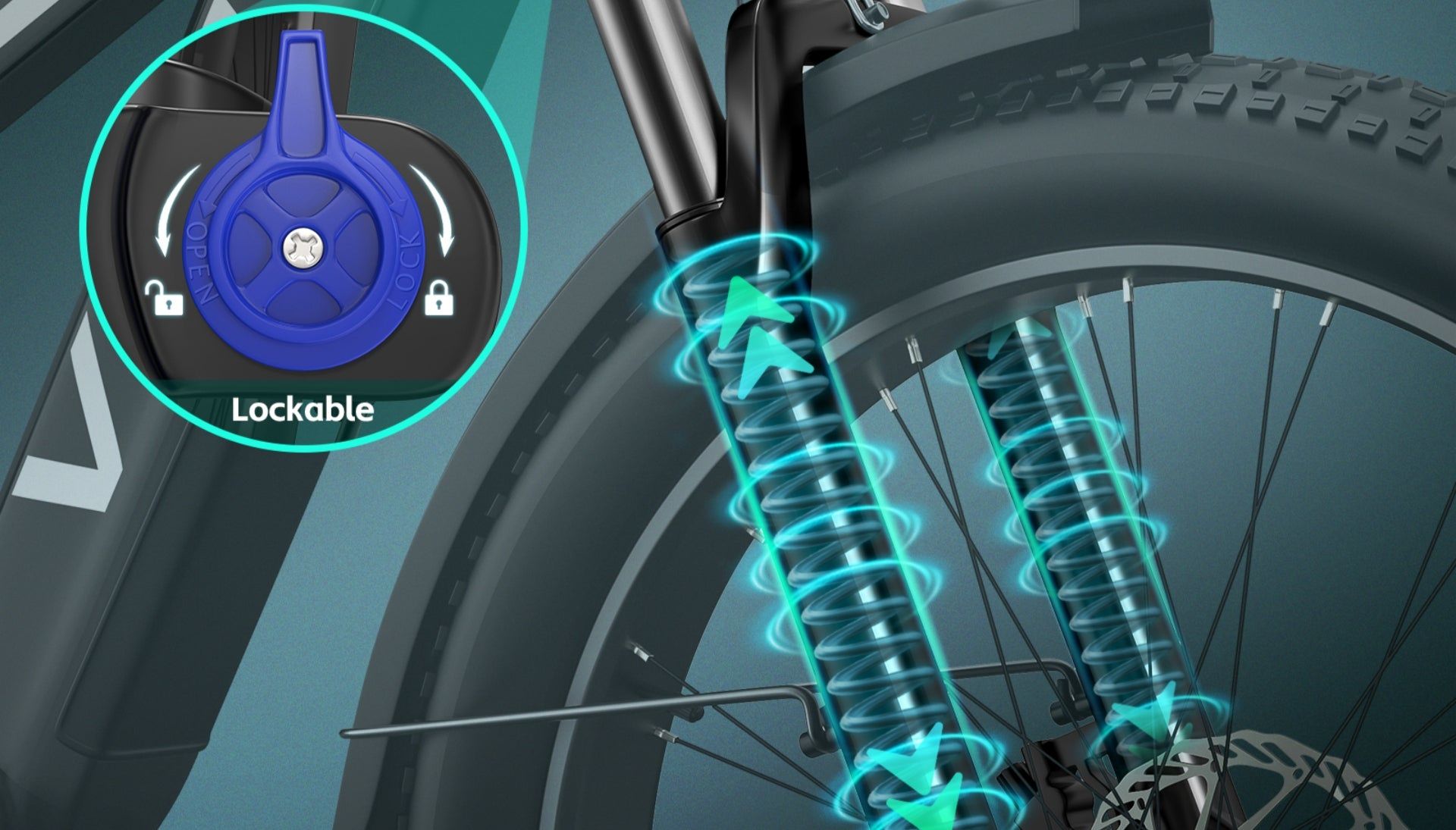

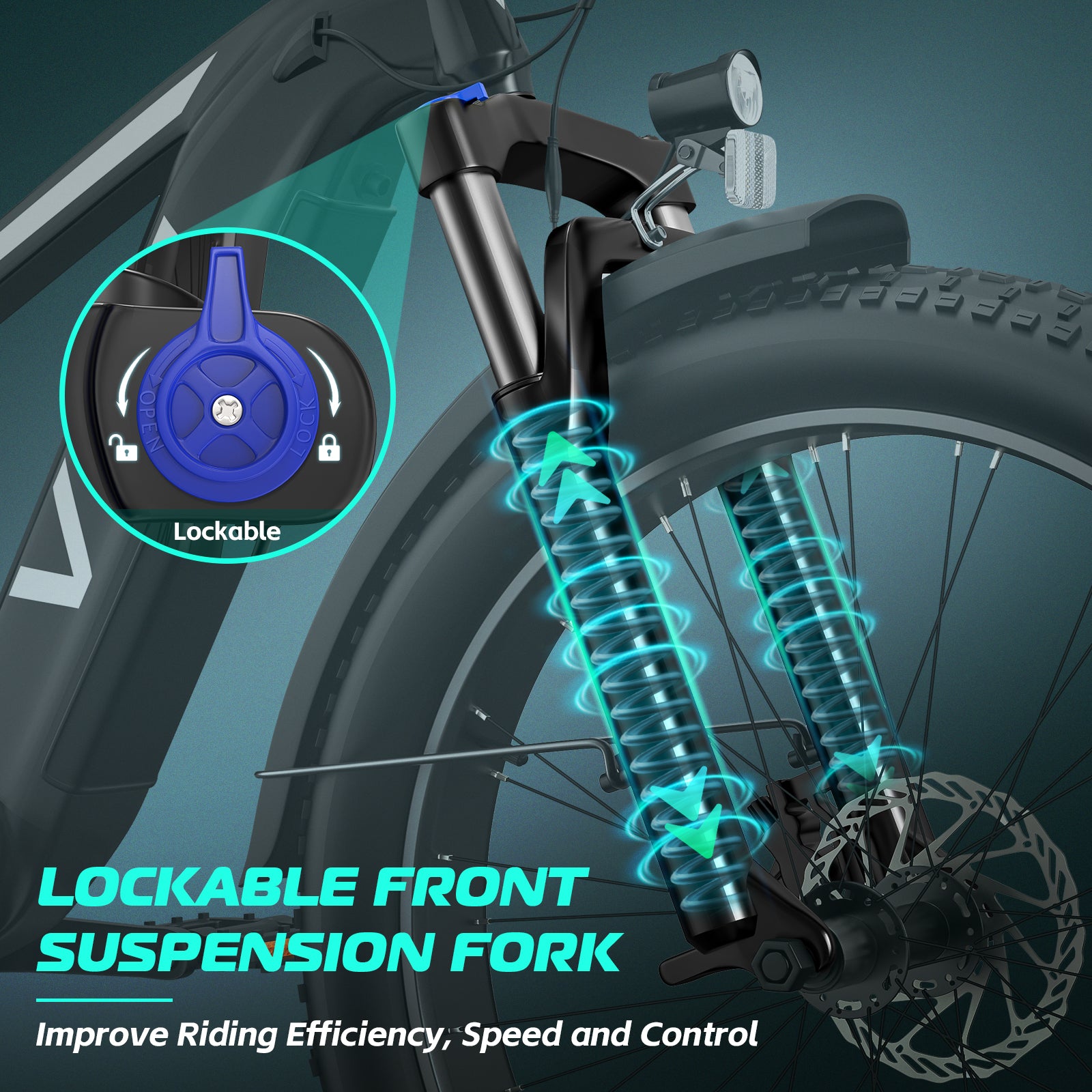

The suspension fork features lockout and preload adjustment functions to effectively absorb shocks and reduce bumps for a smoother, more controlled ride. Riders can lock the fork for improved efficiency and speed on paved roads or unlock it for enhanced comfort on rough terrain. Paired with a professional 7-speed gear system, this e-bike allows seamless gear changes to match different terrains and riding conditions, delivering greater control, stability, and overall riding performance.
Electric Bike
(Pre-assembled)
Removable Battery
Battery Charger
Fenders
Saddle Kit
Pedals
Tool kit
User Manual
