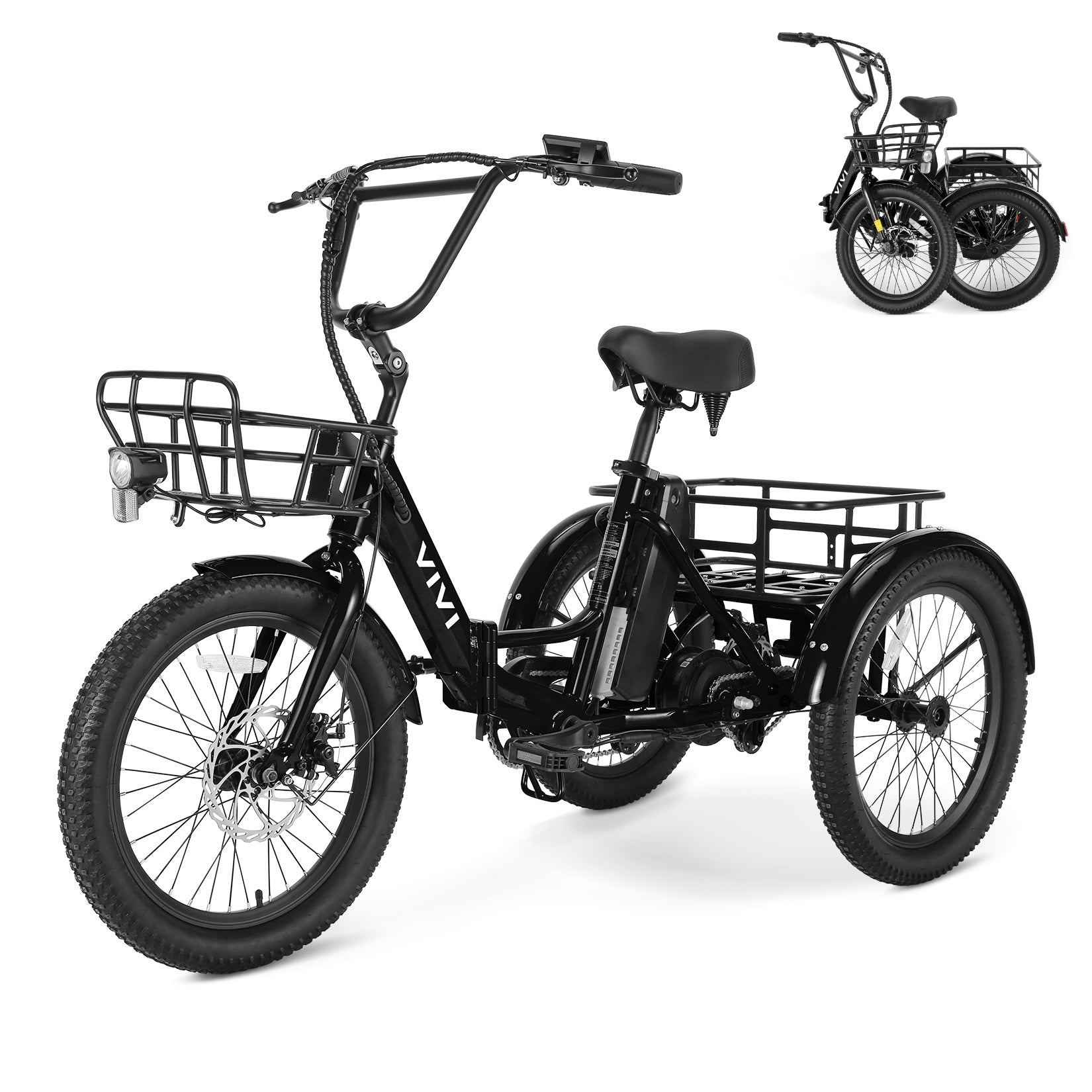

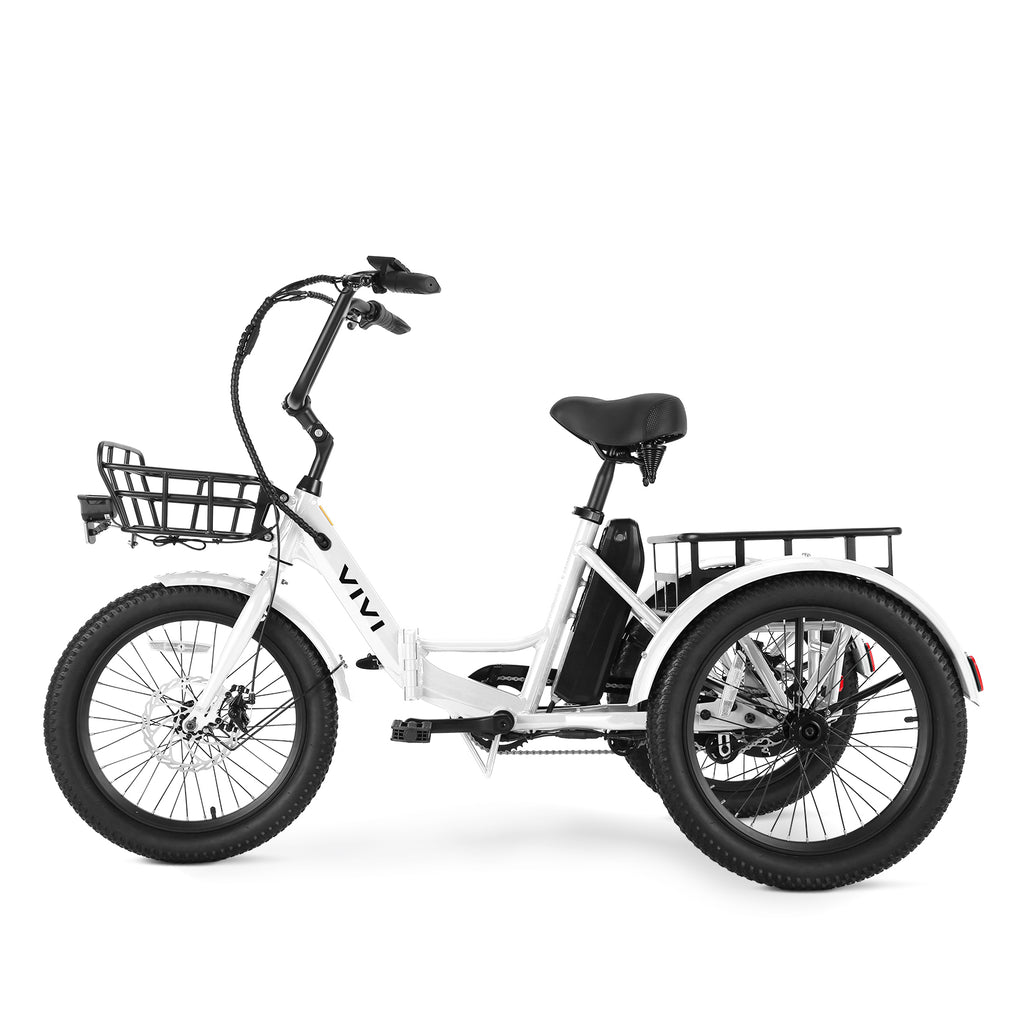

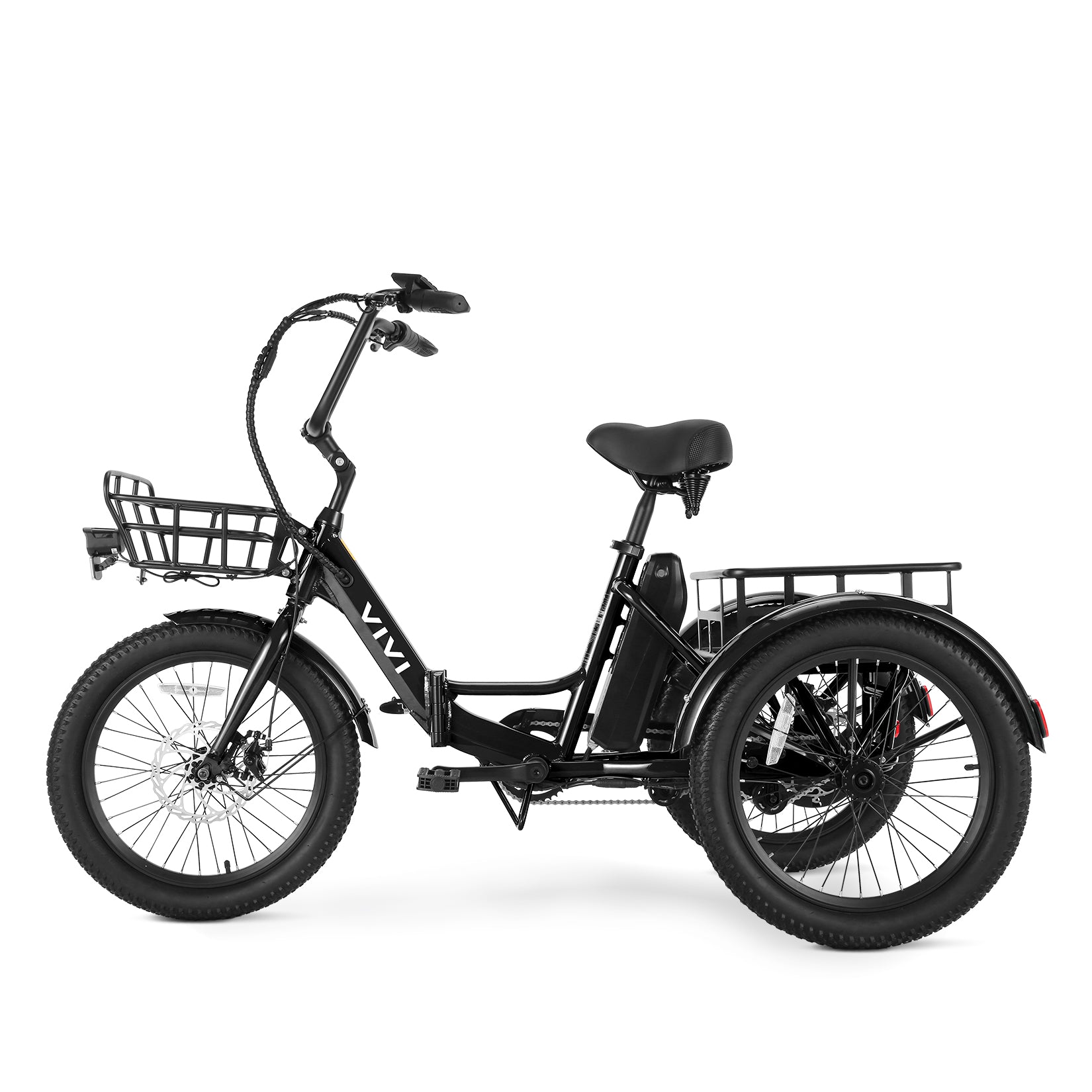

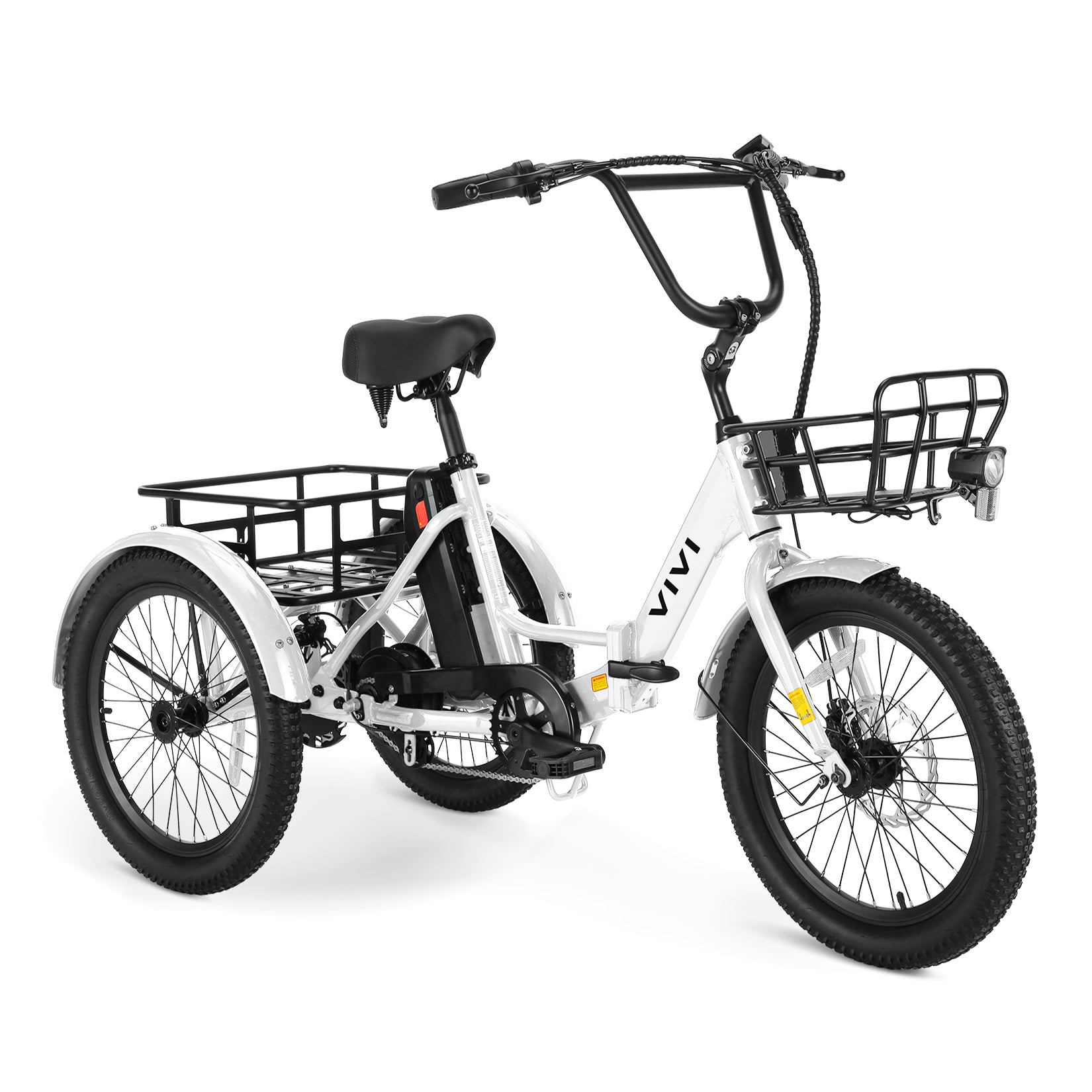

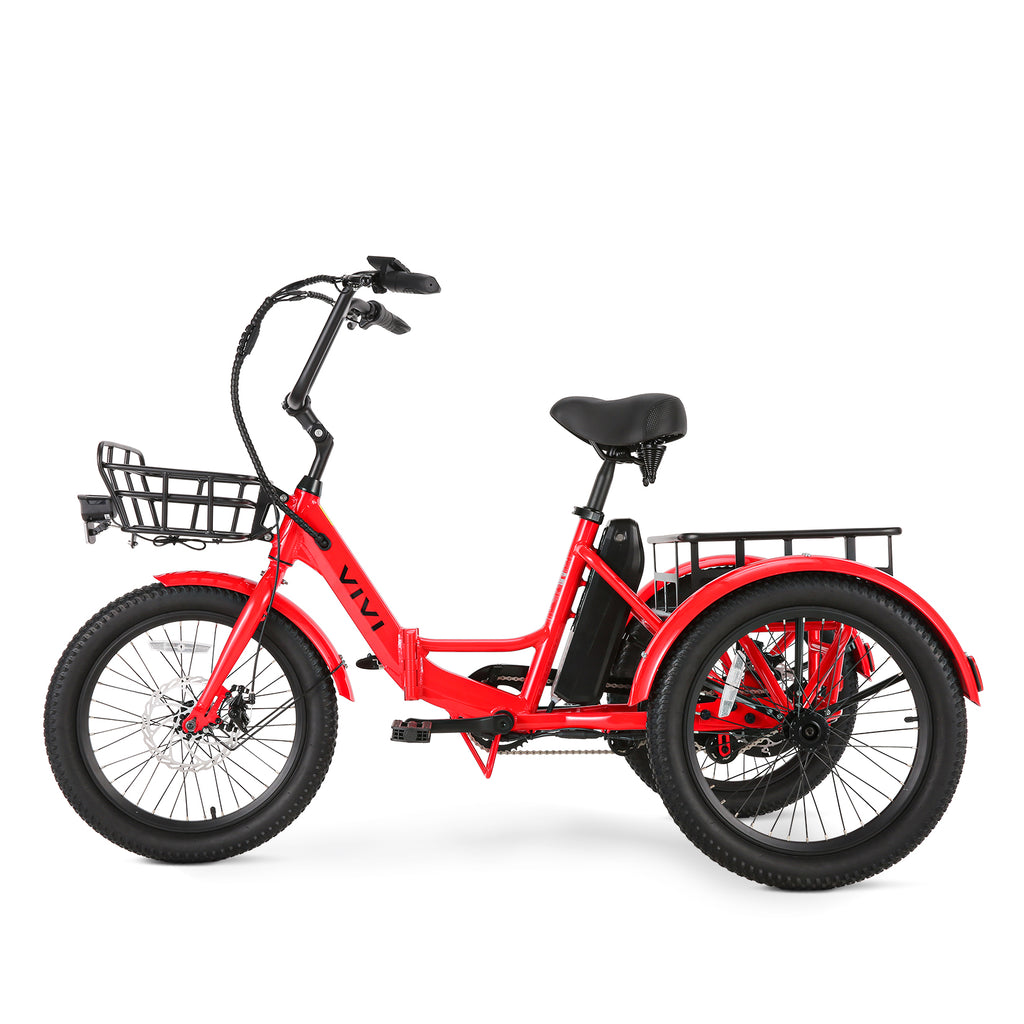

Vivi T01 | Cargo Electric Trike
Vivi T01 provides riders with a safe, convenient, stable and ample cargo space electric trike
Payment & Security
Descripción
VIVI Adult electric Trike - comfortable, convenient and easy to travel. Whether you're running errands, grocery shopping, or enjoying a leisurely neighborhood ride, the Vivi electric tricycle adapts to your lifestyle. The spacious rear basket, intuitive controls, and comfortable riding position make every journey enjoyable and effortless. It's more than just transportation – it's your partner in maintaining an active, independent lifestyle!
- 500W powerful rear drive motor, 75Nm max torque
- Up to 750W peak motor power
- Removable 48V 499.2Wh battery
- Speed differential mechanism
- Perfect rear track width for doorways and narrow paths

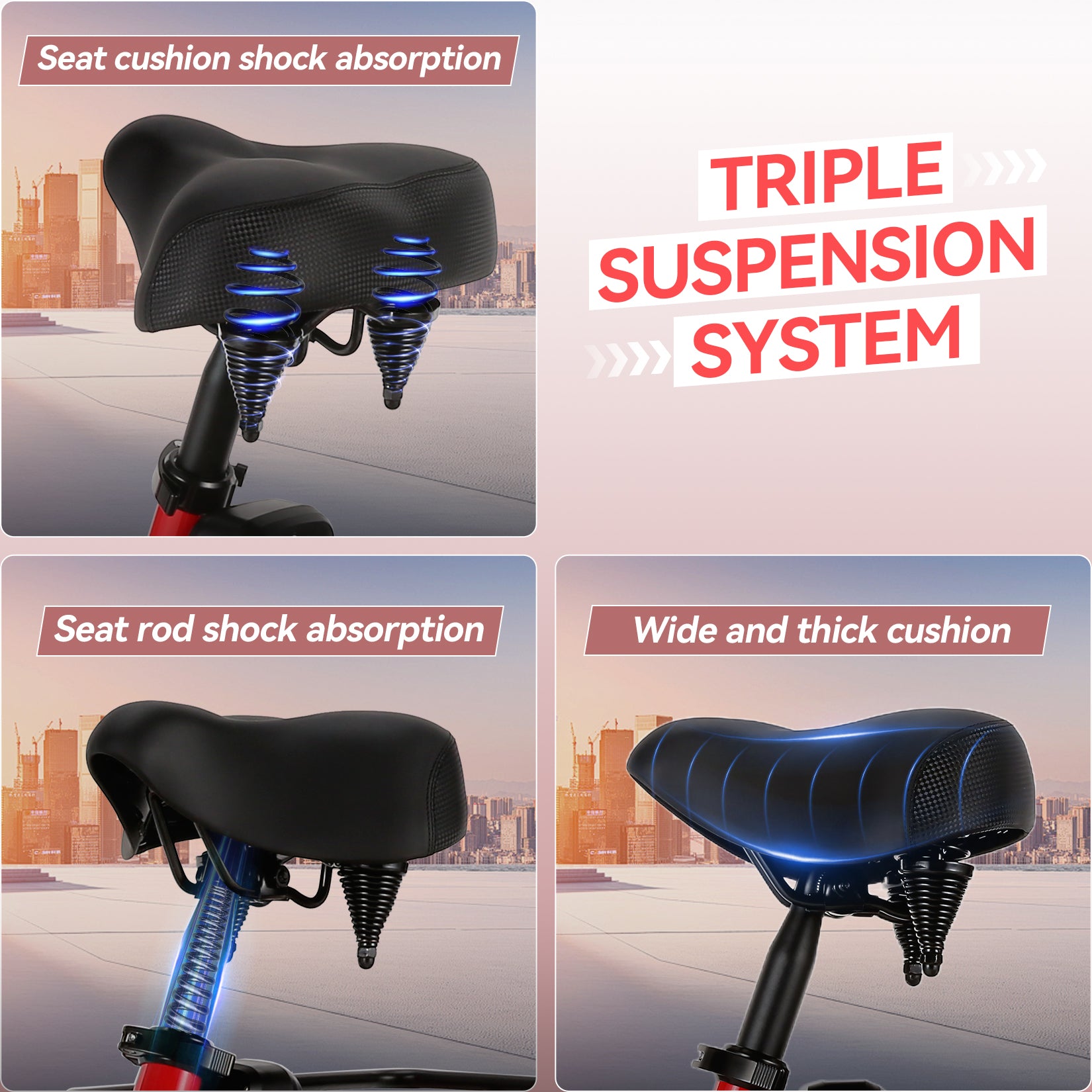

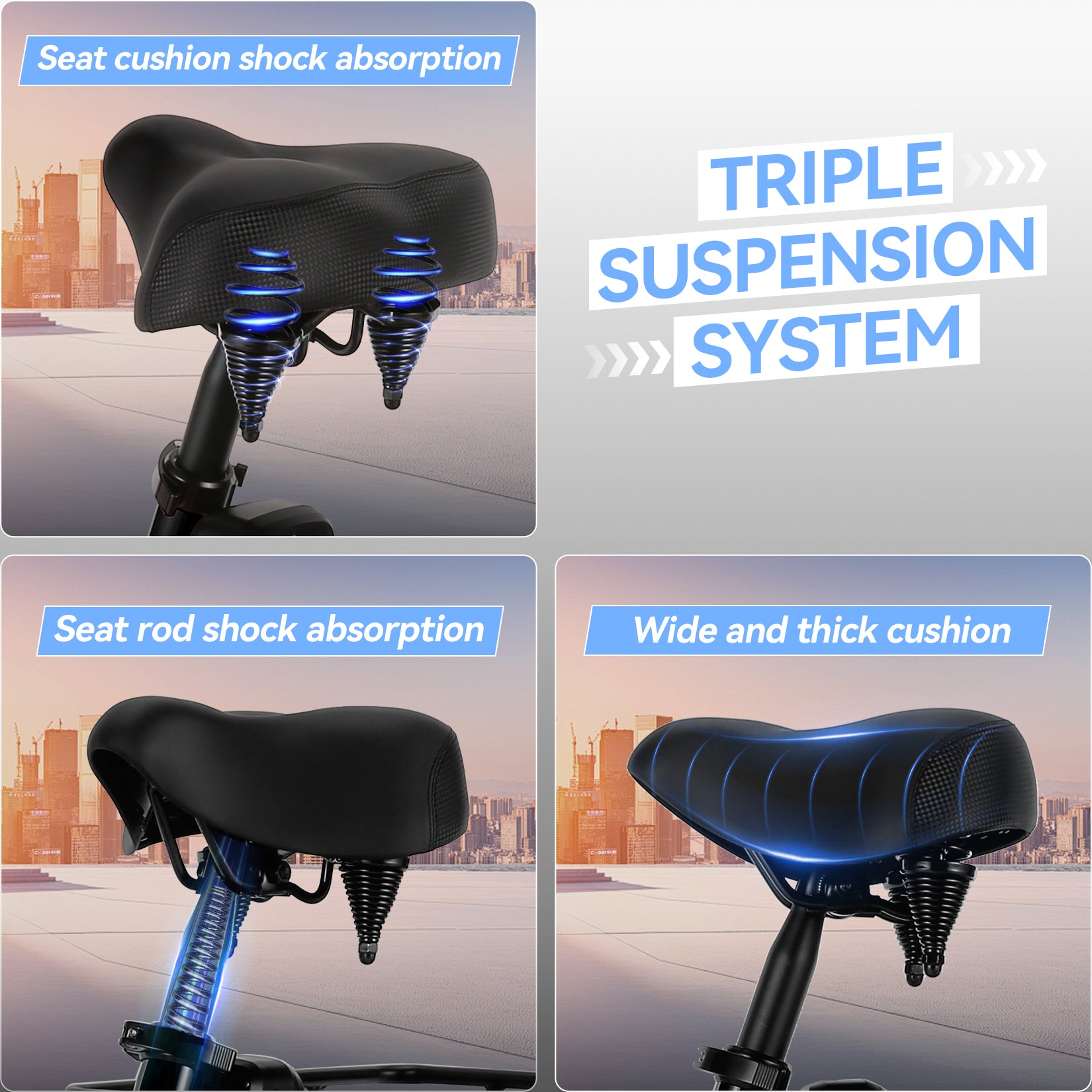

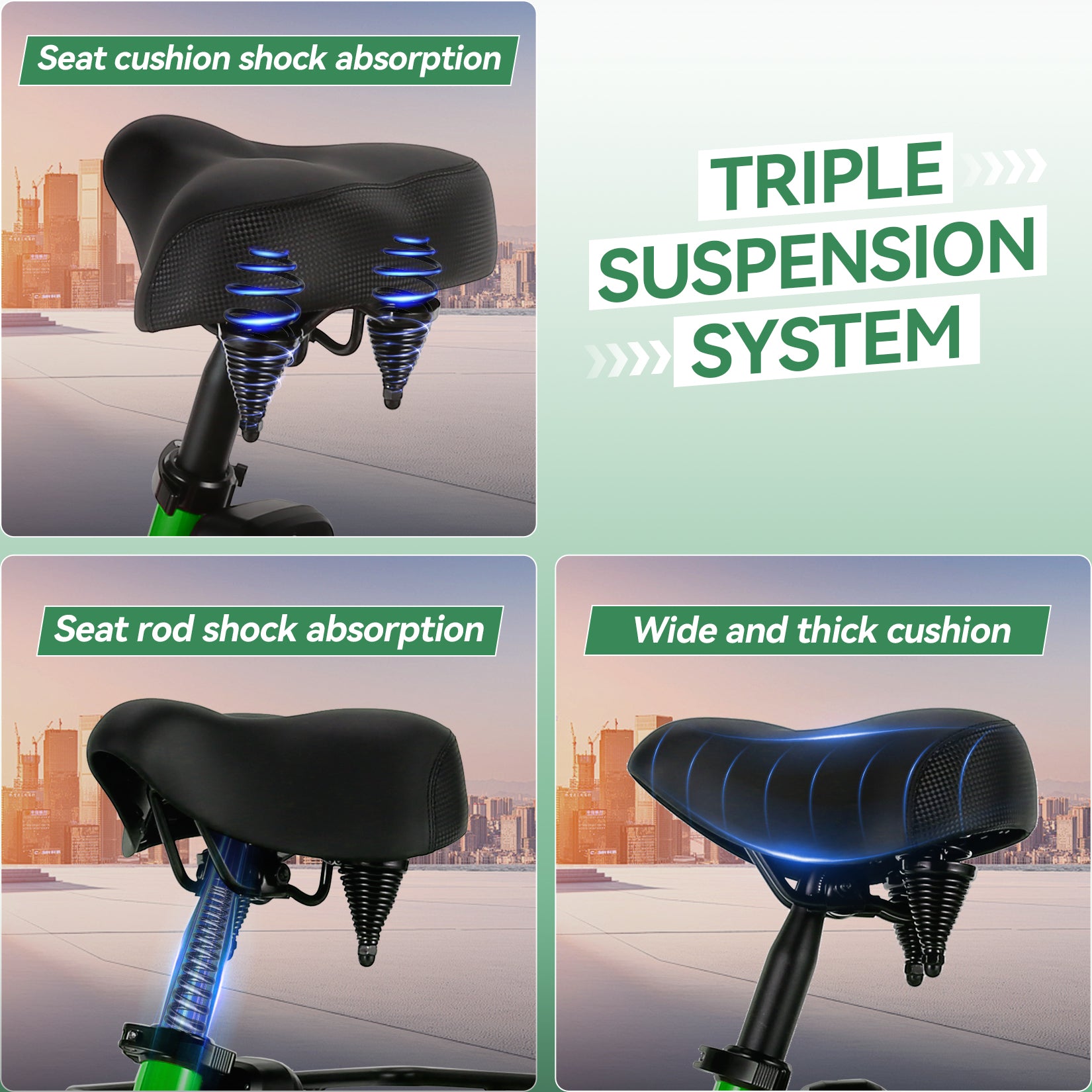

- Seat cushion & rod shock absorption, wide and thick cushion

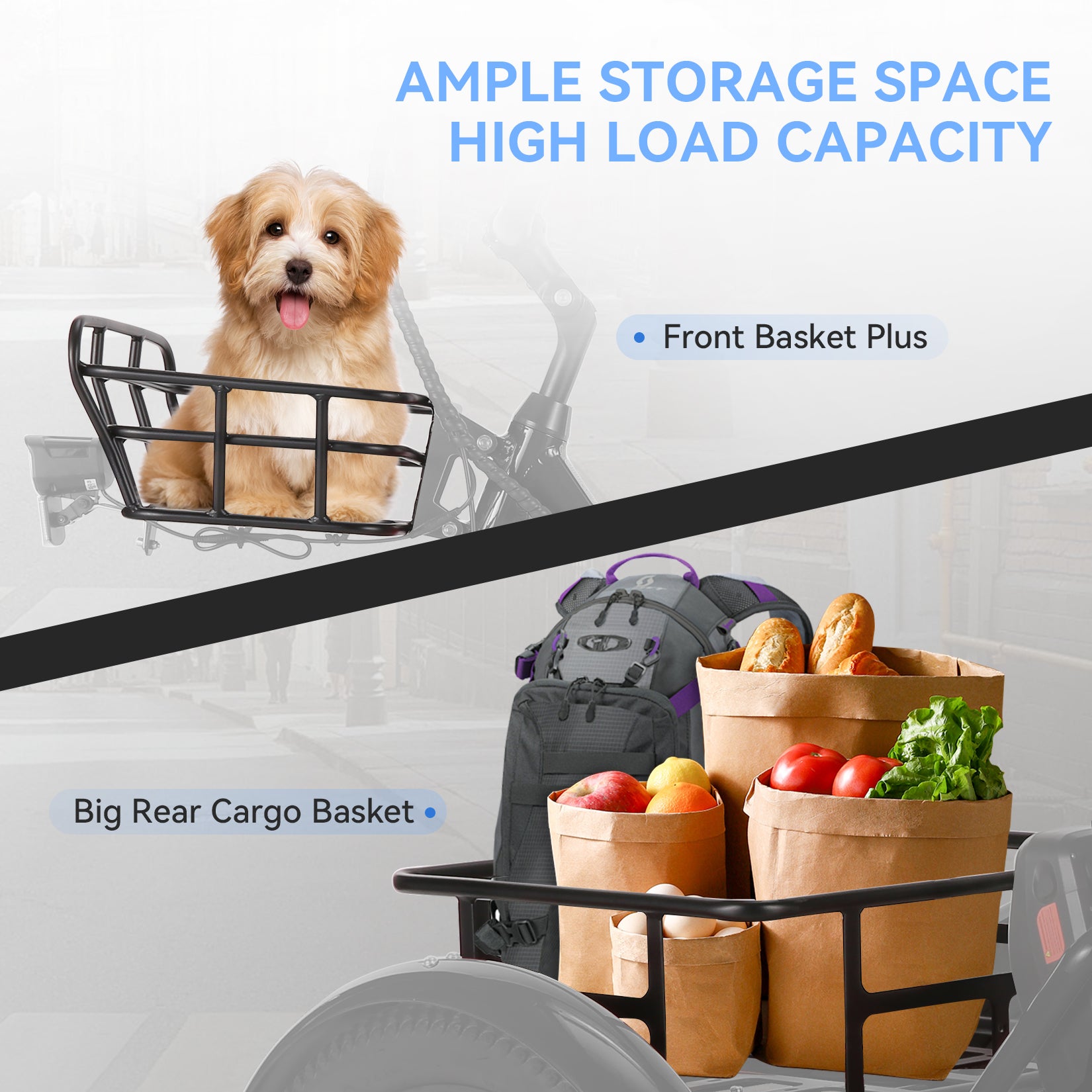

- Ample storage space & high load capacity
- 95% pre-installed, easily installed in 5 minutes
- UL 2272 & 2849 certified safety
Perfect For Daily Commuting and Cargo Hauling
Motor Power
500W
Battery
48V 10.4Ah
Charging Time
4-5 Hours
Range
55 Miles
Max Speed
15 .5MPH
Max Capacity
285 Lbs
Performance
Model
T01
Color
Black / White / Green / Red
E-bike Class
2
IP Level
IP65
Regular Speed
16km/h 10MPH
Max Speed
25km/h 15.5MPH
Max Range
75-90km / 45-55 miles
Ebike Range
45-55km / 28-34 miles
PAS Range
65-90km / 40-55 miles
Speed Mode
Low / Mid / High
Bicycle Weight
39kg / 87bs
Load Capacity
130kg / 286Ibs
Ebike Size
164x77x111cm / 65x30x44 inches
Package Weight
43kg / 95 lbs
Rider Heights
155-195cm / 5'2"-6'5"
Rider Age
16+
Folding
Yes
Rear Basket
Integrated, 150lbs large capacity
Riding Mode
Throttle / Pedal Assist / Normal Bike / / Cruise Control / Walking Assist
Certification
UL | UL 2849/2272
Electronics
Motor
500W 48V Brushless Hub Motor, 75Nm
Battery
48V 10.4Ah 499.2Wh Lithium-ion Battery
Controller
48V 24A Brushless Motor Controller
Display
👍48V Intelligent Digital LCD Display
Charger
US Plug 54.6V 2A Smart Charger
Charging Time
4-5 Hours
Pedal Assist
👍Intelligent 5 Level Pedal Assist
Sensor
12 Magnet Cadence Speed Sensor
Throttle
Half Twist Throttle+Thumb Throttle
Bell/Horn
Integrated Handlebar Bell
Front Light
48V Integrated LED Headlight
Tail Light
48V DC Integrated LED Taillight
Wiring
Waterproof Integration Cable
USB Ports
Without
Components
Frame
Aluminum Alloy
Frame Type
Low-Step
Fork
Aluminum, Φ28.6×538mm, 100mm Travel
Suspension
Triple Suspension Saddle
Derailleur
Single-speed
Shifter
No
Gearing
Single-speed
Handlebar
Custom Formed Aluminum, 680×φ31.8mm
Stem
Aluminum,Φ28.6×40×90×φ31.8mm, 60º
Headset
Sealed Bearing Headset
Grips
Imitation Leather Ergonomic Grips
Saddle
Ergonomic Breathable Sport Saddle
Seatpost
Adjustable Φ30.4 x 300mm Alloy Seatpost
Seatpost Clamp
φ34.9mm Quick Release
Brakes
Mechanical Disc Brake
Tires
20 x2.6" 30TPI Anti Puncture Fat Tires
Rims
36H Double Wall Aluminum Rims
Calipers
Front Mechanical Brake Caliper
Brake levers
Alloy Levers with Motor Cutoff Switch
Brake Pad
SA 180mm Cassette, Semi-metallic
Spokes
13G Black Stainless Steel
Chain
KMC Aluminum Alloy Chain, 118 links
Freewheel
Aluminum Single-speed Freewheel
Fenders
Included, Full Coverage Front and Rear
Kickstand
Heavy-duty Aluminum, Side-mounted
Rear Rack
Included, Aluminum, Carrying 68kg/150lbs
Crank Set
42T Chainring, 170mm Crank, Forged Alloy Dual-sided Aluminum
Pedals
Standard 9/16" Forged Plastic Pedal with BS Reflectors

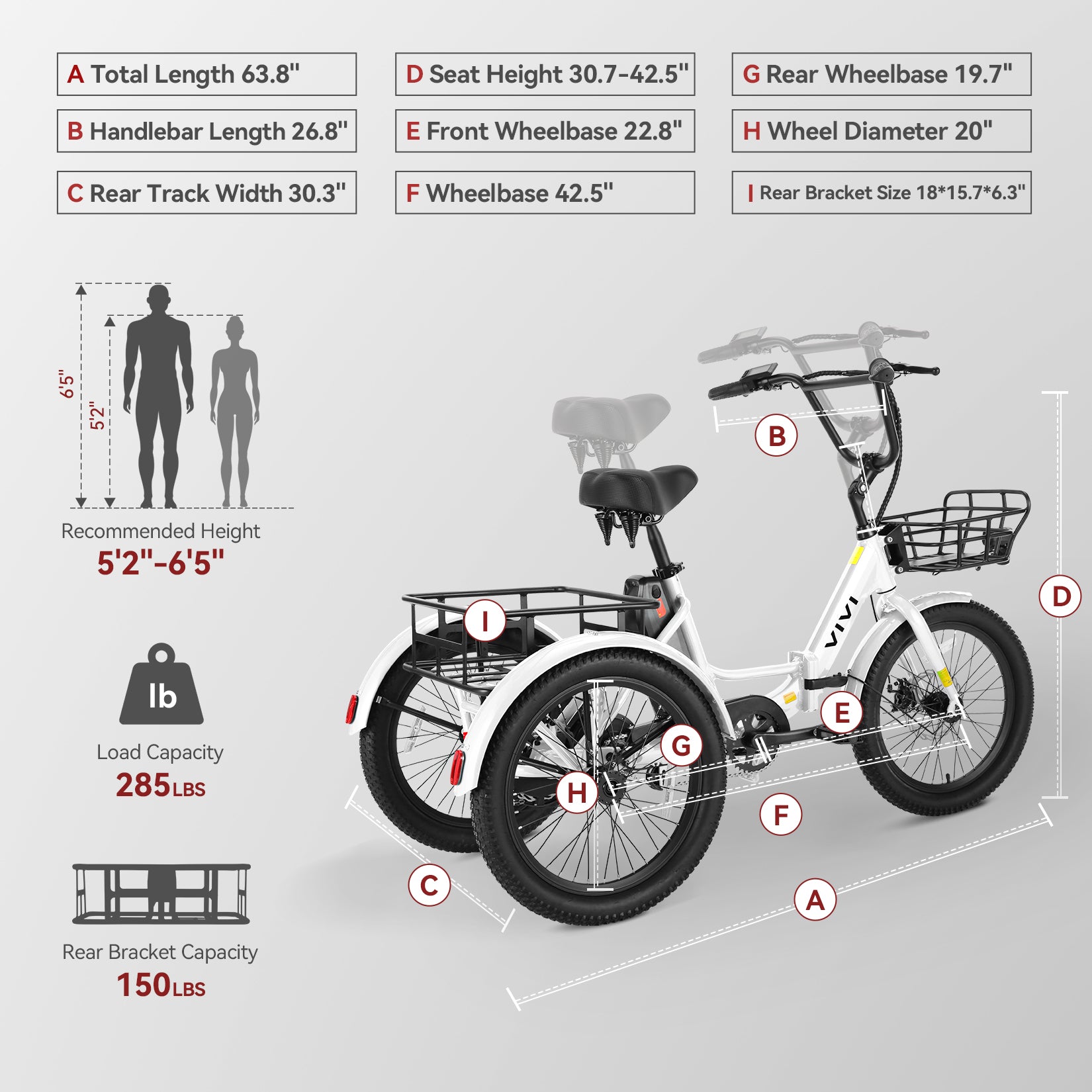

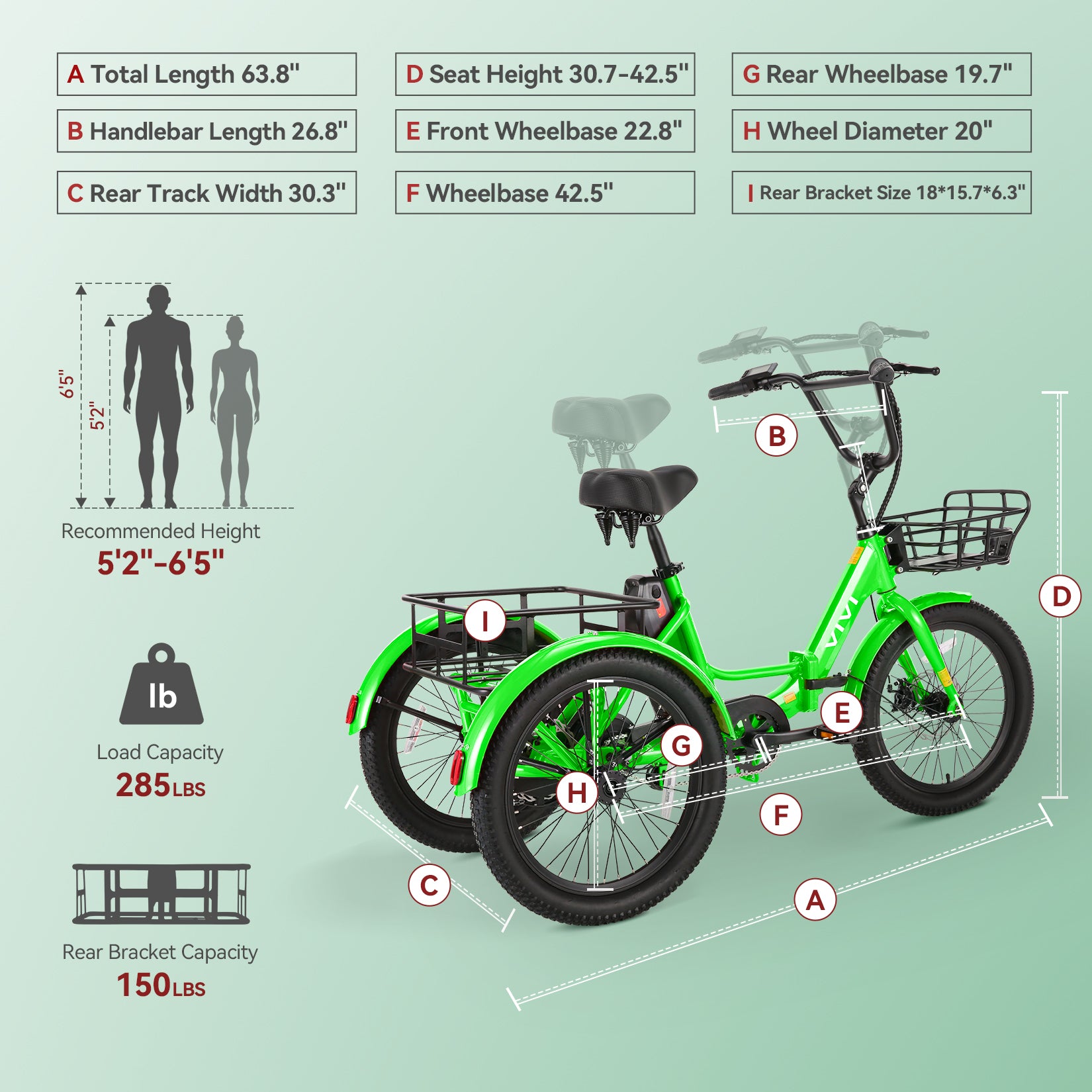

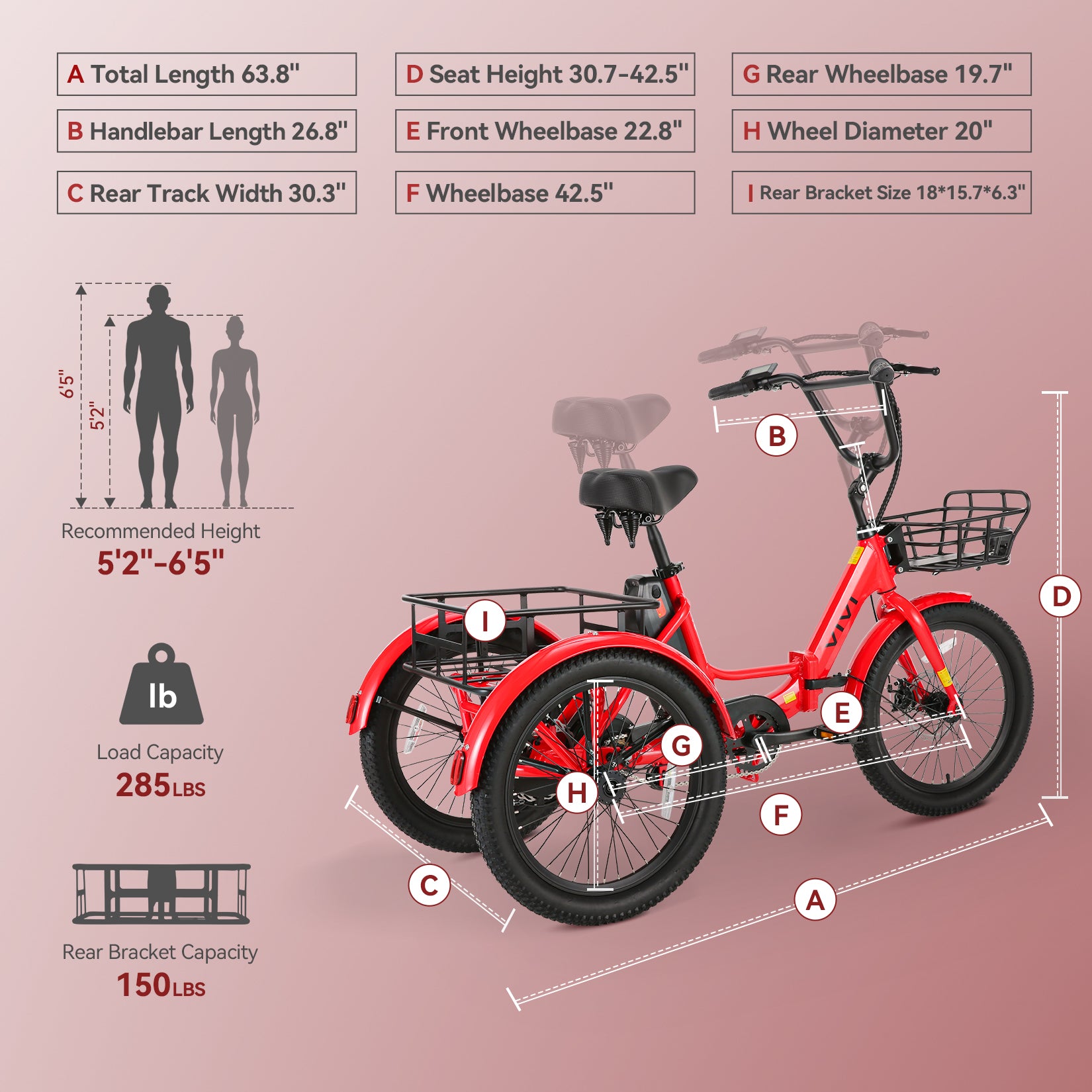

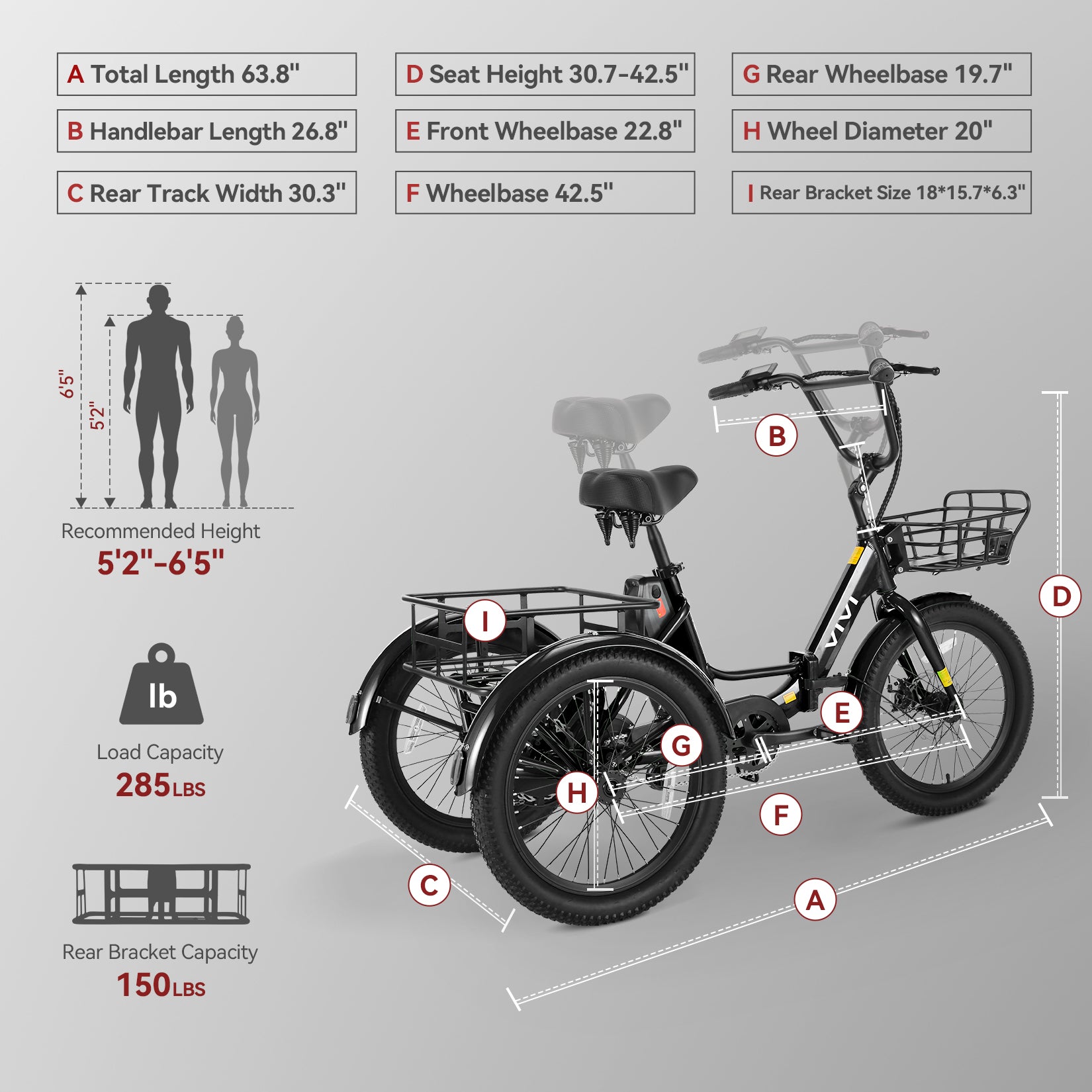

Geometry
Total Length
193cm / 76inch
Handlebar Height
103m / 40.6inch
Handlebar Length
67cm / 26.4inch
Handlebar Diameter
2.22cm / 0.87inch
Crank Length
17cm / 6.7inch
Seat Height
82-98cm / 32.3-38.6inch
Seat Tube Length
79cm / 31.1inch
Handlebar Reach
69.5cm / 27.4inch
Seatpost Diameter
2.72cm / 1.07inch
Standover Height
77cm / 30.3inch
Wheel Diameter
72cm / 28.3inch
Wheel Width
10.2cm / 4.0inch
Wheelbase
120cm / 47.2inch
Top Tube Length
70cm / 27.6inch
Load Capacity
150kg / 330Ibs
Rider Heights
155-200cm / 5.1-6.5 ft
Bicycle Weight
43kg / 95Ibs (battery included)
Bicycle Dimensions
190x69x120cm/75x27x47.2inch
Features

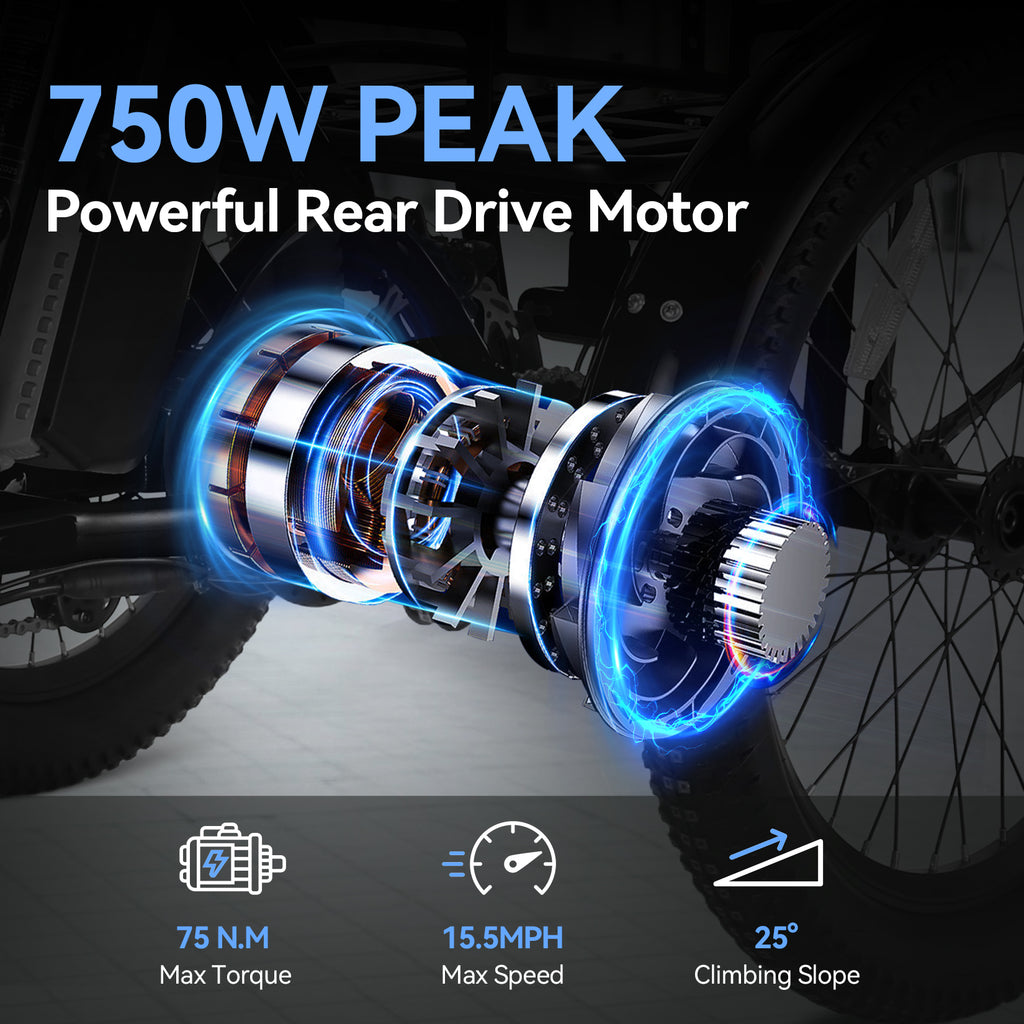

500W Powerful Hub Motor
The electric bike is equipmented a powerful 500W rear drive motor, max speed 15.5Mph, providing sufficient power for your daily commuting and cargo hauling. With up to 750W peak power and 75Nm torque, it delivers stable and smooth riding on city streets and neighborhood road, ensuring comfortable trasportation for both passengers and cargo.

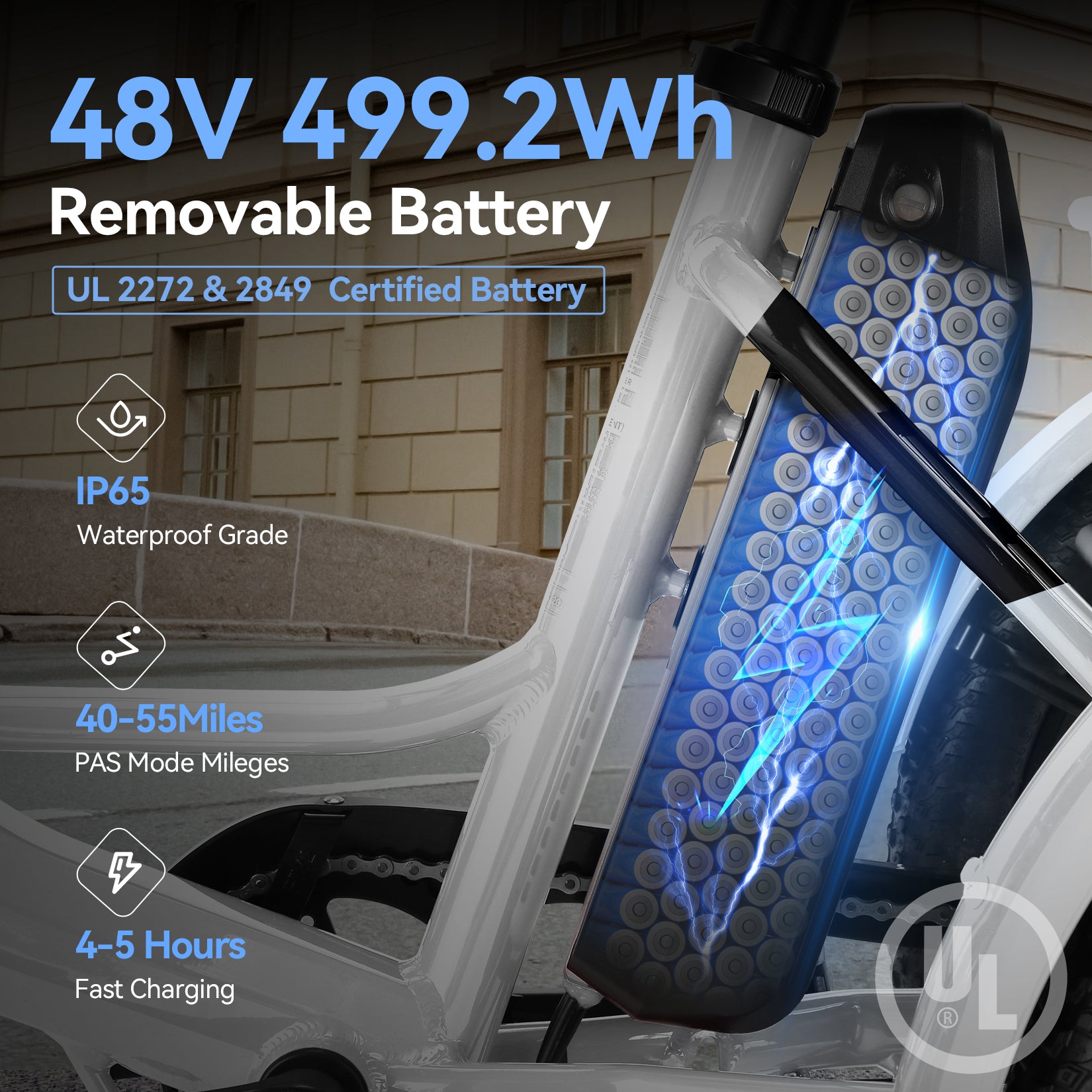

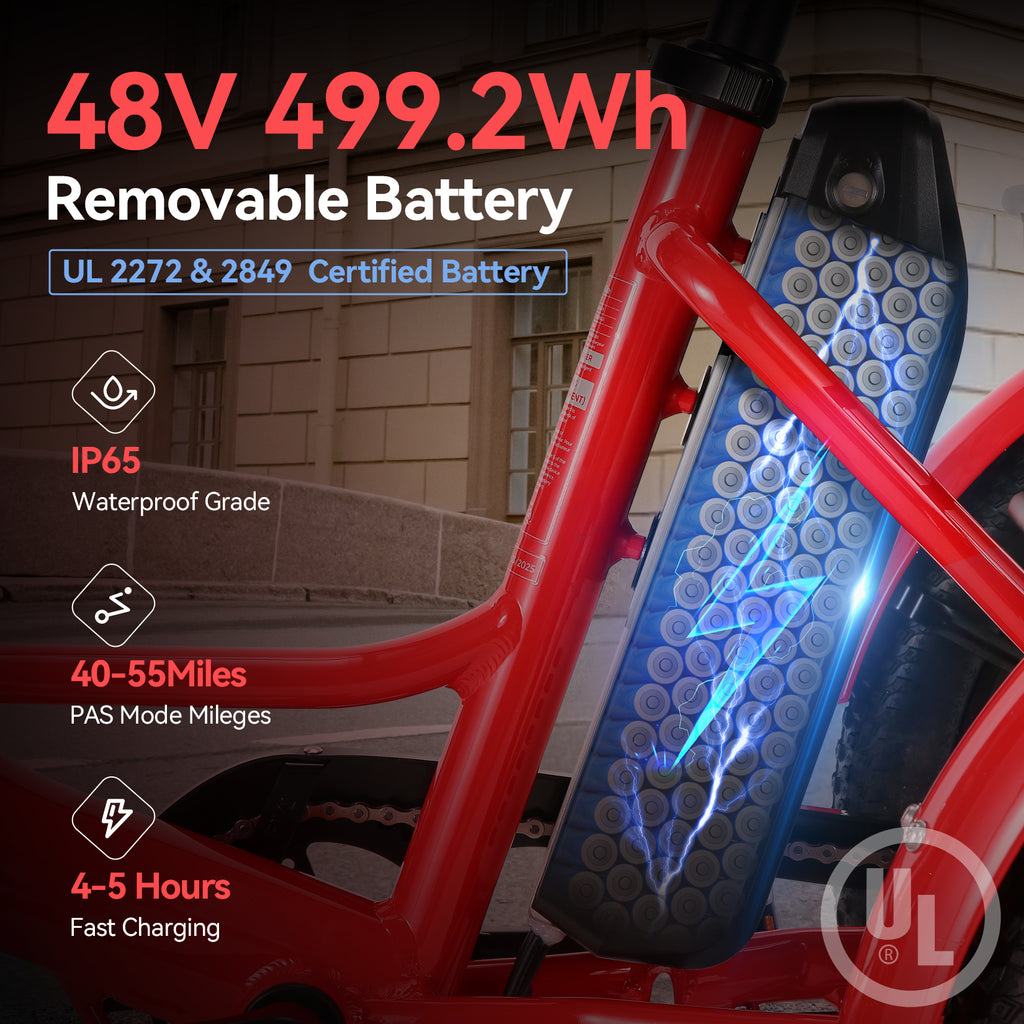

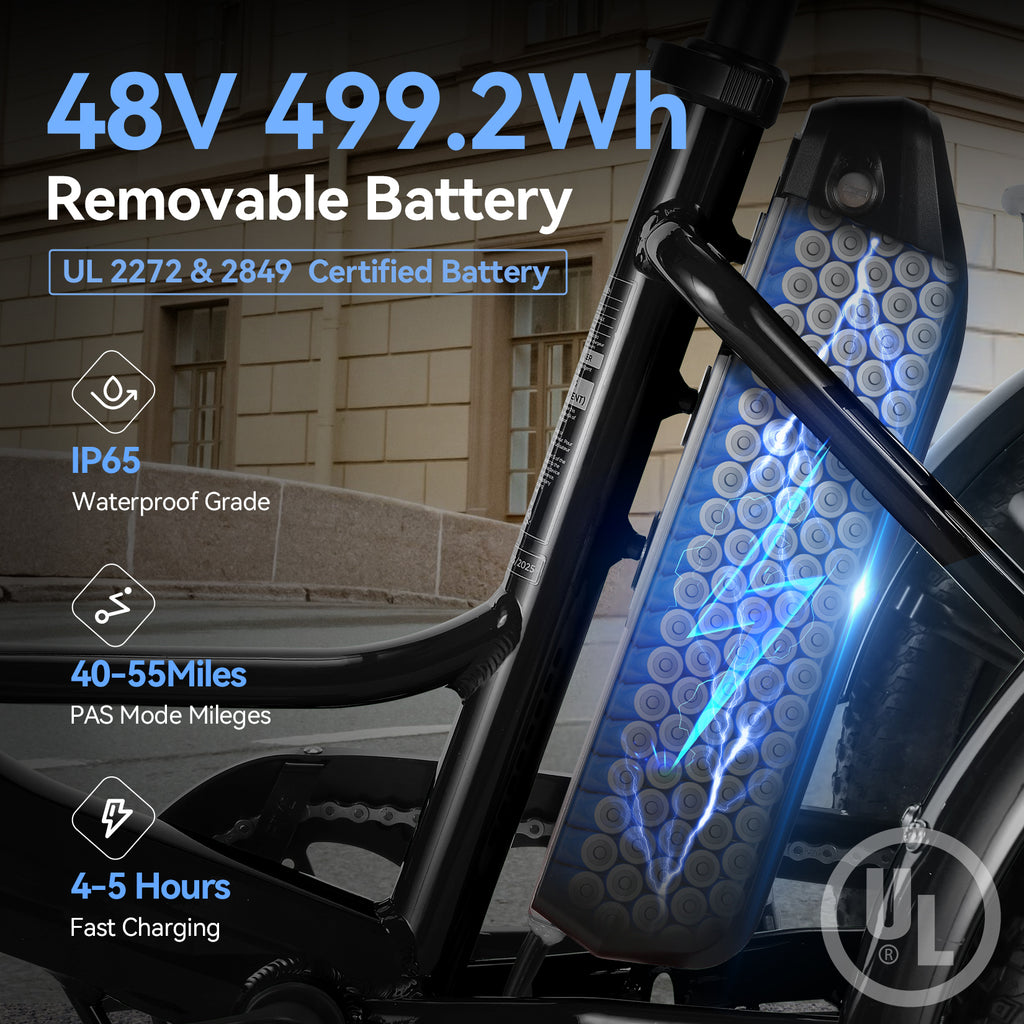

Large Capacity Removable Battery
With the UL 2849 & UL2772 certified 48V 499.2Wh large-capacity battery, 4-5 hours of fast charging can provide up to 40-55 miles of riding range, perfect for daily commuting and cargo delivery. Besides, the removable design of the battery allows effortless removal and installation, enabling convenient charging at home, office, or anywhere you prefer.

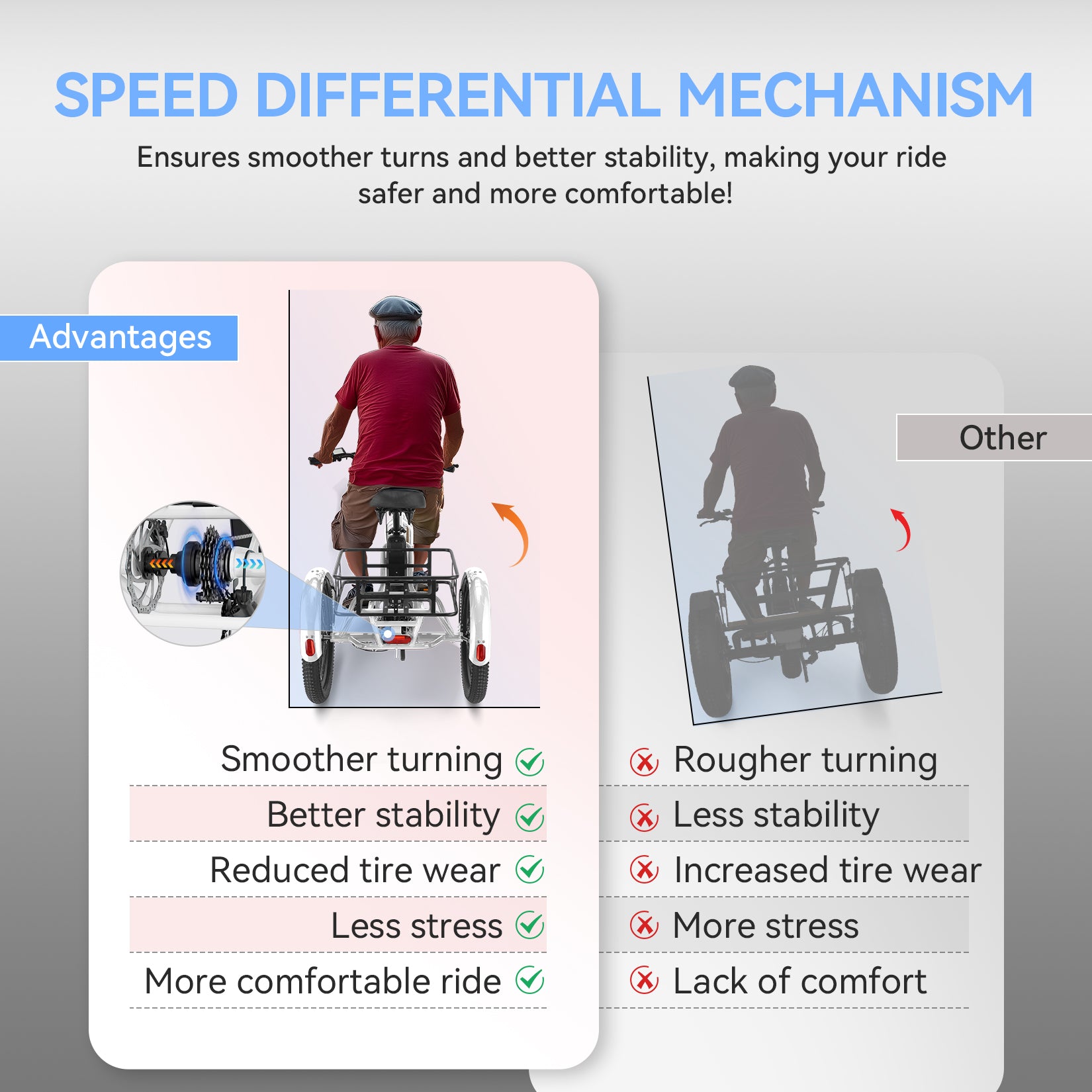

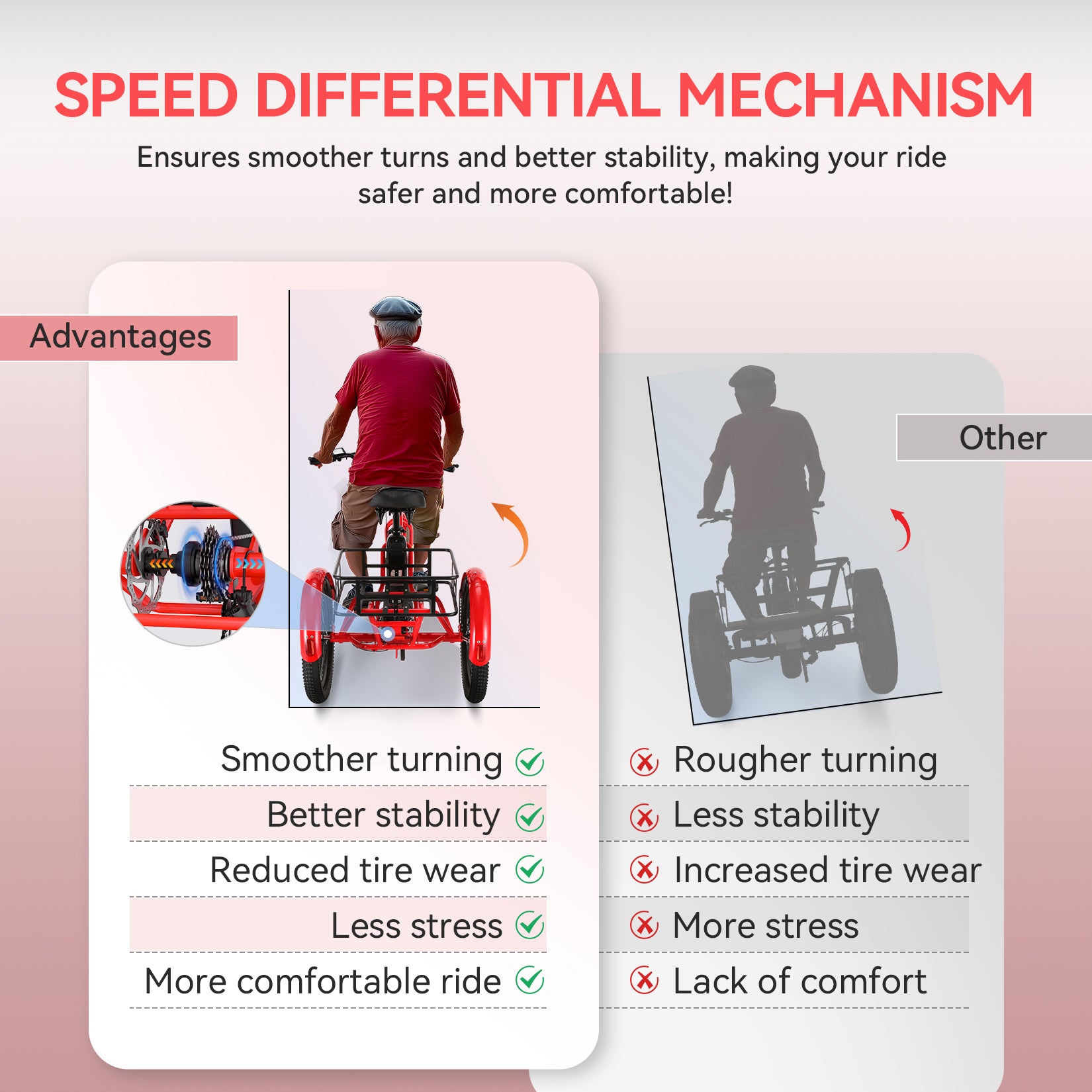

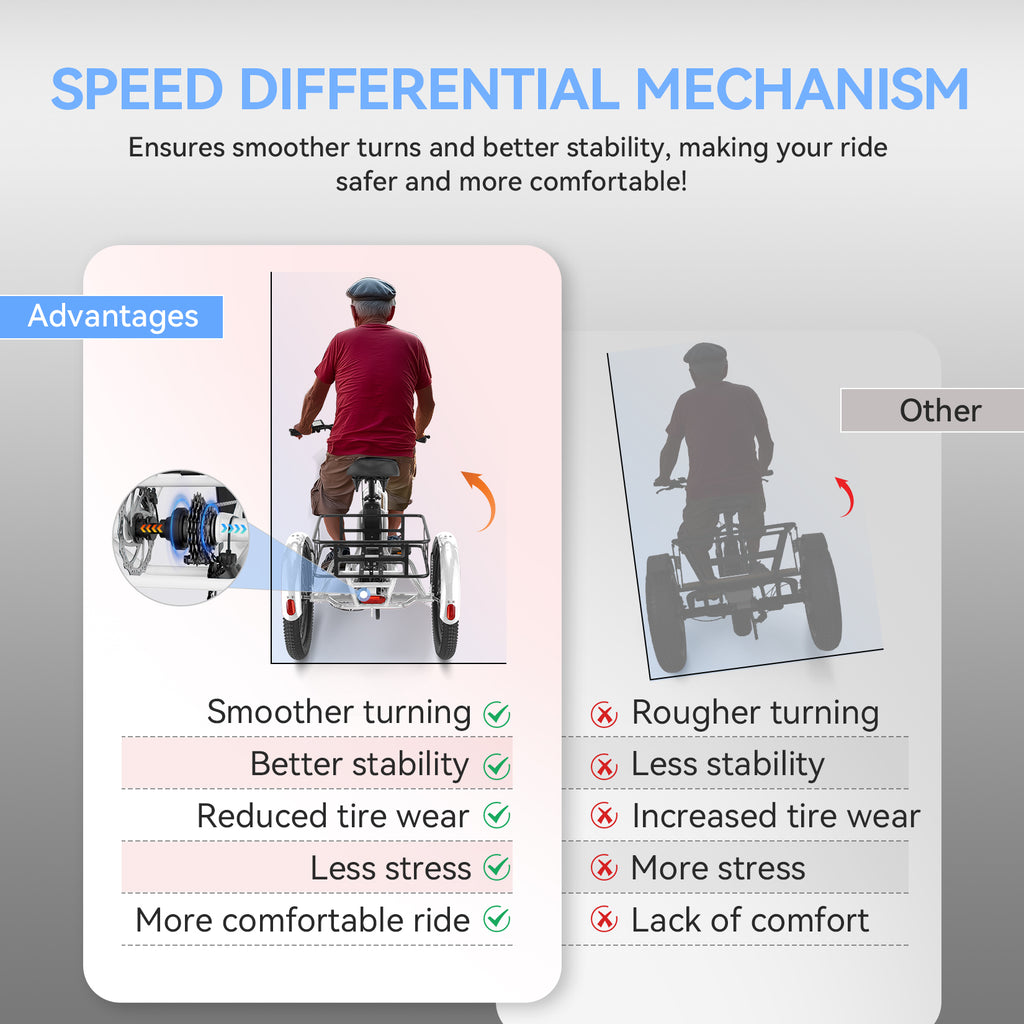

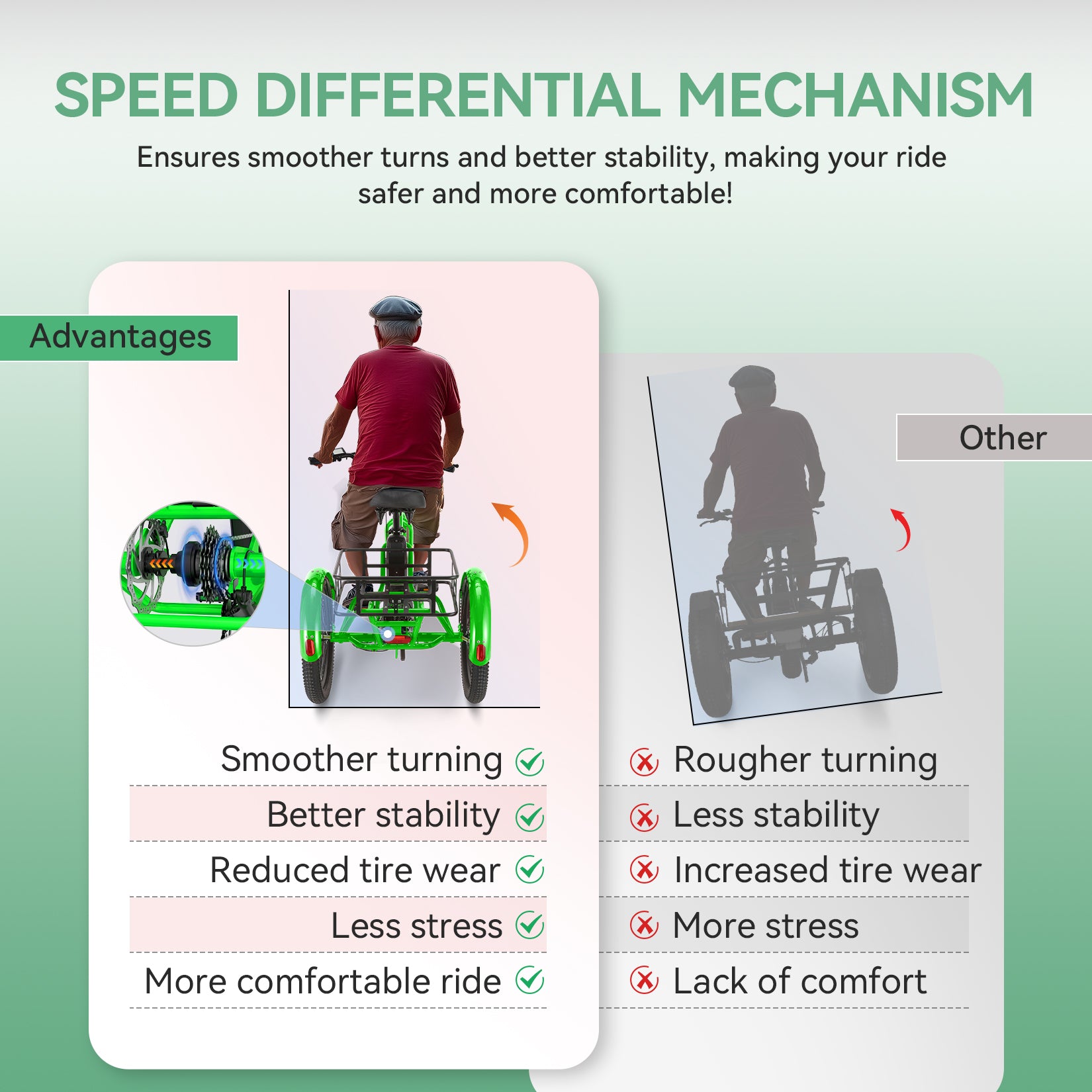

Speed Differential Mechanism
This advanced mechanism ensures smooth comering by allowing the rear wheels to rotate at different speeds when turning, effectively reducing tire wear and preventing skidding. The robust differential guarantee balanced power distribution to both rear wheels, making the tricycle more stable during acceleration and providing better tration on various road conditions.

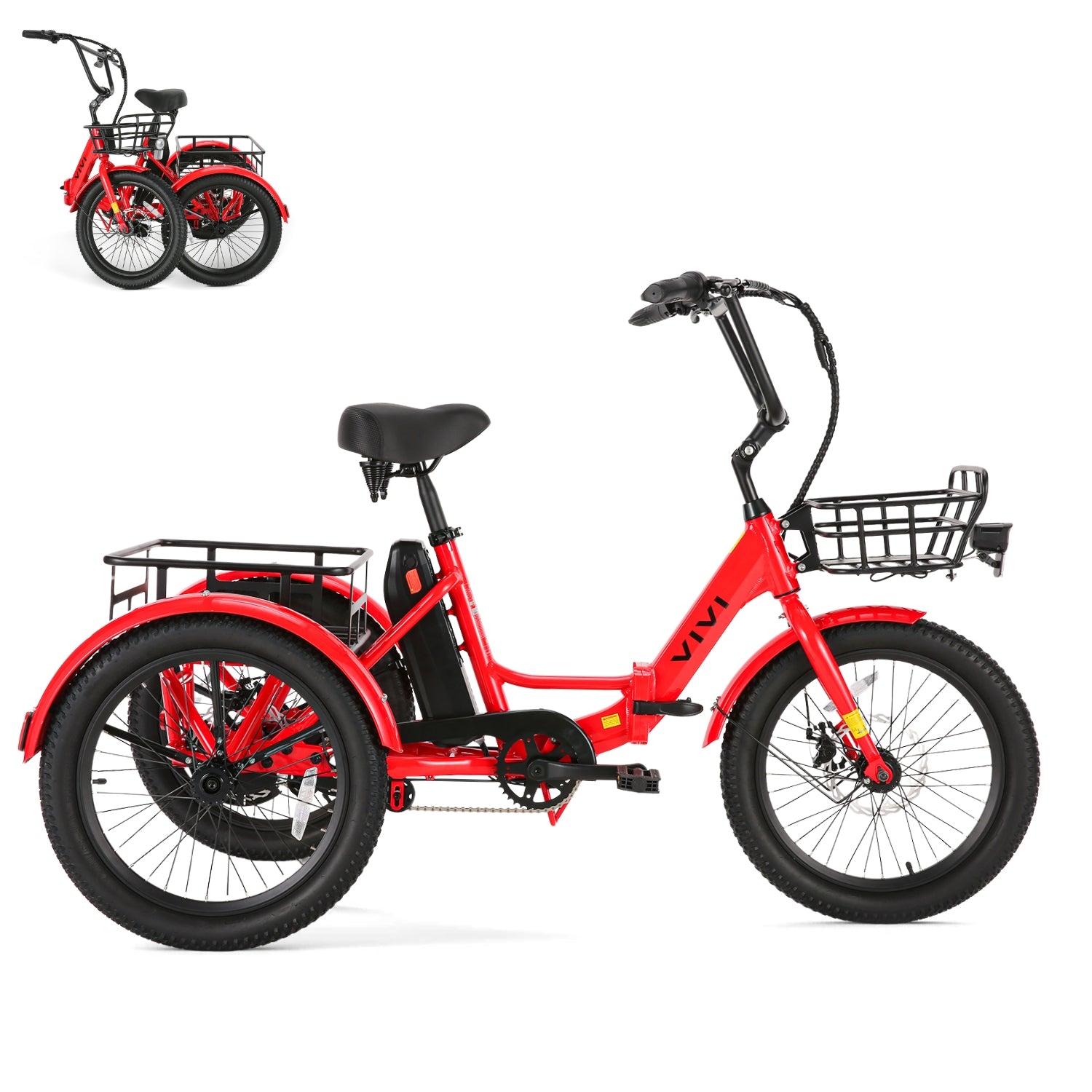

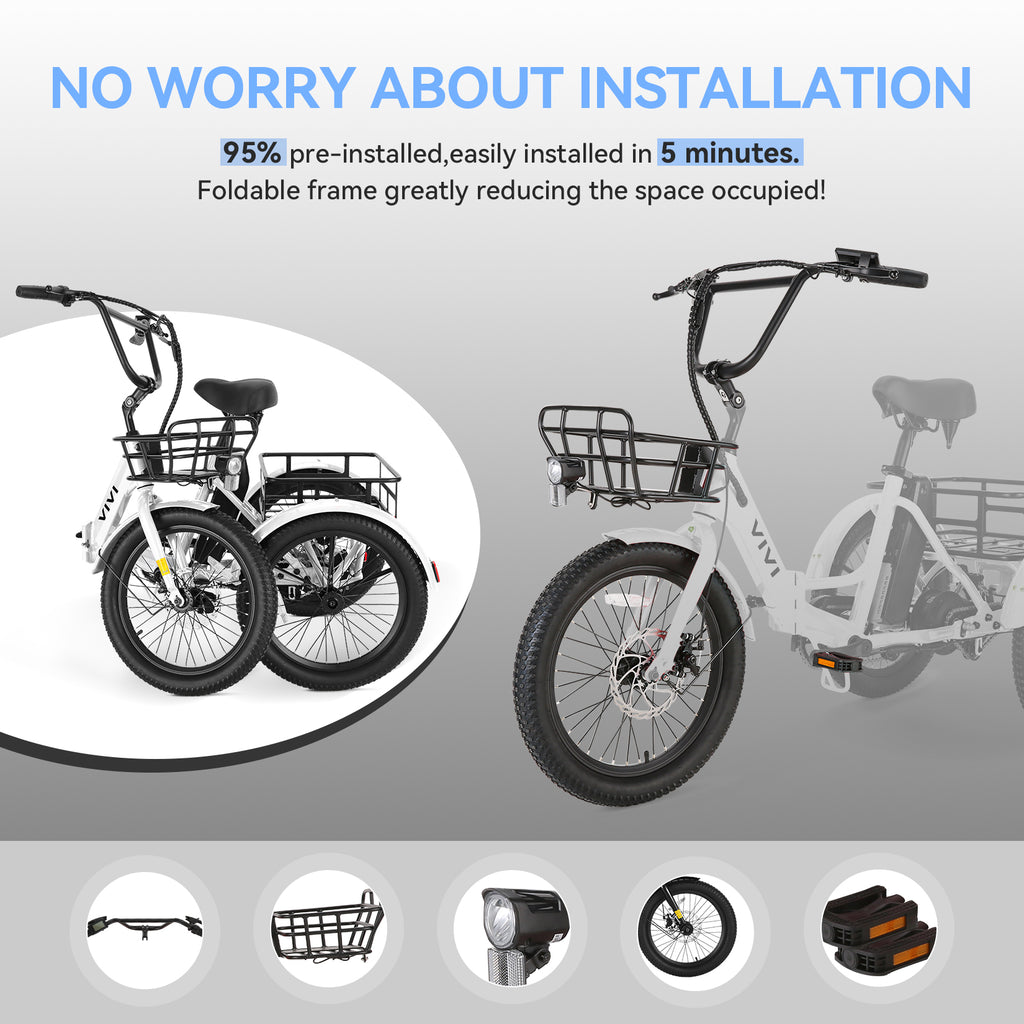

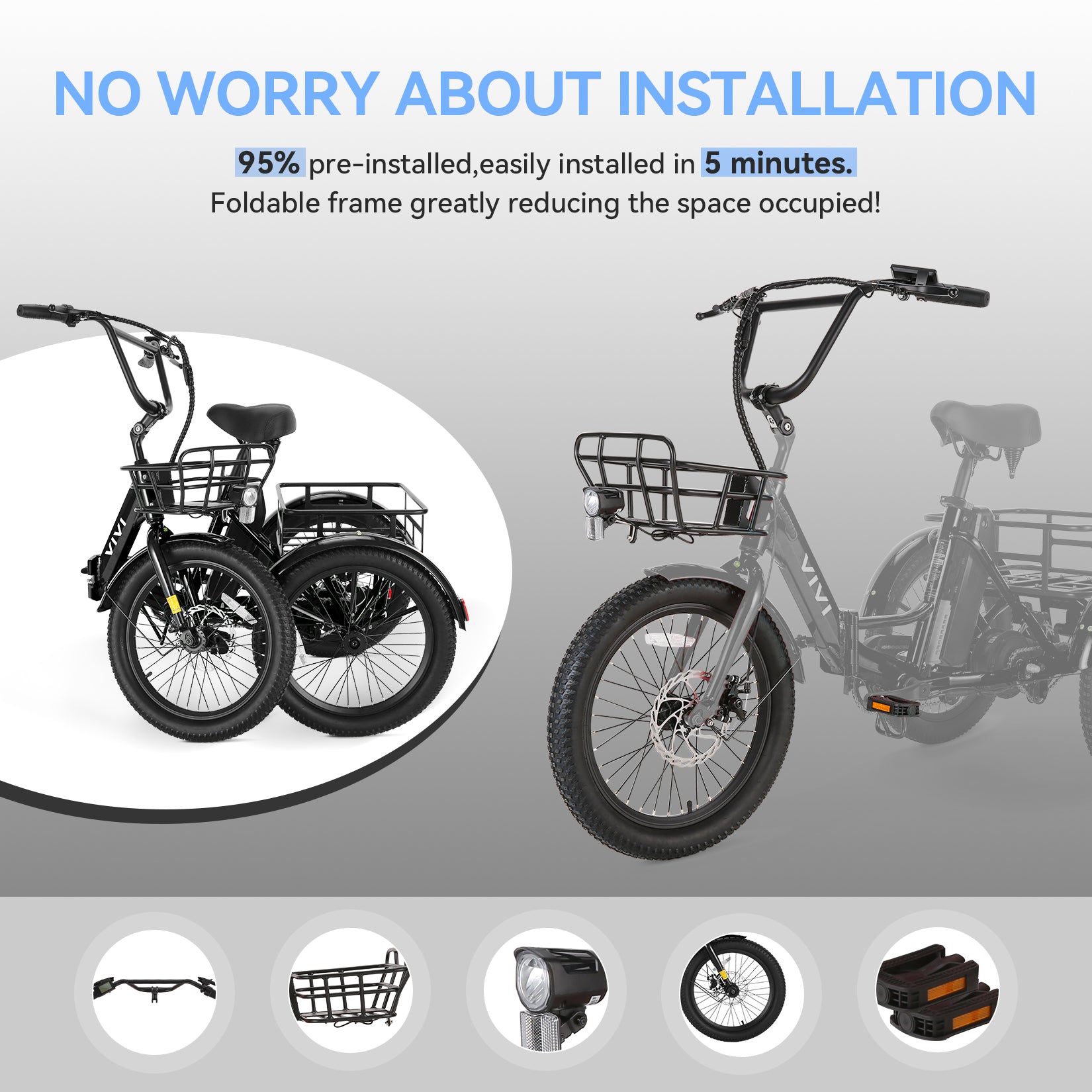

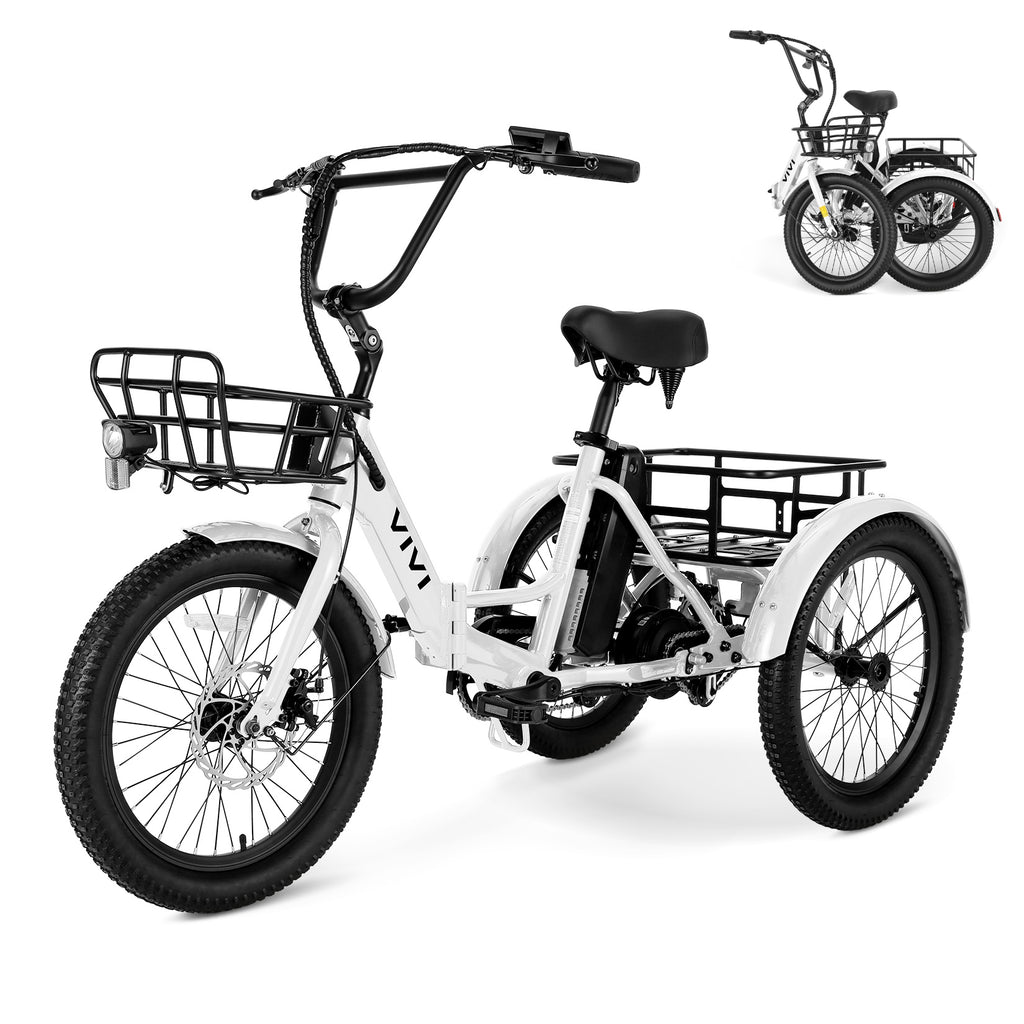

95% Pre-installed & Folable Frame
Arriving 95% pre-assembled, this tricycle ensures a hassle-free setup experience. The VIVI electric tricycle features a convenient folding design that makes storage and transportation effortless. With just a few simple steps, the handlebar and frame can be quickly folded, significantly reducing its footprint to fit in most SUVs, garages, or compact spaces.
Advanced Torque Sensor

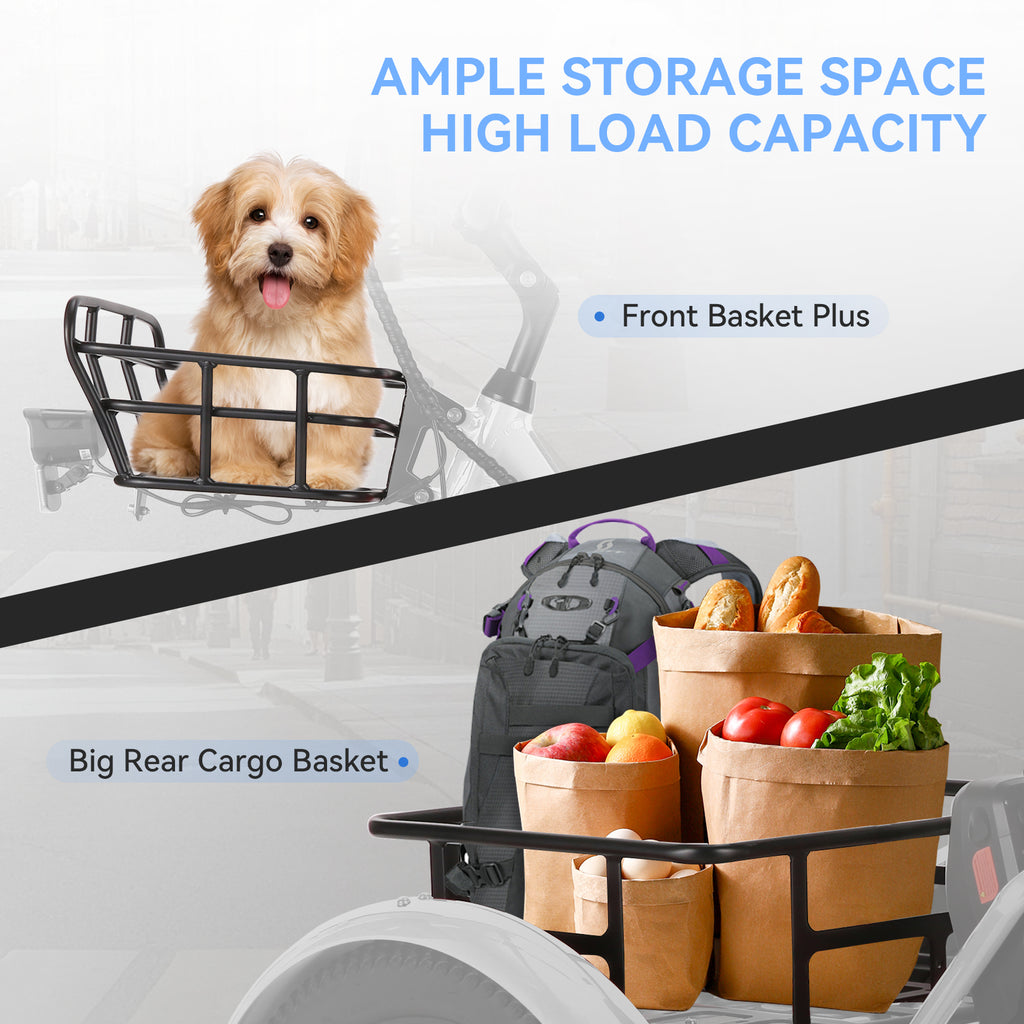

The VIVI electric cargo tricycle offers exceptional loading capacity with its thoughtfully designed dual-basket system. The front basket provides convenient storage for personal items and daily essentials, while the large rear cargo basket delivers impressive utility for substantial loads. The heavy-duty rear basket is perfect for grocery shopping, deliveries, or transporting bulky items.
Intelligent LCD Display
The VIVI electric tricycle features an optimally engineered rear track width, thoughtfully designed to balance stability and accessibility. With the perfect rear wheel spacing, this tricycle easily maneuvers through standard doorways, narrow paths, and typical urban spaces while maintaining excellent stability during rides.
Package
Electric Tricycle
(Pre-assembled)
Shock-absorbing Saddle
Battery Charger
Front Wheel
Front Basket
Pedals
Tool kit
User Manual
