Before purchasing, please confirm the item label information on the upper and lower tubes or frames of your electric bike. If you purchased between 2021 and 2023, or if the model number on the frame label begins with "SPA~" (e.g., SPA000047, SPA000113, SPA000211), or if the model number on the frame label reads "M026TGB, MT20, Gopina V1, etc.", please select the SPA series frame series. If you purchased after 2024, or if the model number on the frame label begins with "AMAK~" (e.g., AMAK00016, AMAK00020, AMAK00028), or if the model number on the frame label reads "C26 UL, F26FUL, ACE01, APSVI11, GWLVI11, etc.", please select the AMAK series frame series. E-bike parts for these two frame series are incompatible, so please avoid purchasing the wrong parts.
- Please confirm the model of your electric bike before purchasing. The electric bike models shown in the details are the models currently on sale. If you cannot find the model you want, please contact our customer service email and purchase under their guidance to avoid purchasing errors. Due to different production batches and models, the item may differ from the description on this page. Please purchase according to the model on the page. The actual item received shall prevail.
Product Details
| Color | Black |

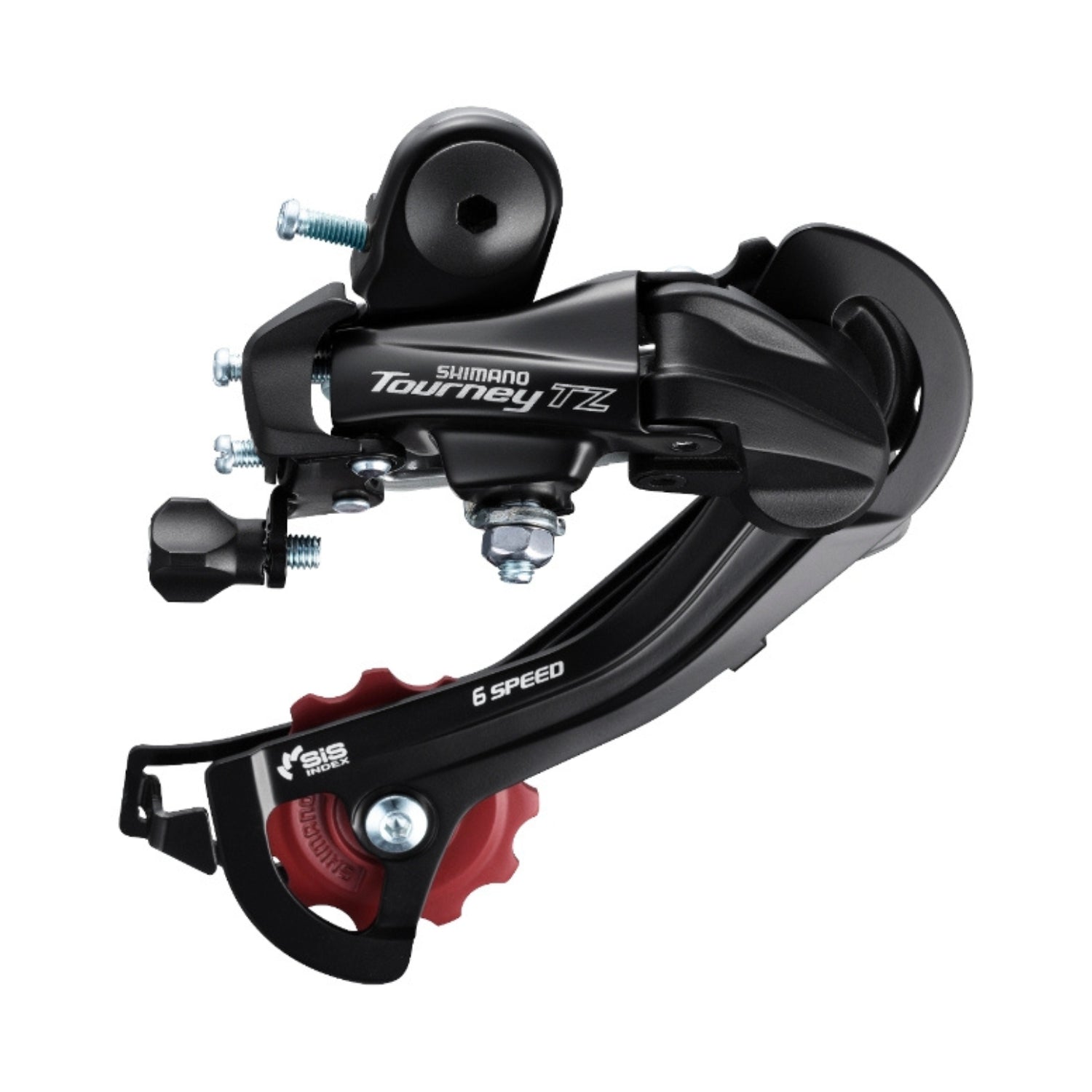

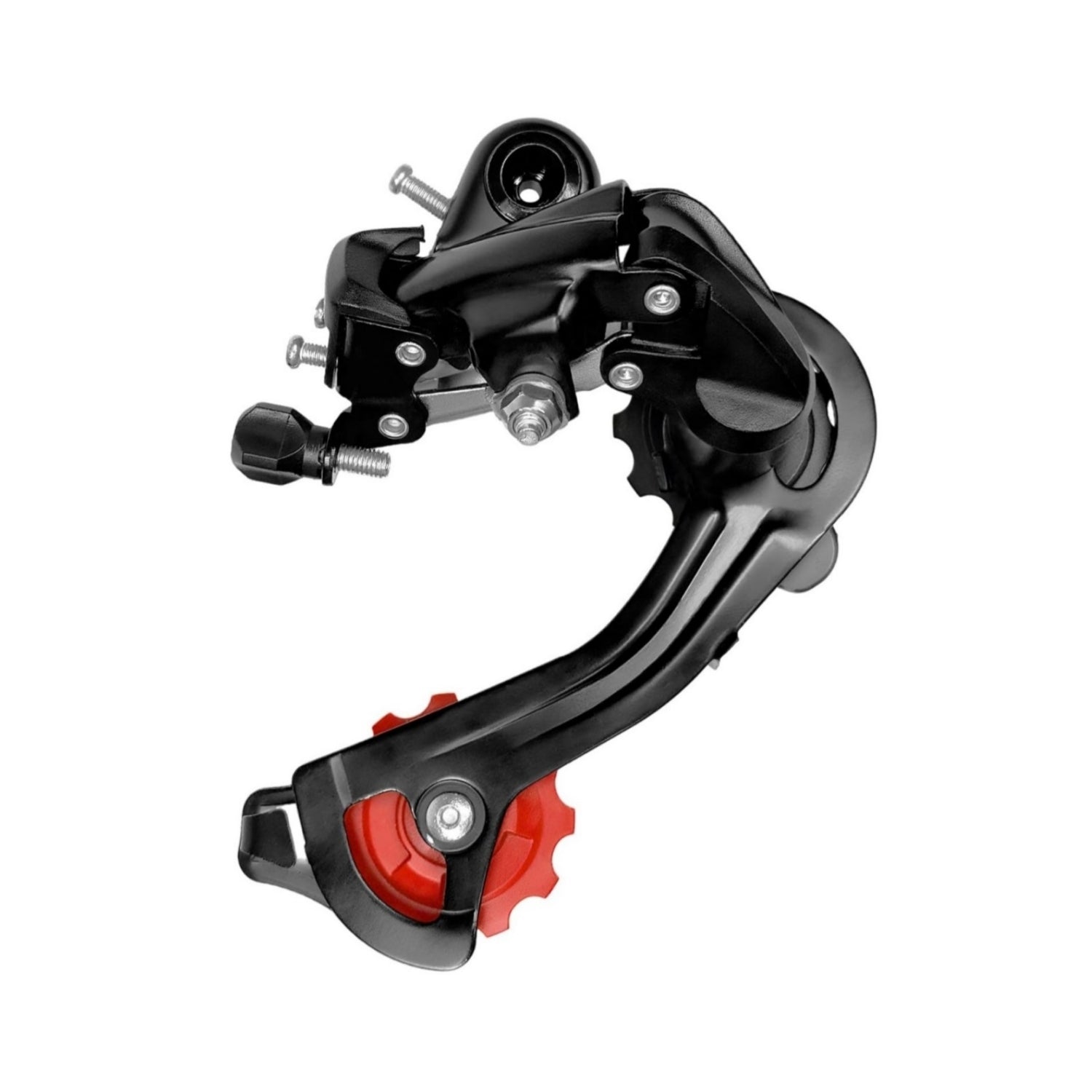

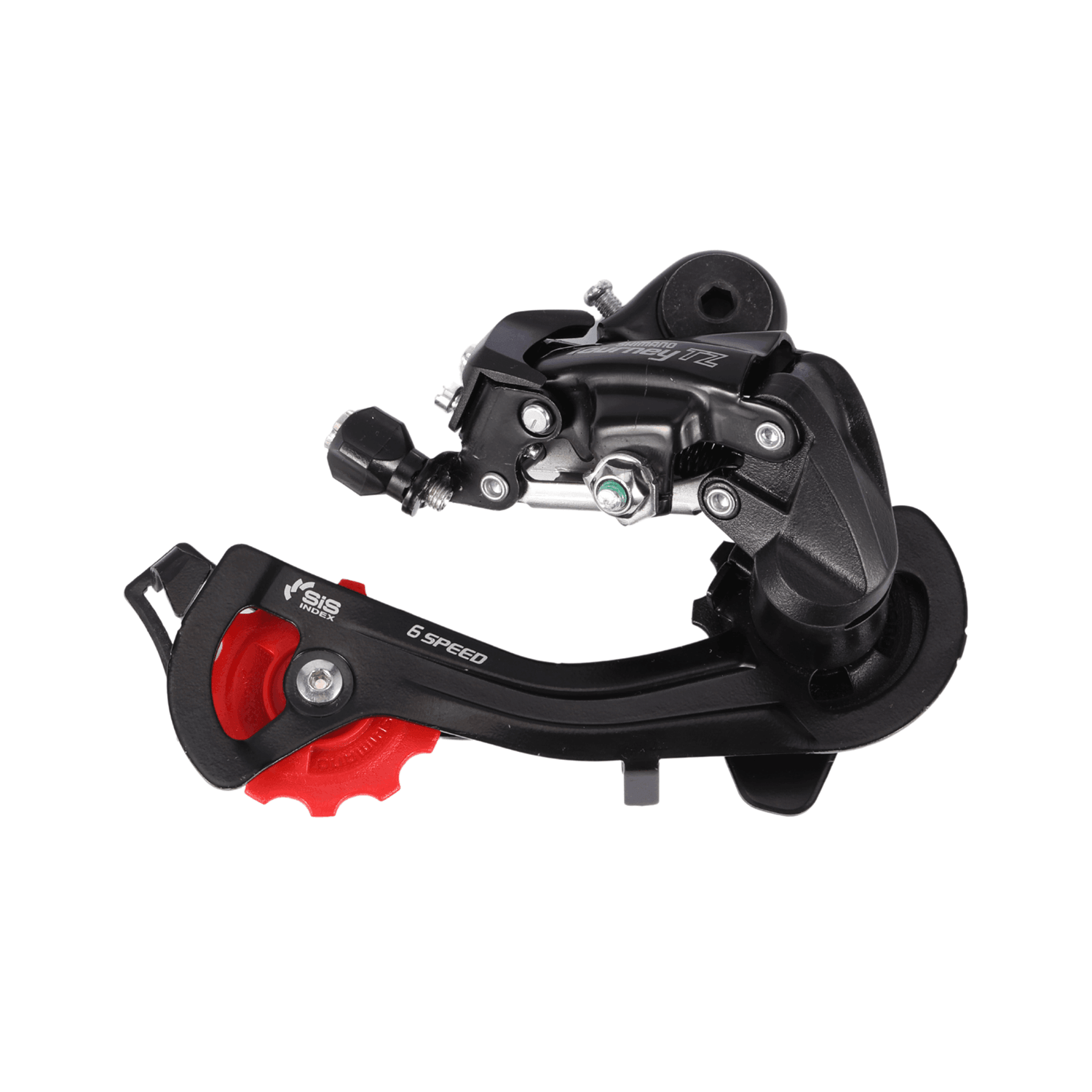

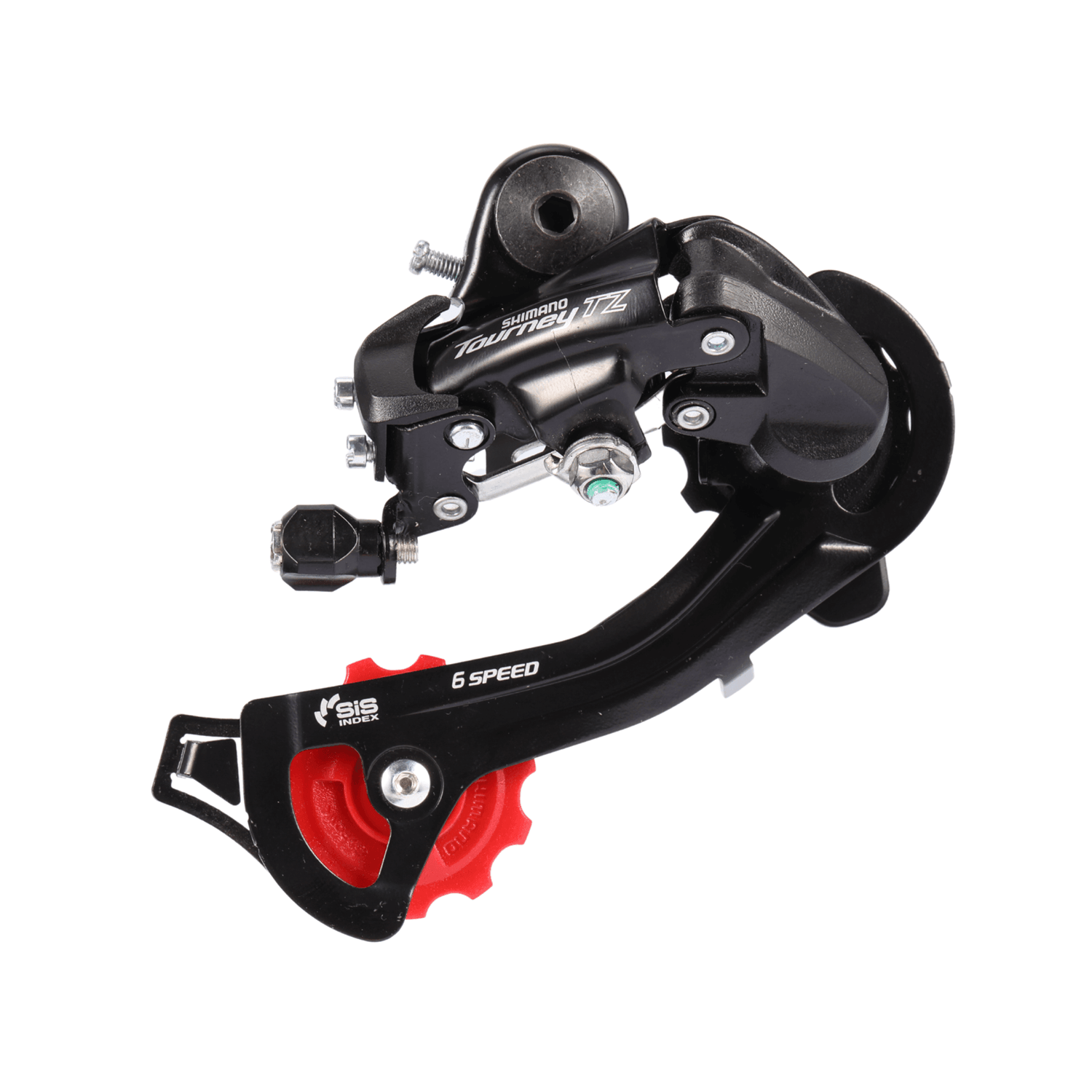

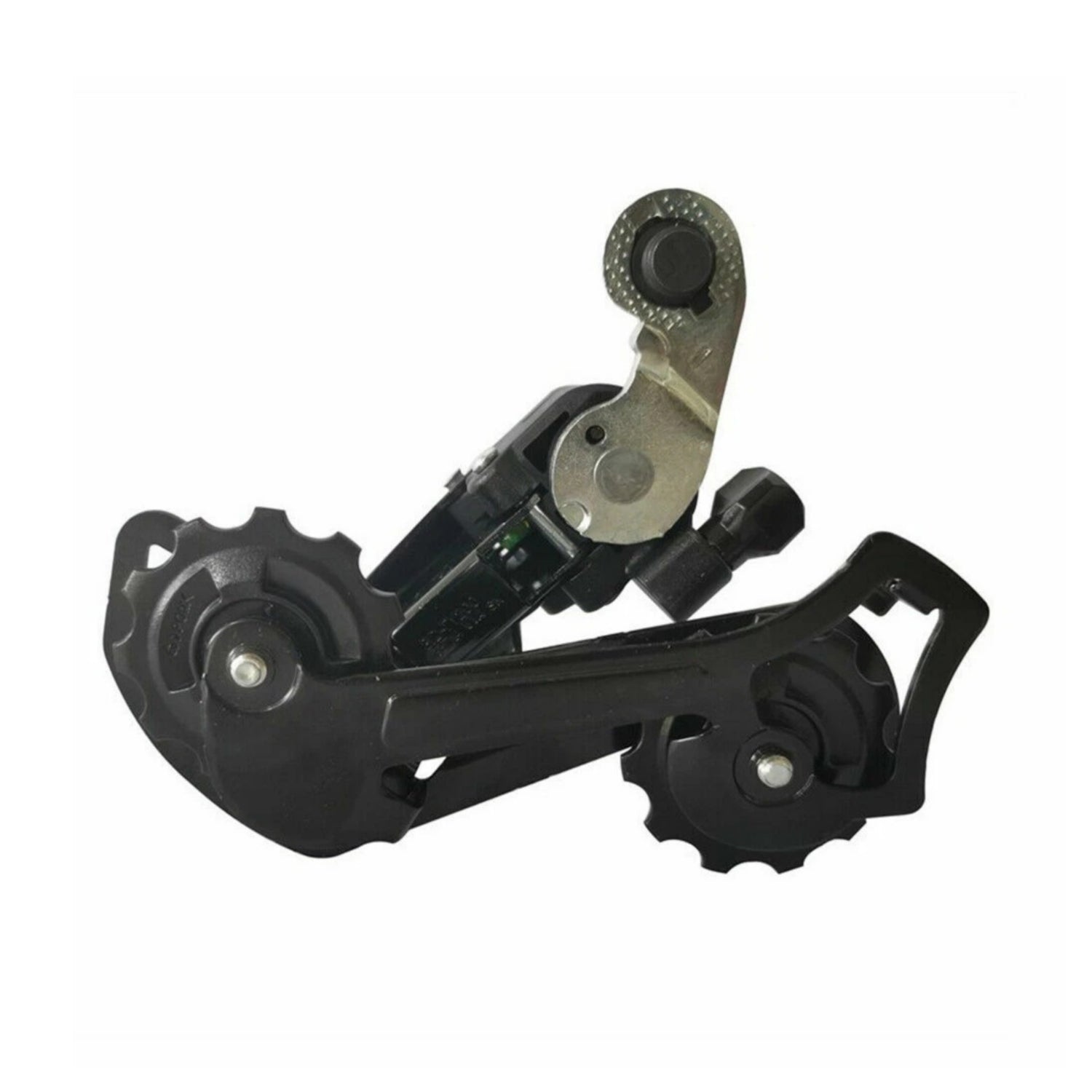

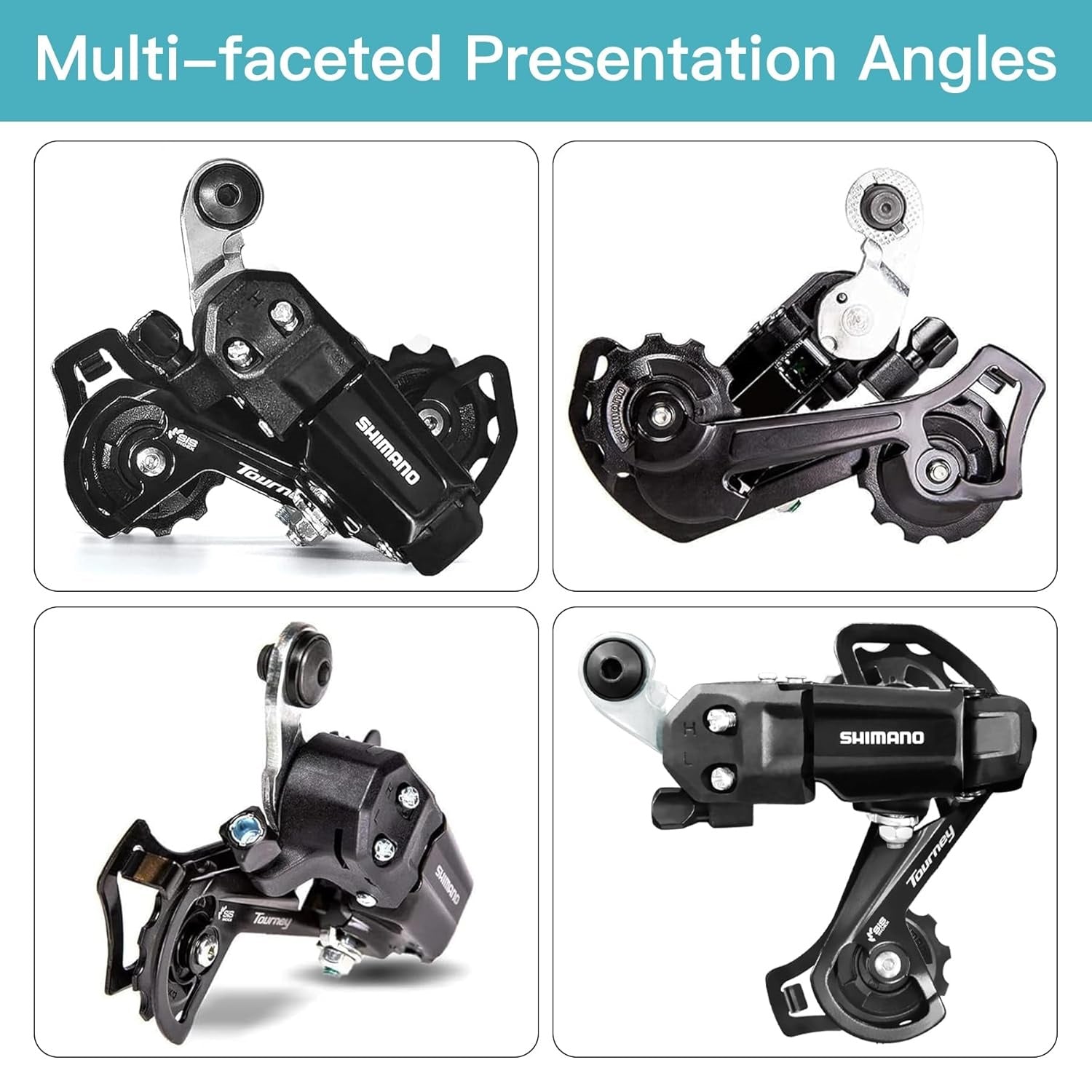

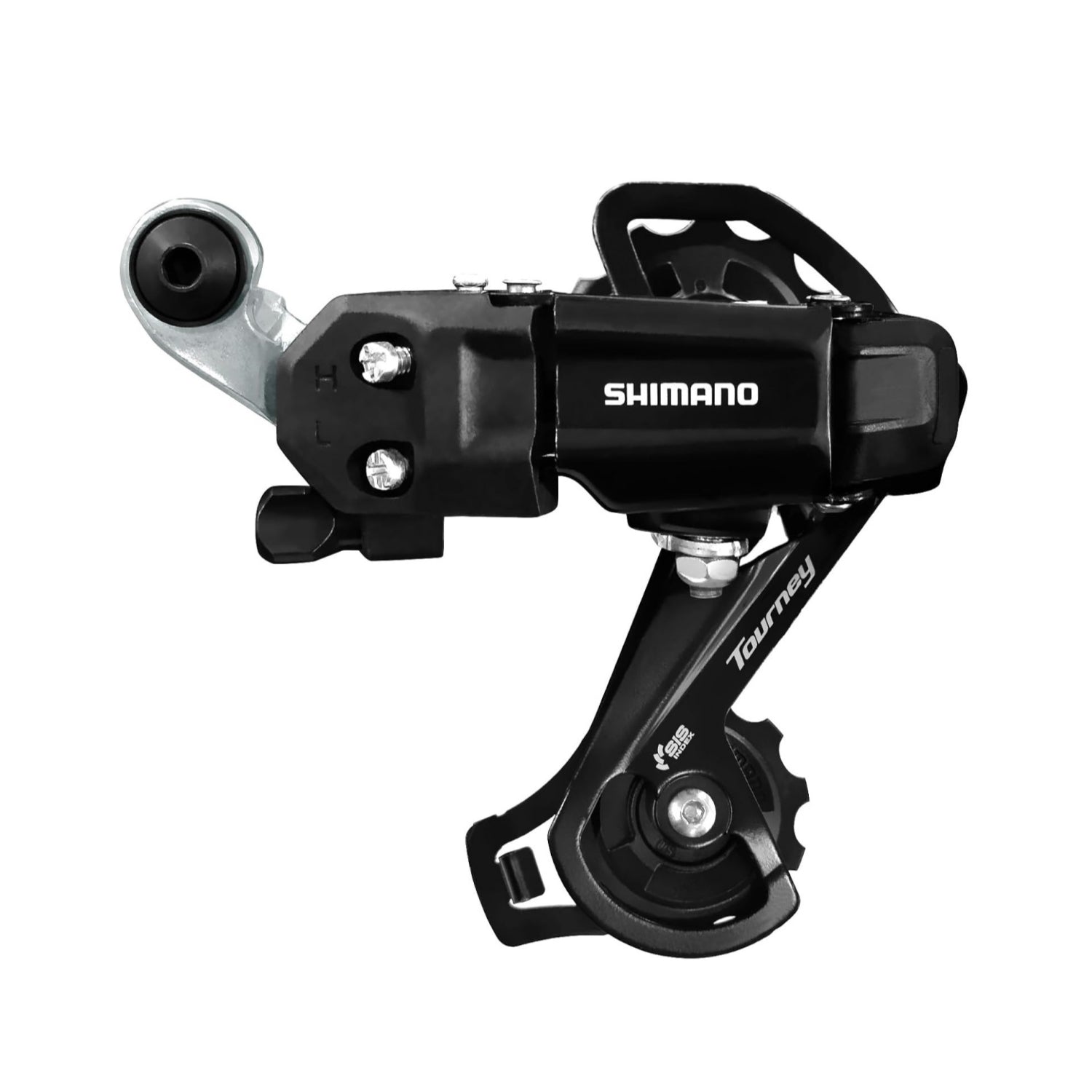

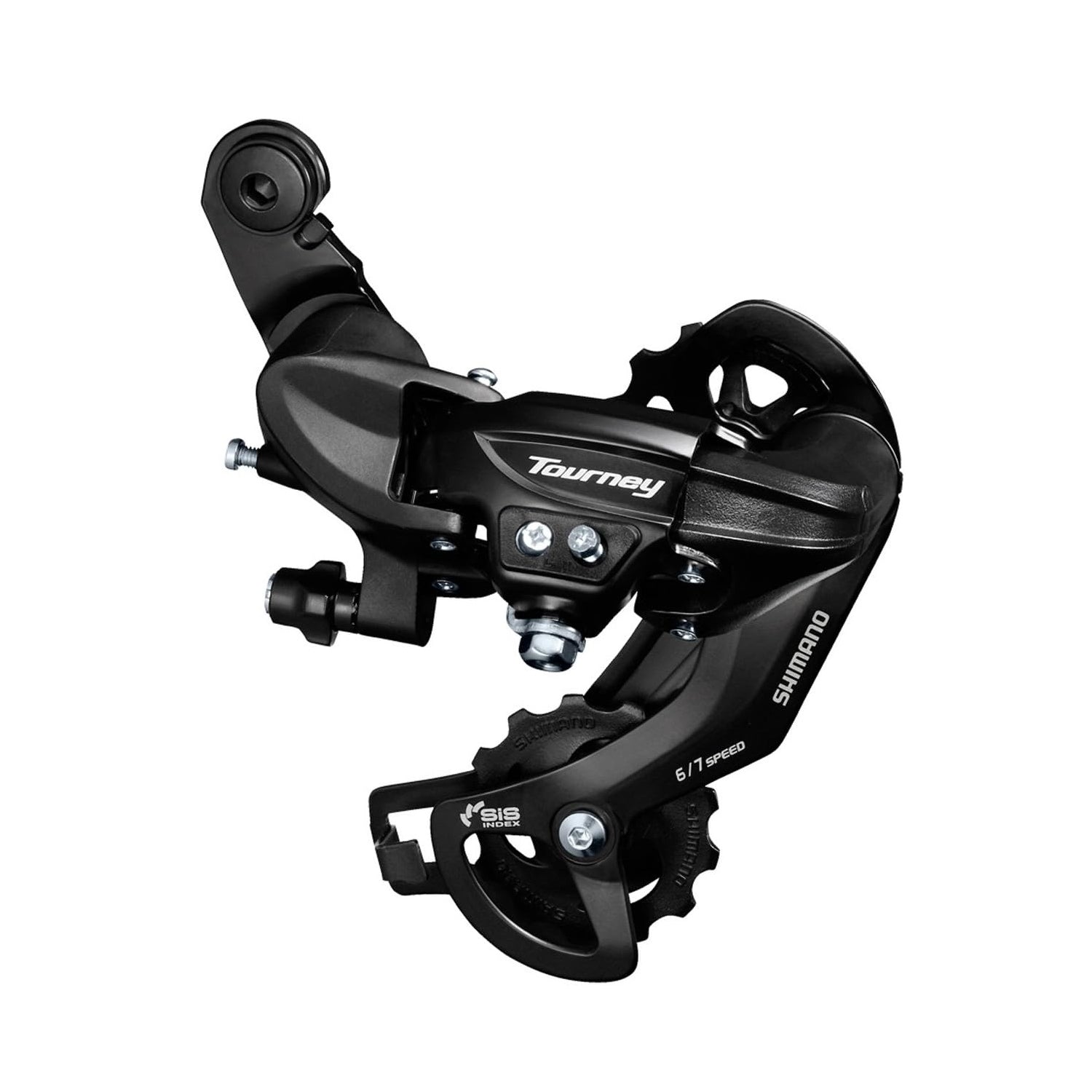

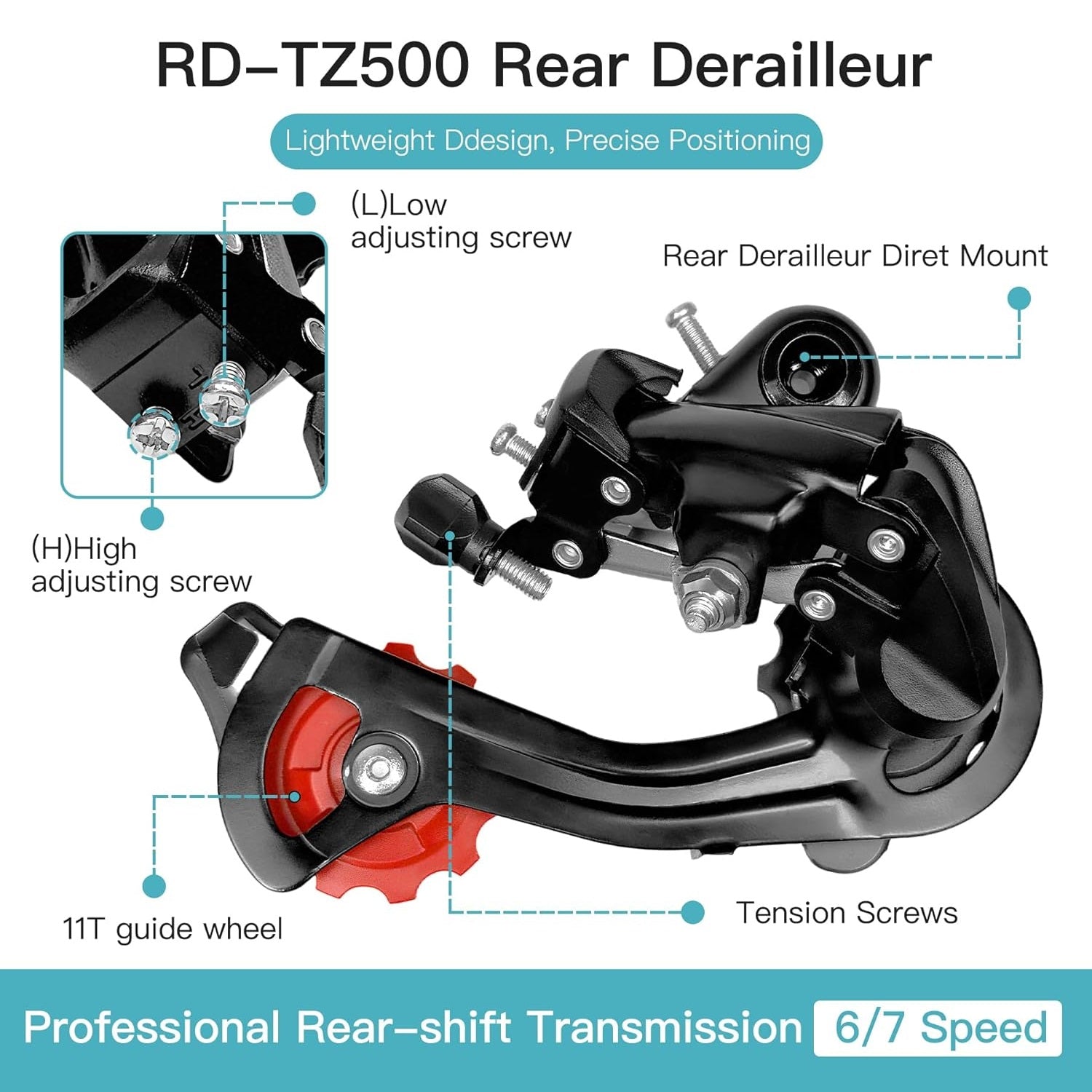

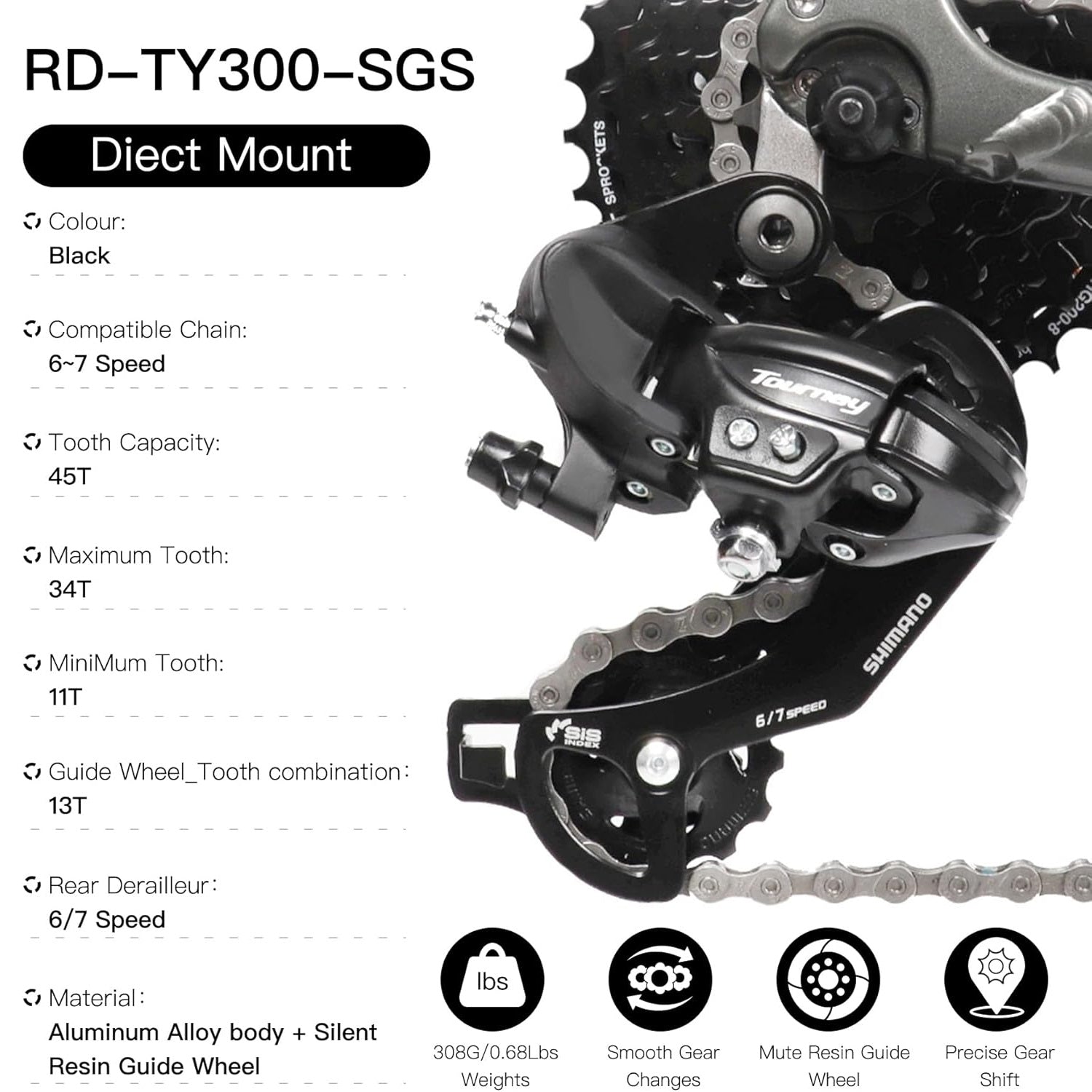

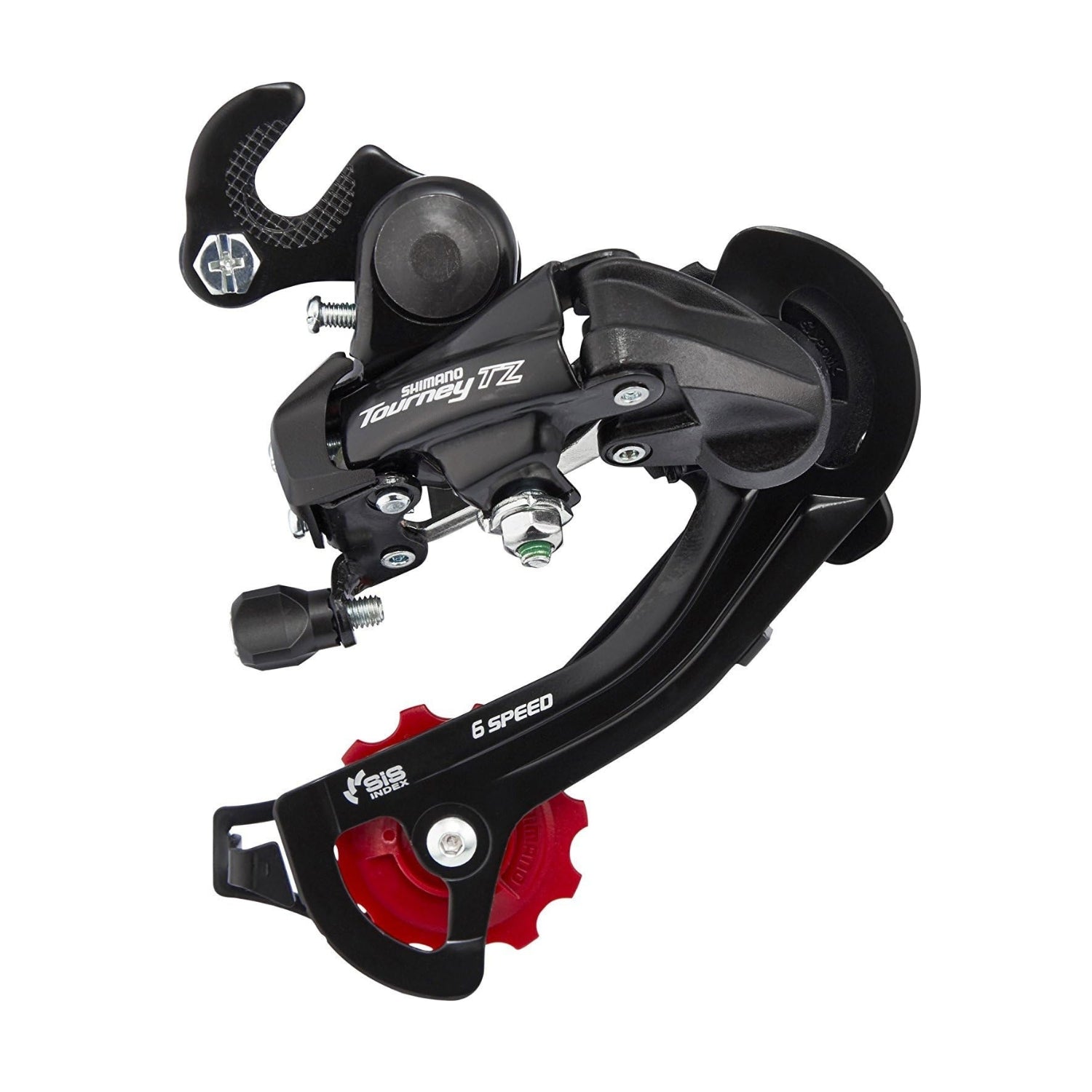

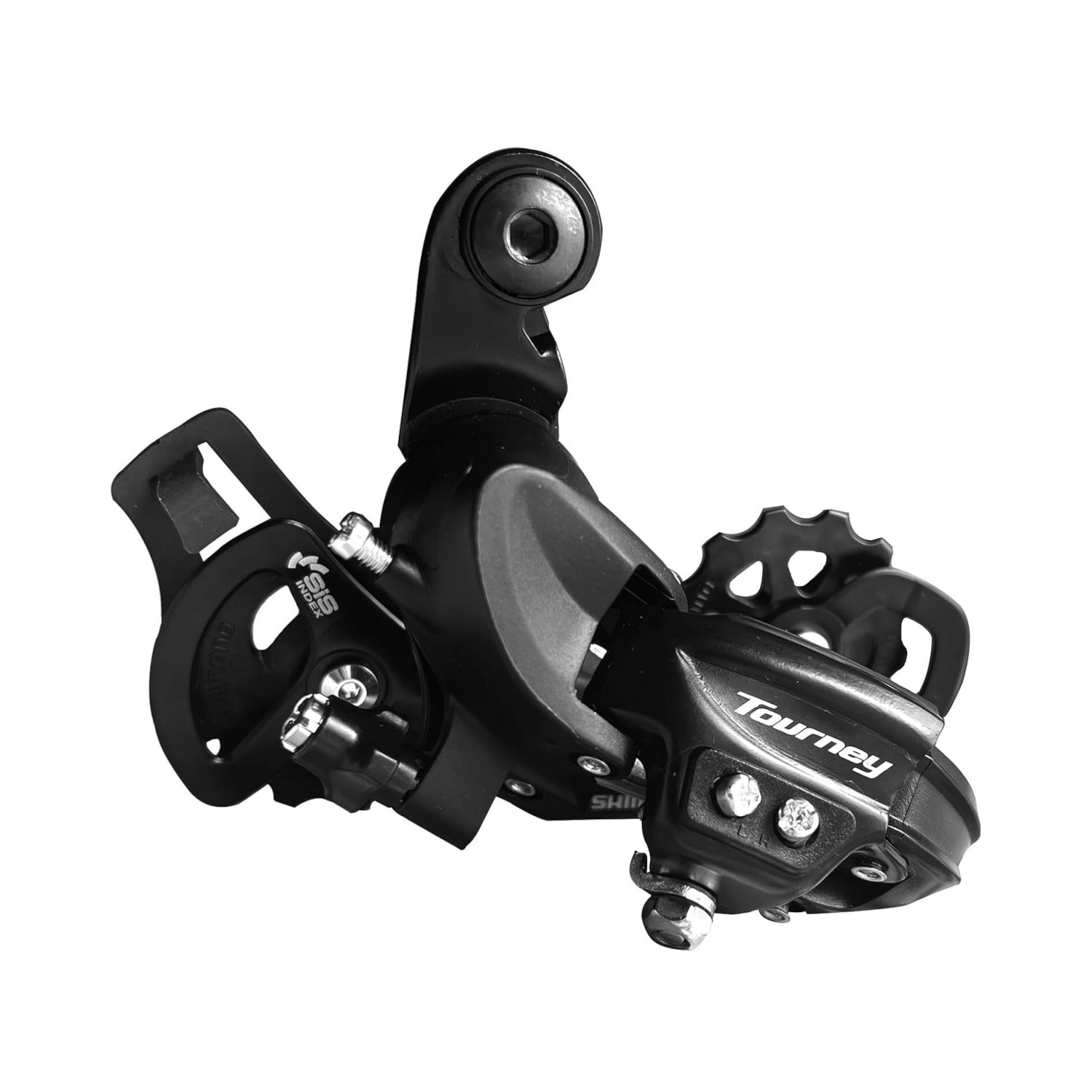

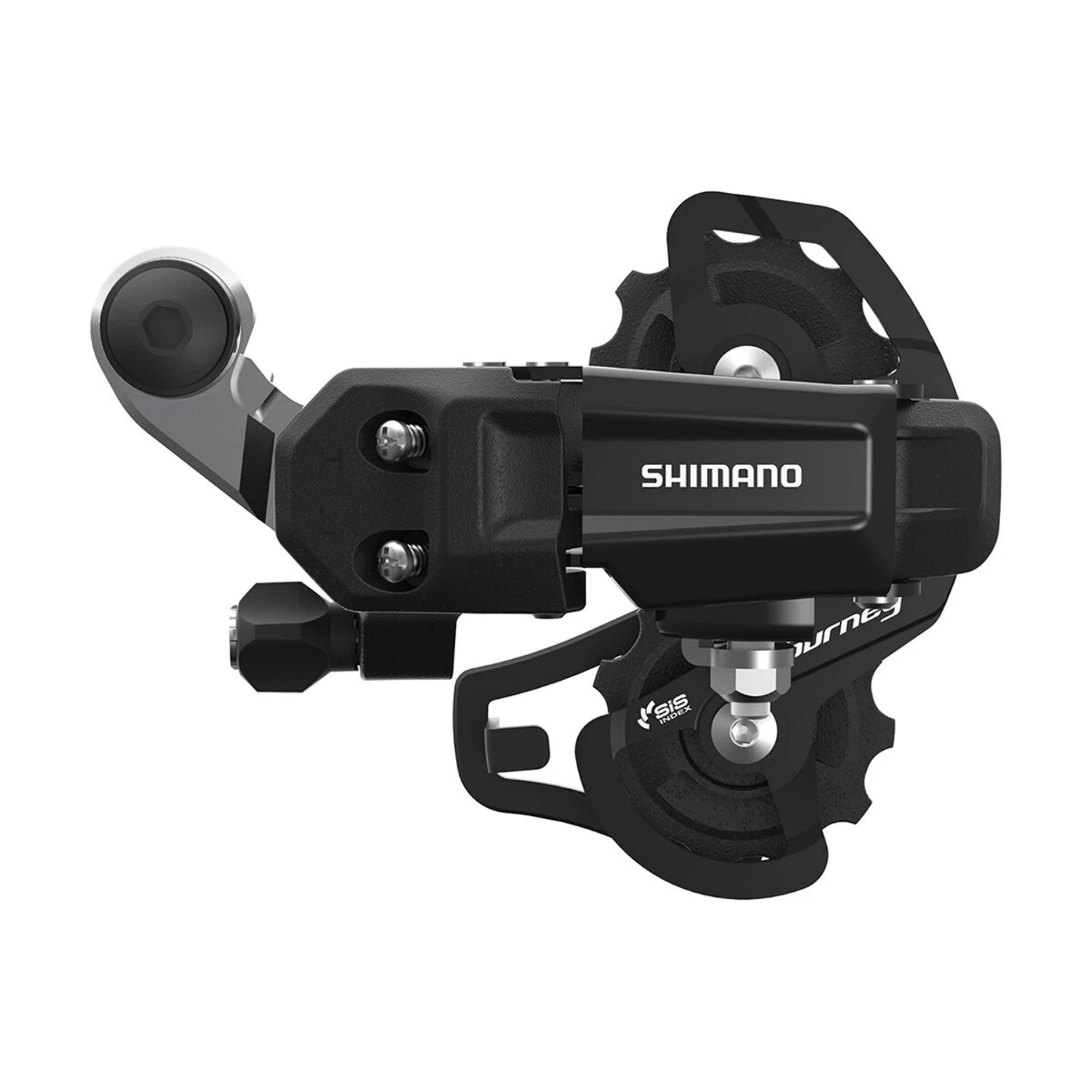

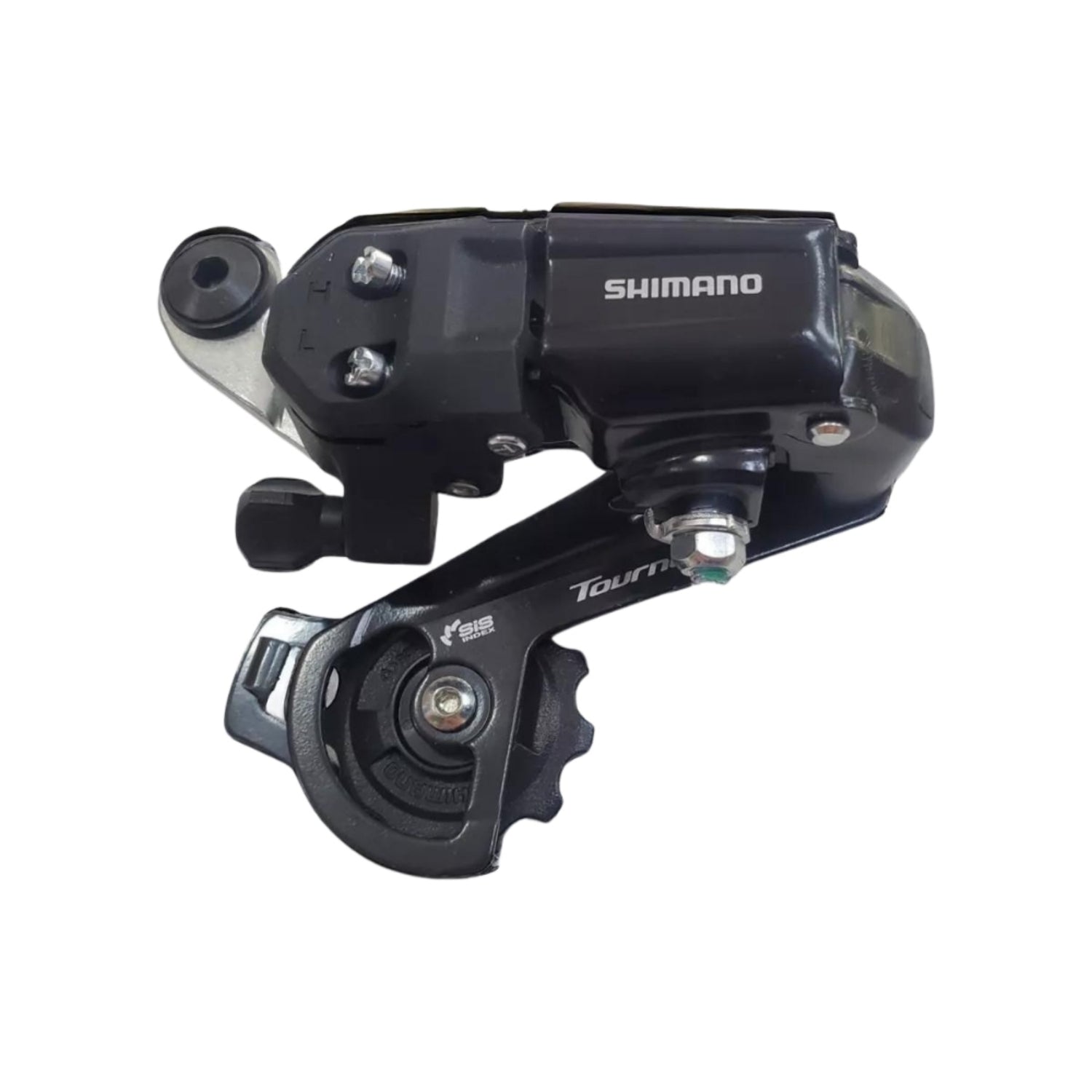

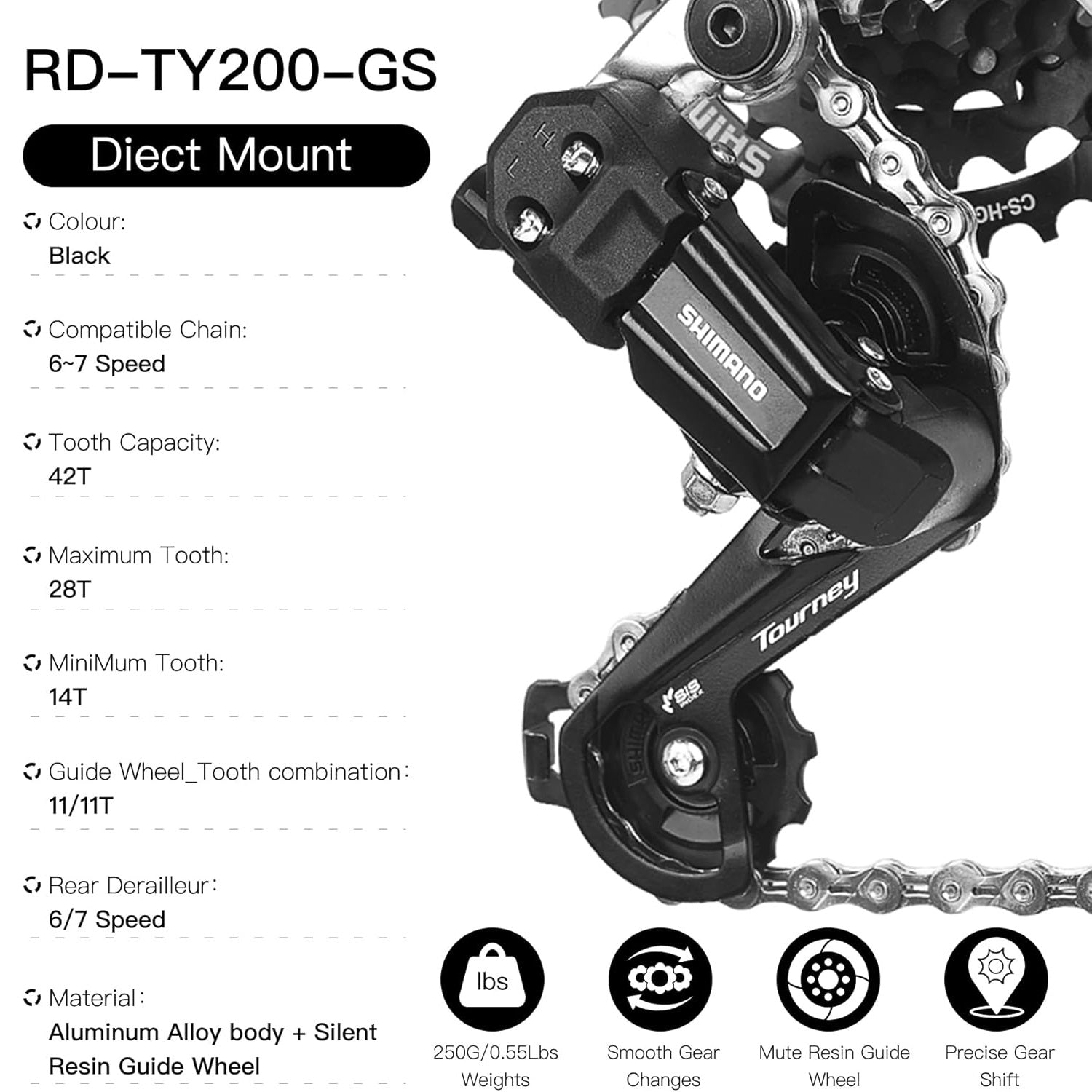

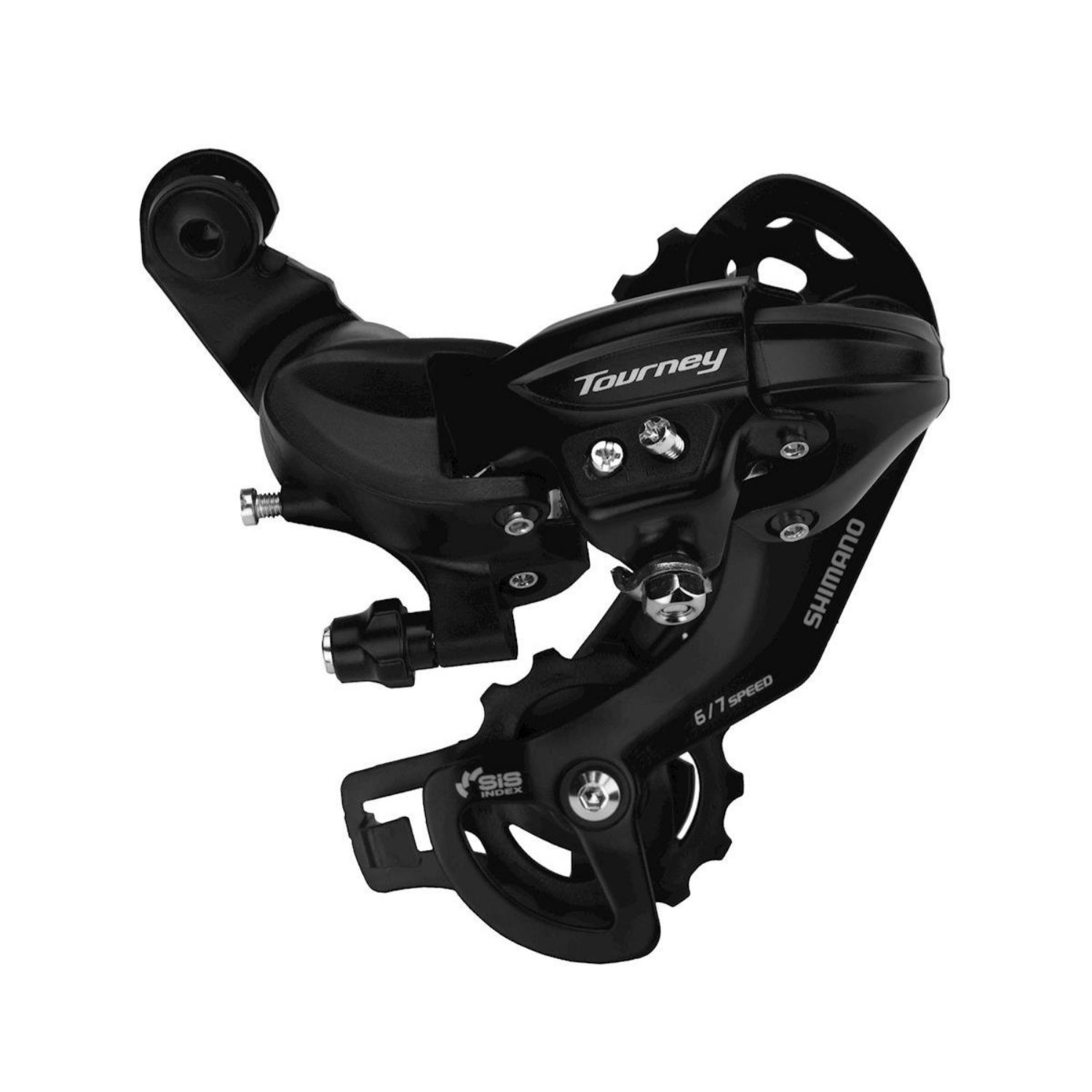

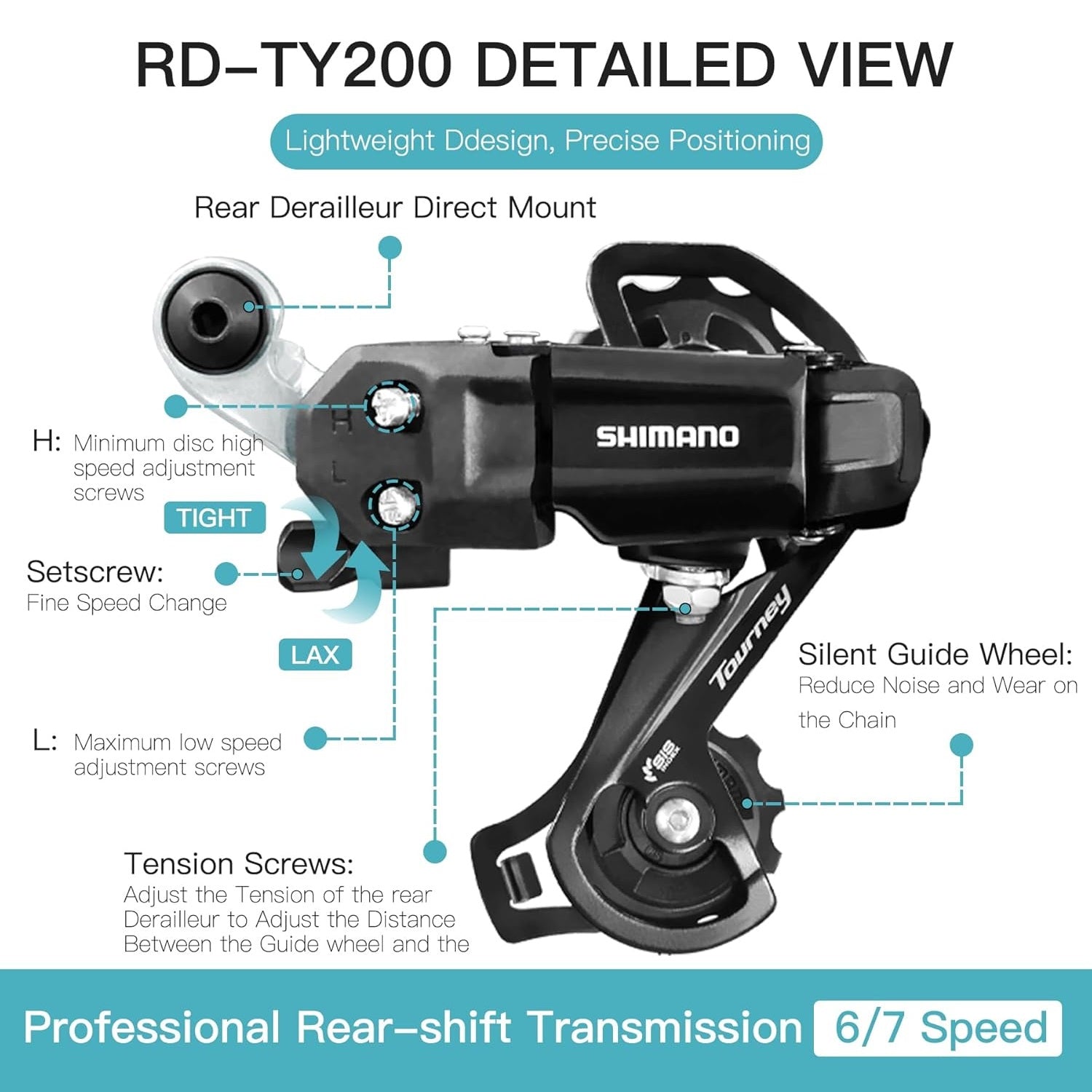

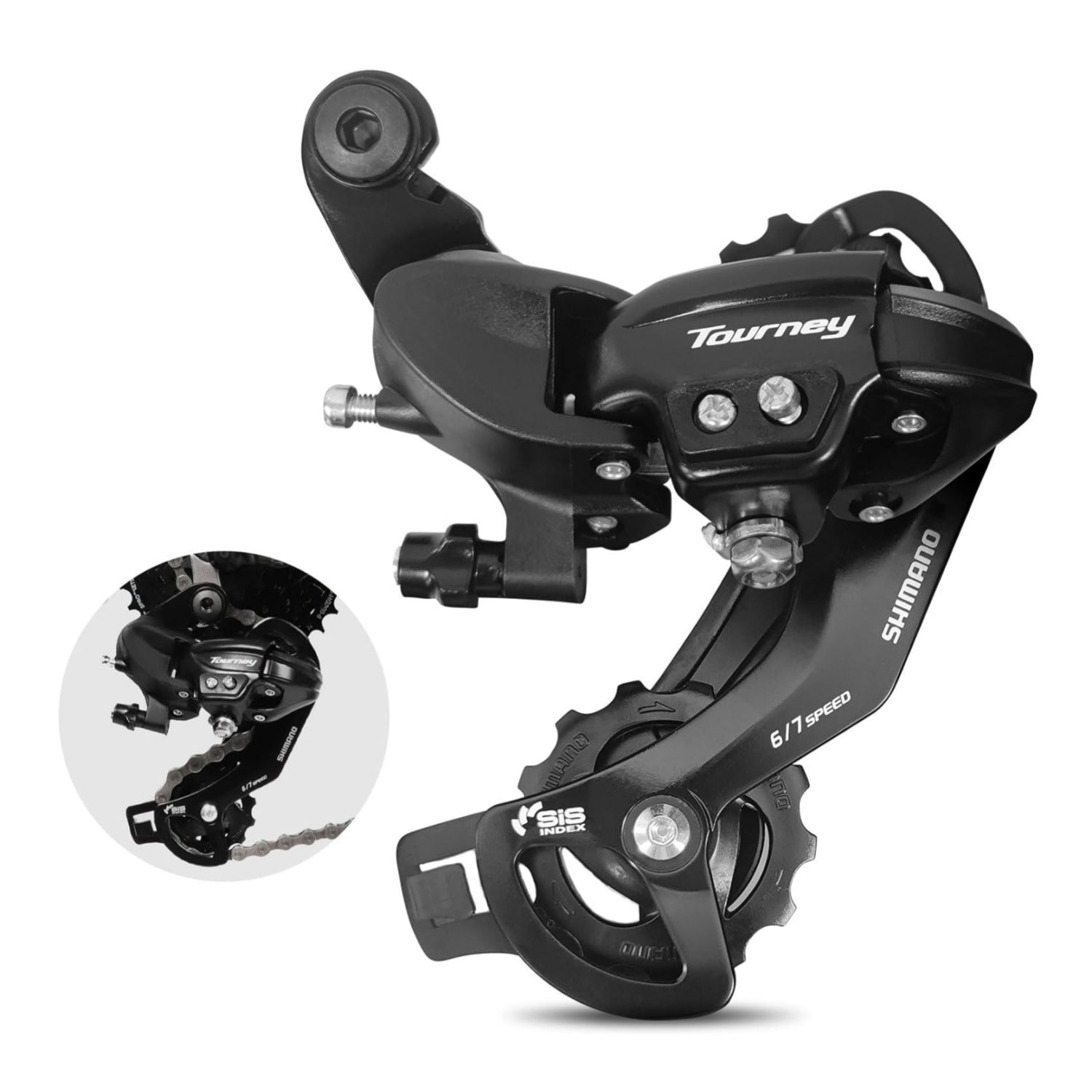

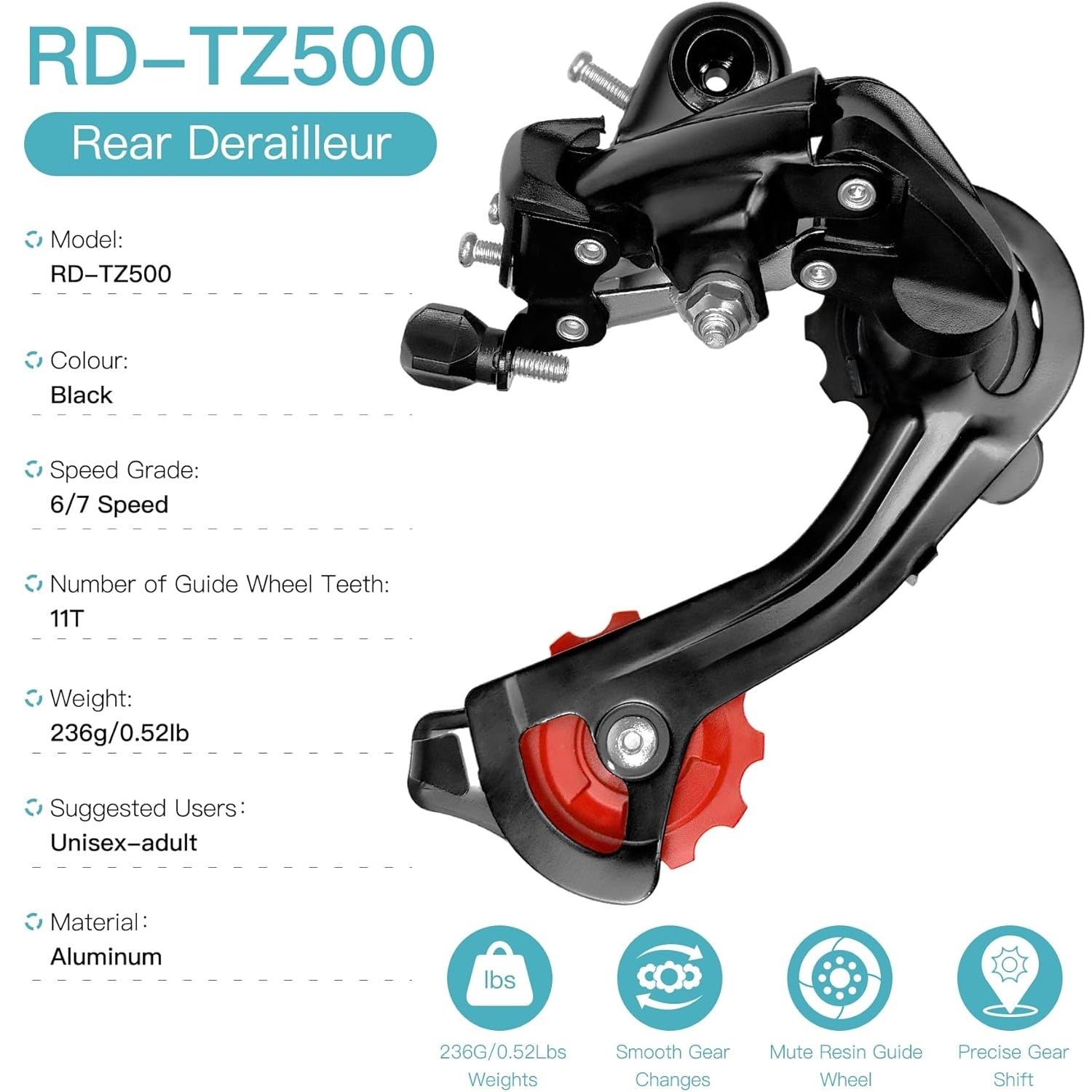

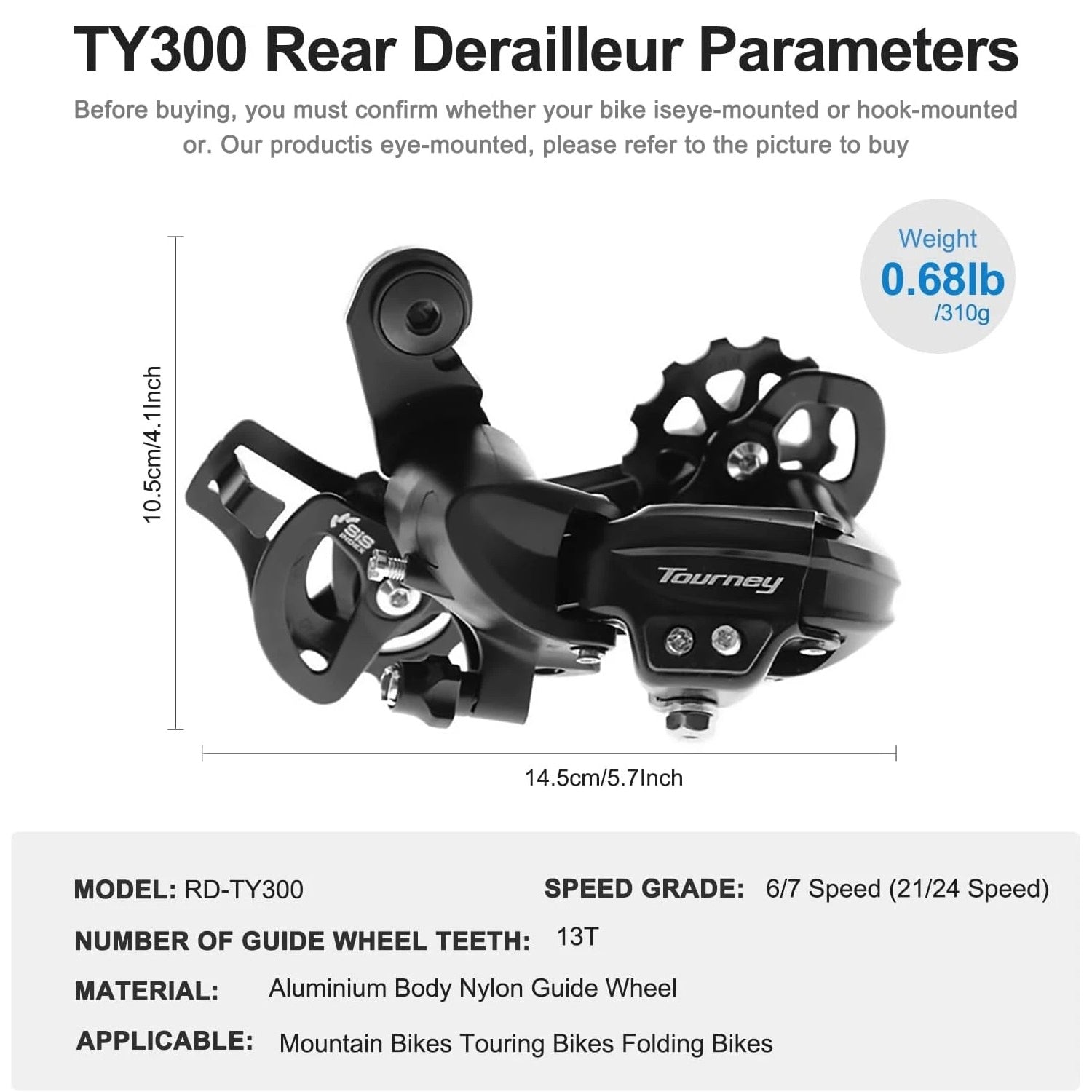

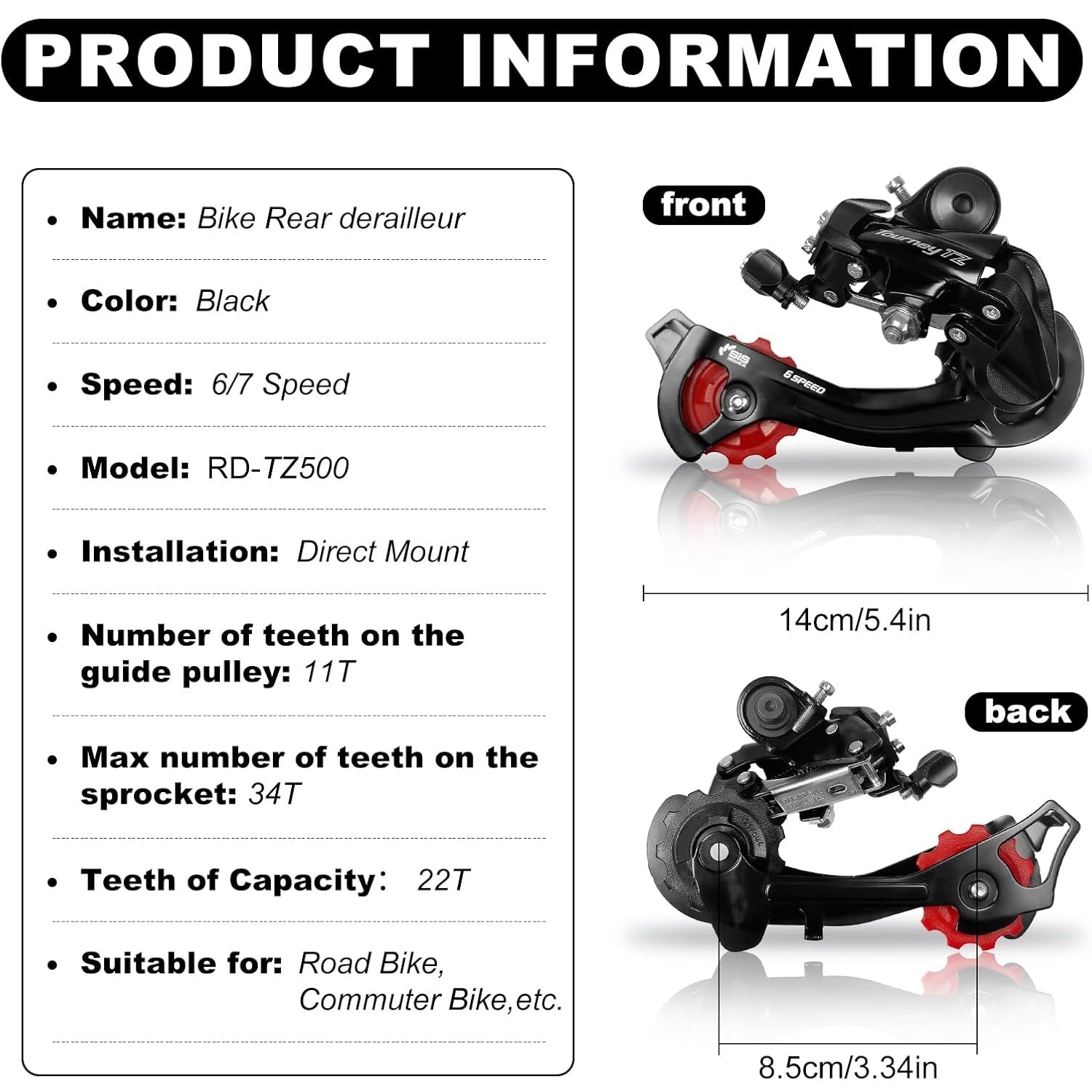

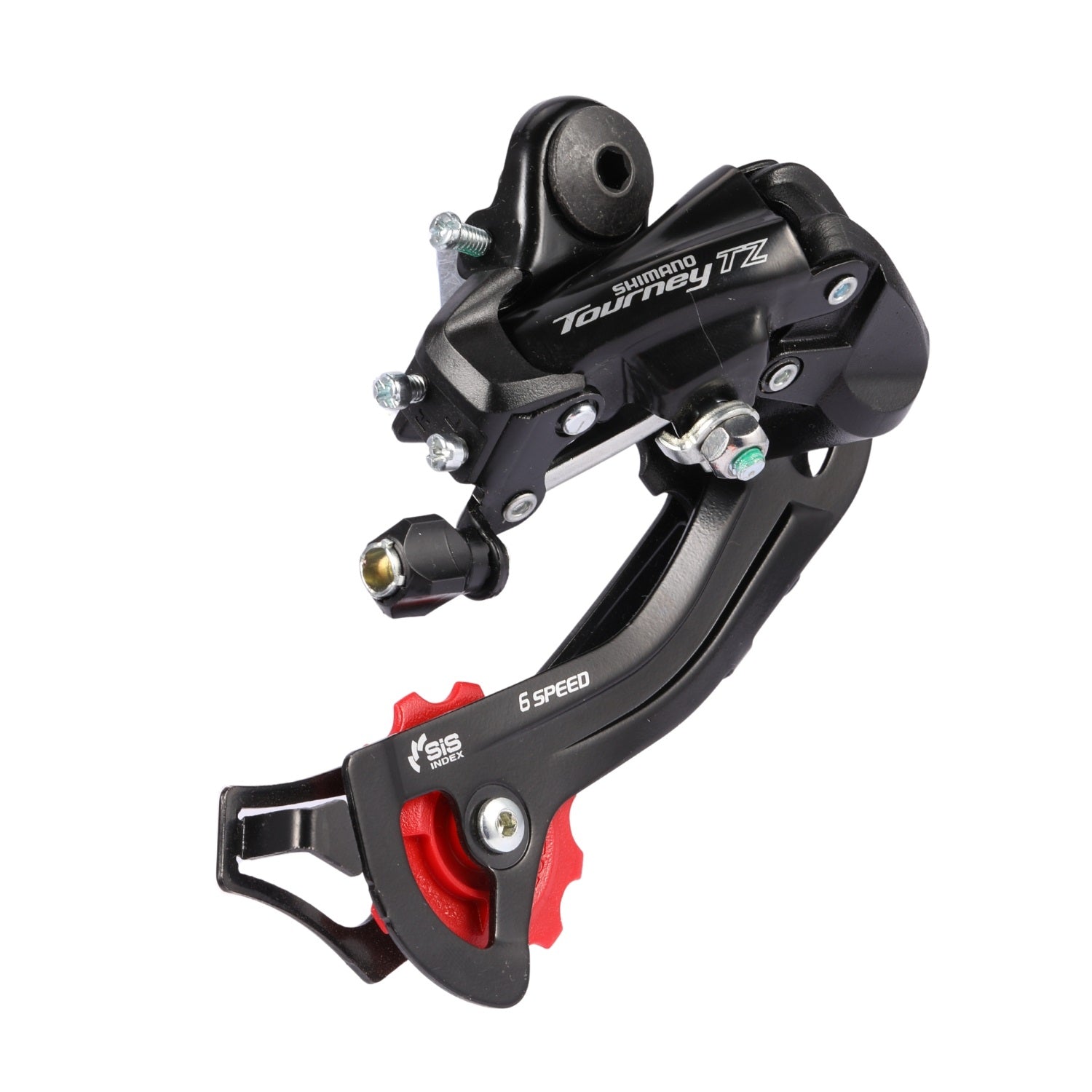

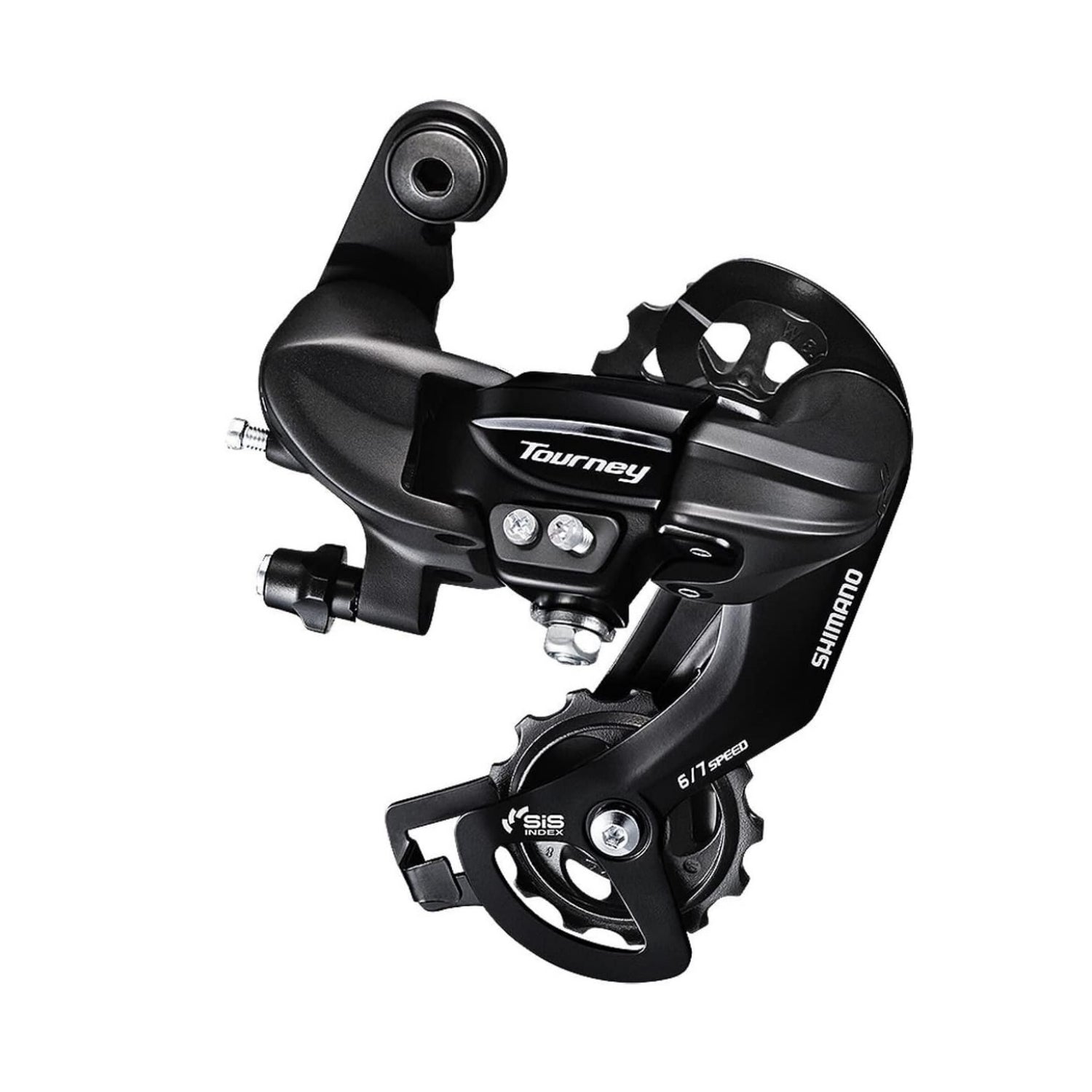

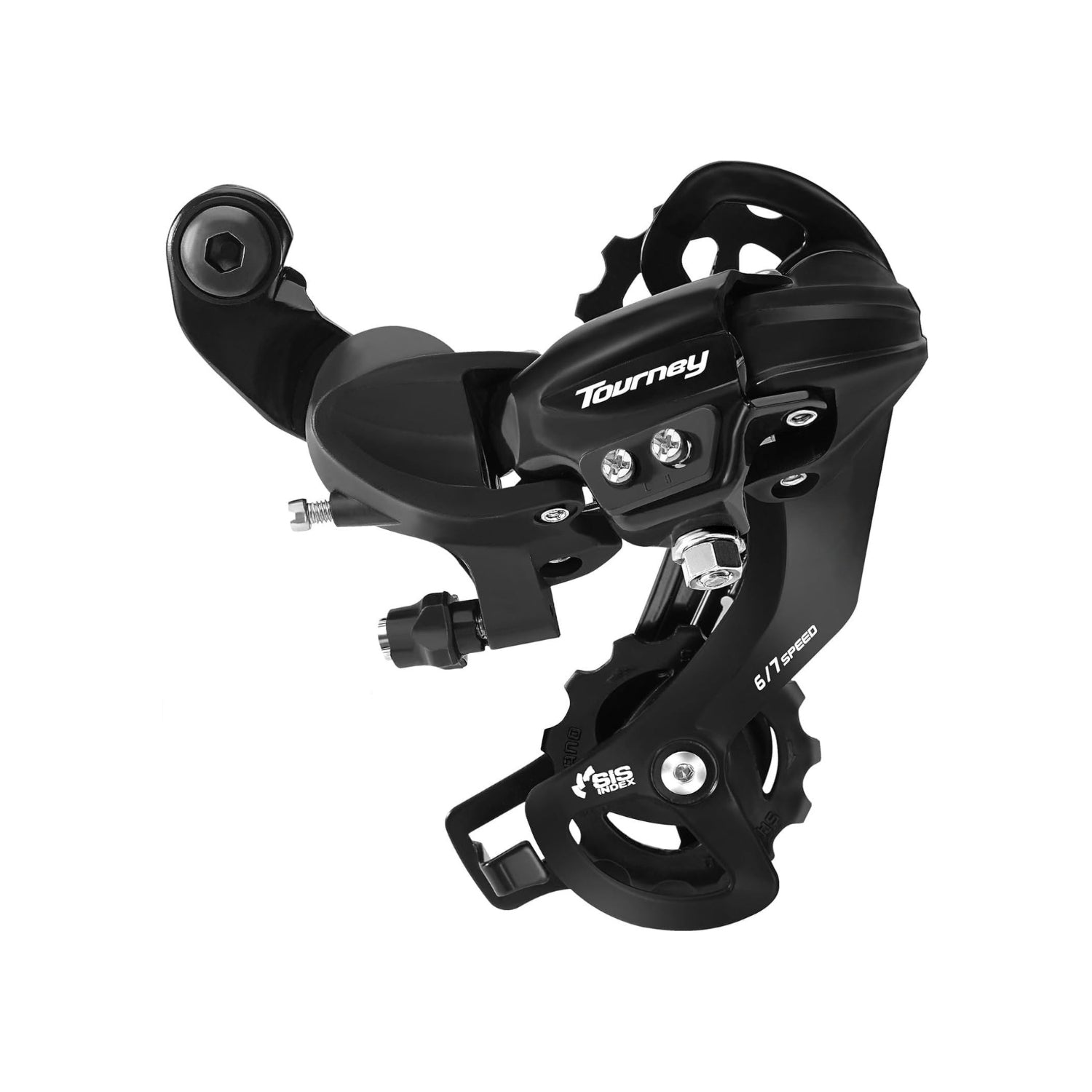

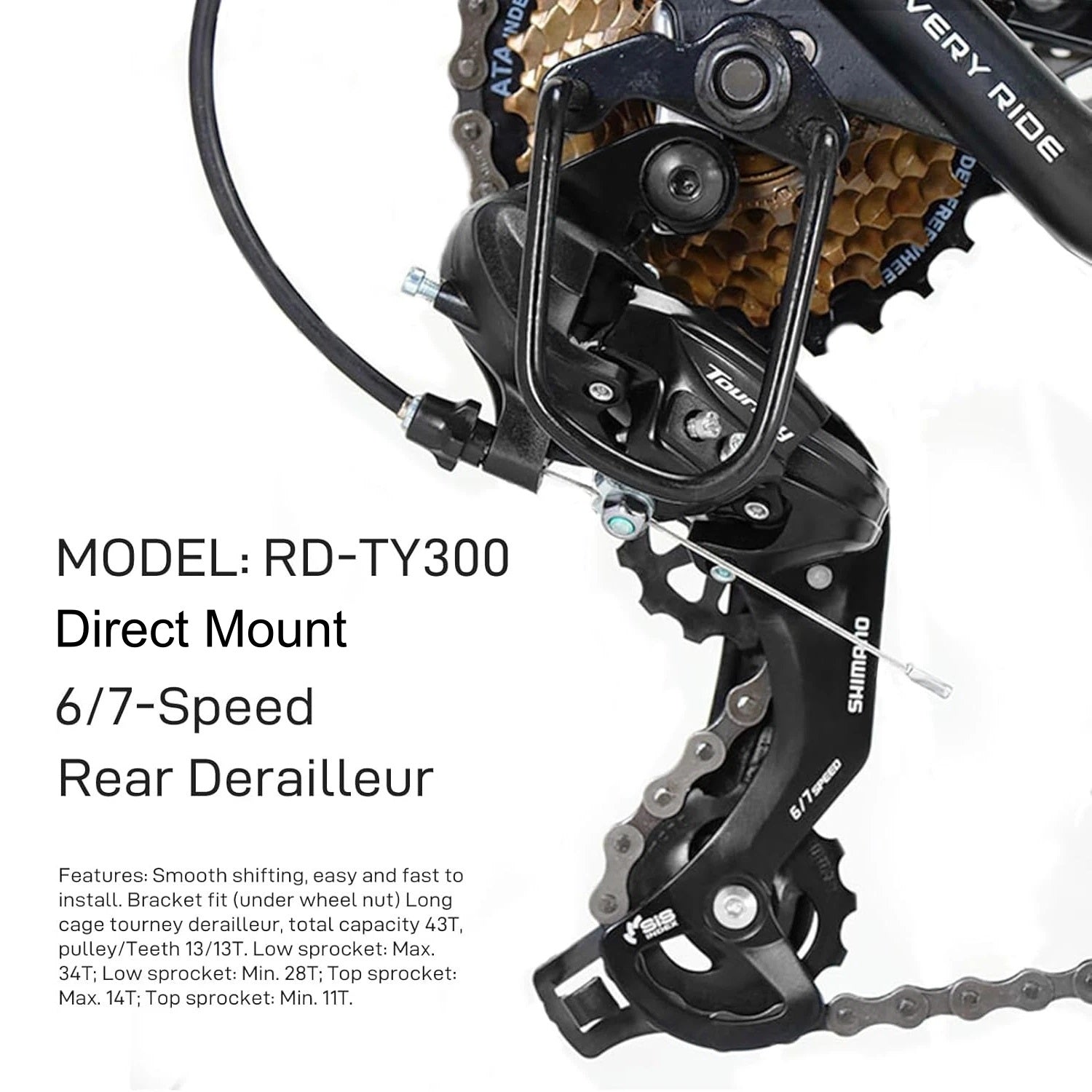

| Model | RD-TZ500-GS / RD-TY200-GS / RD-TY300-GS |

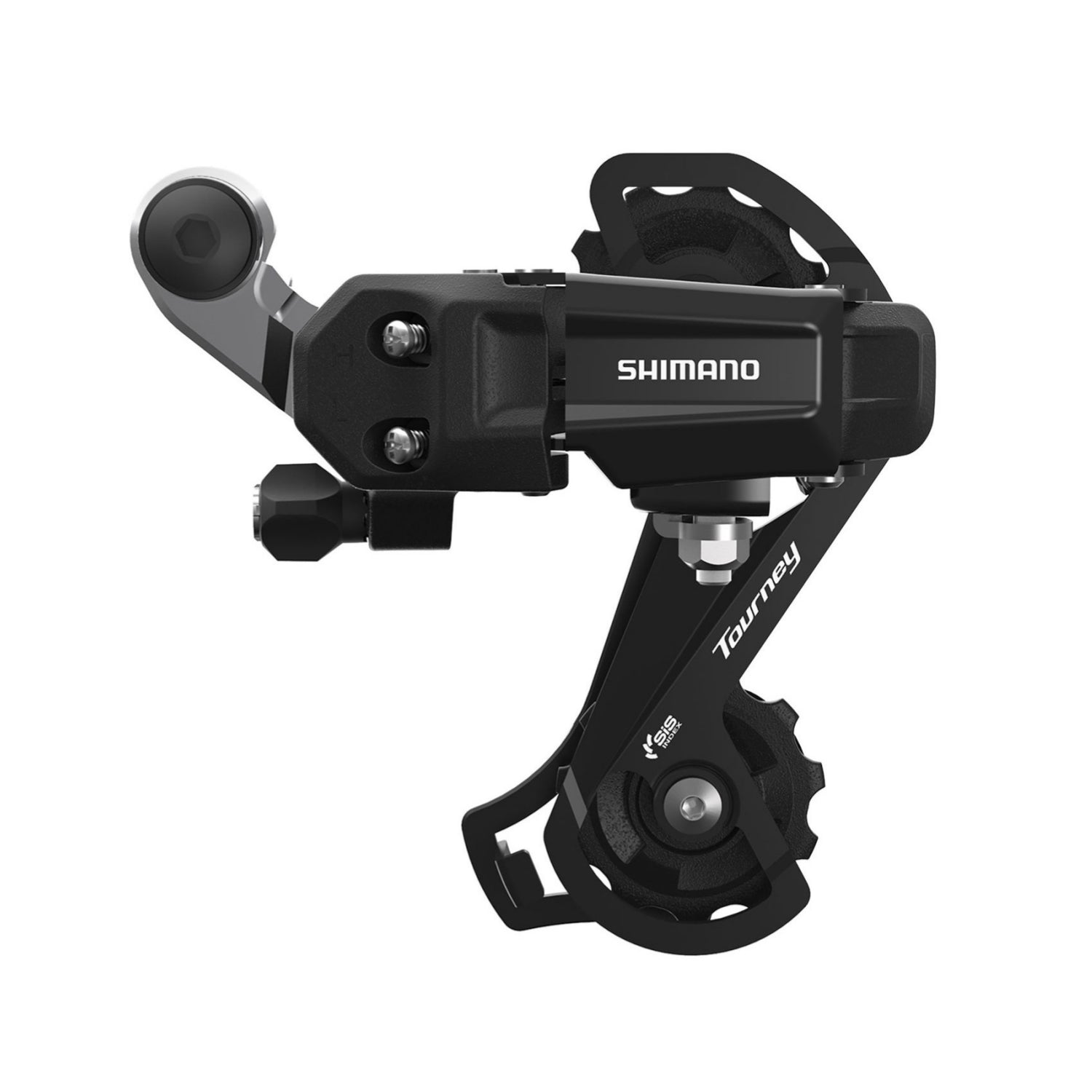

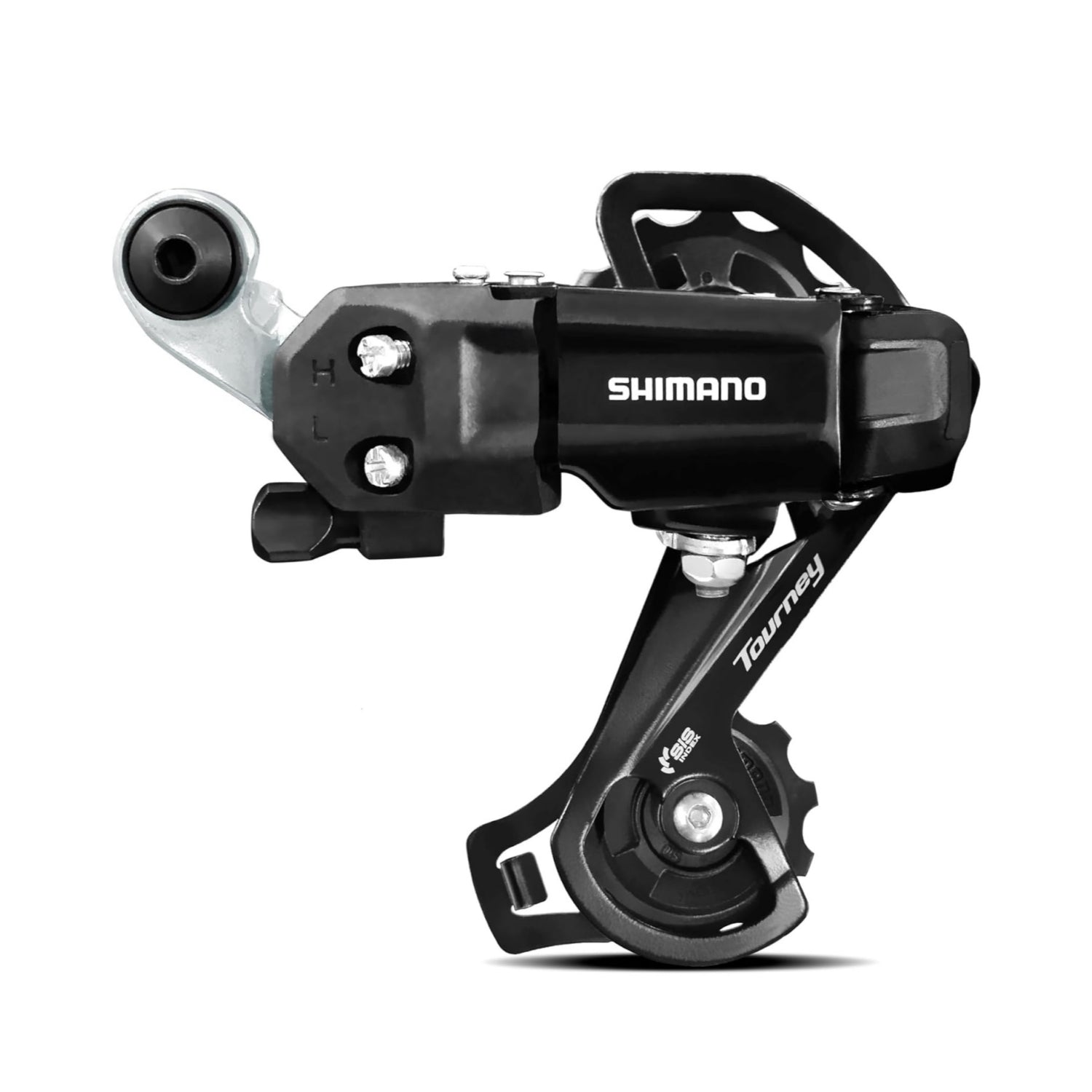

| Brand | Shimano |
| Groupset | Tourney |
| Material | Aluminum / Alloy Steel / Resin |

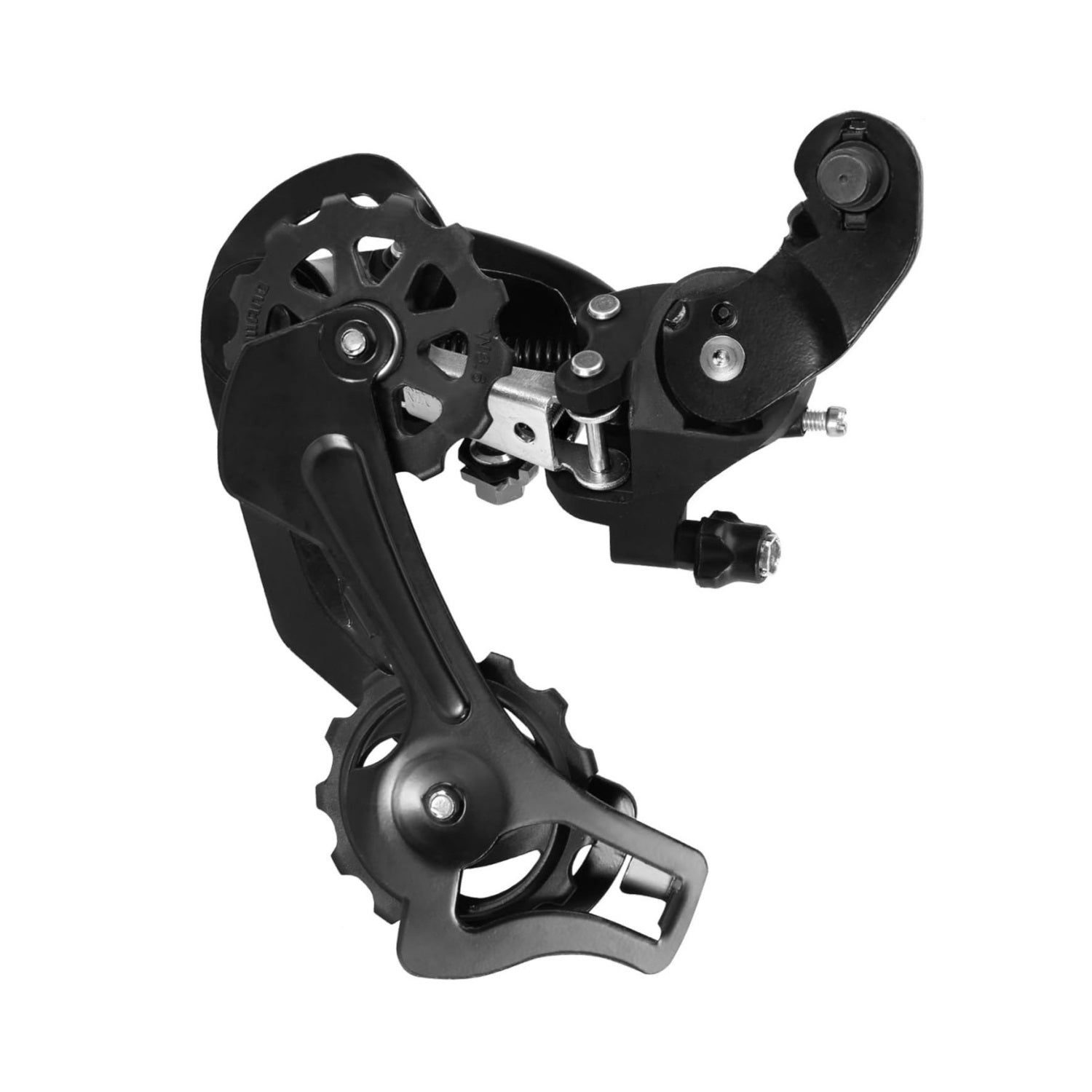

| Type | Bike Rear Derailleur |

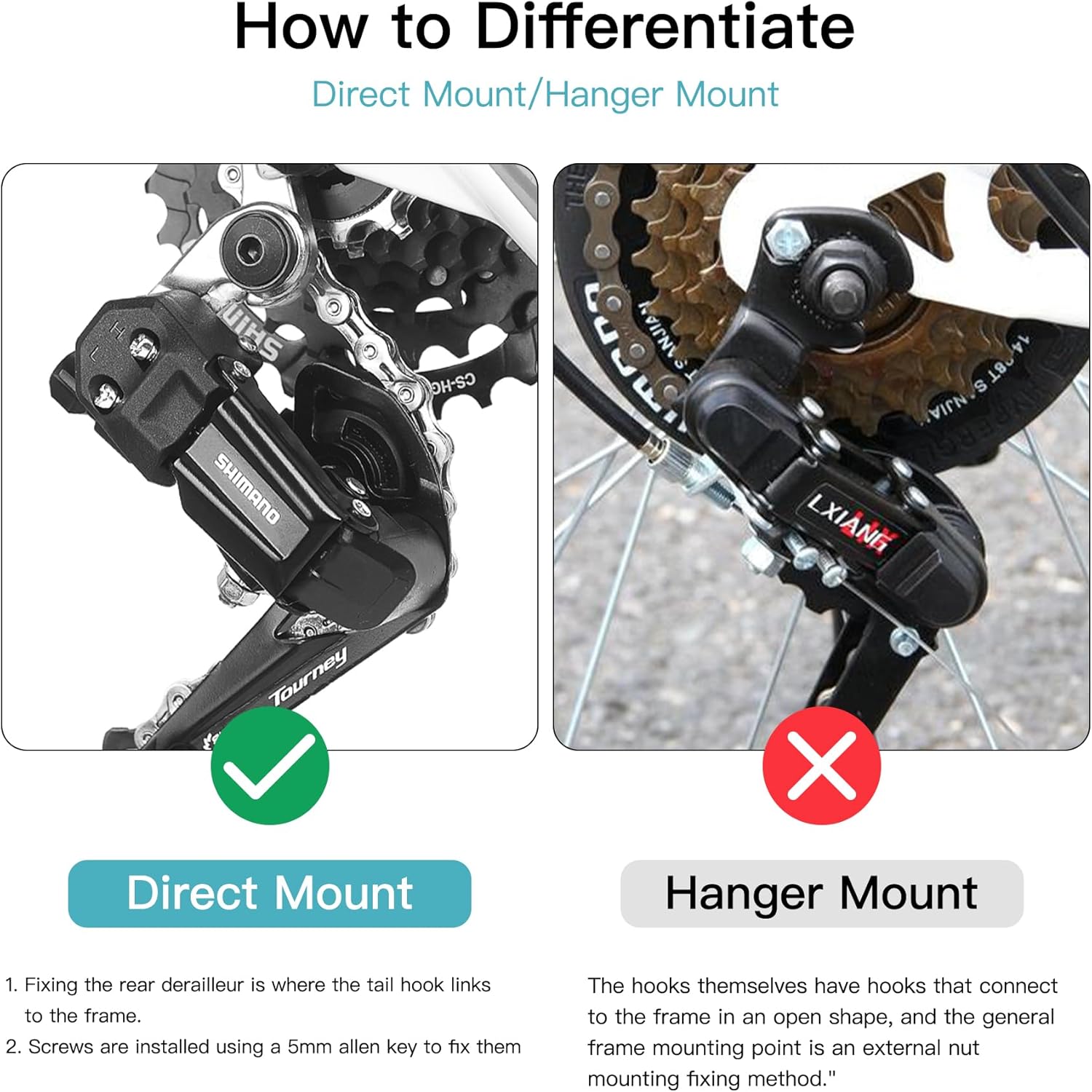

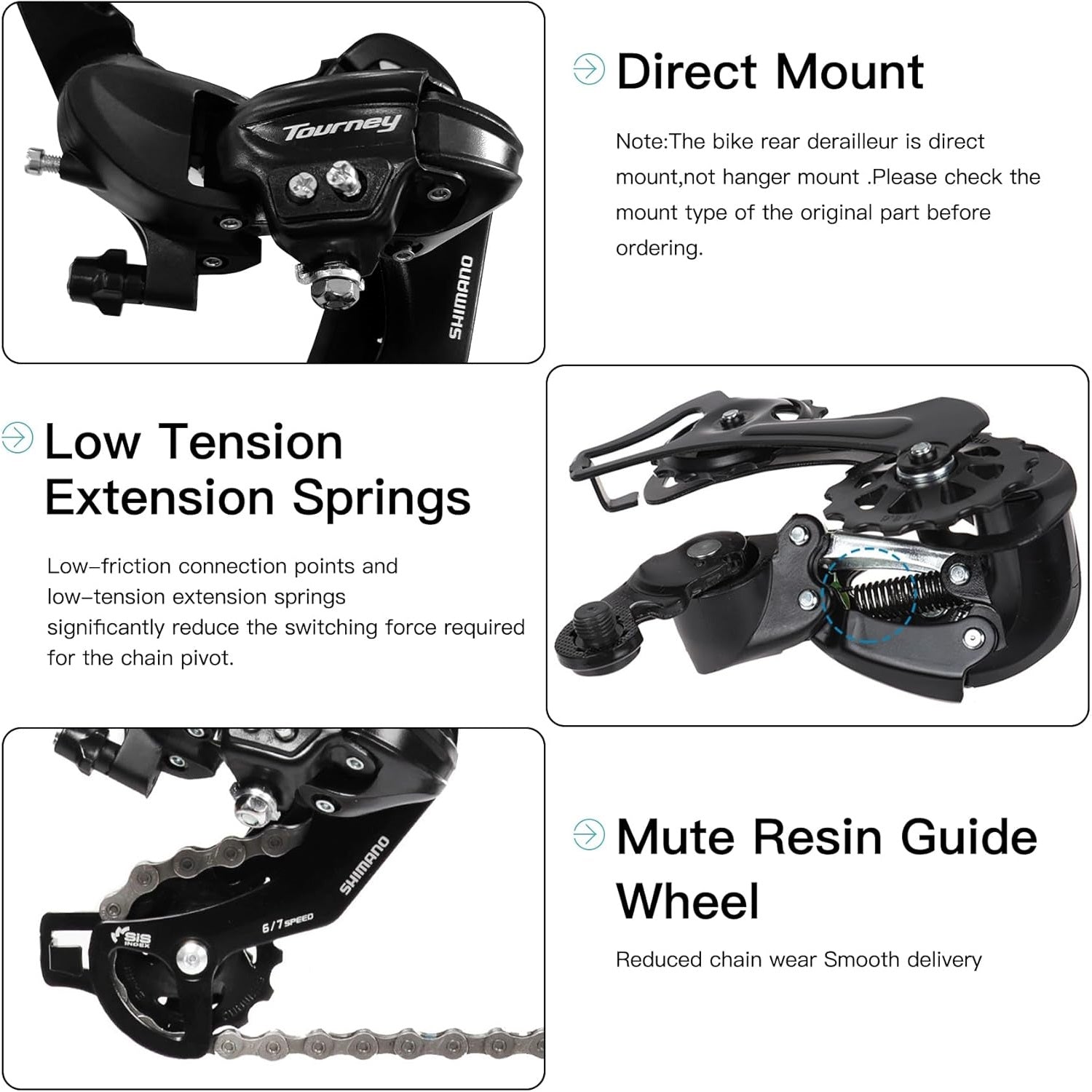

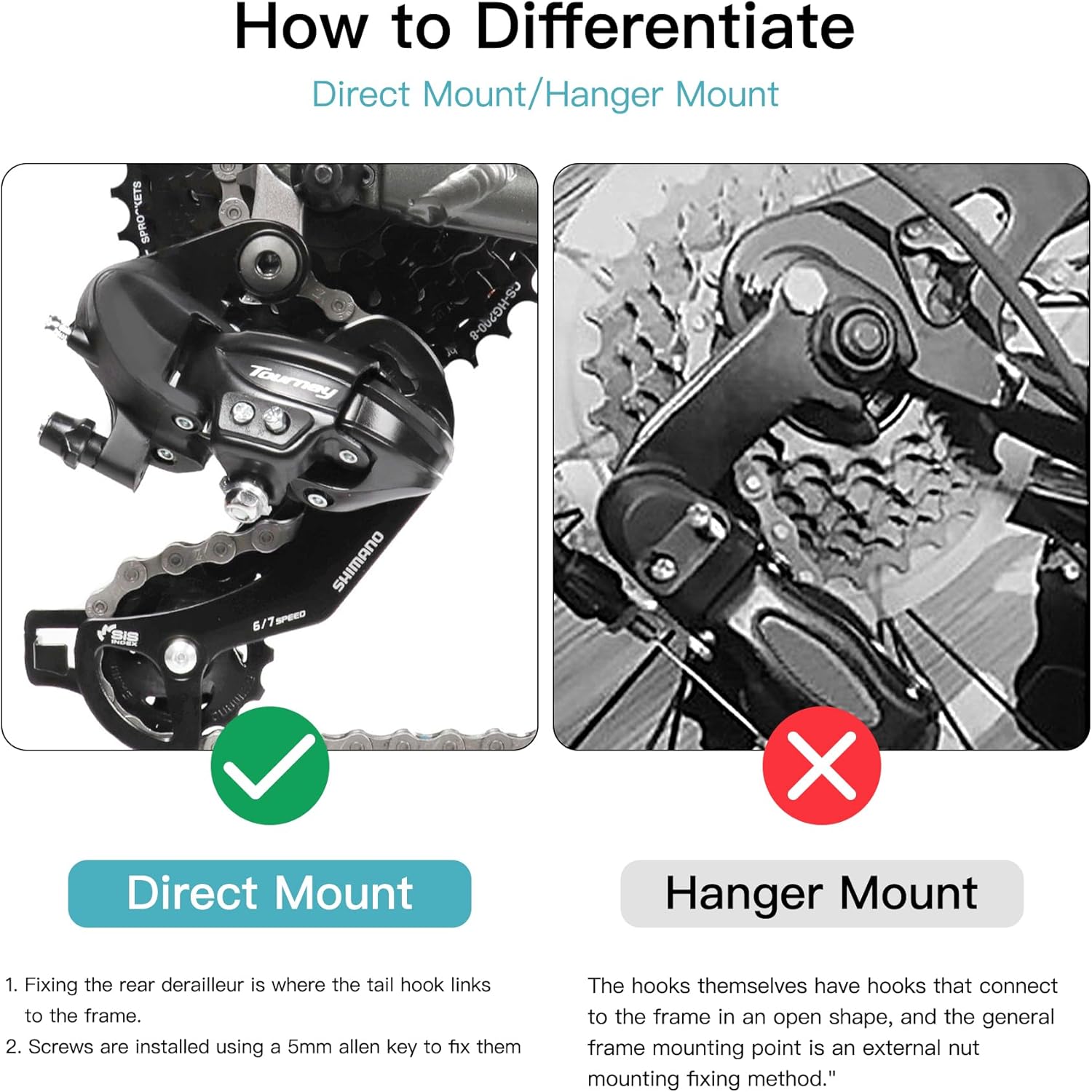

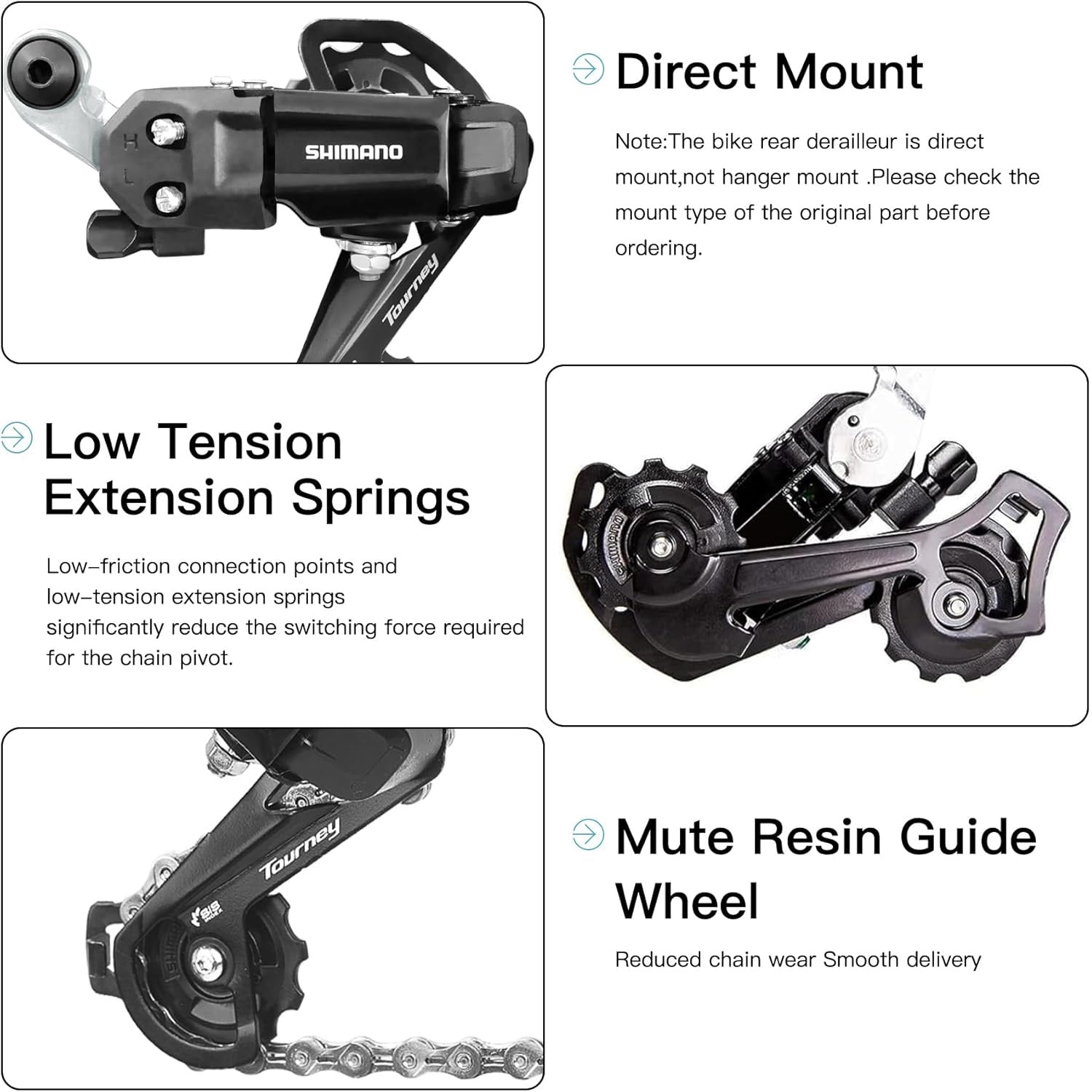

| Mount type | Direct attachment (conventional) |
| Part number | ARDTZ500GSD / ARDTY200SSLD / ARDTY300D |
| Gear steps |
1 x 6/7-speed (SS) / 3 x 6/7-speed (GS) |
| Compatible chain |
HG 8/7/6-speed |
| Total capacity | 34T (GS) / 20T (SS) / 34T (GS) |
| Front difference|Max. | 20T (GS) / 0T (SS) / 20T (GS) |
| Low sprocket|Max. | 28T (GS) / 34T (SS) / 28T (GS) |
| Low sprocket|Min. | 28T (SS) / 28T (GS) |
| Top sprocket|Max. | 14T (SS) / 14T (GS) |
| Top sprocket|Min. | 14T (GS) / 12T (SS) / 14T (GS) |
| Pulley|Teeth | 11/11T |
| Use | MTB, trekking, city |
| Weight | 0.5kg/1.1lbs |
| Packing size | 20*14*10.5cm/7.8*5.5*4.1inches |
| Quantity | 1Pc |
Main Features
- 1x6/7-speed rear derailleur with short cage (SS).

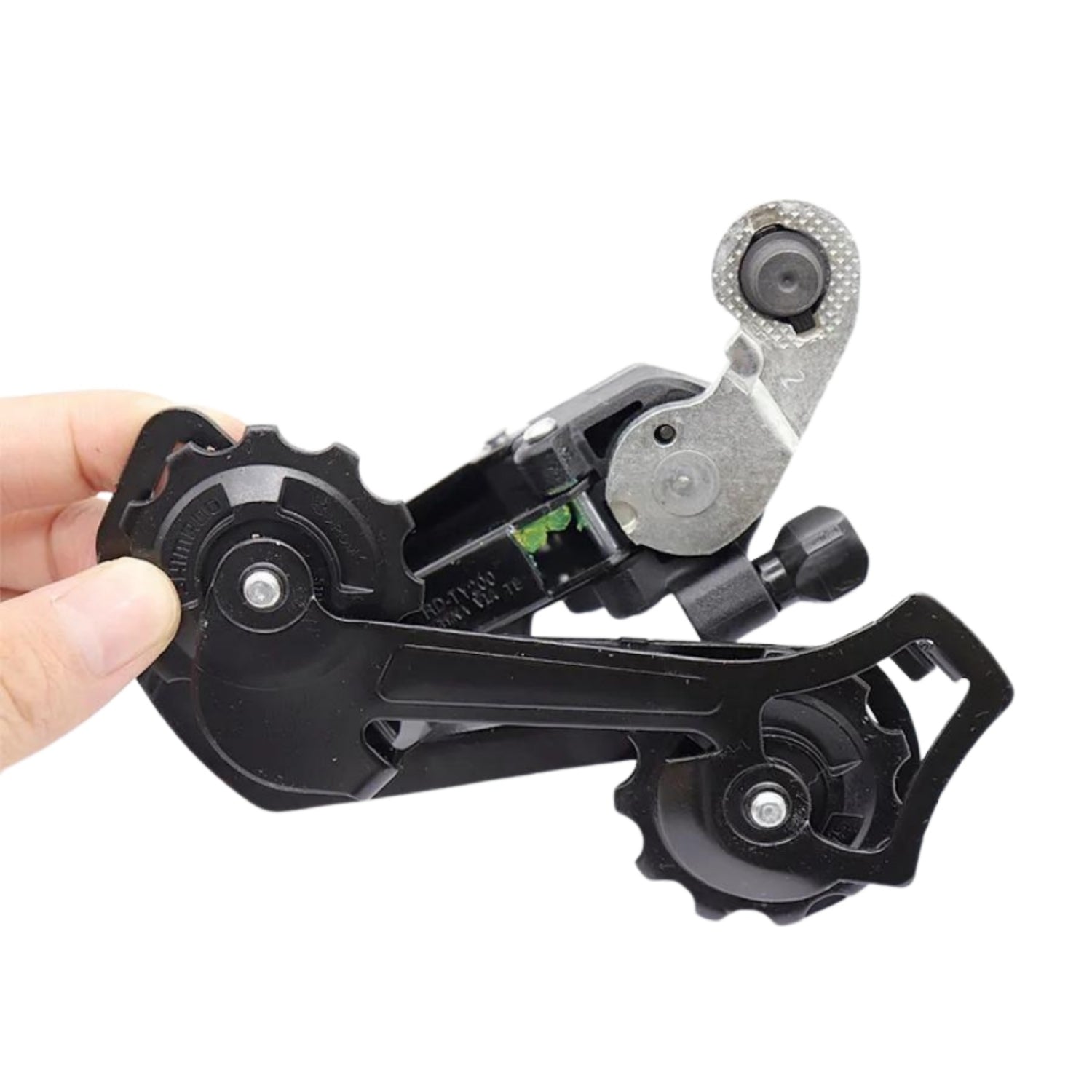

- 3x6/7-speed rear derailleur with long cage (GS).
- 6/7-speed rear derailleur, SIS rear index shifting.
- GS cage can handle wide range gearing and 28 tooth sprockets.

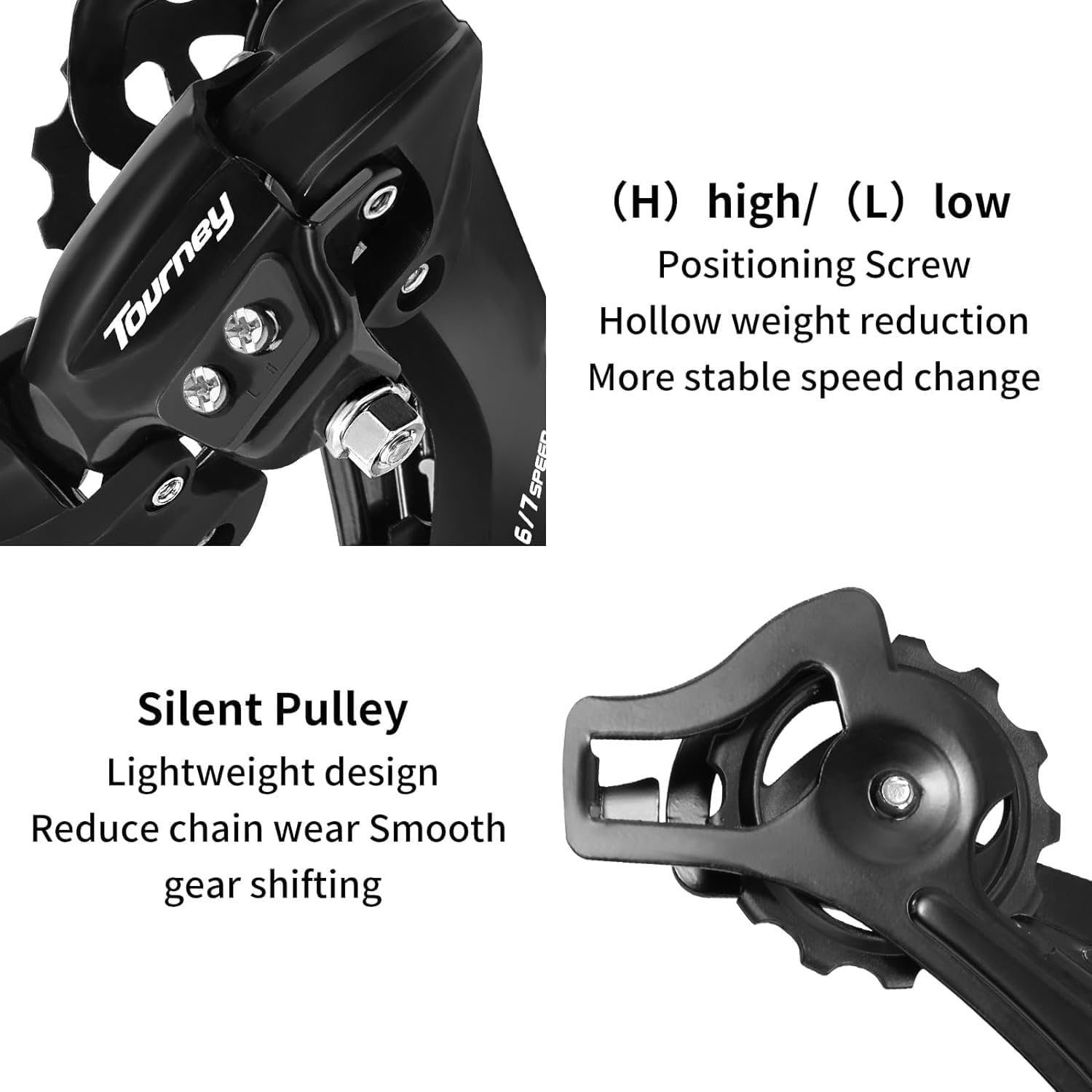

- 11 tooth pulleys offer long service life and less noise.
- Solid shifting performance with broad combination of gear options.

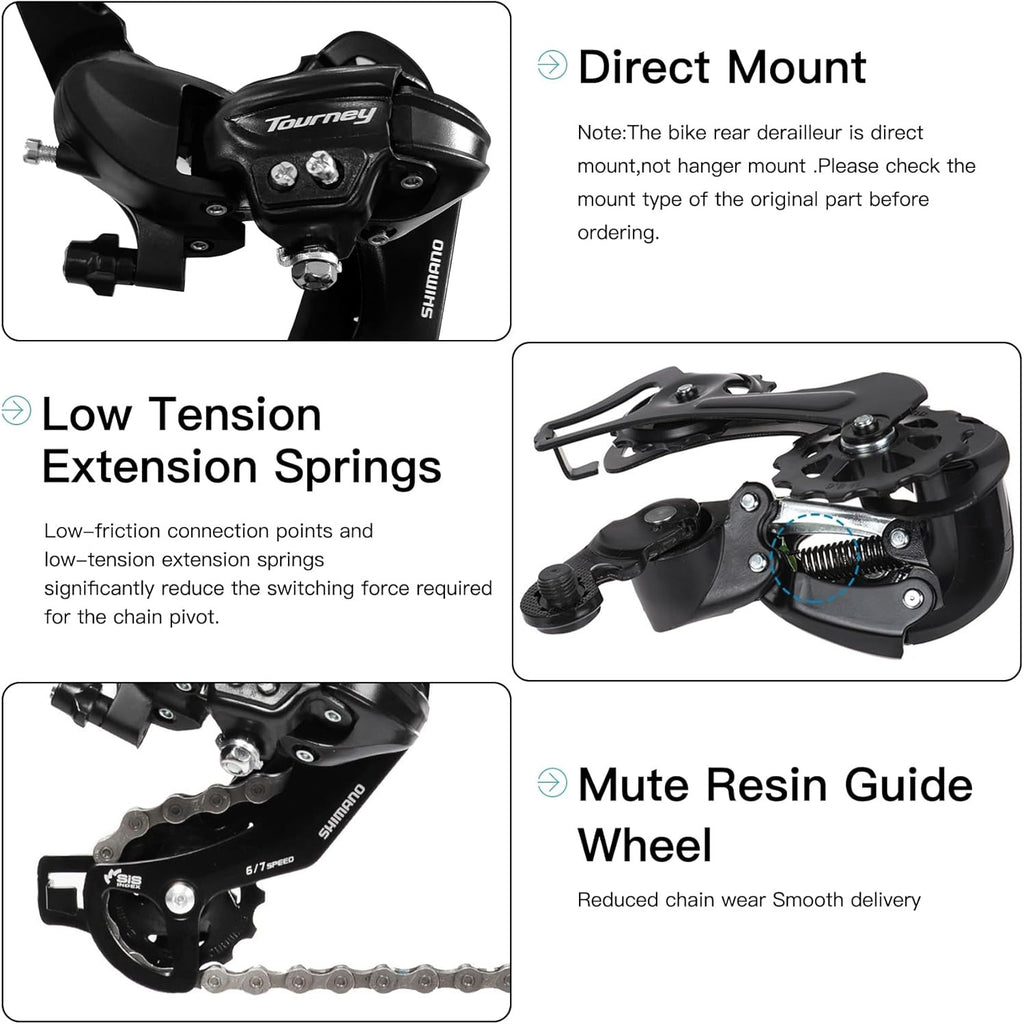

- Construction with double tension springs sufficient ground clearance for wheels.
- Wide gear combinations provide broad compatibility.

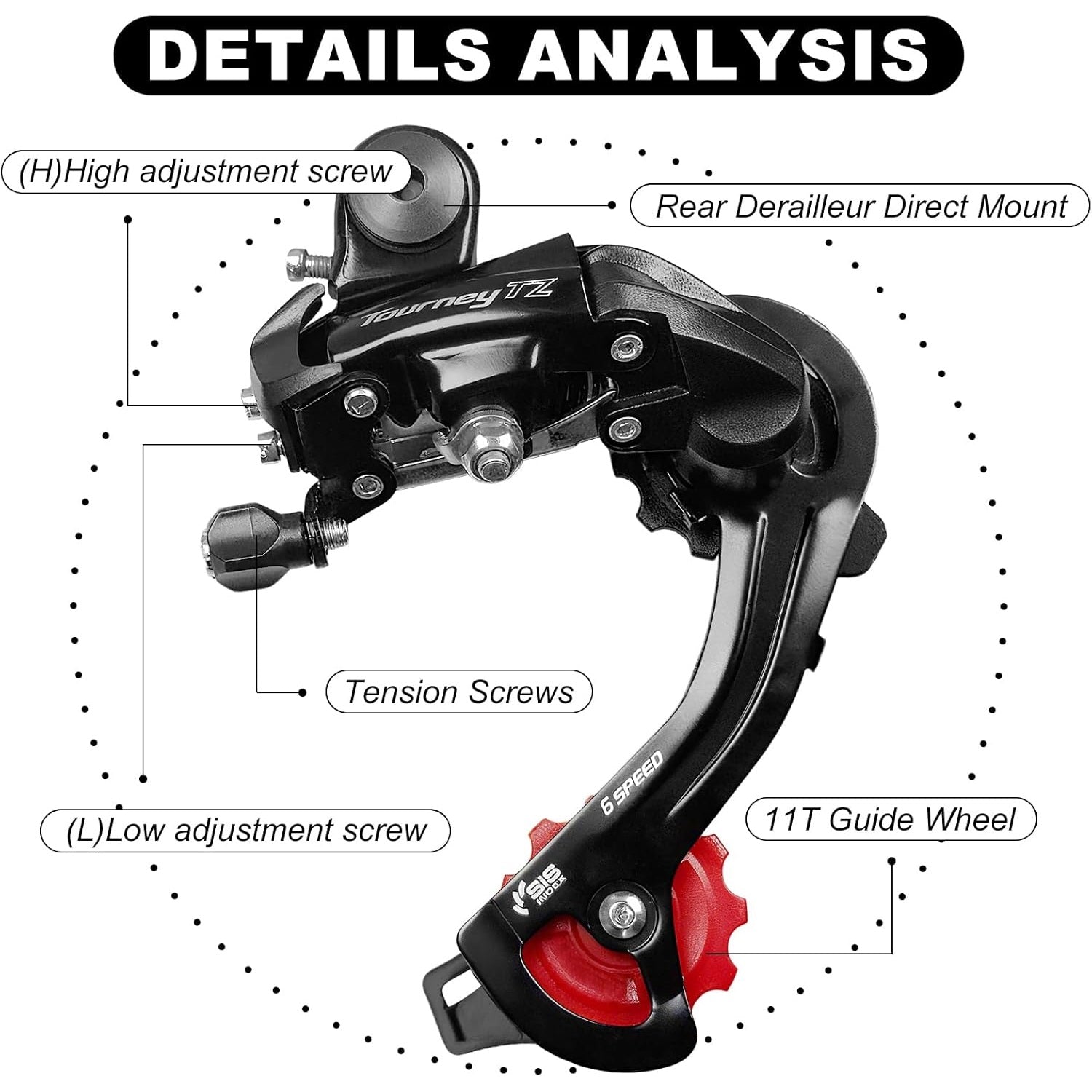

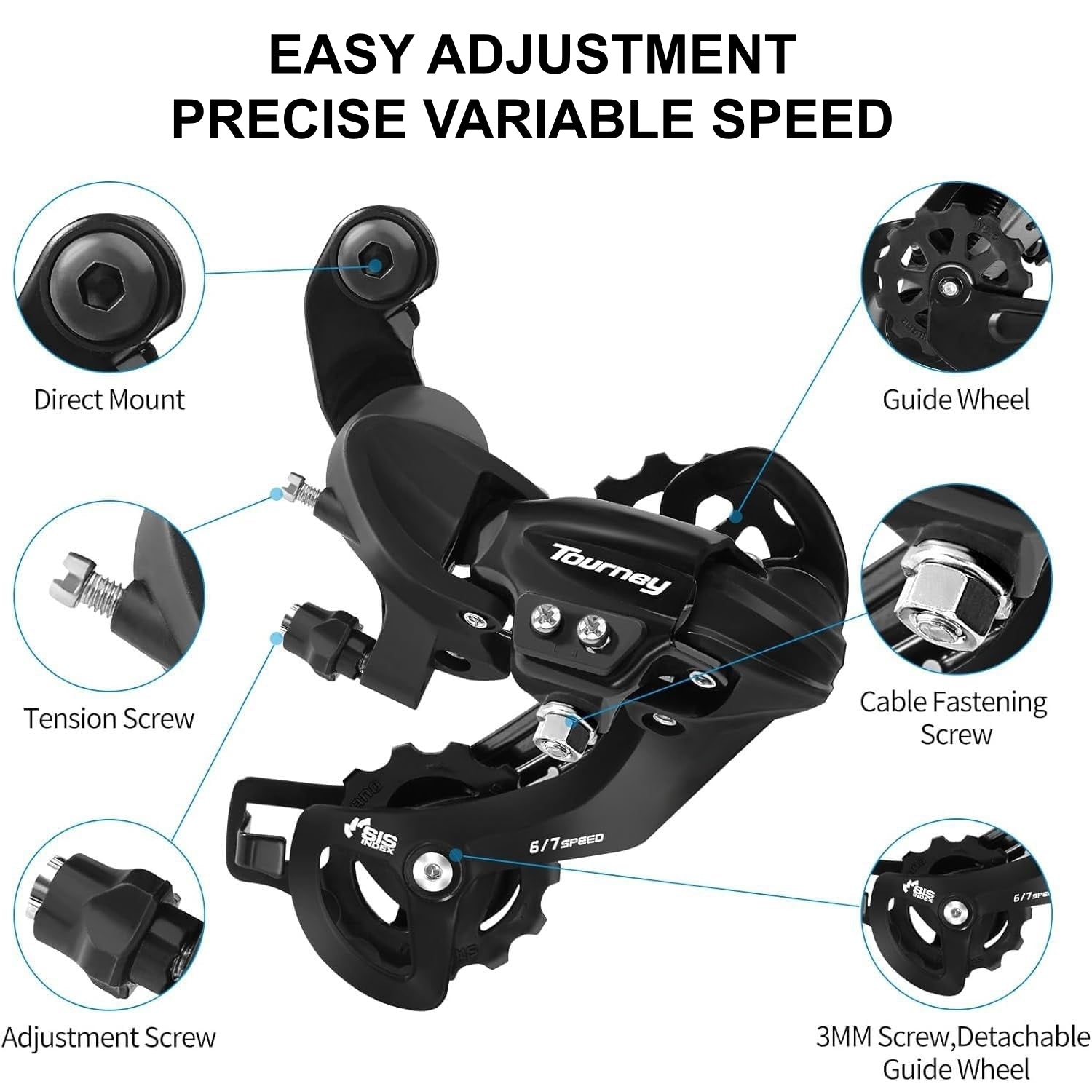

- Wheel type cable guide provides super light shifting action and clean cable routing.
- Sporty design in black.
Packing Contents
- 1 x Bike Rear Derailleur
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. Thank you.
