Vivi FAM01 | Family Electric Trike
Vivi FAM01 provides families with a safe, stable, powerful, and all-terrain family electric trike
Payment & Security
Description
With VIVI Electric Tricycle, you gain the freedom to explore every corner within 10 miles of home-no more limits on grocery runs, neighborhood errands, casual rides, or spontaneous adventures. Designed with an extra-wide rider seat and a newly added rear passenger seat—complete with a safety belt. Now you can share the journey with family or friends and reconnect with nature in total comfort. Powered by a 750W motor power, it reaches top speeds of 15.5 mph, while the 864Wh removable battery provides a reliable 50-60 miles range for your daily adventures.
- 1500W peak powerful rear drive motor, 80Nm torque
- Removable 48V 18Ah 864Wh lithium-ion battery
- Speed differential mechanism and Parking brake
- Intelligent 5 level pedal assist and Digital LCD display

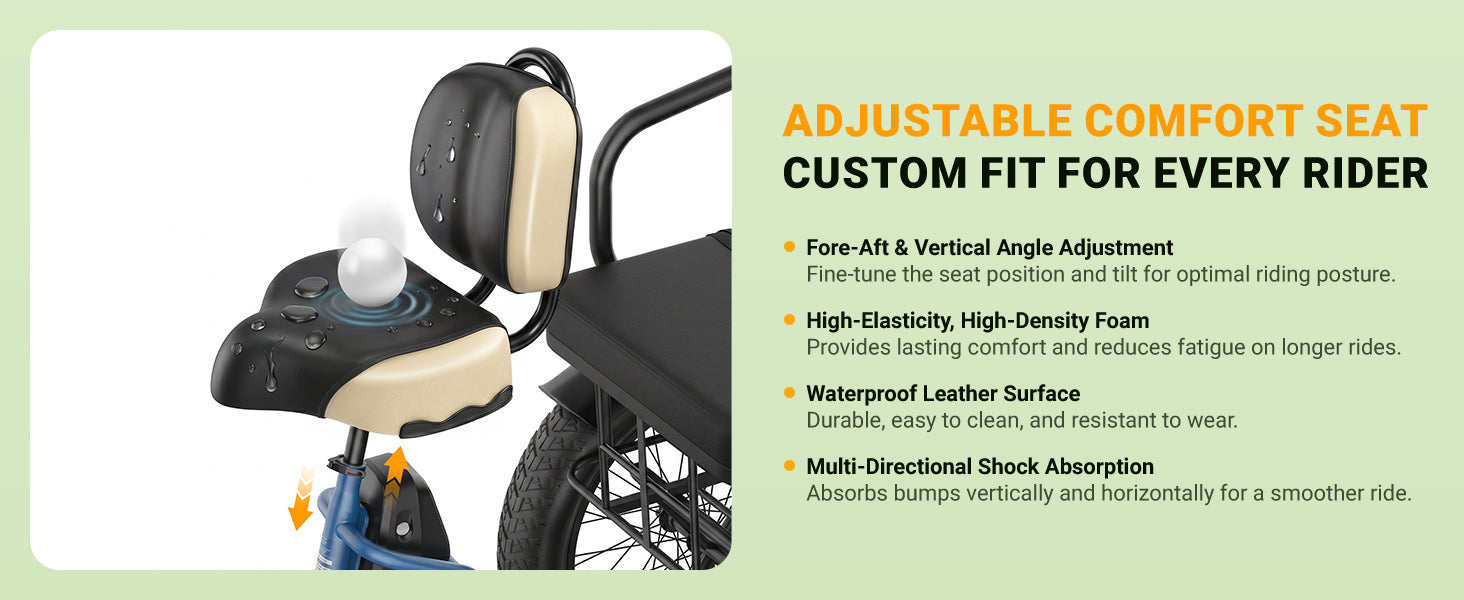

- Wide and thick saddle with shock absorption system
- Bright headlight and rear reflector light
- Ample storage space & high load capacity
- walking assist mode are more suitable for women & elder
- SGS certified to UL2849 & UL2271 safety standards
Perfect For Family Commuting and Outdoor Adventure
Motor Power
1500W Peak
Battery
48V 18Ah
Charging Time
4-6 Hours
Range
60 Miles
Max Speed
15 .5MPH
Max Capacity
550 Lbs
Performance
Model
FAM01 | FBDVI11
Color

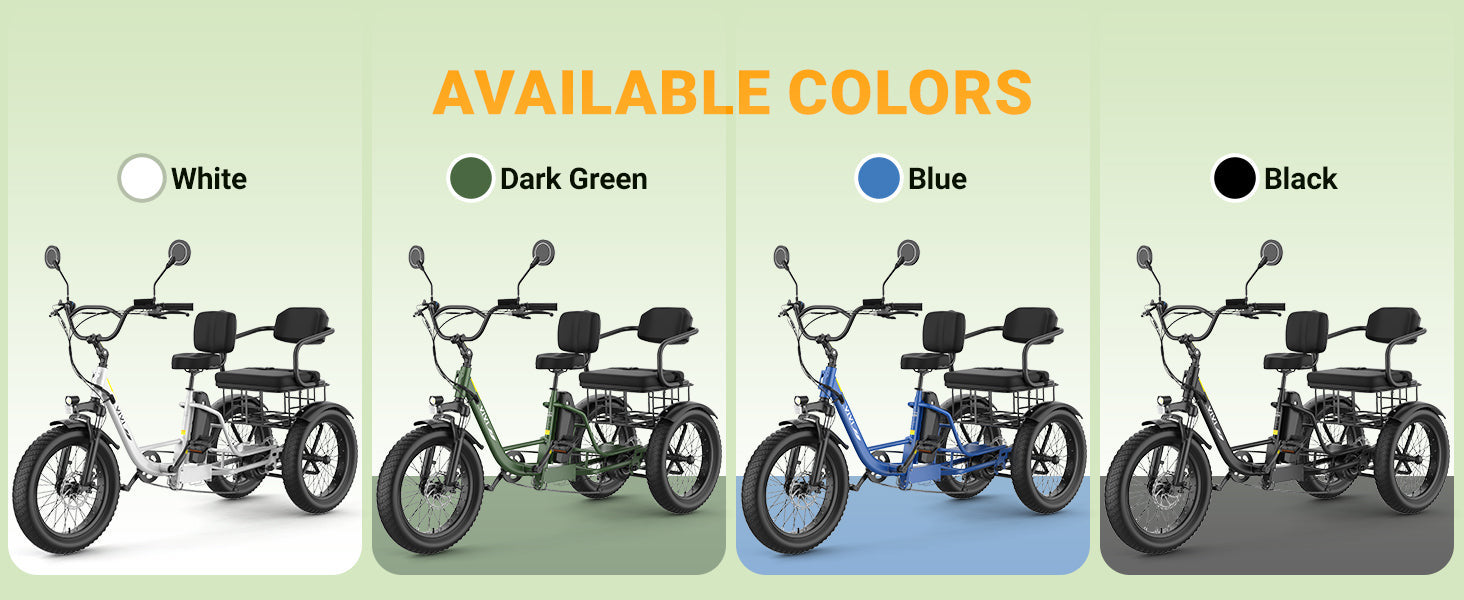

Black / White / Bule / Olive Green
E-bike Class
2
IP Level
IPX5
Regular Speed
16km/h 10MPH
Max Speed
25km/h 15.5MPH
Max Range
80-96km / 50-60 miles
Ebike Range
48-72km / 30-45 miles
PAS Range
80-96km / 50-60 miles
Speed Mode
Low / Mid / High
Bicycle Weight
57.6kg / 127lbs
Load Capacity
250kg / 550Ibs
Ebike Size
178x79x114cm / 70x31x45 inches
Package Weight
67kg / 148 lbs
Rider Heights
158-190cm / 5'2"-6'3"
Rider Age
16+
Folding
No
Certification
SGS | UL 2849/2271
GCC | CPSC 1512
Electronics
Motor
1500W Peak Brushless Gear Motor, 80N.m
Battery
48V 18Ah 864Wh Lithium-ion Battery
Controller
48V 24A Brushless Motor Controller
Display
👍48V Intelligent Digital LCD Display
Charger
👍US Plug 54.6V 3A Smart Charger
Charging Time
4-6 Hours
Pedal Assist
👍Intelligent 5 Level Pedal Assist
Sensor
12 Magnet Cadence Speed Sensor
Throttle
Half Twist Throttle+Thumb Throttle
Bell/Horn
Integrated Handlebar Bell
Front Light
48V Integrated LED Headlight
Tail Light
48V DC Integrated LED Turn Signal
Wiring
Waterproof Integration Cable
USB Ports
Without
Components
Frame
High Carbon Steel
Frame Type
Step-Through
Fork
Carbon Steel, Φ28.6×538mm, 100mm Travel
Suspension
Shock-absorbing Saddle System
Derailleur
Single-speed
Shifter
No
Gearing
Single-speed, 24T
Handlebar
Custom Formed Iron, 680×φ31.8mm
Stem
Iron,Φ28.6×40×90×φ31.8mm, 60º
Headset
Sealed Bearing Headset
Grips
Imitation Leather Ergonomic Grips
Saddle
Ergonomic Breathable Sport Saddle
Seatpost
Adjustable Φ30.4 x 300mm Alloy Seatpost
Seatpost Clamp
φ34.9mm Quick Release
Brakes
Mechanical Disc Brake
Tires
20 x4.0" 30TPI Anti Puncture Fat Tires
Rims
36H Double Wall Aluminum Rims
Calipers
Front Mechanical Brake Caliper
Brake levers
Alloy Levers with Motor Cutoff Switch
Brake Pad
SA 160mm Cassette, Semi-metallic
Spokes
13G Black Stainless Steel
Chain
KMC Carbon Steel Chain, 118 links
Freewheel
Aluminum Single-speed Freewheel, 24T
Fenders
Included, Full Coverage Front and Rear
Kickstand
Heavy-duty Aluminum, Side-mounted
Rear Basket
Included, Iron, Carrying 25kg/55lbs
Crank Set
42T Chainring, 170mm Crank, Forged Alloy Dual-sided Aluminum
Pedals
Standard 9/16" Forged Plastic Pedal with BS Reflectors
Geometry
Total Length
178cm / 70inch
Handlebar Height
114m / 45inch
Handlebar Length
68cm / 26.8inch
Handlebar Diameter
2.22cm / 0.87inch
Crank Length
17cm / 6.7inch
Seat Height
61-74.7cm / 24-29.4inch
Seat Tube Length
79cm / 31.1inch
Handlebar Reach
69.5cm / 27.4inch
Seatpost Diameter
2.72cm / 1.07inch
Standover Height
28cm / 11inch
Wheel Diameter
51cm / 20inch
Wheel Width
6.6cm / 2.6inch
Wheelbase
79cm / 31inch
Top Tube Length
42cm / 16.5inch
Front Wheelbase
58cm / 22.8inch
Rear Wheelbase
50cm / 19.7inch
Load Capacity
250kg / 550Ibs
Rider Heights
158-190cm / 5.2-6.3 ft
Bicycle Weight
57.6kg / 127Ibs (battery included)
Bicycle Dimensions
178x79x114cm / 70x31x45 inches
Features
Peak 1500W Brushless Gear Motor
The electric trike is equipped with a powerful 750W rated brushless geared motor, delivering a maximum torque of 80 N.m and a peak power of 1500W. It can climb inclines of up to 20° and reach a top speed of 15.5 mph. The powerful motor delivers a smoother driving experience, easily conquering steep slopes and rugged mountain roads, providing strong power for your urban commuting and outdoor adventures.
48V 864Wh Removable Battery
The electric trike features a high-capacity 48V 18Ah removable battery and comes with a 3A fast charger, fully charging in just 6 hours, allowing you to get back on your journey faster and explore further. The extended range allows for a longer riding distance, with a combined daily riding range of 50-60 miles, effectively eliminating range anxiety and meeting daily commuting or cargo carrying needs.
Speed Differential Mechanism
The electric trike features a built-in mechanical differential, enabling differential cornering, changing the direction of power transmission, and reducing speed while increasing torque (reducing speed and increasing power). It can automatically distribute power to the left and right wheels, allowing the two rear wheels to rotate at different speeds, preventing rear wheel slippage and rollover when turning, so that you can enjoy a safer and more controllable riding experience in every turn.
One-touch Parking System
The electric trike features front and rear mechanical disc brakes and a parking brake, providing stable braking force. The parking brake locks the rear wheels to prevent slippage, and the dual disc brakes provide precise braking and quick stopping. The 20x4.0 inches all terrain fat tires provide excellent grip and stability, and paired with a 7-speed drivetrain, it easily handles snow, sand, or rough terrain, bringing you a superior riding experience.
User-friendly Configuration
Designed for families, the electric trike features a padded, soft rear seat and passenger seat, supporting up to 275 Ibs for enhanced support and stability, resulting in a balanced, comfortable, and safe riding experience. It also features an LCD display, through which you can set five speed modes (5/8/10/12/15.5 mph). Each speed level corresponds to a different level of assist, and the five assist modes can be easily switched via the LCD display.
High-strength Step-through Frame
The electric trike features a high-strength step-through steel frame and a reinforced rear cargo basket. The entire vehicle is coated with an anti-rust coating and has a maximum load capacity of 550 Ibs. The frame has undergone more than 100,000 fatigue tests, ensuring its durability. It meets UL 2849 safety standards. Suitable for beginners, senior cyclists, or female users. It's ideal for everyday shopping, errands, short trips with pets, camping, and leisurely rides.
Display
