Before purchasing, please confirm the item label information on the upper and lower tubes or frames of your electric bike. If you purchased between 2021 and 2023, or if the model number on the frame label begins with "SPA~" (e.g., SPA000016, SPA000047), or if the model number on the frame label reads "C26, M026TGB etc.", please select the SPA series frame series. If your electric bike uses a 48V voltage battery, please select this 48V JM12E LED Display Meter. If it is a 36V voltage battery, please select 36V KD26E LED Display Meter.
-
If you purchased after 2024, or if the model number on the frame label begins with "AMAK~" (e.g., AMAK00016, AMAK00020), or if the model number on the frame label reads "C26 UL, M026TGBUL etc.", please select the AMAK series frame series and select the P3H LCD Display Meter. E-bike parts for these two frame series are incompatible, so please avoid purchasing the wrong parts.
-
Please confirm the specific model and label of your original bike display meter before purchasing. The original model shall prevail, the meter is not universal, and the wrong purchase will not be returned or exchanged. If you cannot find the model you want to buy, please contact the after-sales customer service email and purchase under the guidance of customer service to avoid buying the wrong item.
Applicable Bike Model
The 48V Display Meter is suitable for the following electric bikes. Please follow the meter label to purchase.
| METER | LABEL | MODEL | STYLE | BIKES |
|
Meter A (48V) |
12E8JN26CD035S044 12E8JN26CD045S044 12E8J26CD5S11141 |
C26 | 500W 48V |
|
|
Meter A (48V) |
12E8JN26CD035S044 12E8JN26CD045S044 |
H6 | 500W 48V |  |
|
Meter A (48V) |
12E8JN26CD035S044 12E8JN26CD045S044 |
M026SH | 500W 48V |  |
|
Meter A (48V) |
12E8JN26CD035S044 12E8JN26CD045S044 |
M026TGB | 500W 48V |  |
| Meter B | 125S8D00214007304 | FM20 | 500W 48V |  |
| Meter B | 125S8D00214007304 | MT20 | 500W 48V |  |
| Meter C |
12E5S8JN00001404 12E8JN00CD035S044 |
H6 Plus | 500W 48V |  |
| Meter C |
12E5S8JN00001404 12E8JN00CD035S044 |
H7 | 500W 48V |  |
| Meter C |
12E5S8JN00001404 12E8JN00CD035S044 |
H8 | 500W 48V |  |
| Meter D | 12E5S8JN26D21404 | M026SH | 500W 48V | |
| Meter E | 12E5S8JN26D01404 | M026TGB | 500W 48V | |
| Meter E | 12E5S8JN26D01404 | H8 | 500W 48V | |
| Meter E | 12E5S8JN26D01404 | MT20 | 500W 48V | |
| Meter F | 12E5S8JN00D01404 | H7 | 500W 48V | |
| Meter G | 125S8D26214007204 | C26 | 500W 48V | |
| Meter G | 125S8D26214007204 | M026SH | 500W 48V | |
| Meter G | 125S8D26214007204 | M026TGB | 500W 48V | |
| Meter G | 125S8D26214007204 | MT26G | 500W 48V |  |
| Meter H | 125S8D00214007304 | H7 | 500W 48V | |
| Meter I | 125S8D20214007504 | FM20 | 500W 48V | |
| Meter I | 125S8D20214007504 | MT20 | 500W 48V | |
| Meter J |
125S8D26214007404 -A (With cruise control) |
C26 | 500W 48V | |
The 36V Display Meter is suitable for the following electric bikes. Please follow the meter label to purchase.
| METER | LABEL | MODEL | STYLE | BIKES |
|
Meter A (36V) |
/ |
C26 | 350W 36V | |
|
Meter A (36V) |
/ |
H6 | 350W 36V | |
|
Meter A (36V) |
/ |
M026SH | 350W 36V | |
|
Meter A (36V) |
/ |
M026TGB | 350W 36V | |
|
Meter B (36V) |
/ | FM20 | 35W 36V | |
|
Meter B (36V) |
/ | MT20 | 350W 36V | |
Product Details
| Color | Black |
| Brand | Jok-Meter |
| Model | JM12E |
| Rated Voltage | 36V/48V |
| Rated Current | 15mA |
| Communication | Uart / Can |
| Material | ABS Plastic/aluminum |
| Pedal Assist | 3 levels of pedal assist |
| Type | LED Bicycle Display Meter |
| PAS Level | 0-3 |
| Waterproof Level | IP54 |

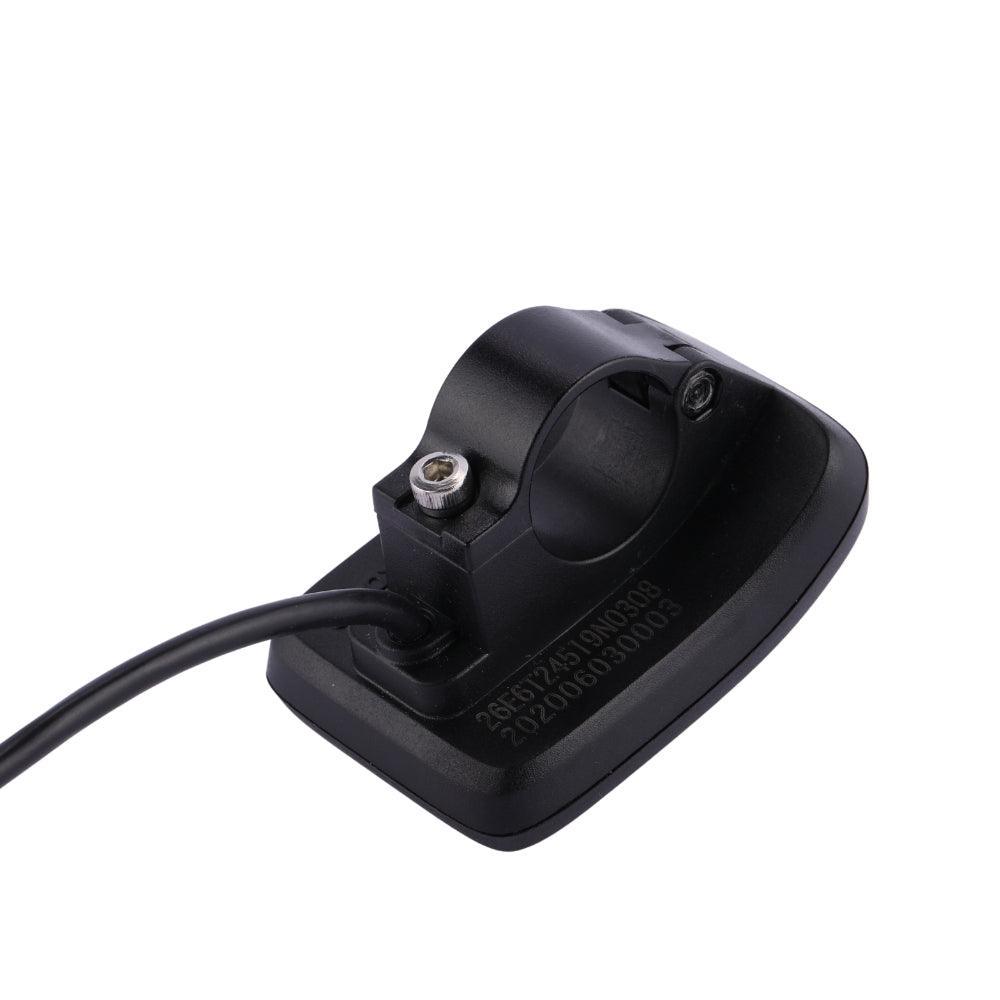

| Suitable Holder | φ22.2mm |
| Features | Lightweight,waterproof and wear-resistant,LED display |
| Item Dimensions |
4.6*4.0*6.4cm/1.8*1.6*2.5inch |
| Packing Weight | 0.05kg/0.11lbs |
| Packing Dimensions | 12*8*10cm/4.7*3.1*3.9inch |
| Quantity | 1Pc |
Main Features
-
Premium Material: This display adopts good quality materials, lightweight, IP54 waterproof and rainproof, sturdy and durable.
-

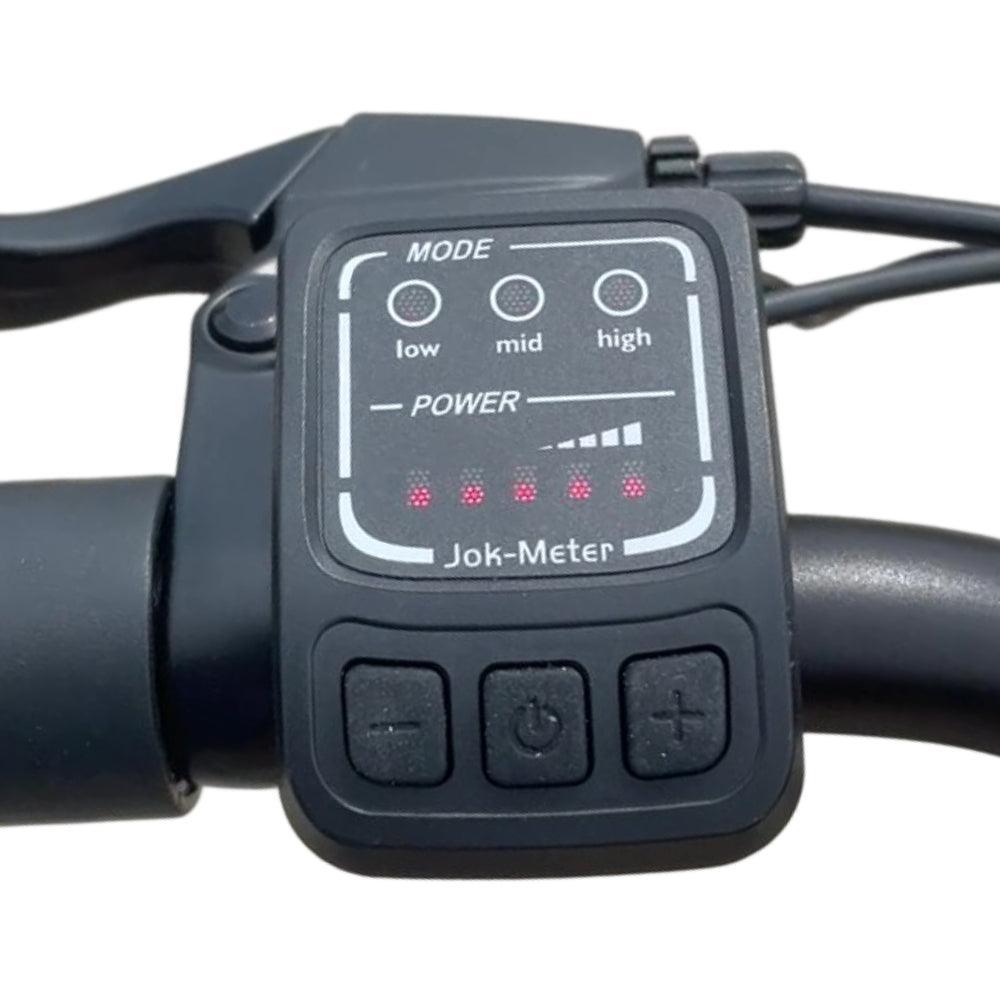

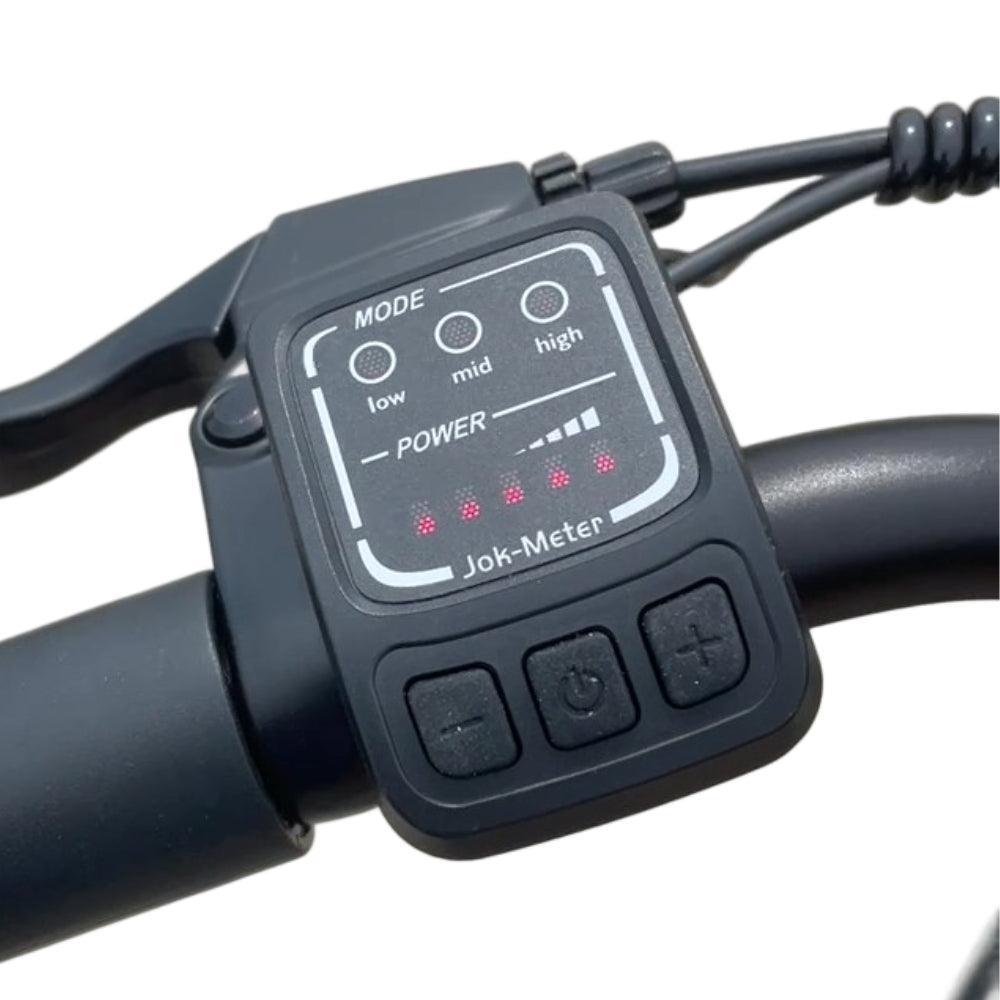

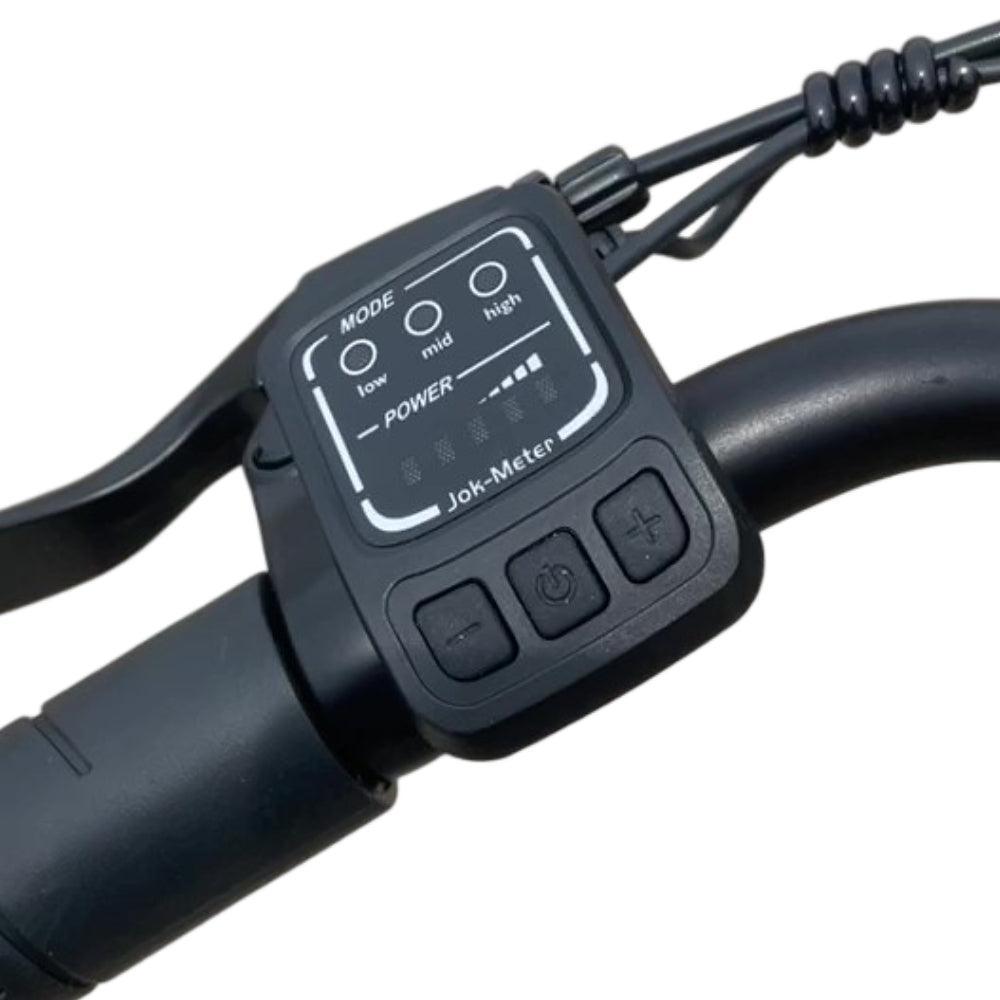

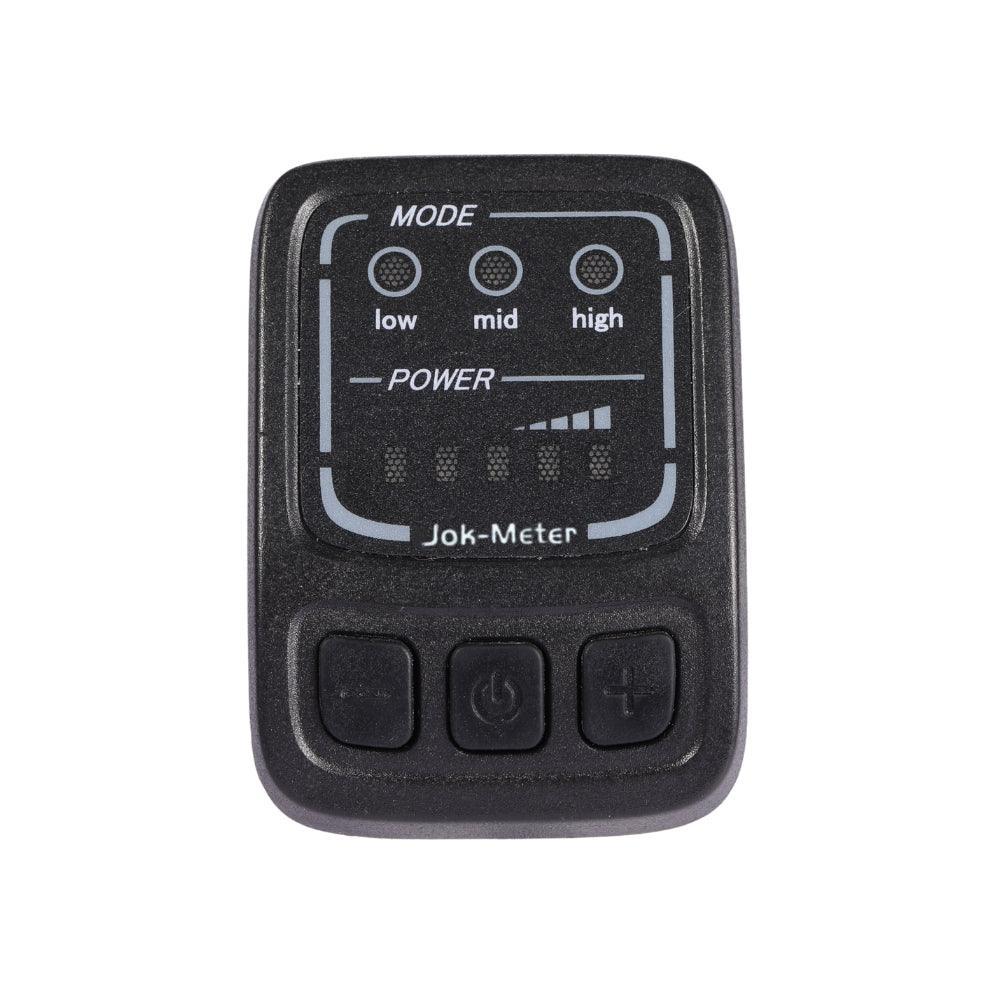

LED Display: LED display can clearly show the state and data, backlight enables you to see scree clearly in dim environment, buttons for quick operation, easy to use.
-
3 Levels Modes: 3 levels assist modes, speed level display, riding mode display, battery level display.
-

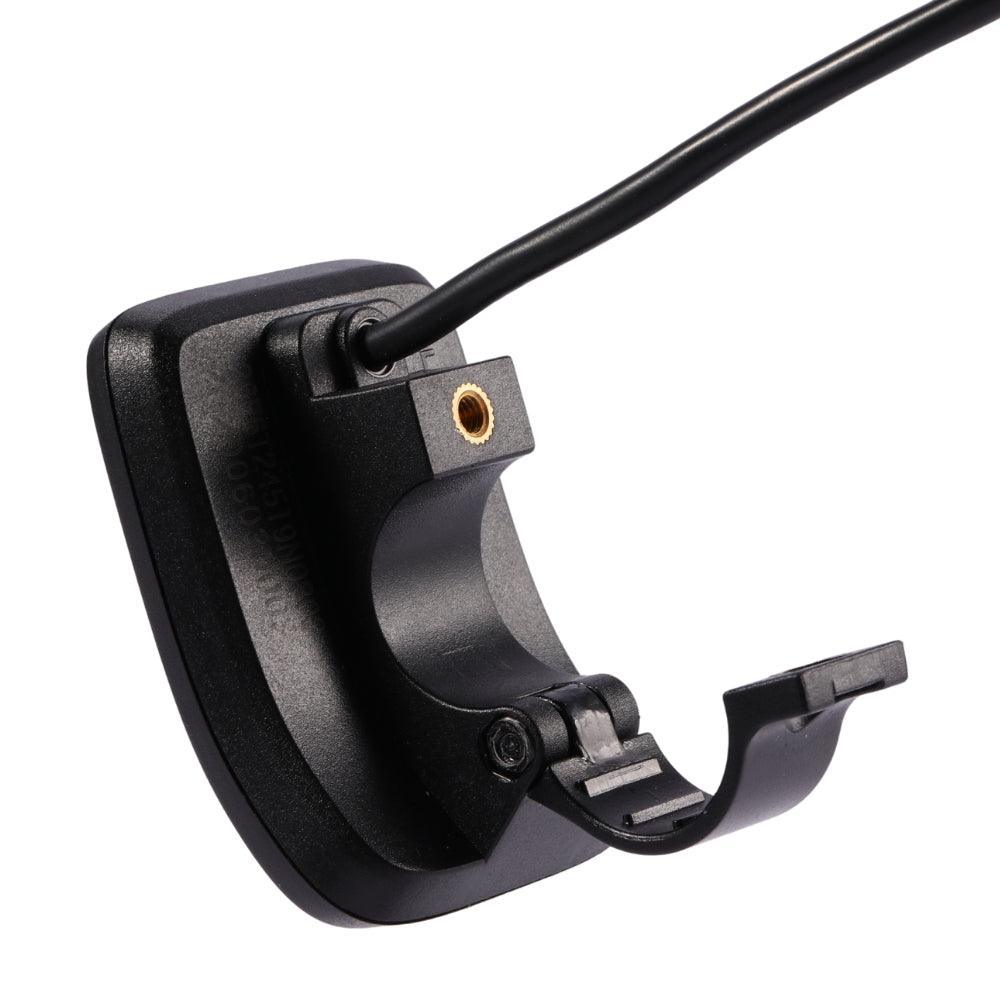

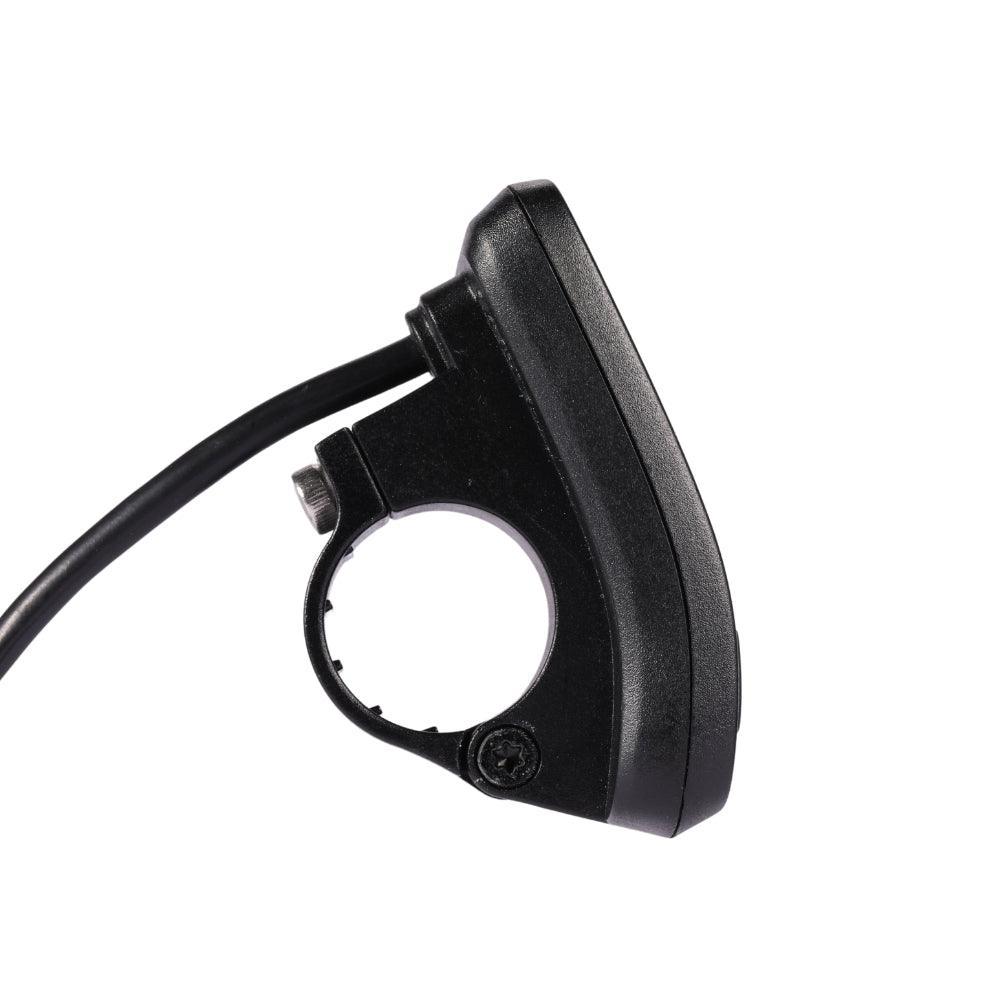

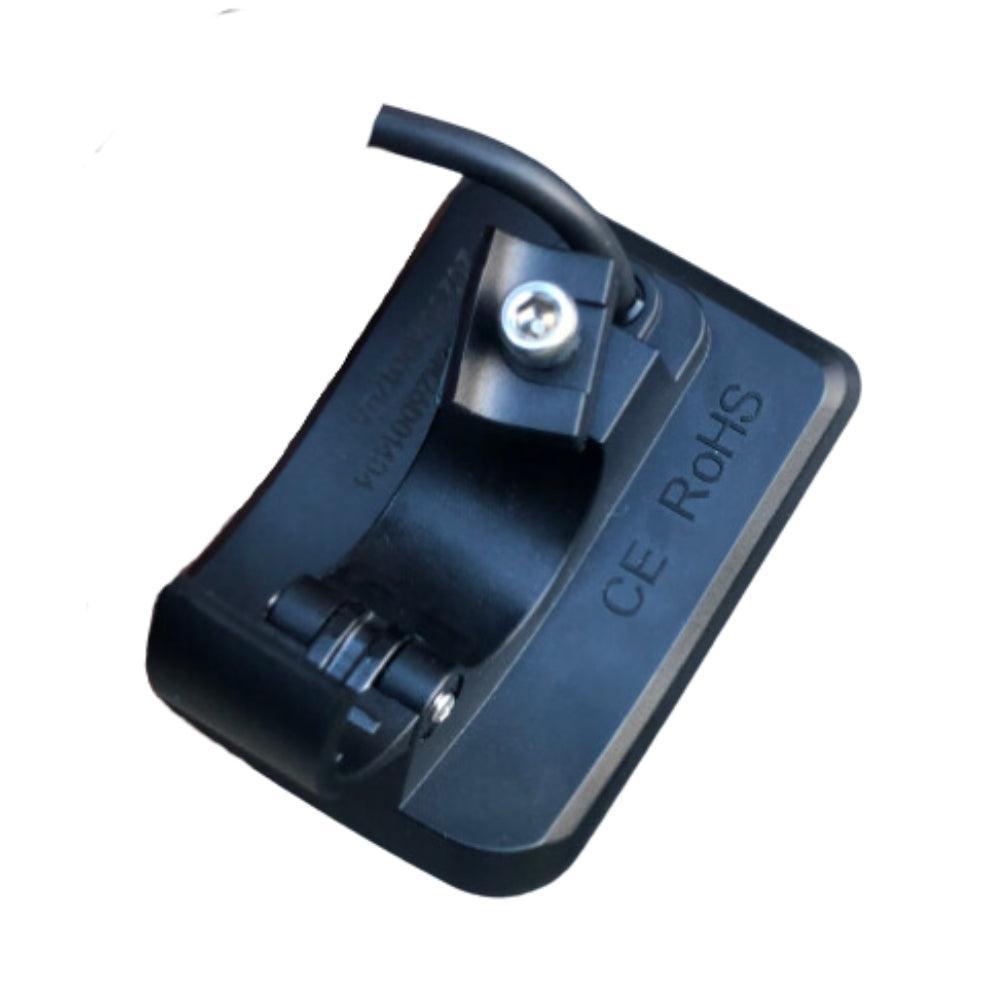

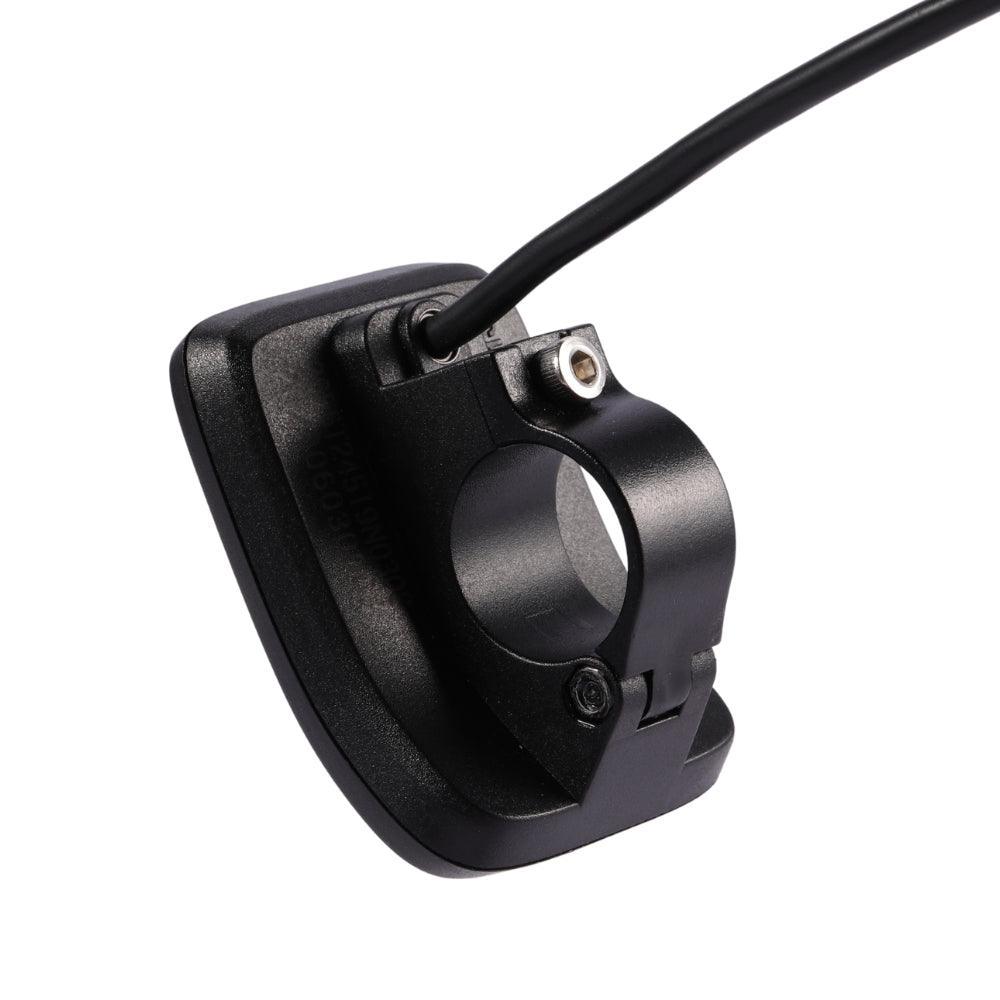

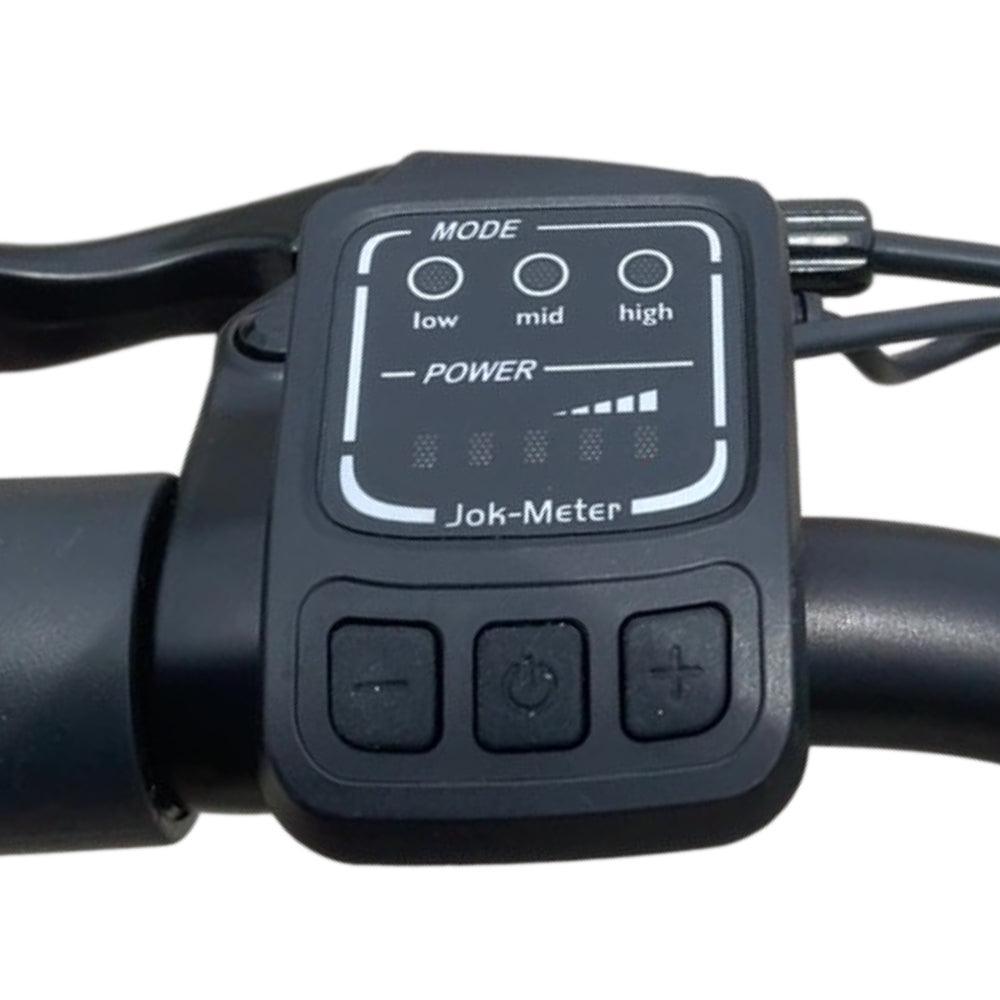

Wide Application: This electric bicycle LED display is easy to install and use, comes with mount for LED display and it is suitable for 22.2mm handlebar.
Packing Contents

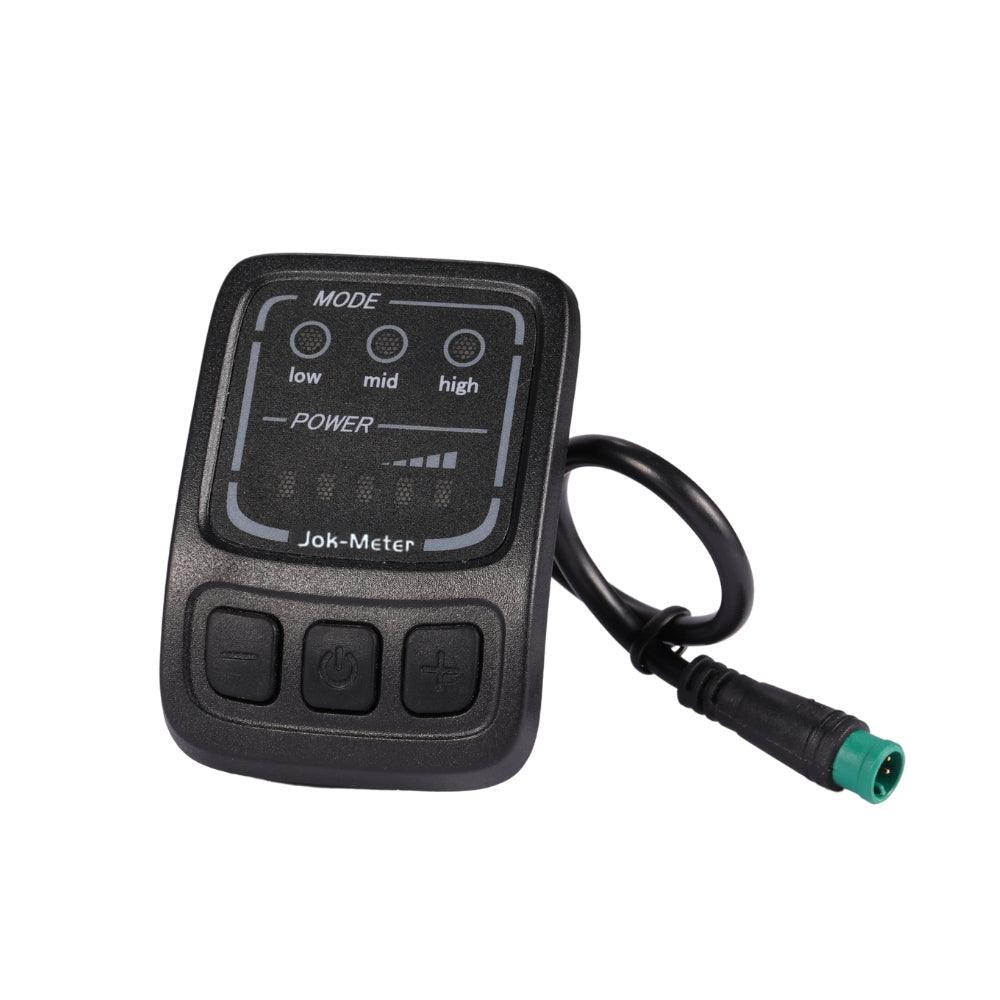

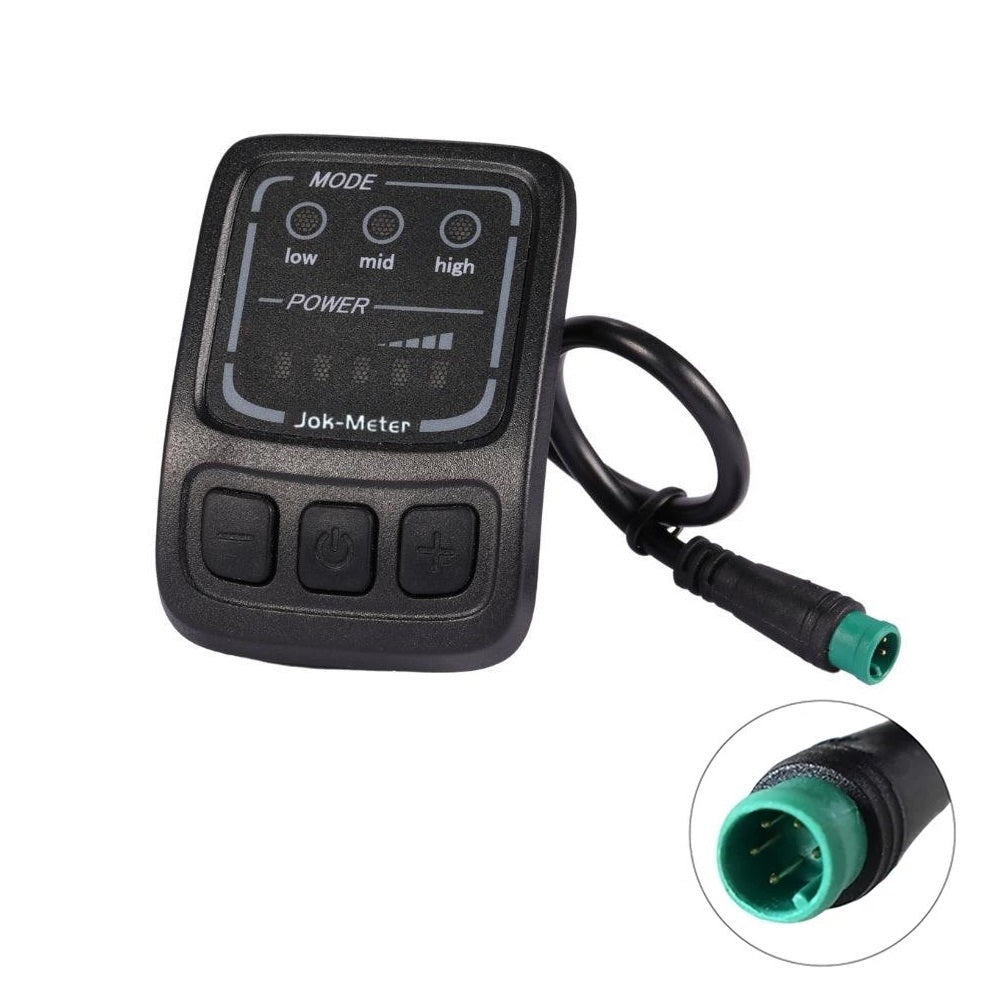

- 1 x Bike 48V JM12E 48V LED Display Meter
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. Thank you.
